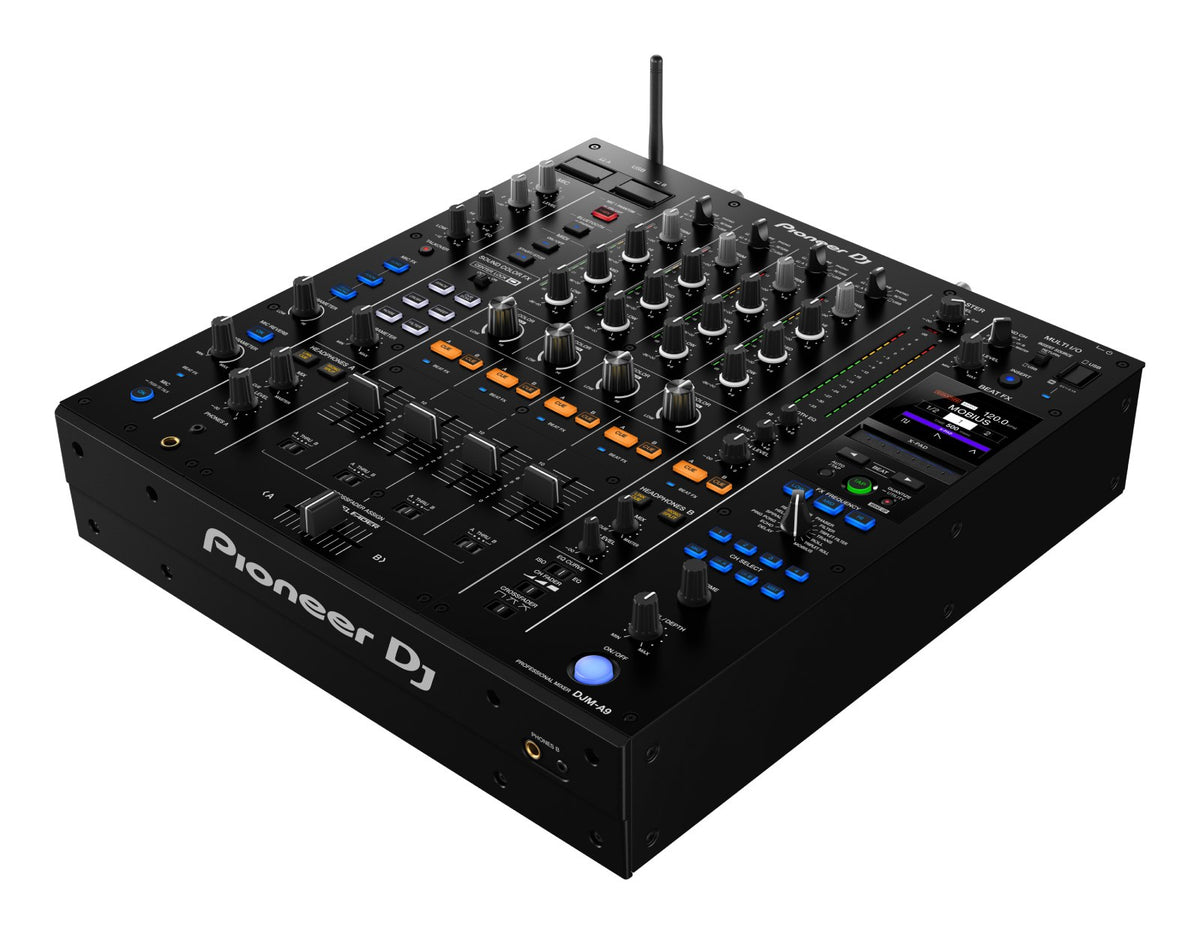

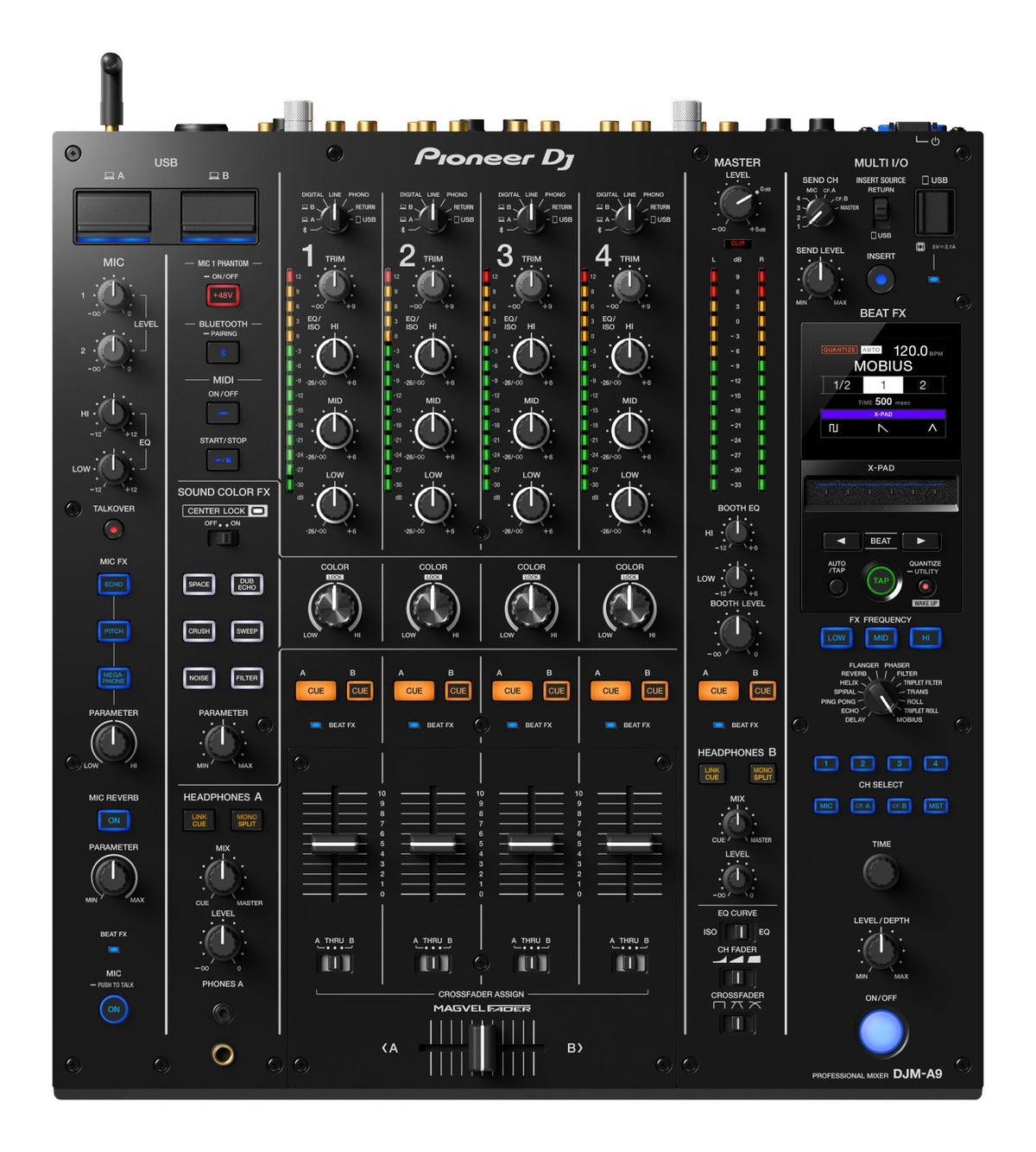

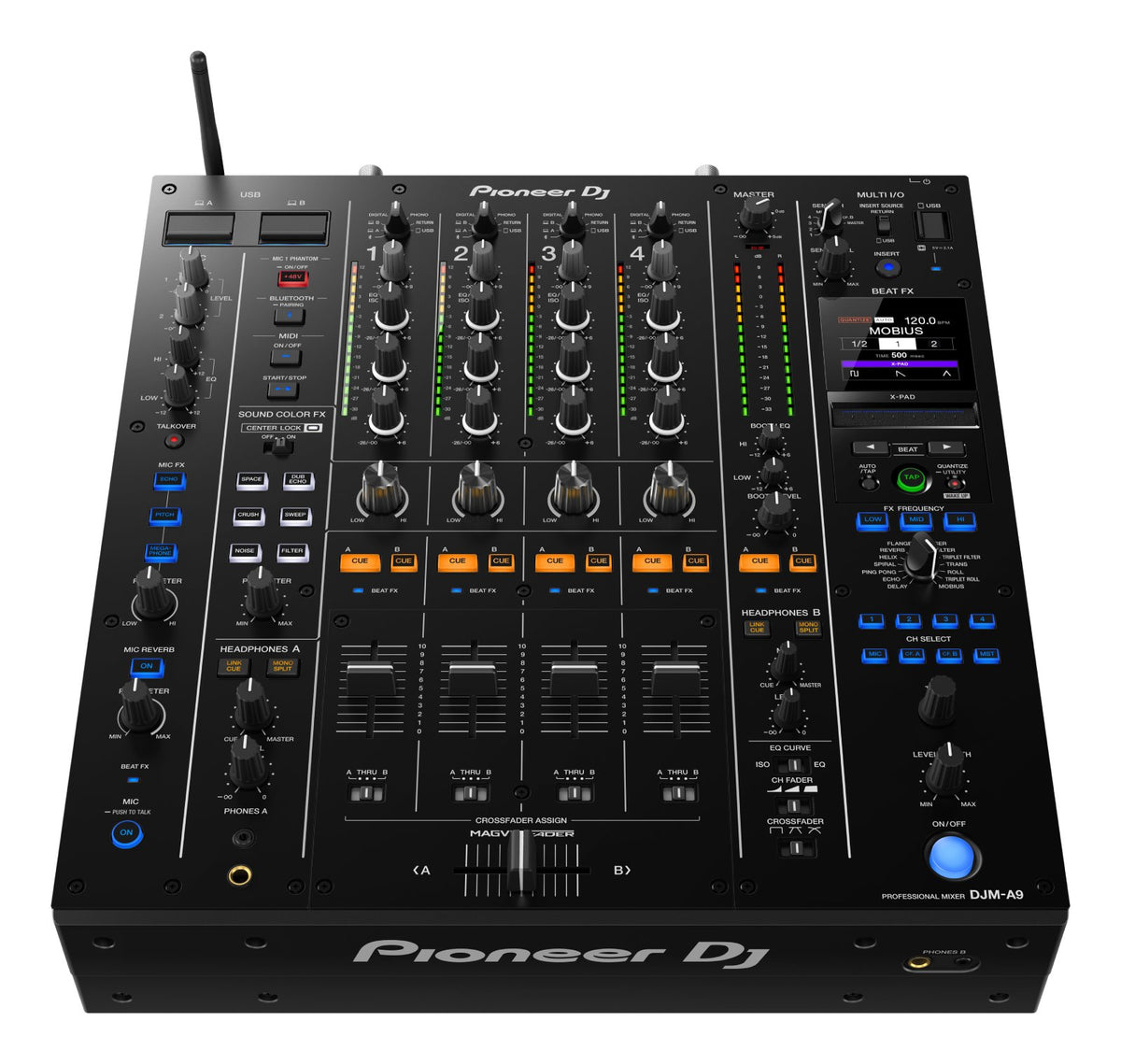

Pioneer Dj DJM-A9

The New Club Standard Succeeding the DJM-900NXS2

Designed as the benchmark for club setups, the DJM-A9 adopts the acclaimed DJM layout while pushing audio quality and reliability even further. Its optimized digital architecture, carefully selected components, and redesigned input/output stages make it Pioneer DJ's flagship mixer for the most demanding stages.

For Which DJs and Usage Contexts?

The DJM-A9 targets professional and resident club DJs, back-to-back collectives, and event sound engineers. It excels in fixed booths, tours, festivals, or premium installations, and is also suitable for studio and streaming thanks to its comprehensive connectivity and recording tools.

Features and Innovations

The input section adopts 32-bit ESS A/D converters, while the Master and Booth outputs benefit from 32-bit D/A converters for monitoring identical to the track. Redesigned isolators offer a more musical response. The Center Lock secures the Sound Color FX, and the Beat FX section features a new color screen, a horizontal X-Pad, and 3 new effects ("Mobius," "Triplet Filter," "Triplet Roll"). The microphone section evolves with phantom power, dedicated effects (Echo, Pitch, Megaphone), and a Push-to-Talk button, with the option to exclude the voice from recording. On the connectivity side, two sets of USB Type-B and Type-C ports facilitate DJ changes, the Bluetooth input is assignable to any channel, and the Multi I/O section allows true external effects send/return. The mixer supports the Stagehand app via PRO DJ LINK for remote control and integrates the Sound Check function. Compatible with rekordbox and Serato DJ Pro (DVS), it pairs with DJM-REC for recording and streaming via streaming platforms. A lockable power cord secures your shows, and support for ShowKontrol and PRO DJ LINK Bridge paves the way for synchronized audiovisual shows.

Technical specifications

Type	Digital	Number of faders	4
USB stereo recording / playback	Yes	Rackable	No

Bluetooth	input assignable to any channel	Maximum dimensions (W x D x H)	407.4 x 458.3 x 107.9 mm (height with wireless antenna: 140.7 mm)
Frequency response	20 Hz - 40 kHz (Line)	Dimensions in inches	16.4" x 18.4" x 4.25" (antenna: 5.54")
Signal-to-noise ratio	114 dB (USB, Digital IN), 105 dB (Line), 88 dB (Phono), 79 dB (Mic 1, Mic 2)	Weight	10.2 kg / 22.5 lb
Total harmonic distortion	0.005% (Line -> Master 1)	Beat FX	14 effects including "Mobius," "Triplet Filter," "Triplet Roll"; horizontal X-Pad with color screen
Power consumption	46 W
