POLYEND DJ Loop

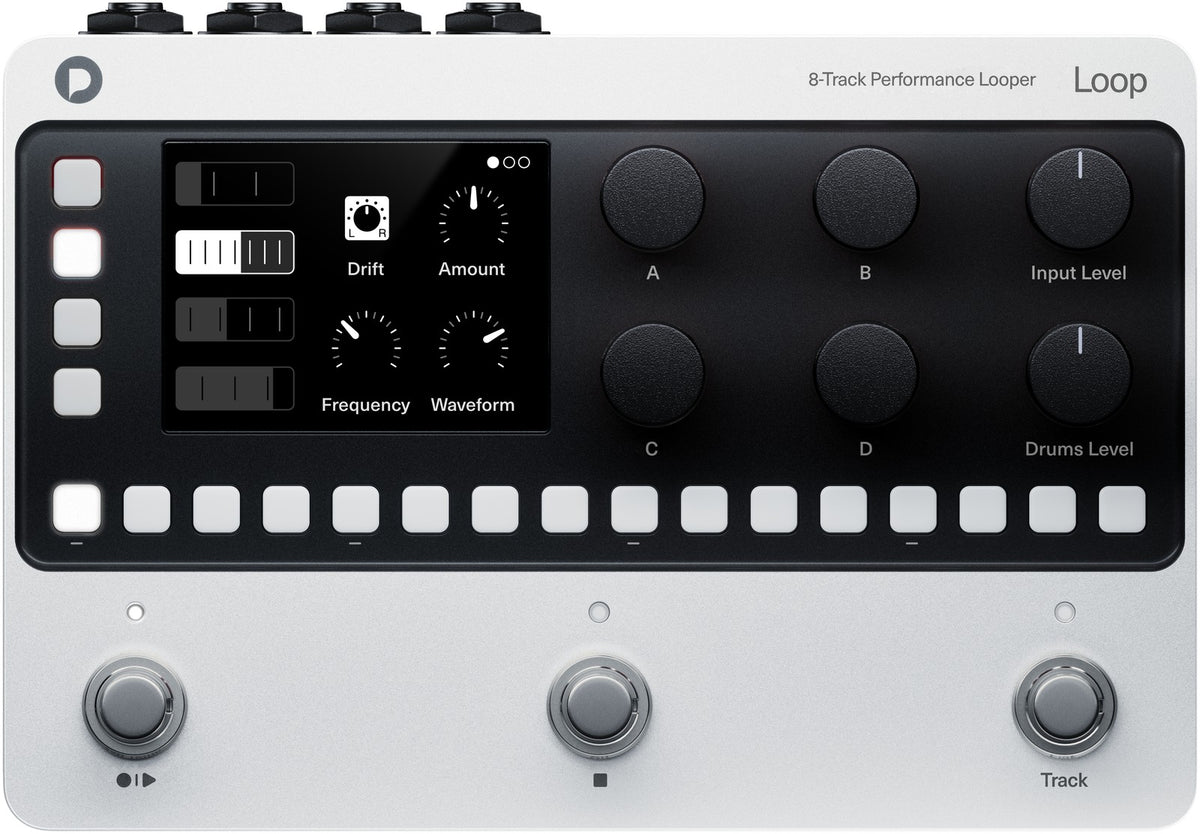

The essentials to know about the Polyend Loop Studio standalone 8-track multi-effects unit: four audio loop tracks are combined with four sample-based drum tracks to build complete songs. Creative stereo looper: record, layer and transform your loops with more than 100 effects, Reverse and Ping-Pong modes, as well as Varispeed. Built-in drum machine: create detailed grooves with 16 16-step patterns per project, customizable kits and sequencing directly accessible by foot and from the front panel. Designed for the stage: quantized project changes, MIDI synchronization, an input for an expression pedal and session backup to a microSD card. Much more than a looper: a pedal-format composition station The Polyend Loop rethinks the performance looper, transforming it into a true composition instrument. Where a classic looper focuses on recording and stacking phrases, this model combines a four-track audio looper, a four-track drum machine and a sequencer in a compact format designed for a pedalboard. It is part of Polyend’s creative ecosystem, a brand renowned for its sequencing machines and performance tools. The Loop does not seek to imitate a legendary looper: it offers a modern approach, capable of evolving a riff idea, an ambient texture or a chord progression into a structured arrangement with an intro, verse, chorus and outro. A playing partner for guitarists, multi-instrumentalists and solo artists The Polyend Loop is aimed at guitarists and bassists who want to enrich their solo performances, as well as keyboardists, singers, electronic musicians and instrumental music creators. Its intuitive operation makes it easy to capture an idea quickly, while its arrangement functions will satisfy experienced users looking to prepare a complete set. In rehearsal, it becomes a

Technical specifications

Effects	Tremolo, Reverb, Delay, Multi-effects, Looper / Sampler, Distortion / Overdrive / Fuzz, Chorus / Flanger / Phaser, Fuzz, Chorus, Looper & Drum Machine, Distortion, Overdrive, Flanger, Panning, Phaser	Number of tracks	8
Technology	Digital	Type	sector
Format	Pedal	Use	guitar, Bass, Pedalboard

Loop tracks	4 independent mono or stereo tracks	Tempo	30 to 280 BPM, with synchronization possible via an external MIDI clock
Recording time	up to 60 seconds per loop track	Factory library	more than 500 kits, more than 350 rhythms, more than 2,000 samples and more than 180 loops
Overdubs	unlimited	Sampling	record your own drum sounds via the audio input
Undo	undo the last overdub	Projects	storage for up to 1,000 projects with quantized switching on the bar

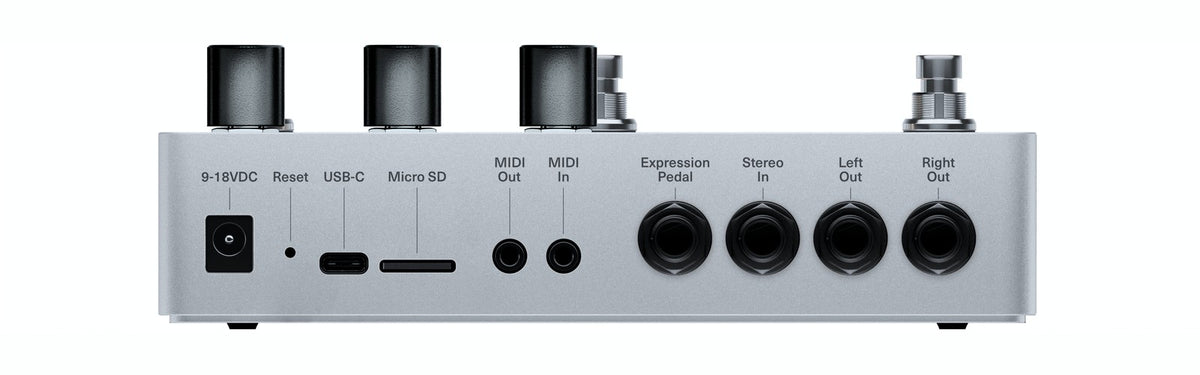

Playback modes	Forward, Reverse and Ping-Pong, independent for each track	Audio input	6.35mm TRS stereo or mono jack for instrument, line-level or dynamic microphone
Timing	free or tempo-synchronized length for each loop	Phantom power	none
Varispeed	speed and pitch linked to the tempo, or playback independent of the tempo	Audio outputs	6.35mm Left/Mono jack and 6.35mm Right jack
Per-track mixing	independent volume, gain and panning	Expression input	6.35mm TRS jack with assignable performance parameters
Files	save individual audio tracks in WAV format to a microSD card	MIDI	bidirectional USB-C MIDI
Drum tracks	4 sample-based tracks	Storage	microSD card slot for projects, samples, loops, WAV files and updates
Kits	4 samples per kit, one sample per track	Audio and file transfer	via microSD card
Patterns	16 patterns per project	Dimensions	180 x 120 x 57 mm
Resolution	16 steps per pattern	Weight	0.93 kg
Arrangement functions	pattern queuing and chaining
