Designed for impactful aerial shows, on stage or in clubs
With its 3deg beam angle, this beam moving head is crafted to create sharp beams, fast fans, and tight chases. It naturally fits into a DJ set, club, music bar, concert hall, or theater stage. Whether for event performances (weddings, galas, corporate parties) or fixed installations, it delivers professional results without complexity, whether you use Auto/Sound programs or advanced DMX control.
For mobile DJs, lighting technicians, and operators of festive venues
The 4 x 40 W RGBW beam moving head is aimed at DJs and providers seeking immediate visual impact in a compact format, as well as lighting technicians looking for a reliable unit to complement an existing beam kit. Club and stage venue operators will appreciate its wide movements and dedicated strobe, while discerning private users will find a ready-to-use solution to transform a home studio or reception room.
Features and innovations
The light engine combines four 40 W RGBW (4-in-1) LED sources, offering precise color mixing and an intensity capable of cutting through space with a very narrow 3deg beam. The three dedicated 10 W white LEDs for the strobe deliver energetic flash effects, from subtle white strobe to fast blinder, with an adjustable rate from 1 to 13 Hz. The 0-100% dimmer allows smooth fades, while the movements ensure the show: infinite rotation pan for continuous spins and 220deg tilt to sweep the vertical play area. For control, you can choose between 16 or 33 DMX channels depending on your needs: the short mode for quick patching, the extended mode for granular parameter access. Alternatively, Auto, Sound, and Master/Slave modes simplify setup, and the recall of the "Sound" mode via DMX allows remote switching without handling the device. Navigation is done via a clear digital display, with a menu logic designed for quick operation both in the control room and on-site. The unit is powered by a universal IEC Schuko mains input and easily integrates into a DMX chain thanks to 3-pin IN/OUT connectors.
Technical specifications
| LED Moving Heads | 4 x 40 W RGBW (4-in-1) |
| Beam angle | 3deg |
| Dimmer | 0-100% |
| Strobe | rate 1 to 13 flashes per second |
| Dedicated strobe | 3 x 10 W white |
| Pan | infinite rotation |
| Tilt | 220deg |
| Control modes | DMX512, Auto, Music (Sound), Master-Slave |
| DMX channels | 16/33 CH |

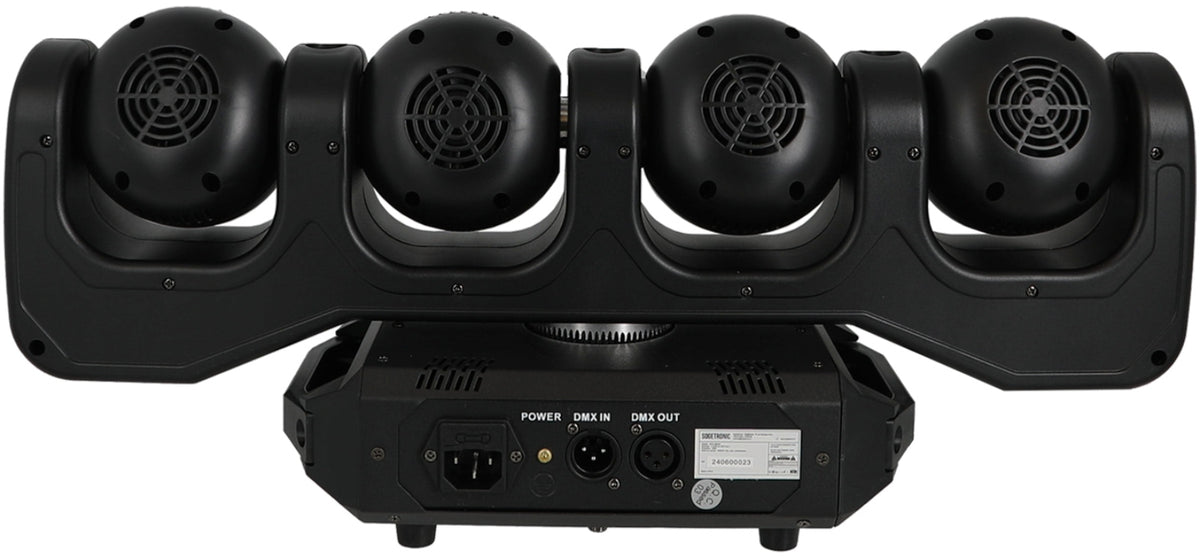

| DMX | IN and OUT (3-pin) |
| Mains input | IEC Schuko (IN) |
| Voltage | AC 100-240 V, 50/60 Hz |
| Total power | 130 W |
| Dimensions | 540 x 220 mm |
| Base | 300 x 85 mm |
| Weight | 6 kg |
Questions frequently asked
What is the beam angle of the Power Lighting Spin 4Beam?
The 3° beam angle produces very narrow beams, suitable for beam effects and light fans.
Can the moving head be controlled via DMX?
DMX512 control is done via 3-pin XLR connectors IN and OUT. Two configurations are offered: 16 channels for simplified patching and 33 channels for more detailed control. The Sound mode can also be triggered from DMX.
What movements are available on this beam moving head?
The pan rotation is continuous, allowing endless spins without stopping points. The tilt reaches 220° for vertical sweeps.
What strobe is integrated?
Three 10 W white LEDs are dedicated to the strobe, with an adjustable rate from 1 to 13 flashes per second.
Can it operate without a DMX controller?
Auto, Music (Sound), and Master-Slave modes allow use without a DMX console. Power input accepts 100 to 240 V at 50/60 Hz via an IEC Schuko socket.
