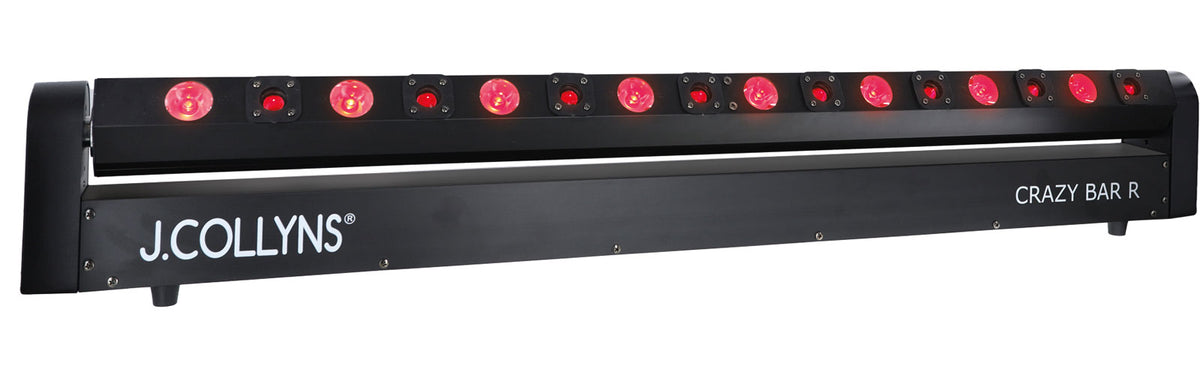

J.collyns Crazy Bar R

An Effects Bar That Energizes Your Shows in Clubs, on Stage, and at Events

The "Crazy Bar R" combines the precision of red lasers with the generosity of an LED wash to create spectacular light scenes. Its slim bar easily integrates on a truss, T-bar, or as a stage backdrop. In clubs, it draws sharp beams that catch the smoke, while the RGB LEDs envelop the whole in a colorful halo. For events (weddings, private parties, galas), its automatic and musical programs offer instantly effective looks without heavy programming. In fixed installations (bars, restaurants, multipurpose rooms), DMX ensures clean and reproducible integration daily.

For Mobile DJs, Lighting Operators, and Demanding Users

Designed for providers and technicians who want to maximize visual impact with a compact setup, the "Crazy Bar R" is suitable for both mobile DJs and venue or company lighting operators. The 12 DMX channels allow quick handling, and the 40-channel mode unlocks granular control for pixel mapping and advanced sequences. Its lightweight and PowerCON connectivity facilitate logistics, while the DMX-controllable musical mode speeds up setup when time is tight.

Features and Innovations

This effects bar combines 8 red lasers of 500 mW (650 nm) with 8 RGB 3W LEDs, offering both sharp beams and a genuine wash light bath. The head tilts 200 degrees with adjustable rotation speed to switch from wide sweeping to sharp movements synchronized with music. The LED strobe, adjustable from 1 to 20 flashes per second, adds depth to drops and transitions. For control, the "Crazy Bar R" offers two DMX personalities, 12 and 40 channels, compatible with DMX 512, with 3-pin XLR inputs/outputs for daisy chaining. The musical mode can be triggered via DMX, convenient for creating a reactive atmosphere to the beat while retaining control over colors and movements. Auto, Master/Slave, and Musical modes cover plug-and-play show needs. PowerCON IN/OUT power supply allows clean and secure power chaining on the same structure. The digital menu simplifies on-site configuration (DMX address, inversion, mode selection). Rated IP20, it is intended for indoor environments. Laser class 3D requires responsible handling: position the device above the audience's eye level and strictly follow safety instructions.

Technical specifications

Lasers	8 red diodes of 500 mW each (650 nm)	Power supply	PowerCON IN and OUT for chaining
LEDs	8 RGB 3W LEDs (3-in-1)	Voltage	AC 100 to 240 V, 50/60 Hz
Strobe	1 to 20 flashes per second	Protection rating	IP20 (indoor)
TILT rotation	200 degrees	Laser class	3D - hazardous exposure, follow safety instructions
DMX 512 with 2 modes	12 channels or 40 channels	Dimensions	106 x 8 x 14 cm
Built-in modes	Auto, Musical, Master/Slave, DMX	Weight	7.70 kg
DMX IN/OUT	3-pin XLR
