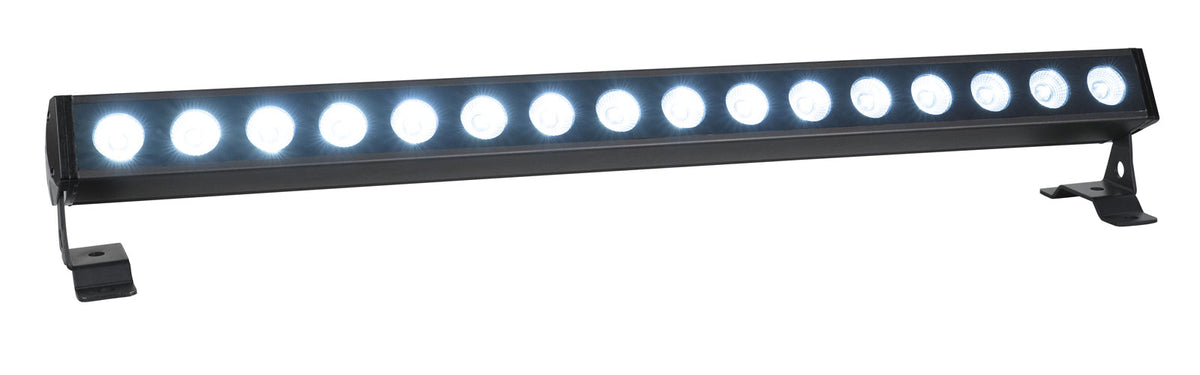

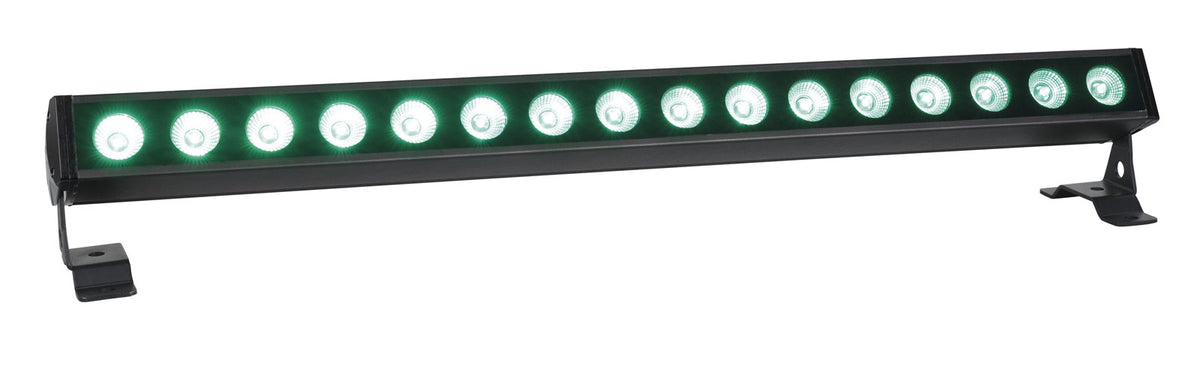

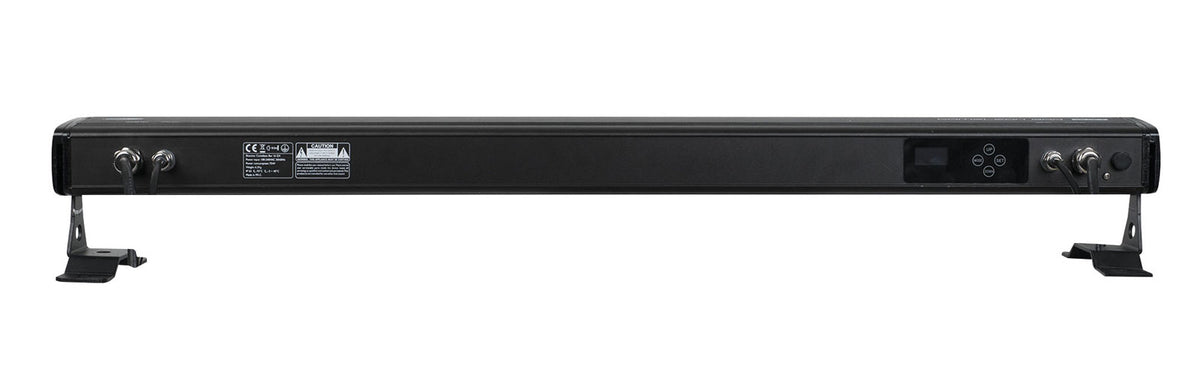

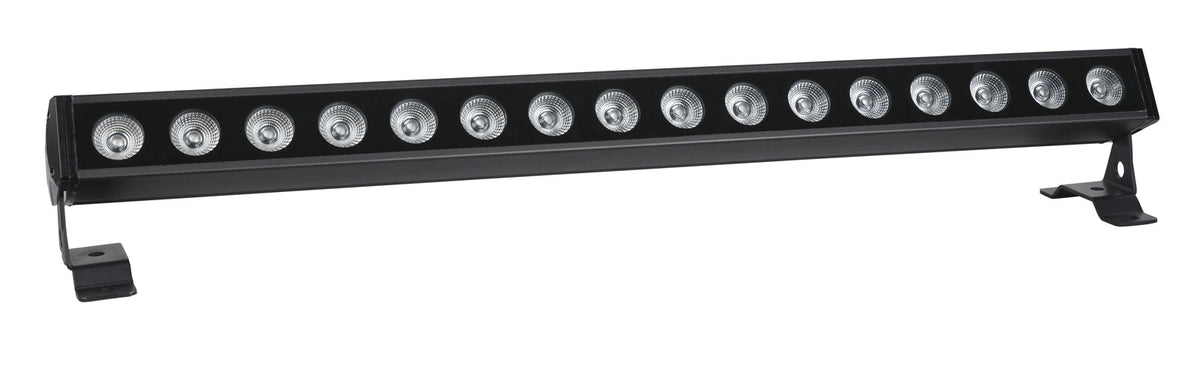

Showtec Cameleon Bar 16

Dress your stages and spaces with uniform and controlled color

The Showtec Cameleon Bar 16 Q4 excels in architectural wall-wash, precise backlighting, and ambient lighting. Its 25-degree beam angle allows for sharp light lines on stage backgrounds, cycloramas, club walls, theater stages, or TV sets. With an IP65 rating, it supports temporary outdoor installations for weddings, entrance mappings, bar terraces, and event routes. In fixed installations, it easily integrates into ceilings or at wall bases to create uniform washes and subtle gradients.

The LED bar designed for touring pros and installers

Mobile DJs, lighting technicians, rental companies, venue operators, or demanding individuals: the Cameleon Bar 16 Q4 emphasizes quick setup. The O-LED touchscreen simplifies configuration without an external controller. IP65 connectors and data/power THRU functions reduce cabling and speed up chaining multiple bars. Its fanless operation avoids unwanted noise in theaters, conferences, or ceremonies while ensuring increased longevity.

Technical specifications

Number of LEDs	16 x 5 W, 4-in-1 RGBW (ProLight Opto Hornet Series)	Functions	automated programs and customized settings
Color range	16.7 million additive colors	Input voltage	100 to 240 V AC, 50/60 Hz
LED current	350 mA	Power consumption	75 W at full power (FO)
Dimmer	0 to 100	DMX connection	dedicated IP65 socket
Strobe	0 to 20 Hz	THRU data and power connectors	daisy-chaining multiple fixtures on a single line
Refresh rate	over 6000 Hz	Housing	die-cast aluminum, black color
Beam angle	25 degrees	Lens	tempered glass
Measurements at 2 m	R 640, G 898, B 282, W 1287, FO 2966	Cooling	convection (fanless), silent operation
Recommended projection distance	up to 20 m	Protection rating	IP65 (housing and connectors)
Protocols	DMX-512, automatic, master/slave	Dimensions	1000 x 150 x 150 mm
Interface	O-LED display with touch control	Weight	6.2 kg
