Radial Bigshot IO

Name: Bigshot IO
Brand: Radial
SKU: 286188
Price: 156.00 EUR
Availability: InStock

156,00 €VAT incl.

0,90 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 286188

EAN : 0676101036295

This item is covered for 3 years

Information

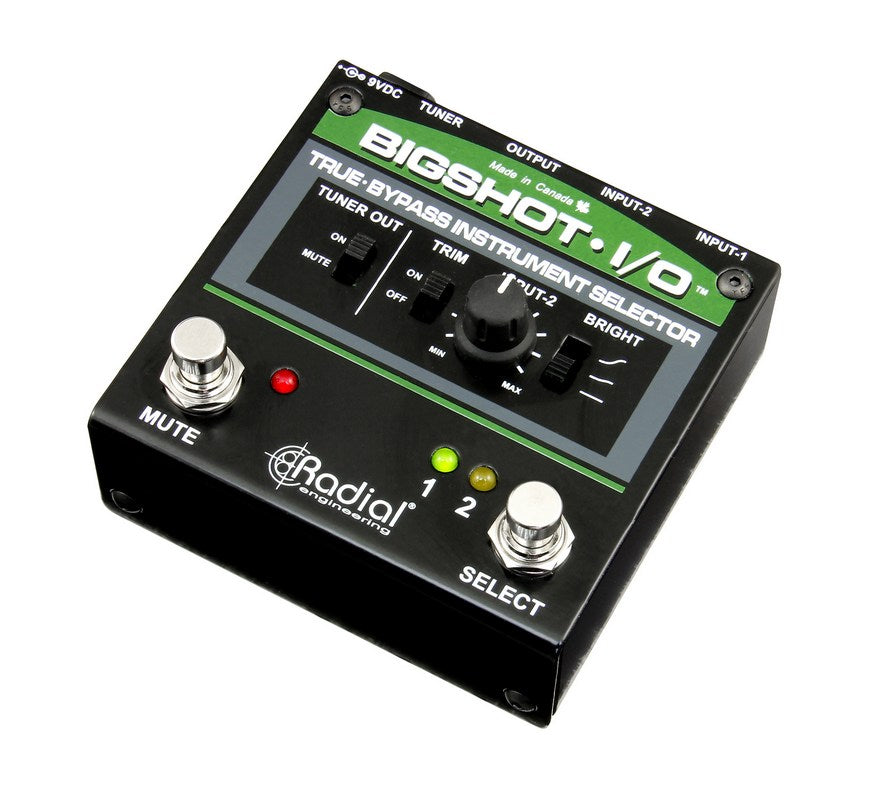

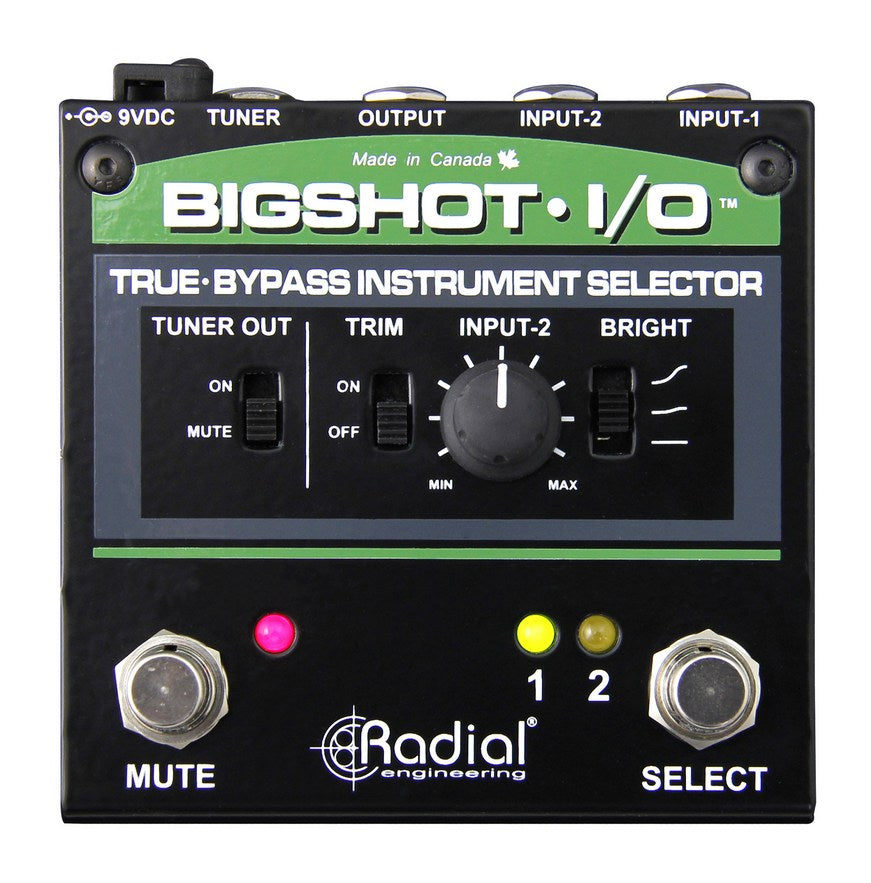

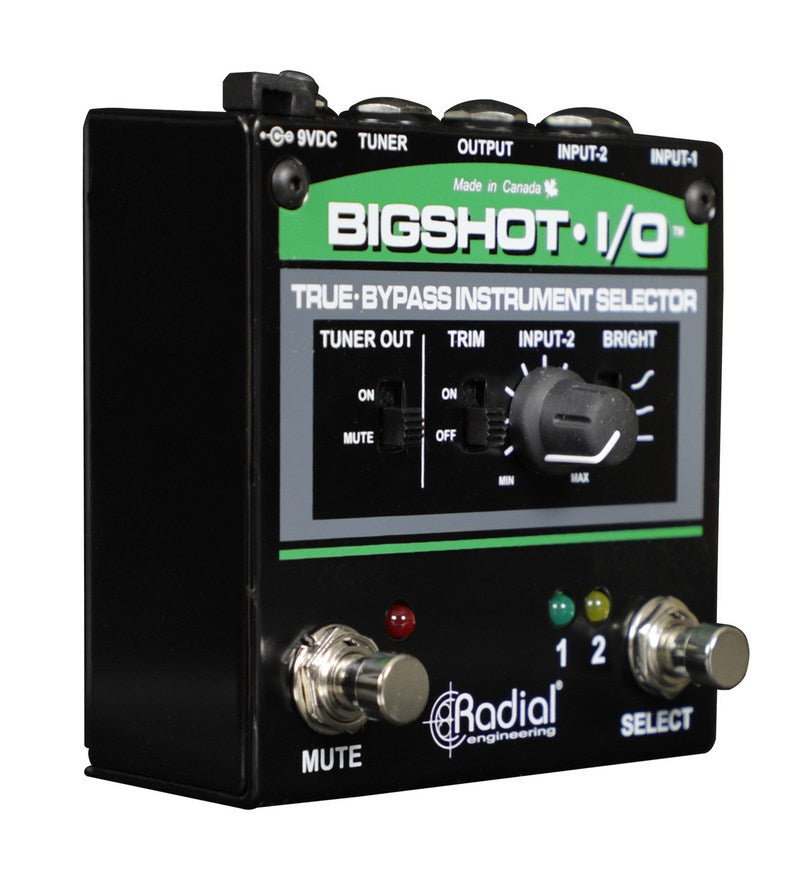

Essential Information About the Radial BigShot i/o Instrument Selector
• 100% true bypass A/B switch for instant switching between instruments without coloration.
• Level matching between two instruments: input 2 features a volume reduction (DIM) control to match stage volumes.
• Dedicated tuner output + Mute switch : silent tuning and intelligent management of the signal sent to the tuner.
• Ultra-durable steel enclosure (1.9 mm) in a compact format, designed to withstand touring and tight pedalboards.

Bigshot IO

156,00 €VAT incl.

0,90 € Ecotax included

Reference price

A simple and reliable stage tool, by Radial

The Radial BigShot i/o is an instrument selector designed to meet a very practical need: quickly switching between multiple instruments (guitar, bass, keyboard) to the same amp or effects chain without hassle. Here, there are no menus or unnecessary functions: direct operation, ergonomics tailored for live use, and a real focus on durability are prioritized. Its "plug'n play" approach makes it a natural ally for instrument changes between songs or for alternating, for example, between an electric guitar and an acoustic equipped with a pickup or preamp.

Who is the BigShot i/o for, and in what contexts?

This A/B selector is aimed at musicians who play two instruments in the same set and want to keep a clean, quick-to-use pedalboard without risk of errors. In concerts, it avoids on-the-fly unplugging, unnecessary pops, and volume fluctuations that ruin the start of a song. In rehearsals or home studios, it is also very practical for comparing two instruments on the same amp or for switching from bass to guitar without touching cables.

The BigShot i/o is particularly relevant for styles where dynamics and consistent levels are essential (pop, rock, funk, worship, blues), but it remains equally useful in heavier contexts (rock/metal) whenever you need to ensure fast and reliable changes.

Technical specifications

Effects	Selector, Switch	Number of tracks	2
Technology	Analog	Settings	input level, 3-position curve selector, input trim
Format	Pedal	Type	sector
Inputs	2 x jack	Use	guitar, piano, Bass, Acoustic bass, electric bass, acoustic guitar, electric guitar
Outputs	Jack, Tuner	Color	Black
True bypass	Yes	Power supply	Passive
Display	Led	Weight	560 g
Switch	Mute, Input selector	Dimensions (mm)	100 x 100 x 52

Questions frequently asked

Can two guitars be connected to the same amp?

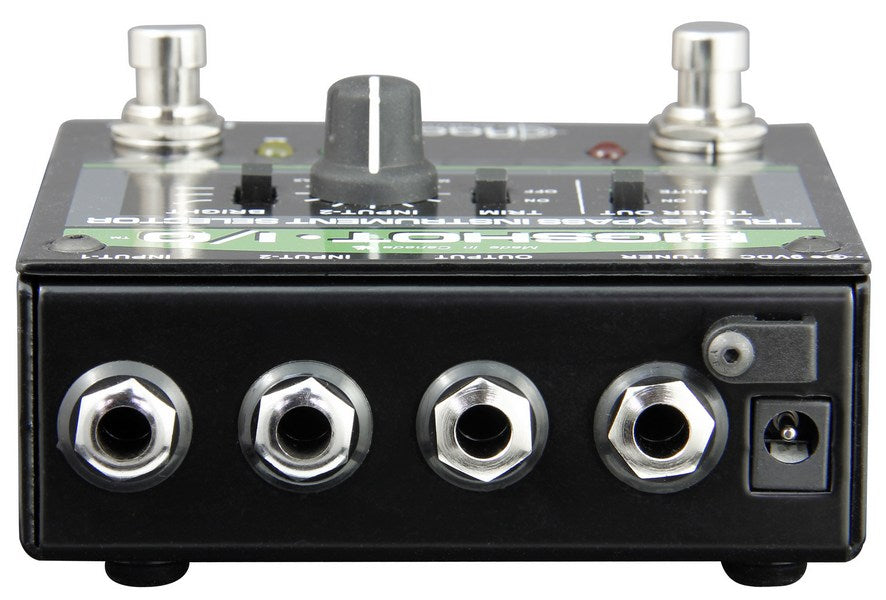

The two 6.35 mm jack inputs allow connecting two instruments to a single 6.35 mm jack output to the amp or effects chain. Input selection is controlled by a footswitch.

How to balance the volume between a guitar and a bass?

Input 2 features a DIM switch and a rear adjustment to attenuate the louder instrument. This allows the level to be matched to Input 1 when switching instruments. The Bright switch compensates for the perceived loss of high frequencies after attenuation.

Does the tuner output work with the Mute mode?

A separate tuner output can receive the signal either continuously or only when Mute is activated.

Is the signal transparent with the BigShot i/o?

The 100% true bypass architecture maintains a direct signal path with no added buffer. The selector is designed to preserve the character of the selected instrument.
