Essential Information About the Radial Trim-Two Passive DI Box
Essential Information About the Radial Trim-Two Passive DI Box
- Instant volume control on the front panel: ideal for quickly adjusting a level on stage without going through the console

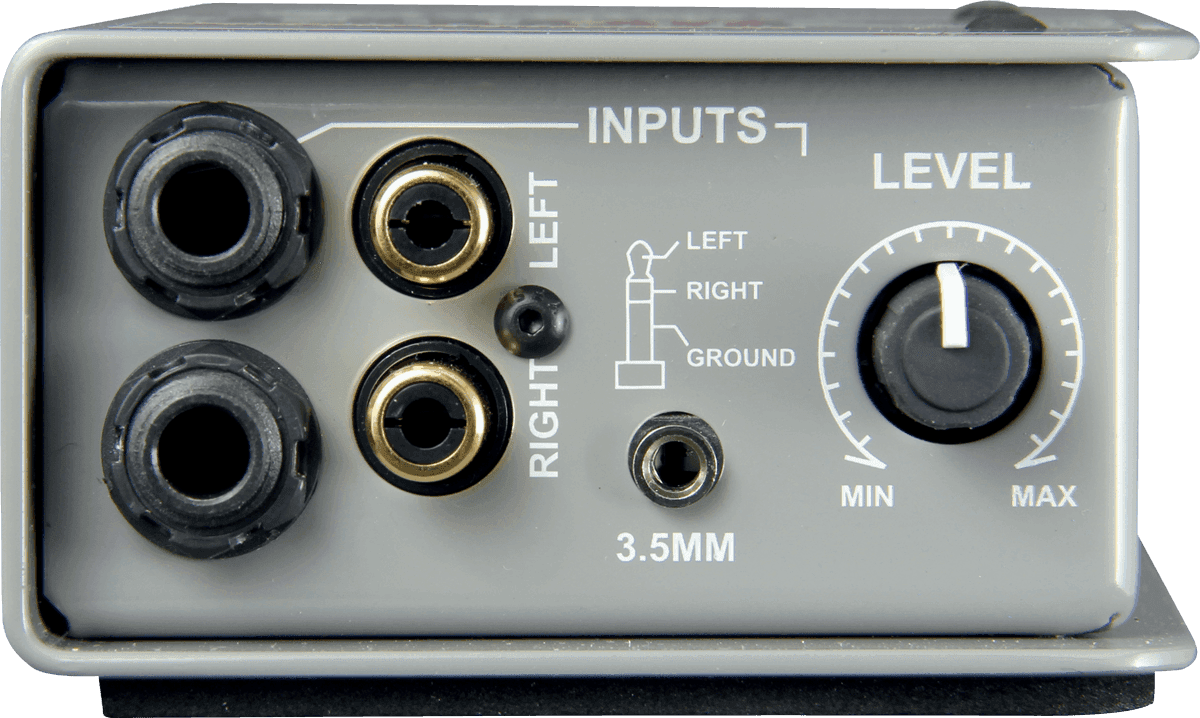

- Universal compatibility with laptops, smartphones, tablets, and audio players thanks to 6.35mm Jack, RCA, and 3.5mm mini-jack inputs
- Eclipse transformer isolation for a clean signal and effective reduction of unwanted noise
- Essential stage functions: Mono/SUM switch and ground lift to limit buzz and hum
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A DI Designed for Consumer Sources on Stage

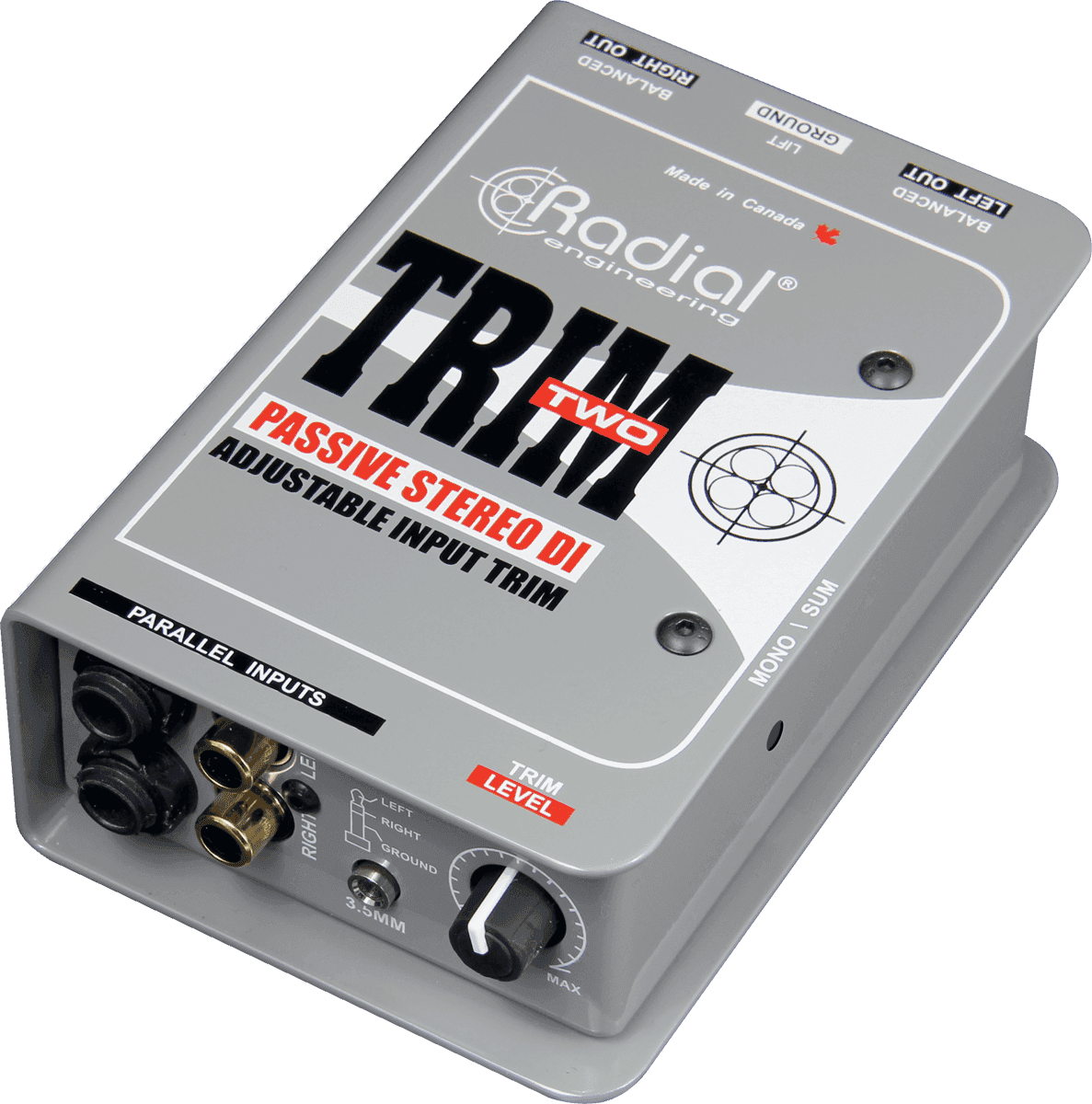

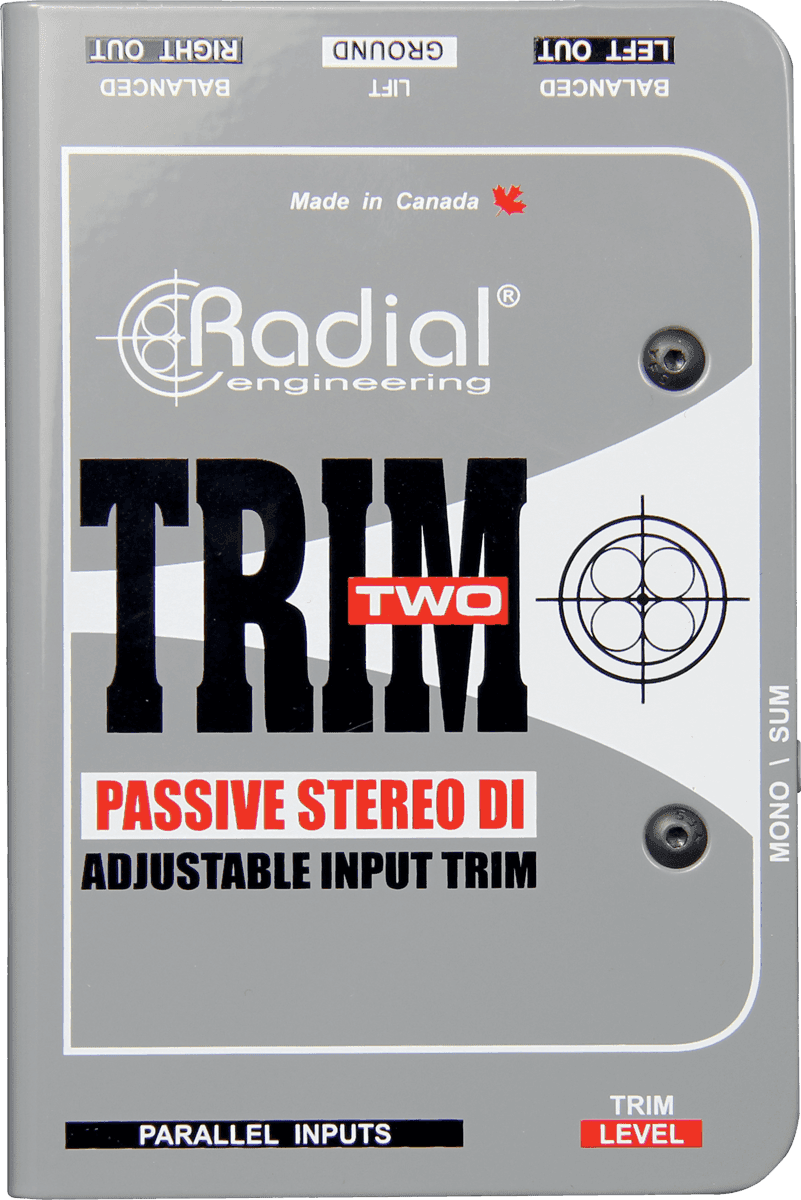

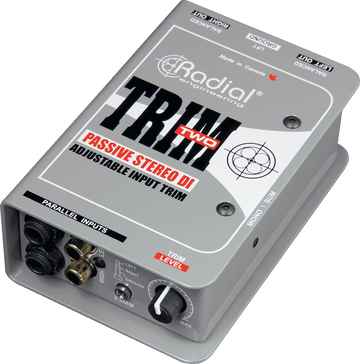

The Radial Trim-Two is a passive direct box designed to meet a very practical need: cleanly connecting "consumer" sources (laptop, phone, tablet, audio player) to a sound system while maintaining easily accessible volume control. It fits within Radial's typical reliability ethos, with a design focused on stage, presentations, conferences, and live performances where adjustments must be quick and reliable.
Who Is It For and What Are Its Uses?
The Trim-Two is aimed at musicians, DJs, technicians, stage managers, and presenters who use audio content from mobile or computer devices. It is especially useful when the source changes frequently (multiple devices, various cable types) or when a presenter needs to adjust their level independently during a performance, speech, or playback.
Technical specifications
| Frequency response - start | 20 Hz | THD | < 0,01% |
| Frequency response - end | 20 kHz | Inputs | 2 x jack, 2 x Rca, minijack stéréo |
| Category | Direct box | Analog outputs | 2 x XLR |
| Number of channels | 2 | Power supply | Passive |
| Digital conversion | No | Weight | 870 g |
| Max input level (dBu) | 20 | Dimensions (mm) | 84 x 127 x 48 |
| Settings | ground lift switch, output level | ||
| Type | passive DI box | Transformers | Eclipse (pair) |
| Input level adjustment | yes | Frequency response | 30 Hz to 20 kHz |
| Outputs | XLR | Maximum accepted level | up to +15 dB |
| Switch | Mono/SUM | Output level | -10 dB |
| Ground lift switch | on the XLR outputs | Dimensions (W x H x D) | 84 x 127 x 48 mm |
You will also like
Radial
PRO D2 PASSIVE-DI
Radial
PRO AV2 - PASSIVE MULTIMEDIA DI STEREO
Walrus Audio
Canvas Stereo
Radial
HOTSHOT-MD Microphone switcher with 3 outputs
Lehle
P-split Stereo
Mackie
MDB-USB
Radial
Stagebug SB-6 Isolator
Radial
PRO MS2 MICROPHONE SPLITTER
Questions frequently asked

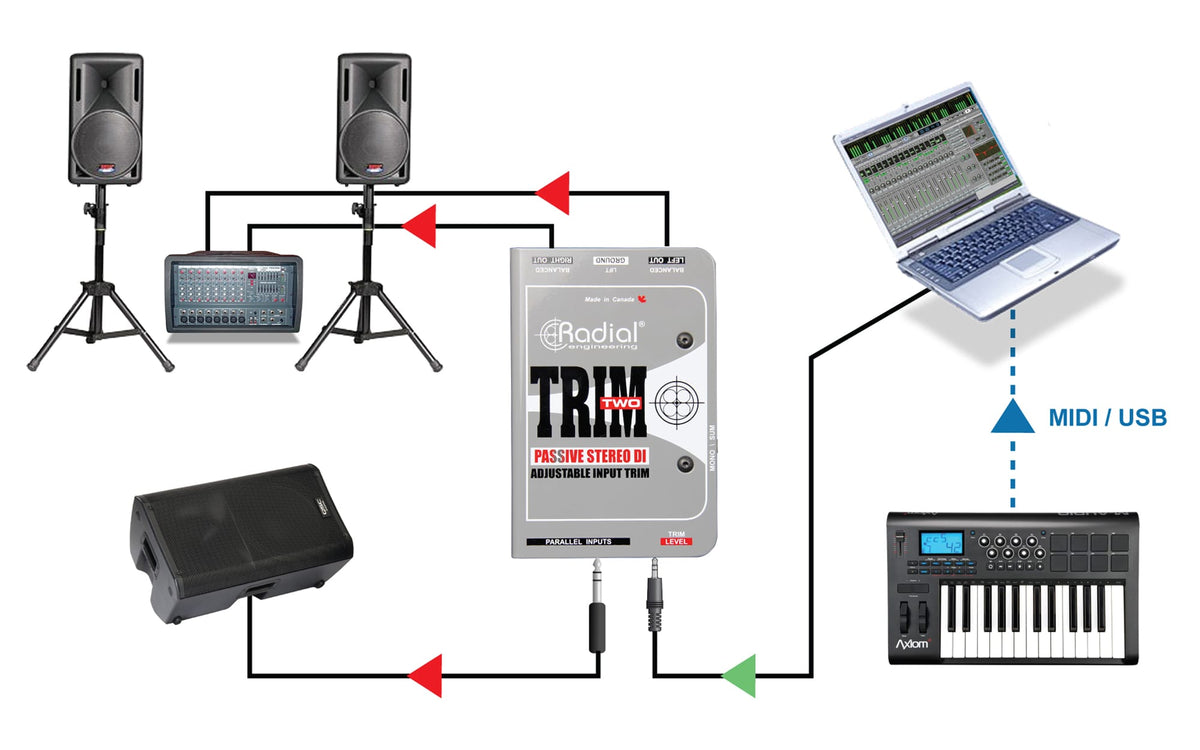

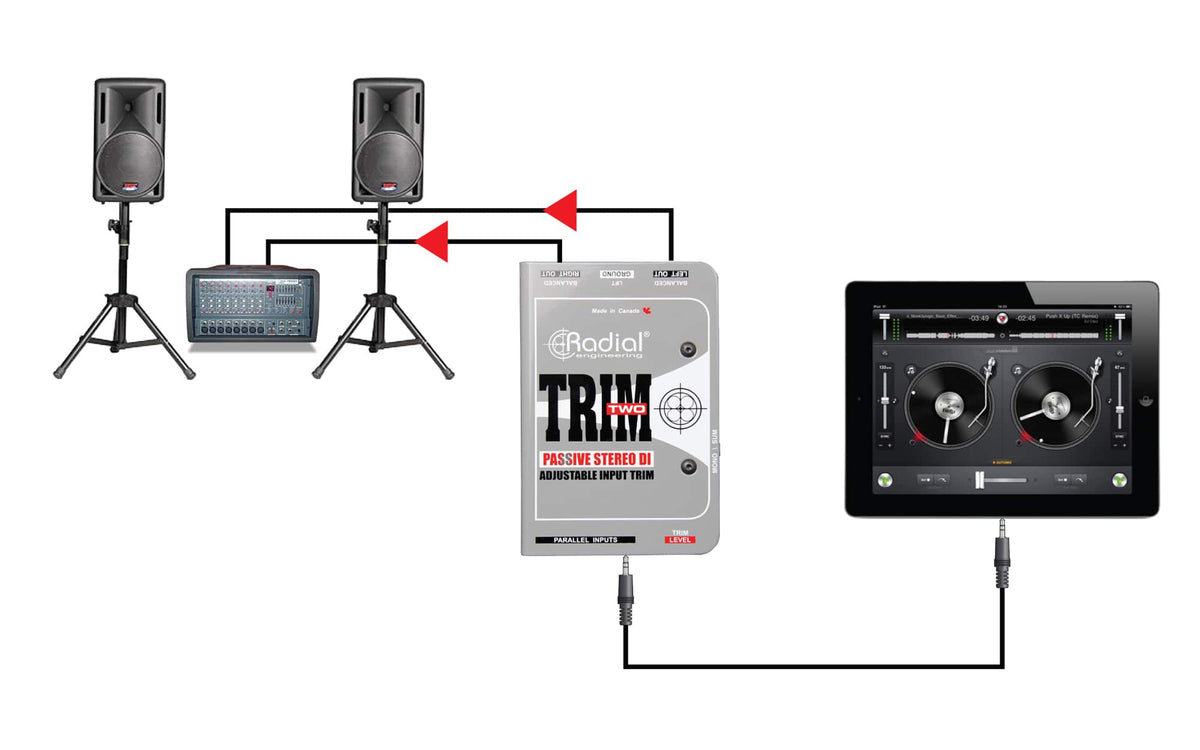

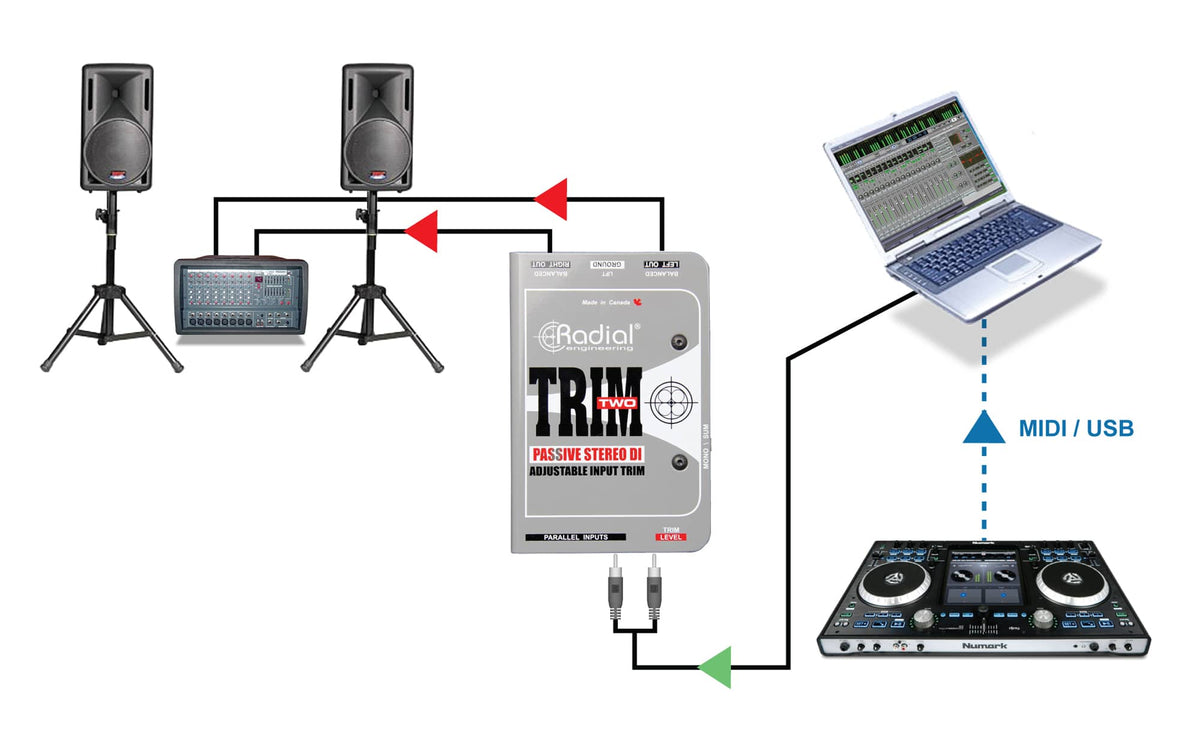

Can the Radial TRIM-two connect a phone or laptop to a mixing console?
The 3.5 mm stereo mini-jack, RCA, and 6.35 mm jack inputs allow mobile devices or computers to be connected to two XLR outputs intended for the console.
Does the Trim-Two require a power supply?
Completely passive, this direct box does not require any power or batteries.
Can the volume be adjusted directly on the DI?
An output level control is available on the unit. It allows quick adjustment of the volume sent to the sound system. The maximum input level is rated at 20 dBu.
How can hum be eliminated with the Radial TRIM-two?

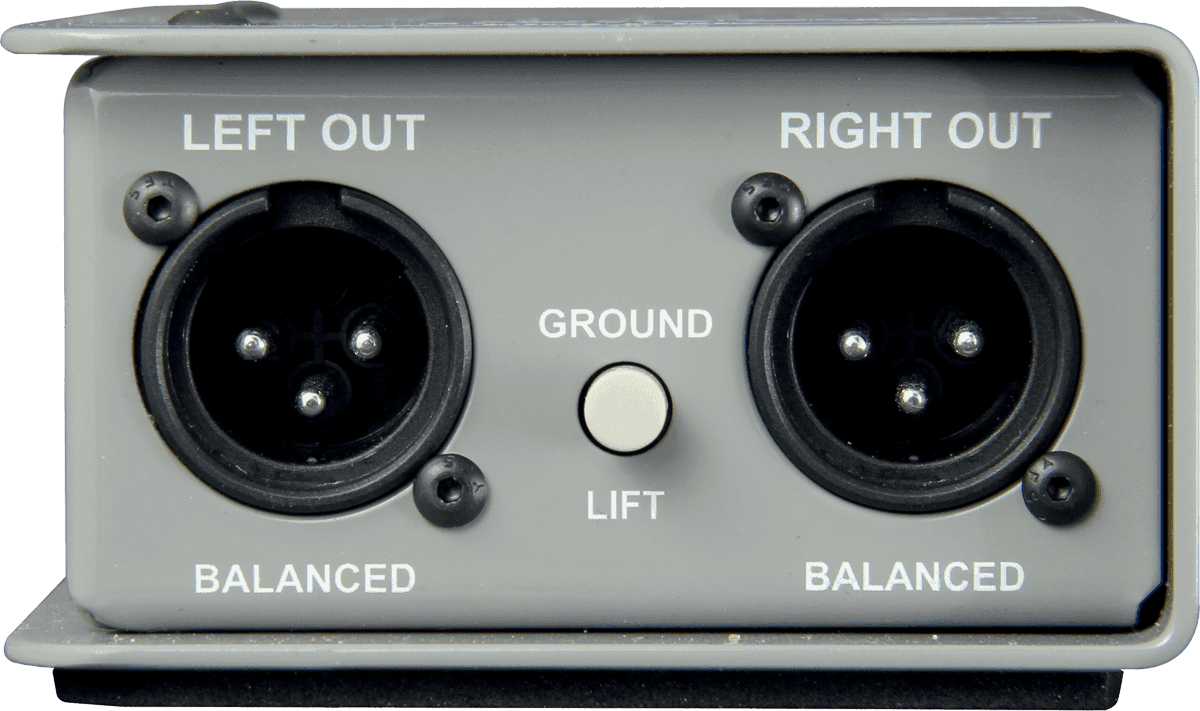

The ground lift switch on the XLR outputs helps reduce buzz and hum caused by ground loops, especially when a computer is connected to its charger.
Can the output be used in mono with a stereo monitor return?
The Mono/SUM switch allows adaptation to a mono system. Since the jack, RCA, and mini-jack inputs are wired in parallel, another pair can serve as a stereo thru output to monitors or a recorder.
