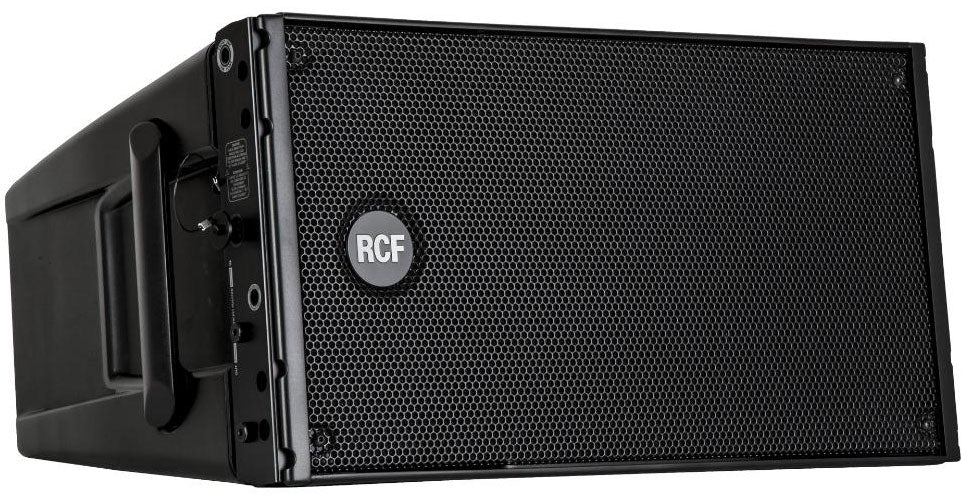

RCF HDL 10-A

An HDL Module Designed to Get Straight to the Point: Line Array Performance and Efficient Deployment

The HDL 10-A fits into a field-oriented line array approach: achieving a high-performance, coherent, and reliable system while maintaining lightweight logistics. Its very compact size and original composite enclosure design make it particularly comfortable when space is limited, without sacrificing impact or intelligibility. In practice, it positions itself as a ready-to-use active line array module, suitable for demanding events where consistency, repeatability, and mounting safety are essential.

To extend the system in the low frequencies, the manufacturer also presents it in combination with the HDL 15-AS, a low-frequency complement for suspended use, designed as the natural partner of the HDL 10-A in a line array configuration.

Intended Uses: Stage Sound Reinforcement, Mobile Performances, and Reliable Installations

The RCF HDL 10-A is a relevant choice if you are looking for an active line array speaker capable of covering various situations: front-of-house sound reinforcement at concerts, on-stage reinforcement, mobile performances requiring a system that is quick to rig and adjust, or installations where reliability and durability are paramount. Its high sound pressure level and announced frequency response allow for precise reproduction of voices and instruments, with solid presence, while remaining in an easy-to-transport and integrate format.

It is aimed at contractors, sound engineers, venues, and integrators who want a compact line array module with integrated processing and immediately usable settings to ensure consistent quality from one event to another.

Amplification, DSP, and Design: The Coherence of a Modern Active System

Two-way Amplification and Available Dynamics

The HDL 10-A integrates a two-way digital amplifier delivering 1400 W peak power (and 700 W RMS). This active architecture choice aims to maintain a fast response and good dynamic headroom, with controlled reproduction even at sustained levels. The expected result is effective sound projection, capable of remaining intelligible in noisy environments while retaining margin for transients.

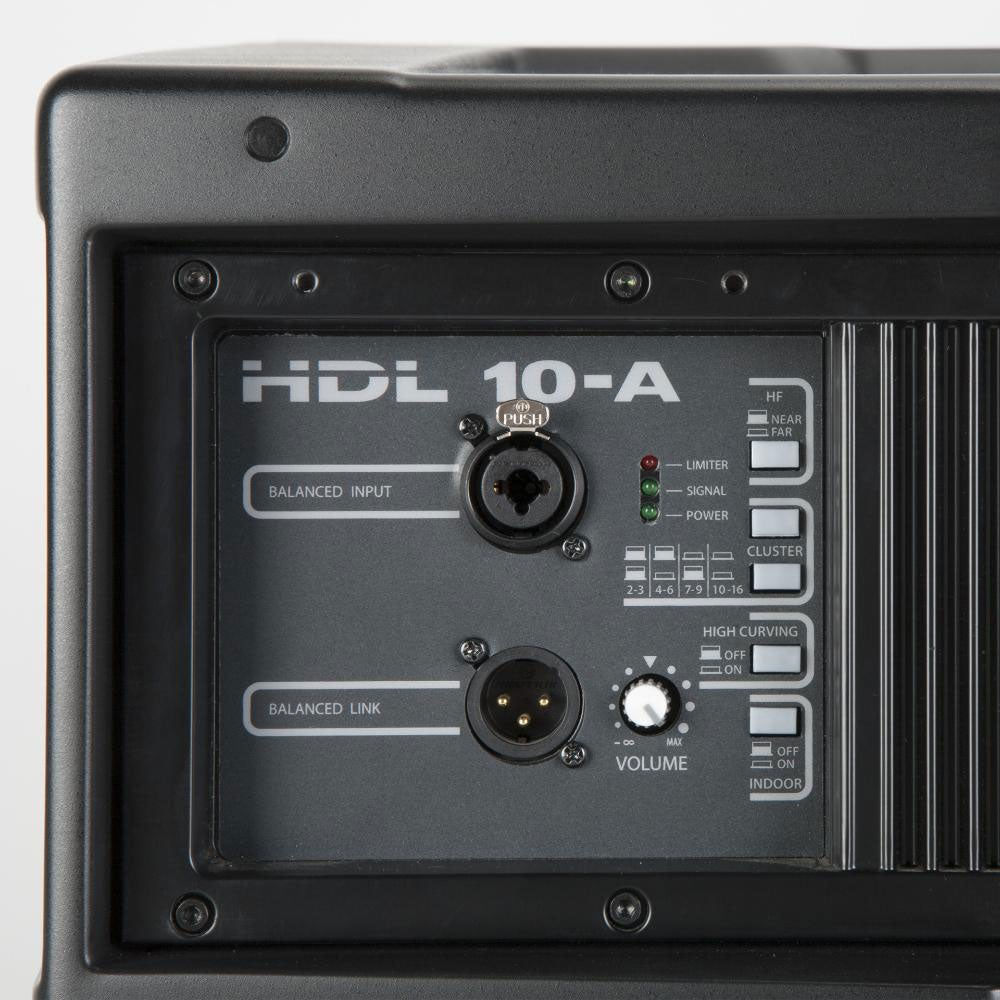

DSP Processing and Selectable Presets

The signal is managed by a DSP with a controlled input section and selectable presets. In a sound reinforcement context, this is a concrete advantage: you save time during setup and homogenize the sound between different venues, while simplifying operation for technical teams. The DSP also contributes to the overall system coherence by aligning the behavior of the drivers and optimizing reproduction according to common configurations.

Transducers: Dual Woofer and Precision Compression Driver

The low-mid section is based on two 8-inch woofers, a configuration designed to combine compactness and power handling. For high frequencies, the HDL 10-A features an RCF precision compression driver with a 2.5-inch voice coil mounted on a waveguide, aiming for precise projection and good definition, particularly useful for vocals and instrument attacks.

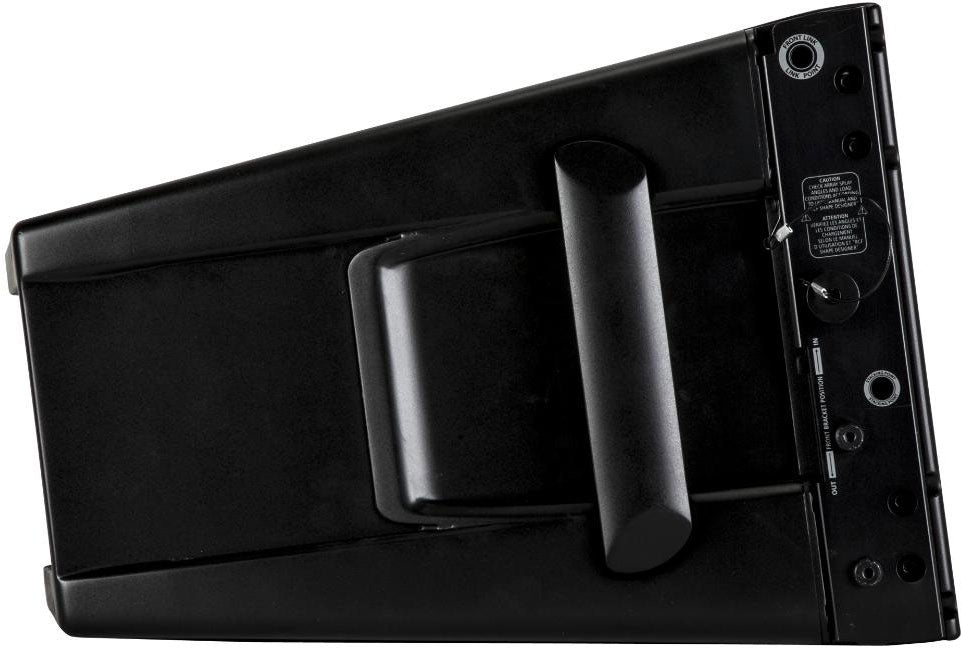

Composite Enclosure and Mounting Hardware

The enclosure is made of PP composite material with wood reinforcements, designed for professional use where the speaker must withstand transportation, handling, and varied mounting conditions. The solid, secure, and versatile hardware facilitates integration into line array systems, allowing smoother setup during stage changes and quick rigging.

Technical specifications

Power	1400 W peak, 700 W RMS	Processing	high-performance DSP
Max SPL level	133 dB	Hardware	solid, secure, and versatile
Frequency response	65 Hz to 20 kHz	Enclosure	PP composite with wood reinforcements
Low / low-mid	2 x 8-inch woofers	Dimensions	294 x 569 x 434 mm
High	RCF precision compression driver with 2.5-inch voice coil on waveguide	Weight	20.4 kg
Amplification	two-way digital amplifier
