Seymour Duncan PRE-CABLE PLATES JIMI HENDRIX HENDRIX HENDRIX LOADED PIC
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- Vintage Strat sound inspired by Jimi Hendrix with 3 factory-mounted signature pickups, ready to play.
- Quick and clean installation : electronics already wired (250K potentiometers and 5-position selector).
- Authentic "Hendrix" feel : reversed magnet on each pickup to replicate the character of a right-handed Strat played upside down and strung for a lefty.
- Collector's look : pickup covers with signature, commemorative booklet, and included stickers.
Manufacturer Information
Seymour Duncan
https://www.seymourduncan.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
From the 1968 meeting to a stage-ready sound
On March 28, 1968, Seymour W. Duncan met Jimi Hendrix at Xavier University in Cincinnati, Ohio, where Jimi was playing two concerts at the Field House Arena. Seymour brought him hand-wound pickups, installed by Roger Mayer on Jimi's white Stratocaster before the instrument went on stage. This story marks a turning point: today, this pre-wired pickguard lets you access that legendary sonic spirit in a format designed for today's musicians.
Who is it for and what is it used for?
This "Standard Style" pre-wired pickguard is aimed at guitarists who want to transform their Stratocaster (standard pickguard format) without undertaking a full rewiring. Ideal if you're looking for dynamic clean tones, expressive crunches, and a sixties-style attack, while maintaining familiar Strat ergonomics (5 positions) to switch from warm neck to biting bridge tones.
A complete Strat electronics setup designed for the "reversed" character

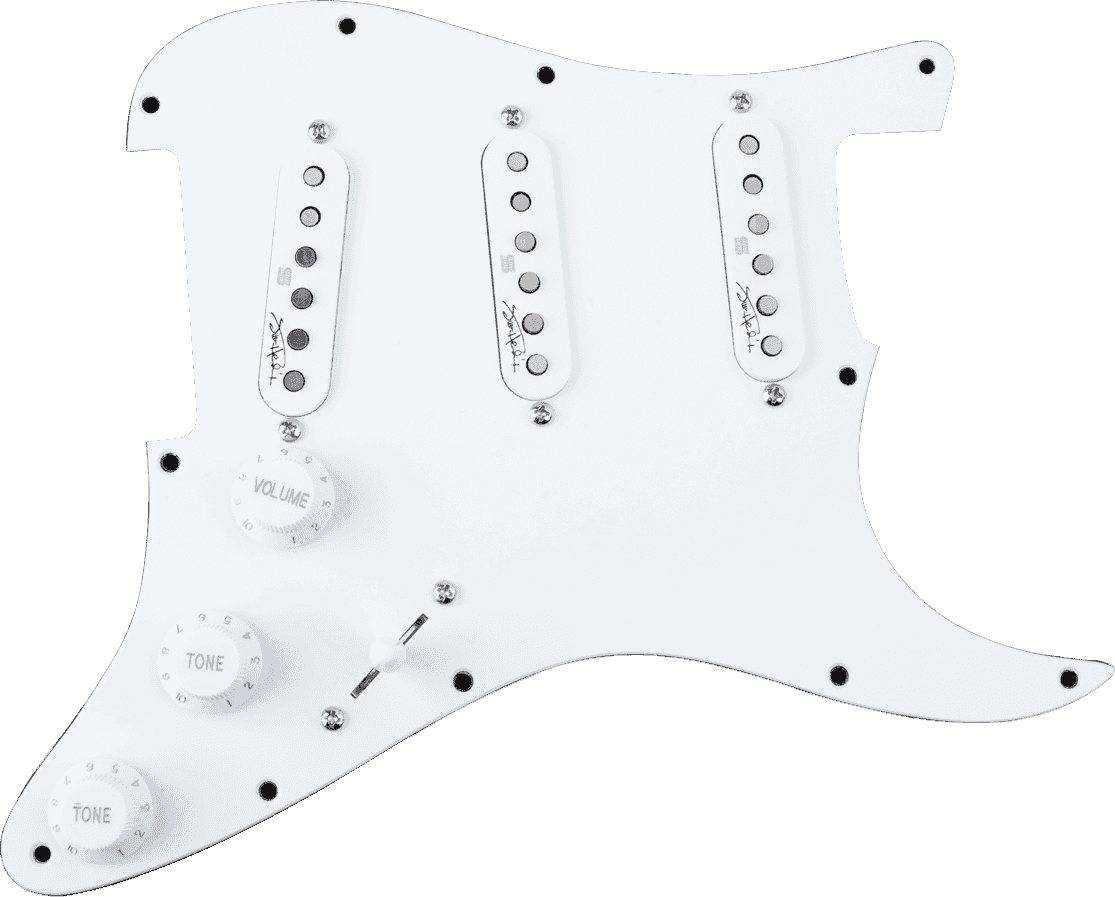

The 3-ply pickguard integrates three Seymour Duncan Jimi Hendrix signature pickups, wired to 250K potentiometers and a 5-position selector covering classic positions, including the intermediate ones with the famous "quacky" tone. Each pickup uses a reversed magnet to recreate the response and bite associated with a right-handed Strat played upside down. The result retains vintage grain while remaining practical for rehearsal, studio, or stage, with a clean and reliable installation.
Technical specifications
| Electronics | Passive | Winding | simple |
| Category | plate | Position | handle, bridge, middle |
| Instrument | Type ST, guitar | Resistance | 6.07 KILOHM |
| Magnet | alnico V | Color | White |
| Type | "Loaded Pickguard" pre-wired plate for Stratocaster, standard style | Magnetization | reversed magnet on each pickup |
| Pickguard | 3-ply | DC Resistance | 6.07K |
| Pickups | 3 Seymour Duncan Jimi Hendrix signature pickups | Selector | 5 positions |
| Pickup covers | Jimi Hendrix signature | Accessories/Aesthetics | white caps |
| Magnets | Alnico V | Included | commemorative booklet |
You will also like
Gibson Accessories
Custombucker Matched Set Double Black True Historic Nickel Covers
Seymour Duncan
Jazzmaster Silencer Vintage Set
Seymour Duncan
PRE-CABLE PLATES JIMI HENDRIX HENDRIX HENDRIX LOADED PIC
Seymour Duncan
AN1805-nc - Antiquity HB Kit Nickel
Boss
GK-5 Guitar Synth Pickup Kit 7
Seymour Duncan
Corey Beaulieu Blackouts 7-string passive set black
Seymour Duncan
Jazzmaster Silencer Hot Set
Fishman
Stephen Carpenter Signature Pickup Set - 6-string
Questions frequently asked
Is this pickguard compatible with a standard Stratocaster?
The "Standard Style" pickguard is designed for Stratocaster guitars using a standard pickguard.
What sound do the Jimi Hendrix Seymour Duncan pickups produce?
The three single-coil pickups with Alnico V magnets deliver clear dynamic tones and expressive crunches, featuring an attack inspired by sixties sounds.
Why are the pickup magnets reversed?
Each pickup is magnetized in reverse to recreate the response and bite of a right-handed Strat played upside down. The specified DC resistance is 6.07 kΩ. This setup preserves a vintage tone.
Does the Seymour Duncan Hendrix pickguard include a 5-way selector switch?
A 5-way selector switch is integrated, providing access to the neck, middle, and bridge positions, as well as the two scooped intermediate tones.
Which components are pre-installed on the pickguard?
The set includes three Seymour Duncan Jimi Hendrix signature pickups, 250K potentiometers, and Jimi Hendrix signature pickup covers. A commemorative booklet is also included.
