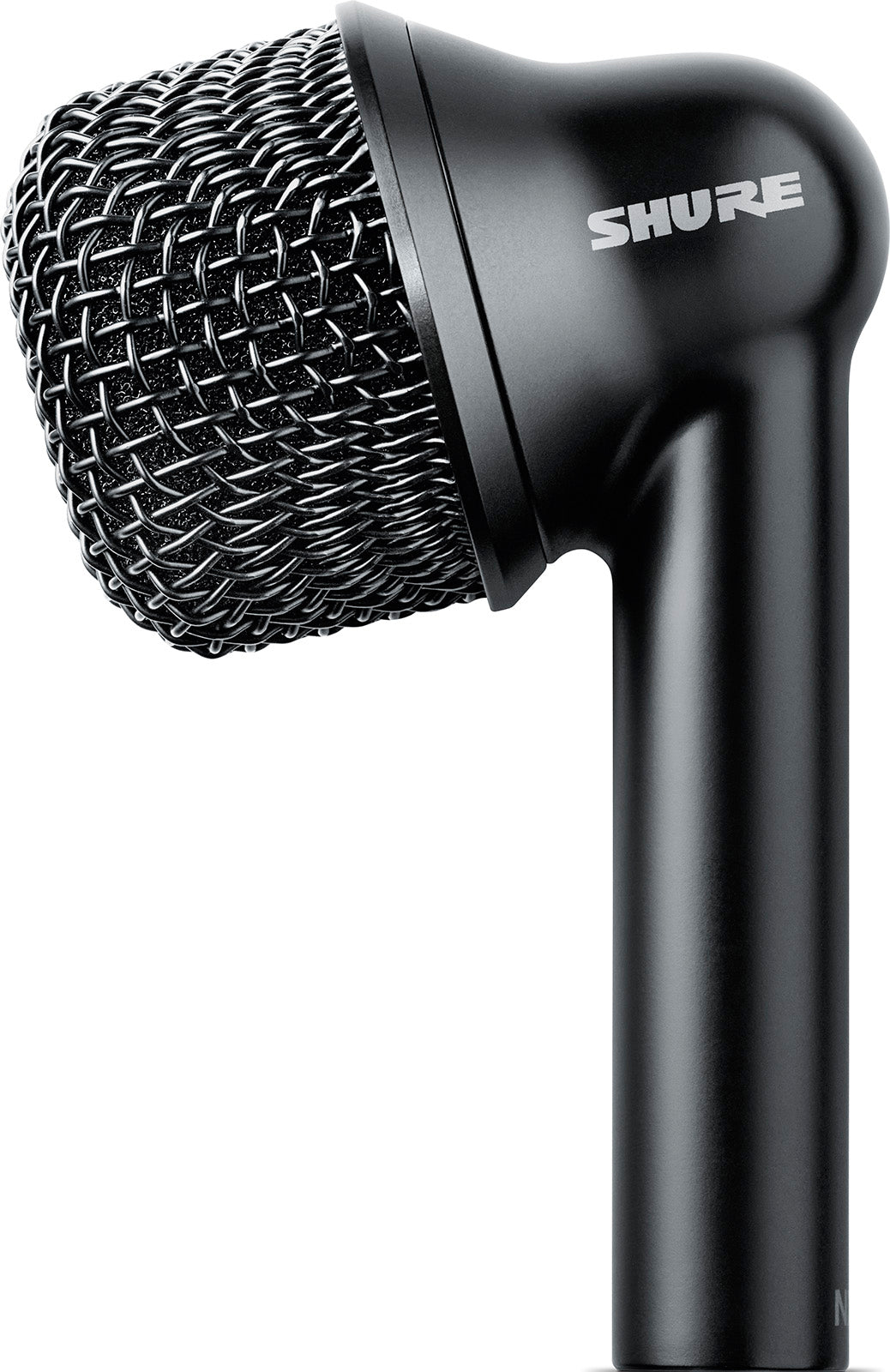

Shure Nexadyne 6

Essential Information About the Shure Nexadyne 6 Tom and Snare Drum Microphone

• Outstanding Isolation: Supercardioid directivity designed to limit bleed, especially from cymbals.


• Clear Sound, More "Mix-Ready": Revonic dual-transducer design for precise reproduction with less corrective equalization.


• Built for Stage and Studio: Robust dynamic microphone, ideal on toms and snare drums for professional performances.

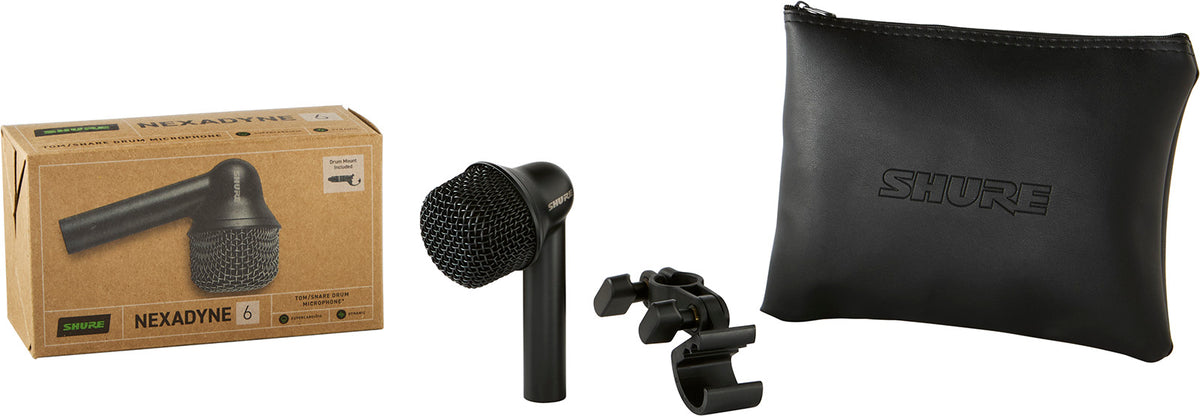

• Ready to Install: Supplied with A6D tom mount clip and zippered pouch, in a discreet black finish.

A Shure Microphone Designed for the Modern Drum Kit, Part of the Nexadyne Range

Designed to meet the demands of today's drummers and sound engineers, the Shure Nexadyne 6 follows an approach where performance depends not only on durability but also on true control of acoustic behavior on a full kit. The goal is clear: to offer a microphone dedicated to toms and snare drums, capable of delivering a clear reading of the hit while containing peripheral sources, which are particularly intrusive in live settings. With Revonic technology (dual-motor transducer), the Nexadyne 6 emphasizes precision and consistency while maintaining Shure's DNA: durability, manufacturing consistency, and long-term reliability.

Who Is the Nexadyne 6 For and What Are Its Uses?

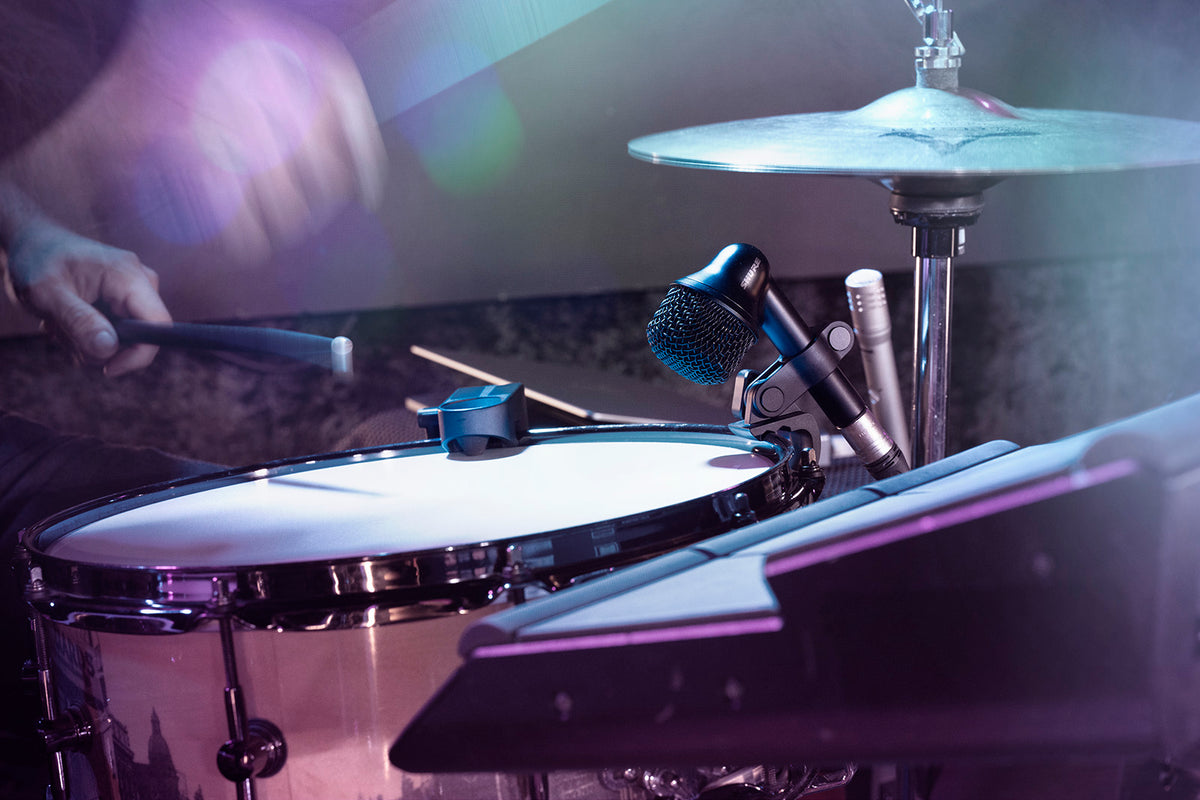

The Nexadyne 6 is aimed at drummers, technicians, and studios seeking an effective close microphone for toms and snare drums. On stage, it helps maintain a clear sound when the overall volume rises and cymbals naturally take up a lot of space. In rehearsals and on tour, its directivity and isolation facilitate front-of-house and monitor mixing by reducing the need to constantly "correct" the EQ to regain attack and control. In the studio, it is a solid solution for capturing a defined hit that is usable, particularly appreciated when a clean drum sound is desired, with tracks that are easier to process and layer.

Revonic Technology, Directivity, and Construction: What Makes the Difference

Revonic: Dual Transducer for Greater Clarity

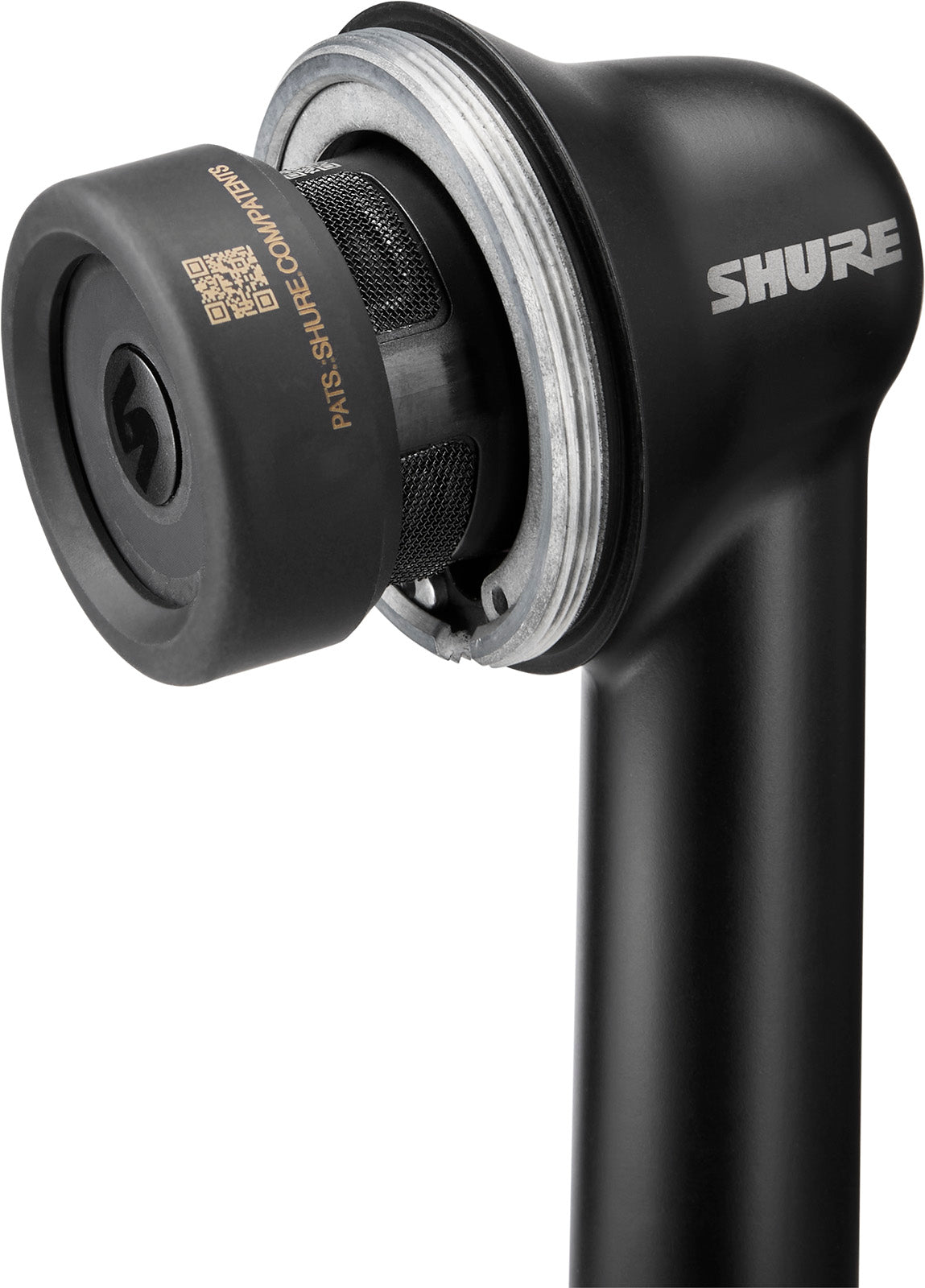

At the heart of the Nexadyne 6, Revonic technology is based on a dual-motor transducer combining two precisely calibrated diaphragms working together. This design aims for particularly clear reproduction of the sound source and helps reduce the need for corrective equalization, a tangible advantage when quick soundchecks are necessary or when seeking consistent sound from one show to another.

Supercardioid: Reducing Bleed Where It Really Matters

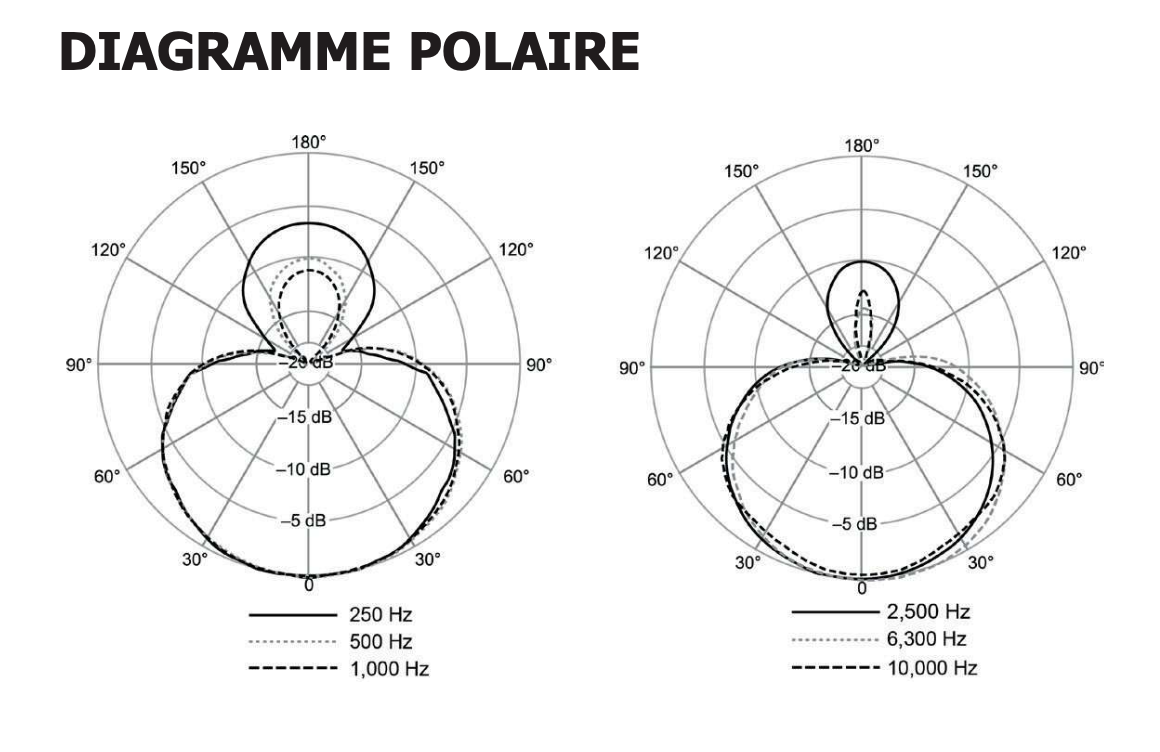

The supercardioid directivity of the Nexadyne 6 is designed to effectively isolate the targeted drum shell and minimize cymbal bleed. On a kit, this results in a more focused sound, better-defined attack, and improved separation between elements, even when microphones are close and space is limited.

Shure Reliability and Practical Details for Drums

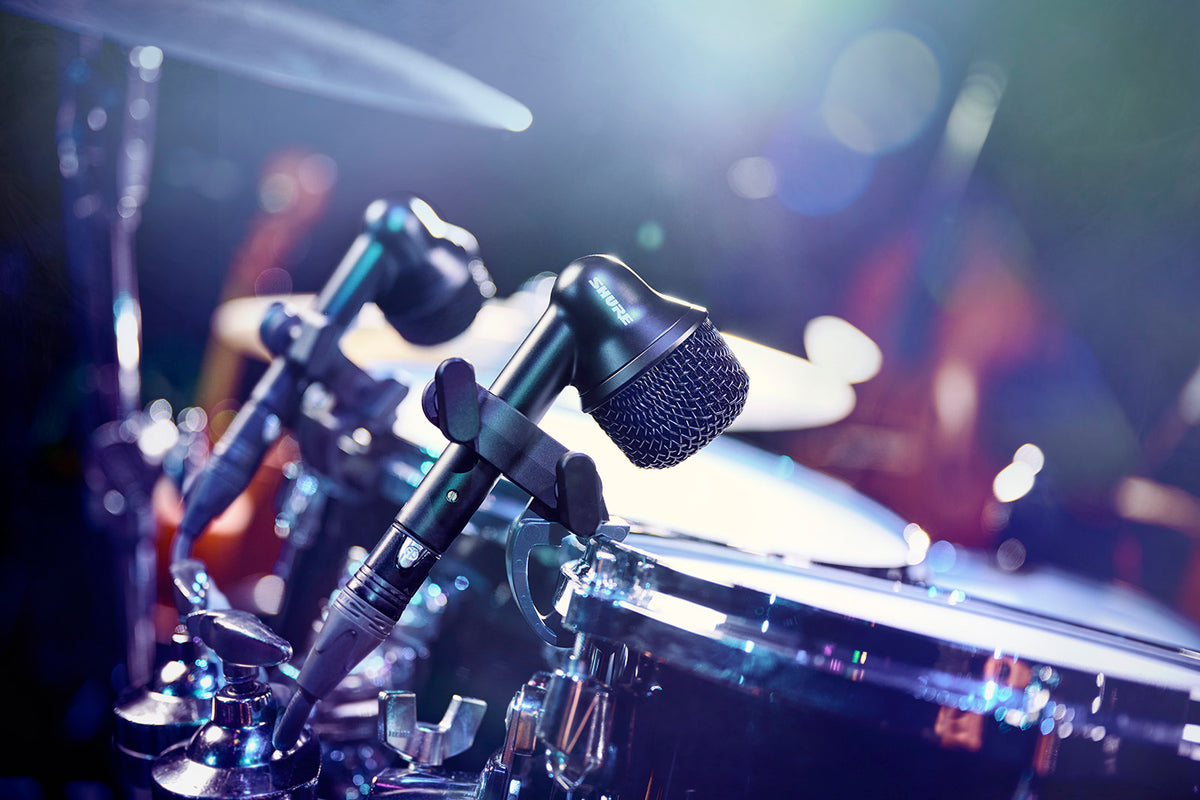

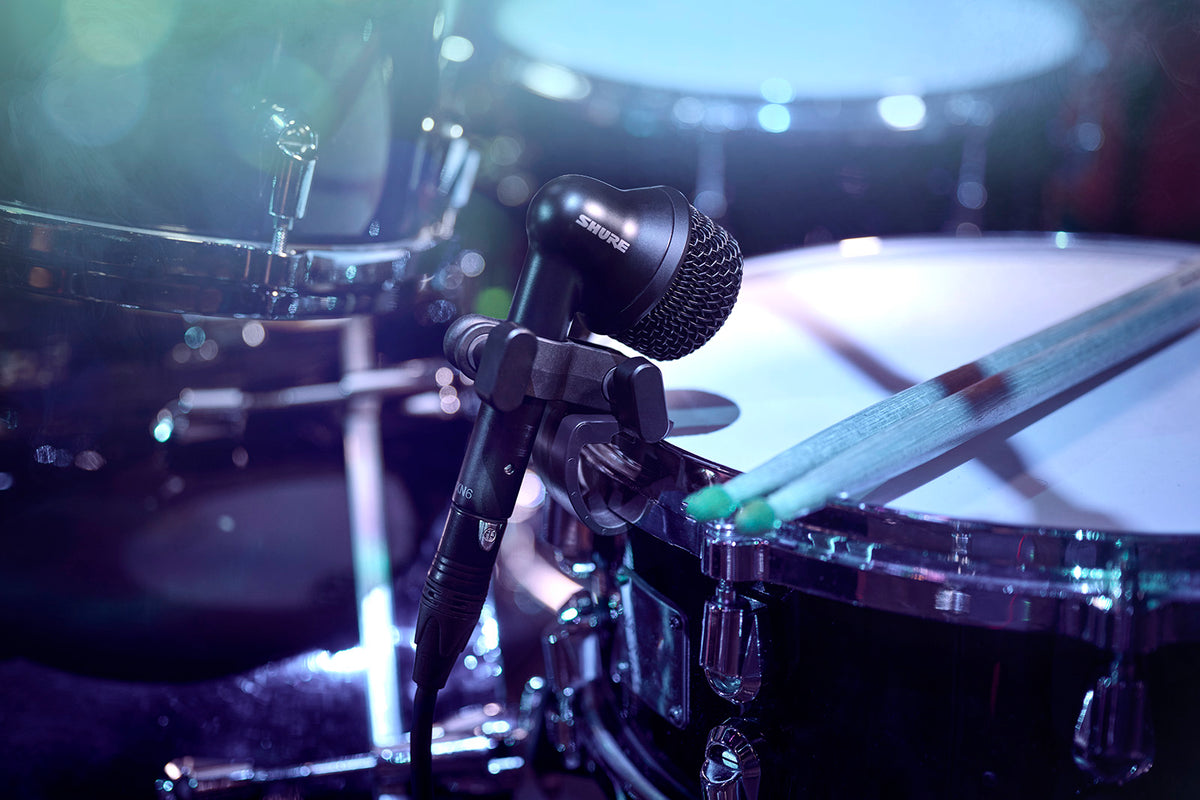

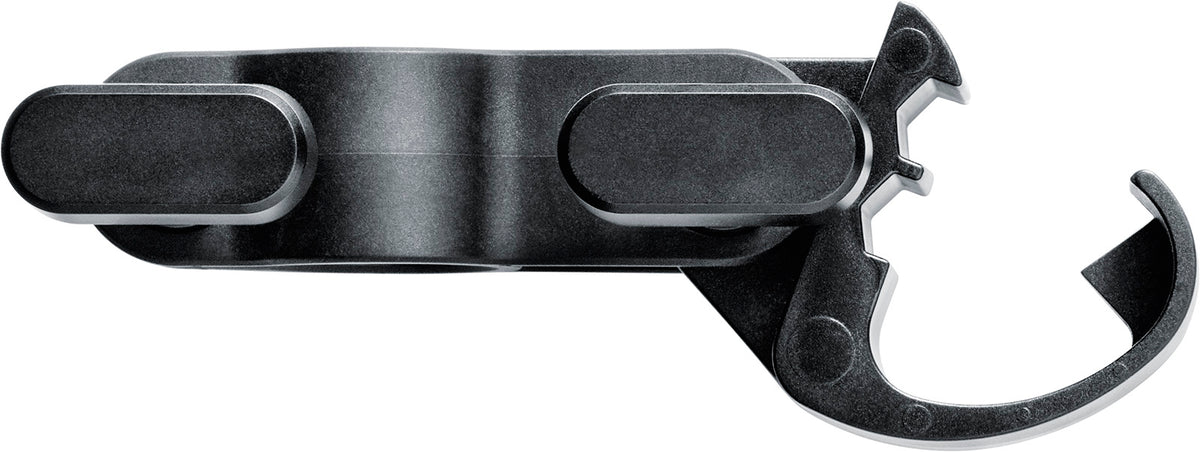

Intended for intensive use, the Nexadyne 6 benefits from a build quality focused on durability and consistency. Its reinforced shock-resistant grille helps withstand the rigors of live performance, while the XLR connection with black finish integrates neatly on stage. The A6D tom mount clip allows quick and stable installation, and the zippered pouch facilitates transport and protection between gigs.

Technical specifications

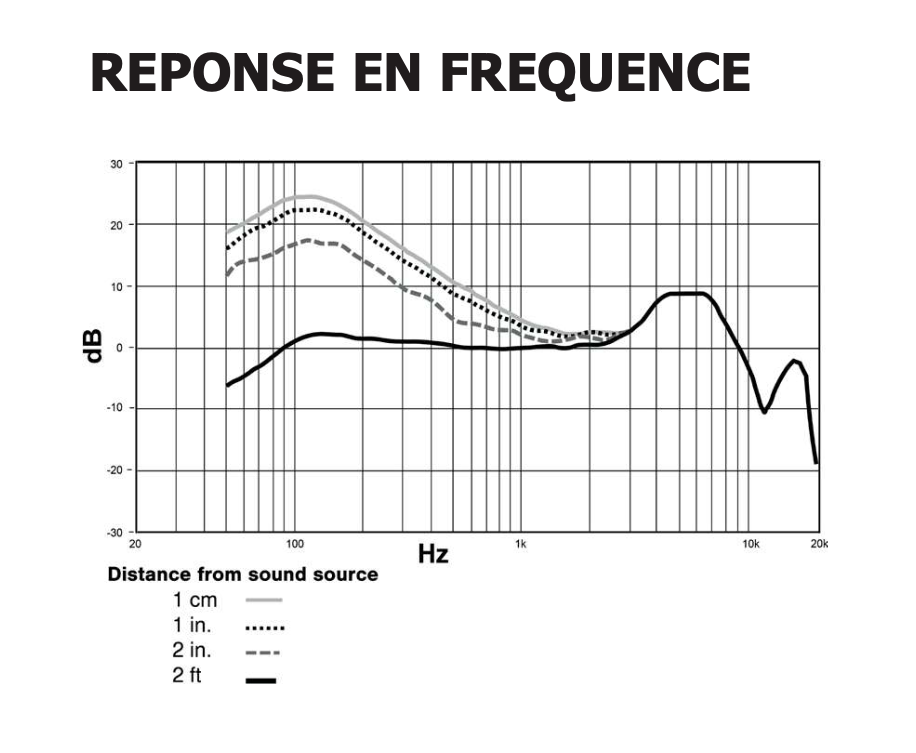

Frequency response	50 Hz - 16 kHz	Connection	XLR
Sensitivity	–61.0 dBV/Pa (0.9 mV/Pa) 1 Pa = 94 dB SPL	Clamp included	Yes
Category	instrument microphone	Included accessories	microphone clip
Type	Battery	Color	Black
Directivity	supercardioid	Cables included	No
Capsule	dynamic	Switch	No
Nominal impedance	335 Ω	Weight	245 kg

Output Impedance at 1 kHz	335 ohms	Polarity	A positive pressure on the diaphragm produces a positive voltage on pin 2 relative to pin 3.
Connector	3-pin male XLR connector	Housing	Die-cast zinc with black paint finish
