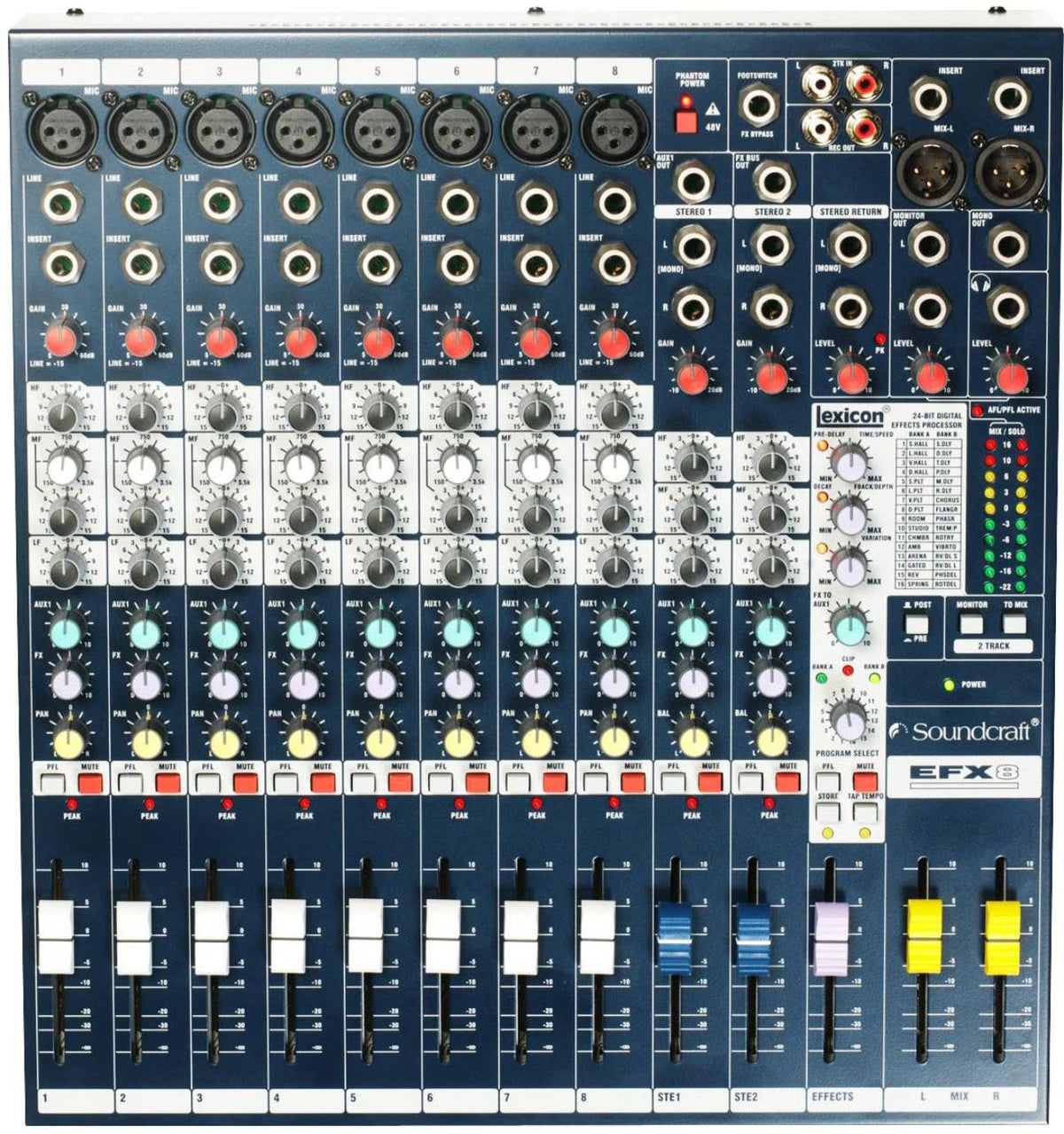

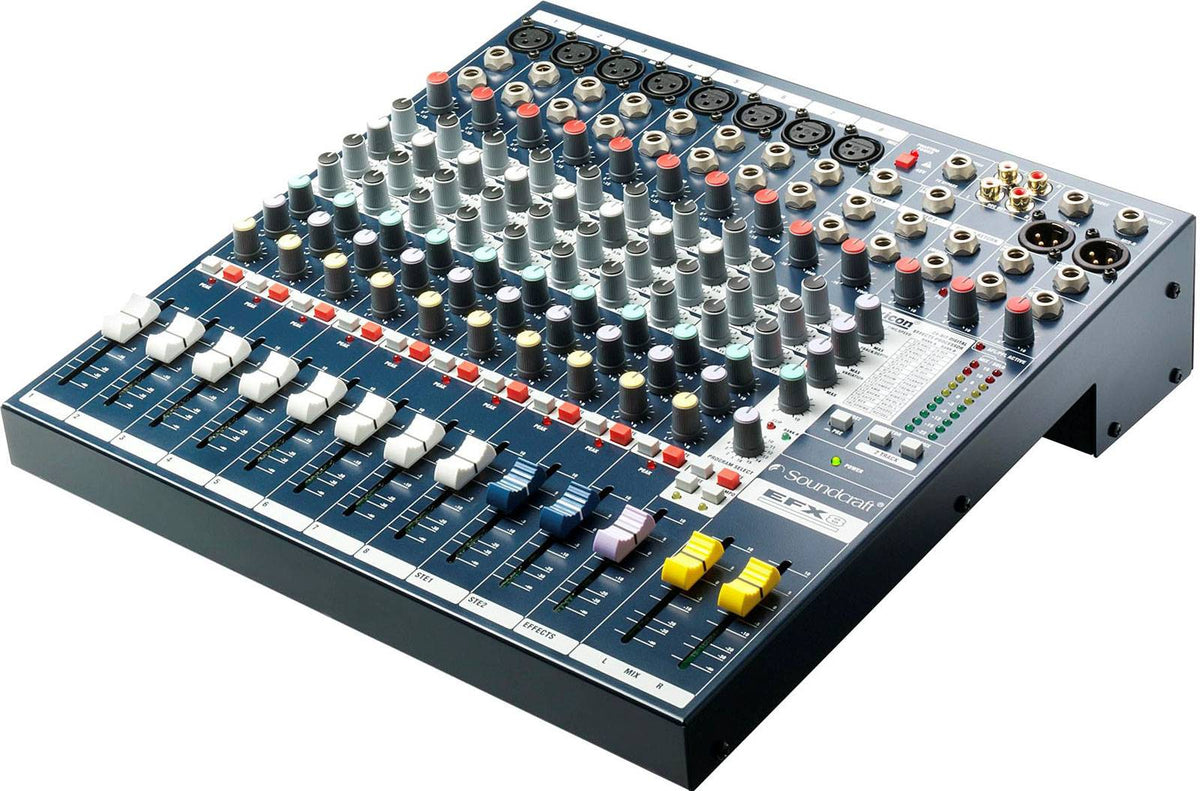

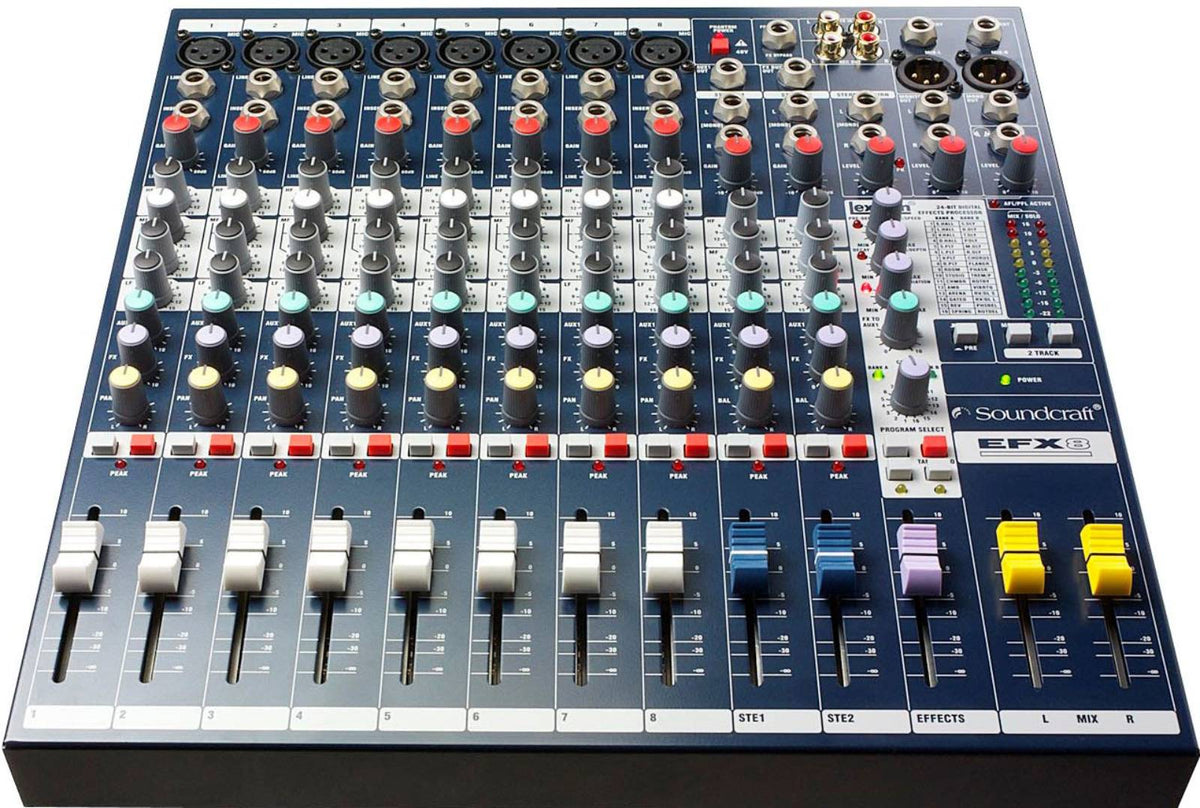

8 mono channels, 2 stereo channels mixer, Lexicon FX

Available in three versions with 8 and 12 channels, the EFX series replicates the features of the EPM series while integrating a powerful 24-bit Lexicon digital effects module. It introduces new functionalities in the multi-format mixer category while maintaining a high quality/price ratio. The use of low-tolerance surface-mount components increases the precision of gain and EQ circuits. The GB30 microphone preamp, identical to that used in the LX7II and GB series, provides a dynamic range of +22 dB and features a true professional 48V phantom power supply. A clipping LED allows progressive visualization if the signal approaches saturation, measured at various stages of each channel.

• 8 mono channels
• 2 stereo channels
• 2 Aux sends
• 24-bit Lexicon digital effects module
• Metal XLR and 6.35 mm Jack connectors
• 3-band EQ with sweepable midrange
• Insert on all channels plus Master
• 10-segment stereo Master VU meter
• Headphone output
• 60 mm faders
• Supplied with RW5745 rack mounting kit

Lexicon 24-bit effects section

The new Lexicon digital effects modules integrated into the FX series use the same AudioDNA® processor found in most Digitech and Lexicon products, such as the new MX500 reverb processor.

• 32 effects
• Tap Tempo function
• 3 variable effect parameters
• User settings memory
• Dedicated effects channel with master fader

SPECIFICATIONS:

Inputs:

8 balanced Mic/Line inputs on XLR/6.35 mm Jack with insert

2 balanced stereo inputs on 6.35 mm Jack

1 balanced stereo return input on 6.35 mm Jack

1 unbalanced 2-Track return input on RCA

Outputs:

2 balanced Mix outputs on XLR with insert

2 balanced Monitor outputs + 1 Mono on 6.35 mm Jack

2 unbalanced Record outputs on RCA

1 stereo Headphone output on 6.35 mm Jack

1 balanced Aux output on 6.35 mm Jack

1 balanced FX Bus output on 6.35 mm Jack

• Frequency Response: +1/-1.5dB, 20Hz – 20kHz (input/output)
• Distortion + Noise: < 0.02% @ 1kHz (Mic sensitivity -30 dBu + 14 dBu mix output)
• Signal-to-Noise Ratio: -127 dBu (150? source, mic input max gain), < -85 dBu (Aux, Mix and Master at 0 dB)
• Crosstalk: >96 dB (Channel), >86 dB (Aux, Master) @ 1 kHz

EQ:

(mono channel)

HF: 12 kHz, ±15dB

MF: 150 Hz - 3.5 kHz, ±15dB

LF: 80 Hz, ±15dB

Q=1.5

(stereo channel)

HF: 12 kHz, ±15dB

MF: 720 Hz, ±15dB

LF: 80 Hz, ±15dB

Levels:

• Mic Input: +15 dBu max
• Line Input: +30 dBu max
• Stereo Input: +30 dBu max
• Mix Output: +20 dBu max
• Headphone Output (@32?): 300 mW

Impedances:

• Mic Input: 2 k?
• Line Input: 10 k?
• Stereo Input: 65 k?
• Mix Output: 150 ?
• Power Consumption: 35 W
• Operating Temperature: 5°C to 40°C
• Dimensions: 330 x 91 x 362 mm
• Weight: 4.6 kg
