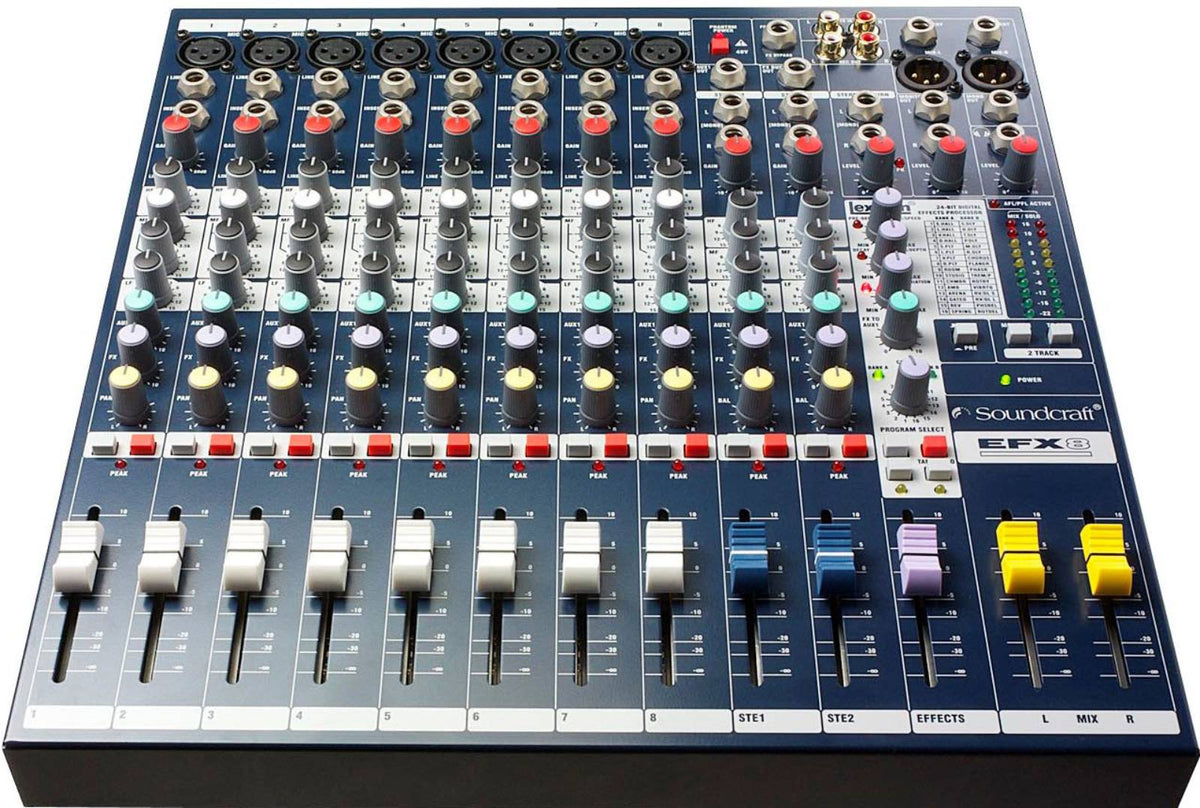

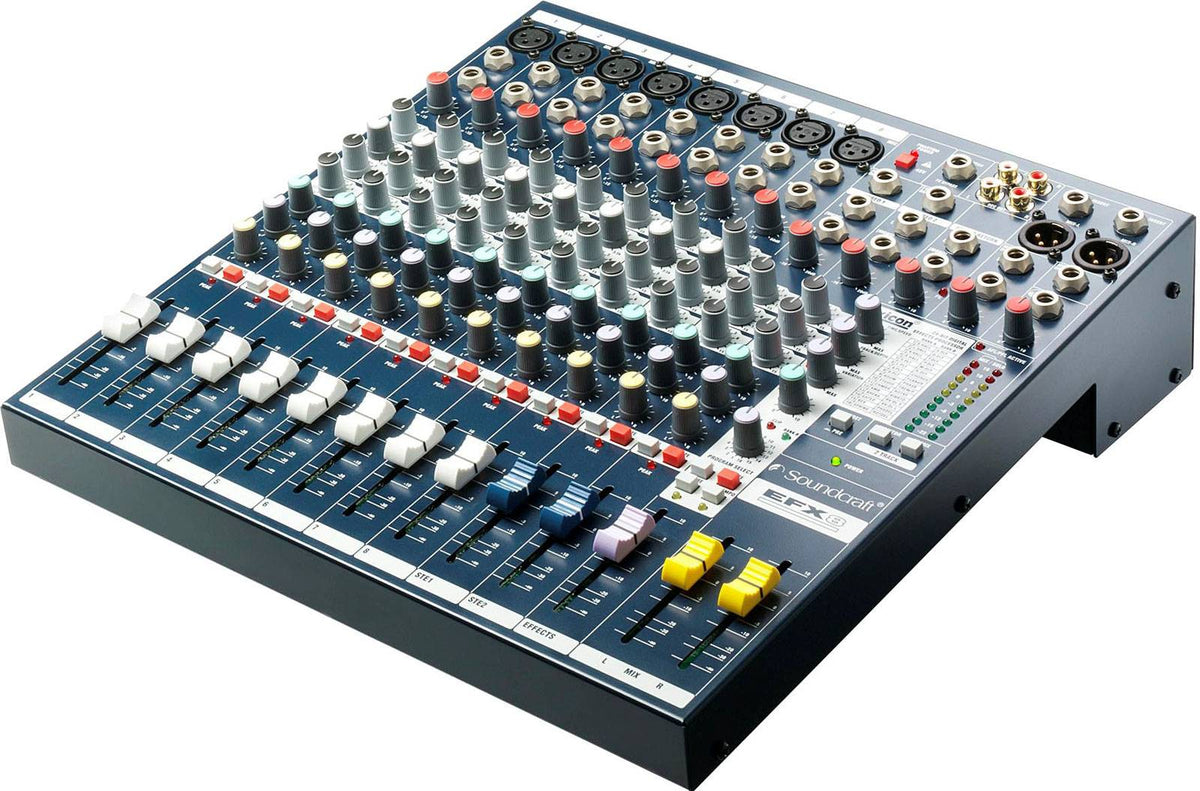

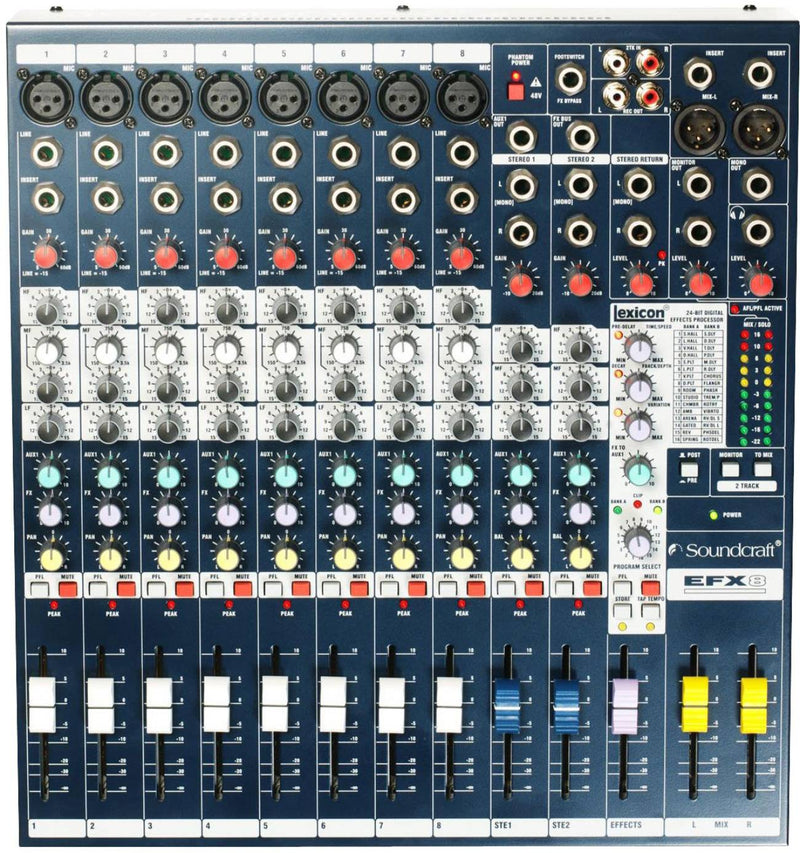

Soundcraft Efx 8

Essential Information About the "8 Mono Channels, 2 Stereo Channels, Lexicon FX" Mixing Console

• 8 mono inputs + 2 stereo channels with 3-band EQ and semi-parametric mid for precise mixing live or in the studio.


• Built-in 24-bit Lexicon effects engine: 32 effects, Tap Tempo, editable parameters, and user presets.


• GB30 microphone preamps offering a wide dynamic range (+22 dB) and professional 48 V phantom power.


• Road-ready construction: inserts on each channel and on the Master, 60 mm faders, metal XLR and 6.35 mm Jack connectors, RW5745 rack kit included.

A Series Inherited from Sound Reinforcement References

Derived from the EFX series, this console incorporates the proven ergonomics of the EPM models while integrating a 24-bit Lexicon effects processor. The GB30 preamps-identical to those in the LX7II and GB series-ensure clean gain and a wide headroom before saturation. Precision components and a progressive clipping LED guarantee reliable level adjustment on each channel.

Designed for Stage, Installation, and Home Studio

Compact and intuitive, it is aimed at bands, houses of worship, schools, bars/venues, mobile DJs, and home studios. The 2 auxiliaries allow management of both stage monitors and effects, while the rack-mountable format simplifies transport and integration into flight cases.

Technical specifications

Type	analog Compact	Rackable	Yes
USB stereo recording / playback	No	Headphone output	Jack 6.35, Yes
Number of faders	10

Mic/line inputs	8 balanced XLR/1/4" jack inputs with insert	Effect channel	dedicated with master fader
Stereo inputs	2 balanced 1/4" jack inputs	Frequency response	+1/-1.5 dB, 20 Hz - 20 kHz (input/output)
Stereo return input	1 balanced 1/4" jack input	Distortion + noise	less than 0.02% at 1 kHz (Mic sensitivity -30 dBu, +14 dBu at Mix output)
2Trk return input	1 unbalanced RCA input	Signal-to-noise ratio	-127 dBu (150-ohm source, maximum Mic input gain), less than -85 dBu (Aux, Mix and Master 0 dB)
Mix outputs	2 balanced XLR outputs with insert	Crosstalk	greater than 96 dB (channel), greater than 86 dB (Aux, Master) at 1 kHz
Monitor outputs	2 balanced + 1 mono 1/4" jack outputs	Mono channel	HF 12 kHz +/-15 dB; sweepable MF 150 Hz - 3.5 kHz +/-15 dB; LF 80 Hz +/-15 dB; Q \= 1.5
Record outputs	2 unbalanced RCA outputs	Stereo channel	HF 12 kHz +/-15 dB; MF 720 Hz +/-15 dB; LF 80 Hz +/-15 dB
Aux output	1 balanced 1/4" jack output	Mic input	+15 dBu max
FX Bus output	1 balanced 1/4" jack output	Line input	+30 dBu max
Built-in effects	32	Stereo input	+30 dBu max
Tap Tempo function	yes	Mix output	+20 dBu max
Variable effect parameters	3	Headphone output (32 ohms)	300 mW
User settings storage	yes
