A clean, powerful pedalboard power supply ready for the stage

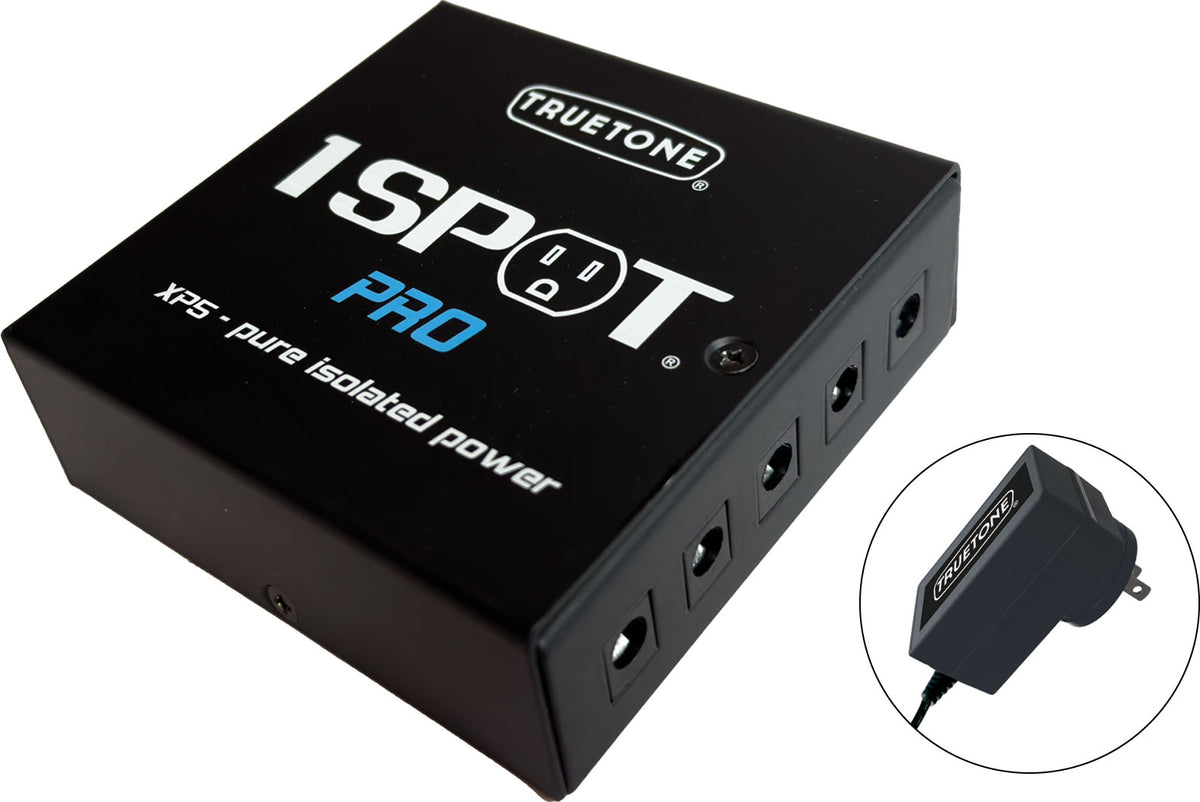

The Truetone 1 Spot Pro XP5-PS is designed for guitarists and bassists who want a reliable, compact, and silent power supply. Its isolated outputs provide stable voltage to each pedal and help maintain a clean signal, whether you're playing in a home studio or on stage with a more demanding setup. Thanks to the included 12V DC 2.5A adapter, the XP5 can be used in a lightweight configuration, as a second pedalboard, or as a dedicated solution without relying on a CS11. The system is also expandable: it is compatible with Truetone power supply extensions and can be combined with another XP5 to better distribute power across a large board. The included DC cables simplify wiring, speed up setup, and secure the integration of your pedals right out of the box.
Technical specifications
| Current | 0.5 A | Category | Multiple power supply |
| Voltage | 9 V | Number of outputs | 5 |
| Product | Truetone 1 Spot Pro XP5-PS (pack) | Connection | compatible with Truetone power supply extensions |
| Contents | 1 Spot Pro XP5 + power adapter | Cables | DC cables included |
| Outputs | isolated | Power supply | via CS11 or included adapter |
| Voltage per output | 9V DC | Included adapter | 12V DC / 2.5A |
| Max current per output | 500 mA | Accessories | set of international plugs included |
Questions frequently asked
How many pedals can the XP5-PS power?
The 5 isolated outputs each deliver 9 V DC with a maximum current of 500 mA per output. This setup allows powering five compatible pedals.
Are the outputs of the Truetone 1 Spot Pro XP5-PS isolated?
Each output is isolated to provide a stable voltage to connected pedals and maintain a clean signal.
Is the power adapter included with this power supply?

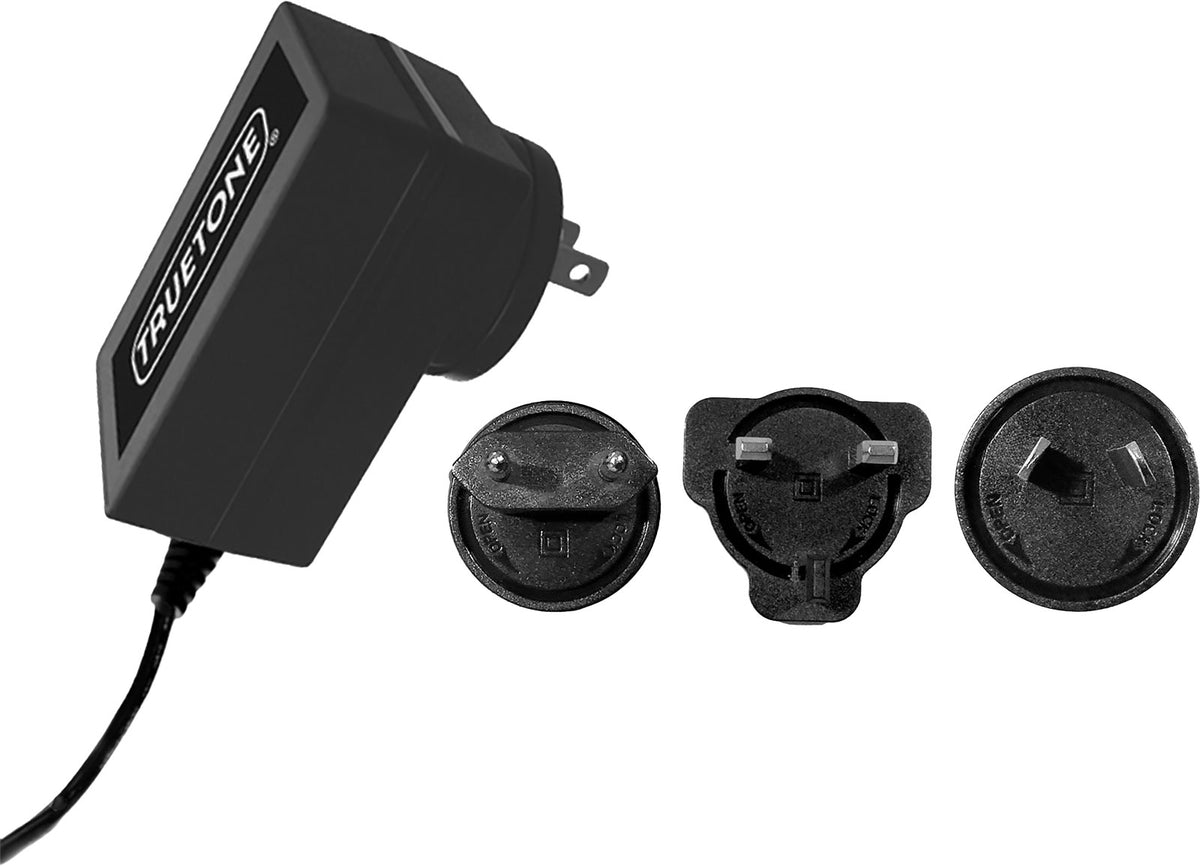

A 12 V DC / 2.5 A adapter is included in this pack. A set of international plugs is also provided. The power supply can therefore operate without relying on a CS11.
Can this power supply be used with a CS11?
The XP5-PS can be powered either via a CS11 or by the included power adapter. The connection is compatible with Truetone power extensions.
Which cables are provided with the XP5-PS?
DC cables are included to connect pedals to the five 9 V DC outputs.
