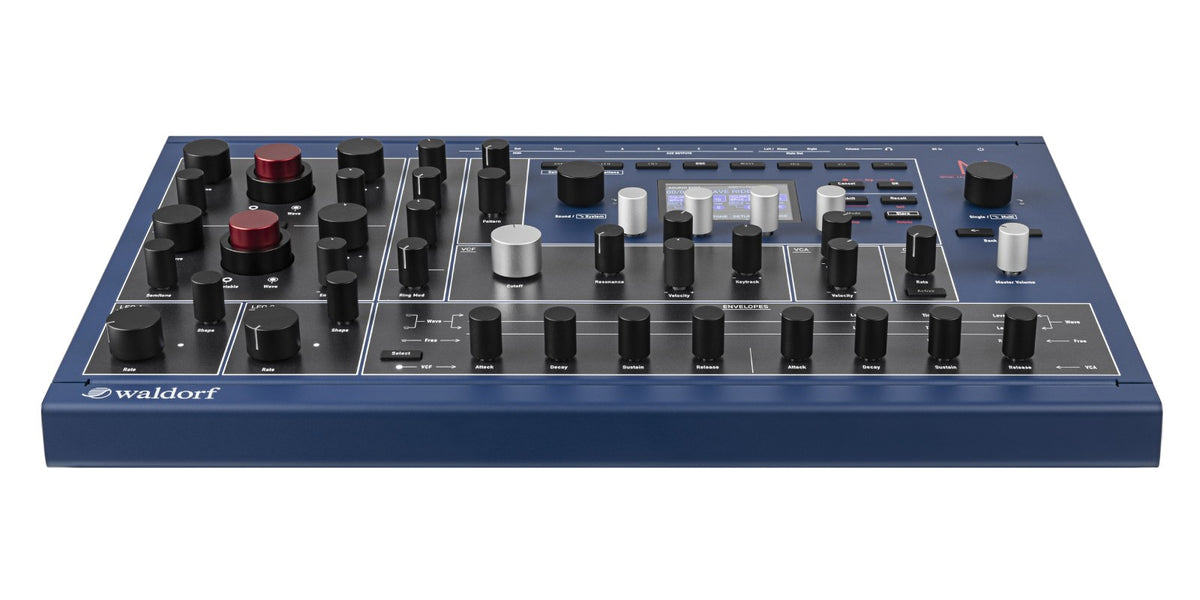

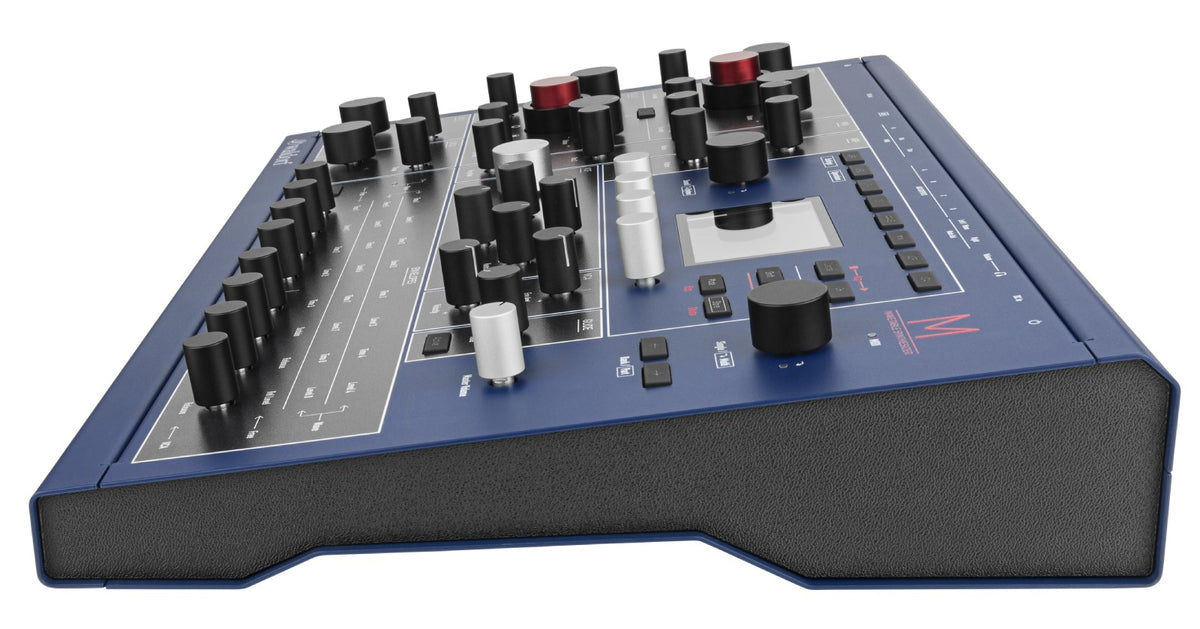

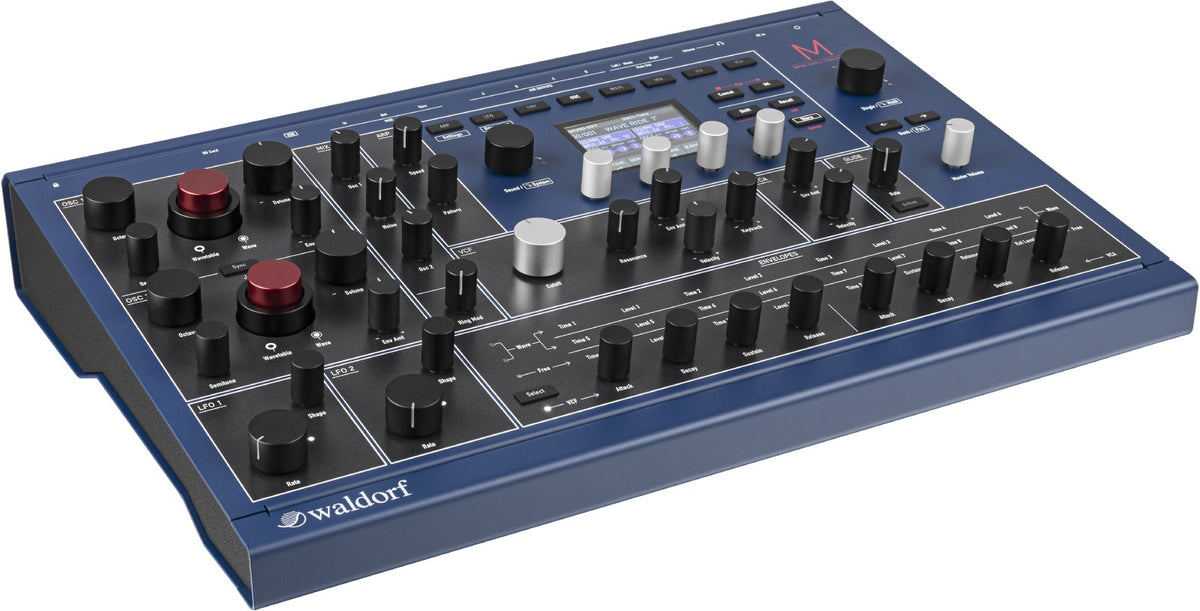

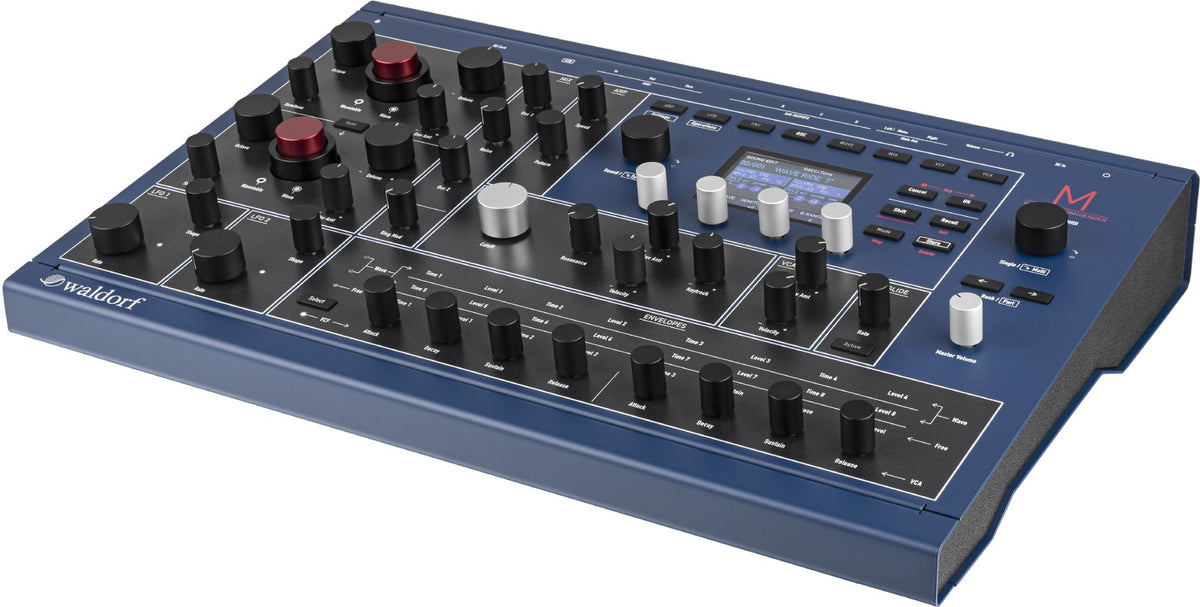

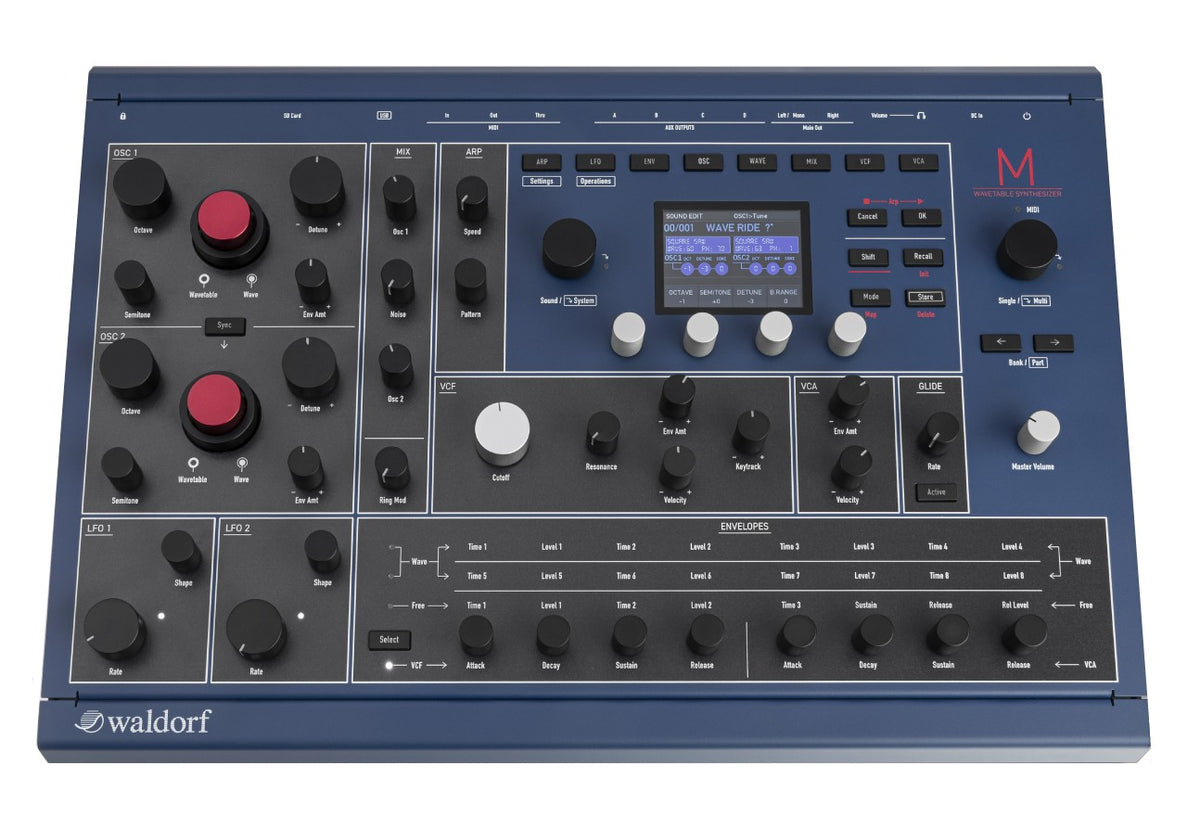

Waldorf M

Name: M
Brand: Waldorf
SKU: 354818
Price: 1429.00 EUR
Availability: InStock

1.429,00 €VAT incl.

0,90 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 354818

EAN : 4260126380967

This item is covered for 3 years

Information

Essential Information About the Waldorf M Synthesizer
• Hybrid Wavetable: 8-voice polyphony with 24 dB/oct analog VCF SSI 2144 and analog stereo VCA per voice for true "hardware" warmth.
• Two Sound Personalities: 2 wavetable oscillators with dedicated modes Classic Microwave I and Modern Microwave II/XT.
• 4-Part Multitimbral: up to 4 layers/splits, assignable to 4 individual stereo outputs (A to D).
• Massive Library: 2048 sounds + 128 multi-programs, featuring many classic sets and Sysex Microwave I compatibility.

1.429,00 €VAT incl.

0,90 € Ecotax included

Reference price

A Microwave Heritage Revisited in Desktop Format

The Waldorf M stands as a deliberate homage to the Microwave DNA, combining the "classic" wavetable generation (Microwave I) and the more "modern" approach (Microwave II/XT) in a robust, performance-oriented desktop synthesizer. Its identity lies in this blend between the digital precision of wavetables and analog musicality, thanks to the 24 dB/oct low-pass filter with resonance and saturation, complemented by an analog stereo VCA.

Who Is It For, and Which Styles?

The Waldorf M is especially aimed at advanced musicians and sound designers who want to sculpt evolving timbres typical of wavetable synthesis, while retaining an analog response at the filter and amplification stages. Perfect in the studio for ambient, techno, synthwave, modern pop, or film scoring, it also proves very solid in live settings thanks to its 4-part multitimbrality, multiple outputs, and syncable arpeggiator.

Technical specifications

Arpeggiator	Yes	Synthesis type	Wavetables, Hybrid, Subtractive
Sampler	No	Vocoder	No
Max polyphony	8	Category	Hybrid Synth
Velocity sensitive	Yes	MIDI I/O	IN, OUT, THRU (DIN), MIDI PAR USB
MPE compatible	Yes	Inputs	Midi, SD card
Number of oscillators	2	Outputs	2 x jack, 4 individual jack outputs
Semi-modular	No

Questions frequently asked

Does the Waldorf M support the Microwave I and Microwave II/XT modes?

The 2 wavetable oscillators feature Classic Microwave I and Modern Microwave II/XT modes. These modes alter the generation behavior and character of the wavetables.

What are the polyphony and multitimbrality?

Polyphony reaches 8 voices and multitimbrality handles 4 parts. Each part can be assigned to one of the 4 auxiliary stereo outputs.

Is the filter analog?

The filter section uses an analog SSI 2144 ladder-type low-pass filter with a 24 dB/octave slope and saturation. A stereo analog VCA is provided for each voice. Panning is available per voice.

Can user wavetables be loaded?

32 user slots are available for wavetables. The SD card slot allows loading and saving of sounds, banks, and user wavetables.

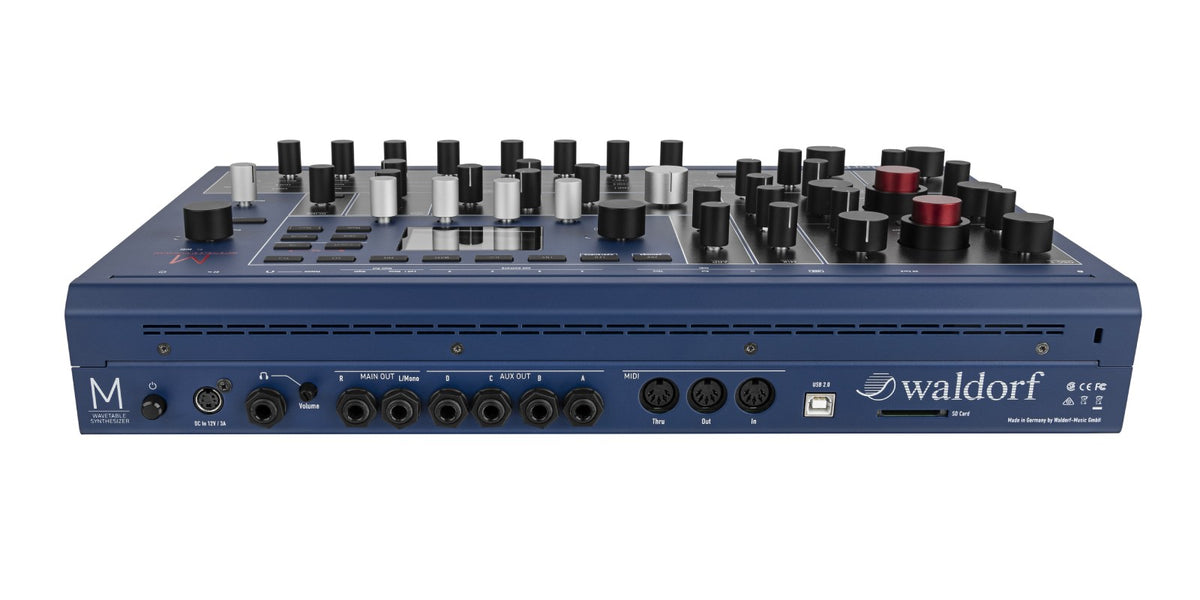

What MIDI and audio connections are available?

MIDI connectivity includes USB 2.0 as well as DIN In, Out, and Thru ports. Audio outputs consist of a main pair on unbalanced 6.3 mm jack and 4 auxiliary stereo outputs on balanced 6.3 mm TRS jacks.
