Walrus Audio Canvas Power 5

Canvas Power: a power supply designed for modern pedalboards

The Walrus Audio Canvas Power 5 was designed to meet the current demands of pedalboards: reduced footprint, higher current needs (especially with digital pedals), and the requirement for minimal background noise. With its isolated outputs and "clean power" oriented design, it stands as a reliable solution to centralize power for your effects without multiplying power adapters.

Who is it for and what for: a solid base for a compact and versatile pedalboard

The Canvas Power 5 is aimed at guitarists and bassists who want a simple-to-integrate power supply that is flexible enough to cover a wide range of pedals. It is perfectly suited for setups ranging from minimalist pedalboards to more complete rigs, whenever you need 5 isolated outputs and an output capable of switching to 12V or 18V for certain overdrives, preamps, compressors, or specific effects. Its ability to deliver 500 mA at 9V per output helps maintain stable power, even with demanding pedals.

Key Features: silence, modularity, and easy integration

Isolated outputs: less noise, more stability

The strength of a pedalboard power supply often lies in managing interference. Here, the 5 isolated outputs are designed to limit ground loops and crosstalk between pedals, contributing to a more silent and consistent effects chain, both in the studio and on stage.

A variable voltage output to adapt to your pedals

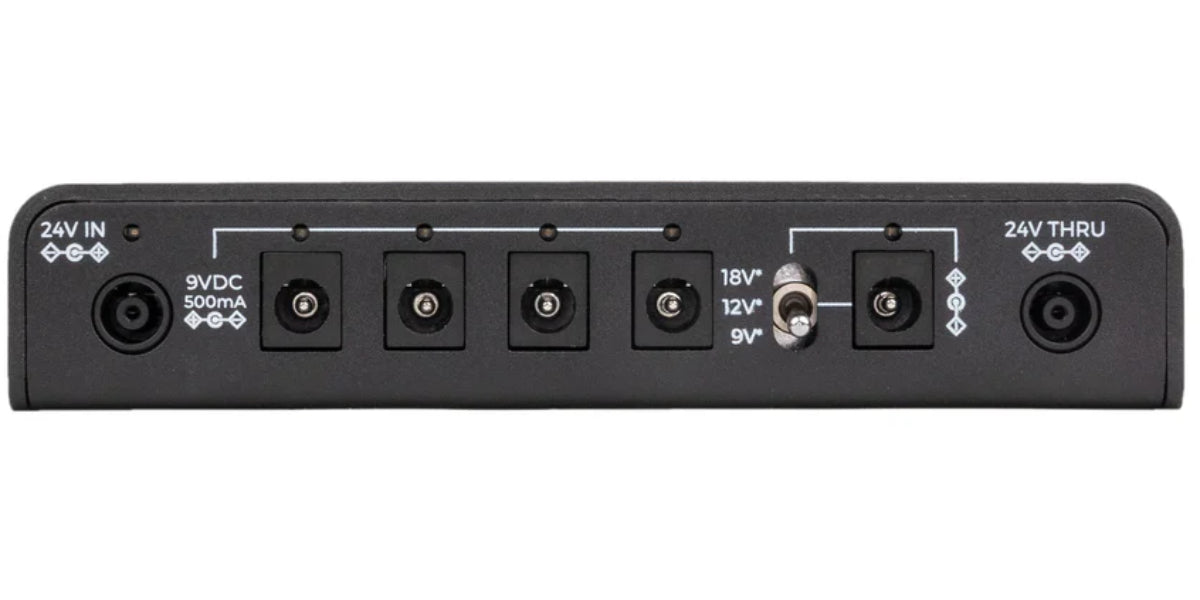

The Canvas Power 5 includes 1 output switchable between 9V, 12V, or 18V. This is a real advantage to optimize the operation of certain pedals: more headroom, a different response depending on voltage, or simply compatibility with a model that doesn't run on 9V. This flexibility avoids adding a dedicated power supply just for one particular pedal.

Included cabling and connectors designed to save space

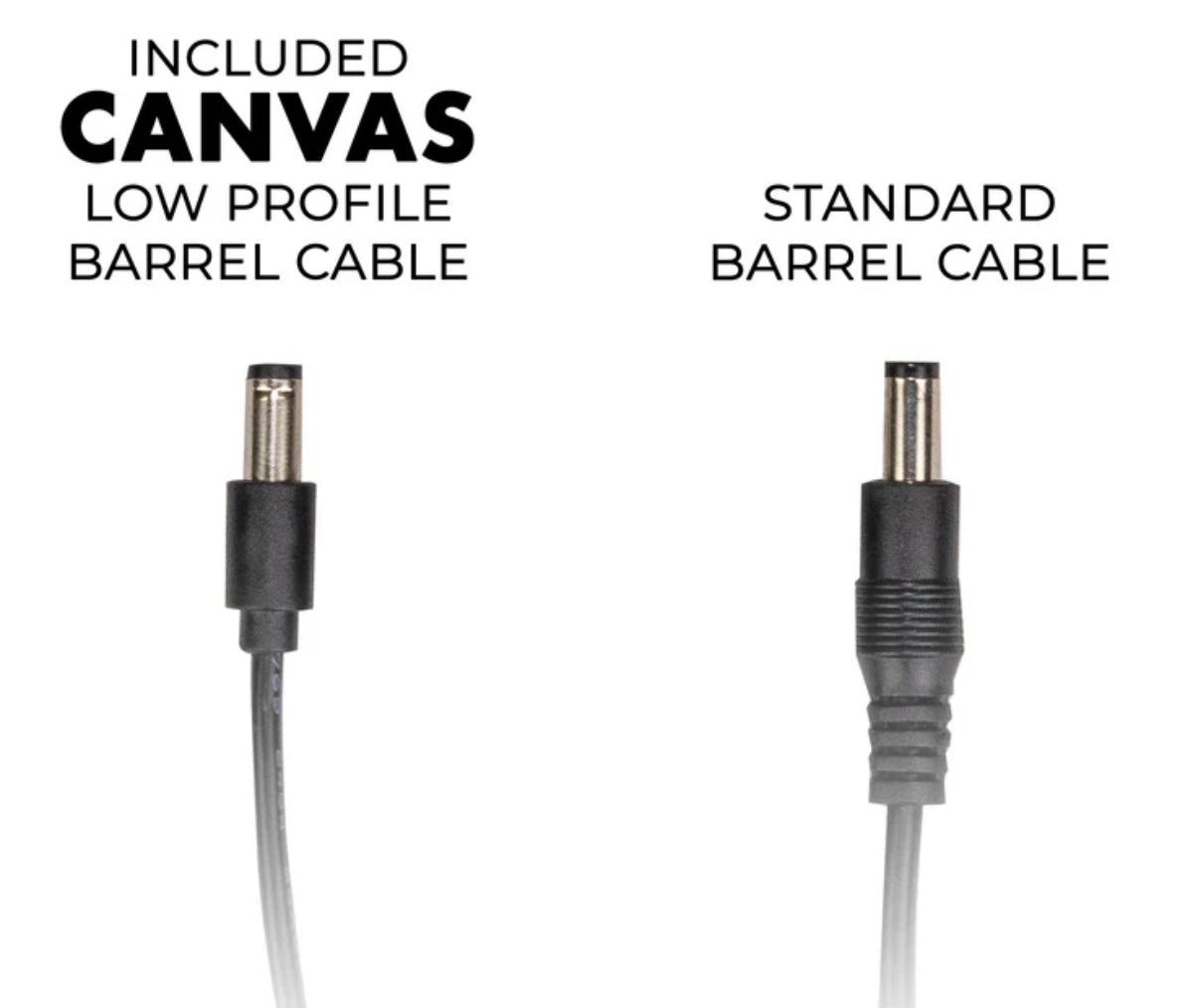

Walrus Audio provides the appropriate number of cables to power one pedal per output. The connectors are designed for integration: right-angle plug on the pedal side and extra small plug on the power supply side, convenient for a clean setup under a pedalboard where every millimeter counts.

Expansion via 24V link: scalable with Canvas Power Link

The Canvas Power 5 features a 24V input and a 24V output allowing connection of additional Canvas Power Link modules. This is an interesting approach to evolve your pedalboard without reworking the entire power architecture, maintaining a coherent and tidy installation.

Under-pedalboard mounting and included external power supply

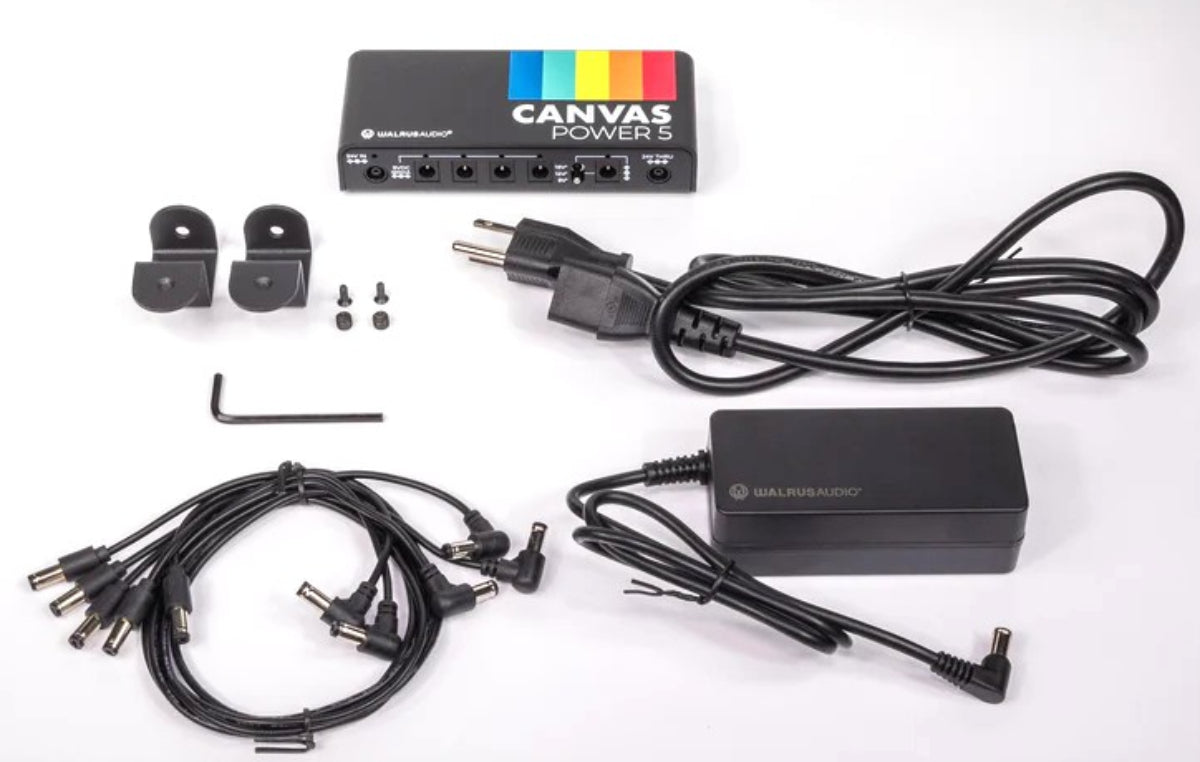

Thanks to its compact chassis and included mounting brackets (compatible with most Pedaltrain models), installation under the pedalboard is straightforward. An external power supply unit is also included, providing a complete, ready-to-use solution immediately.

Technical specifications
