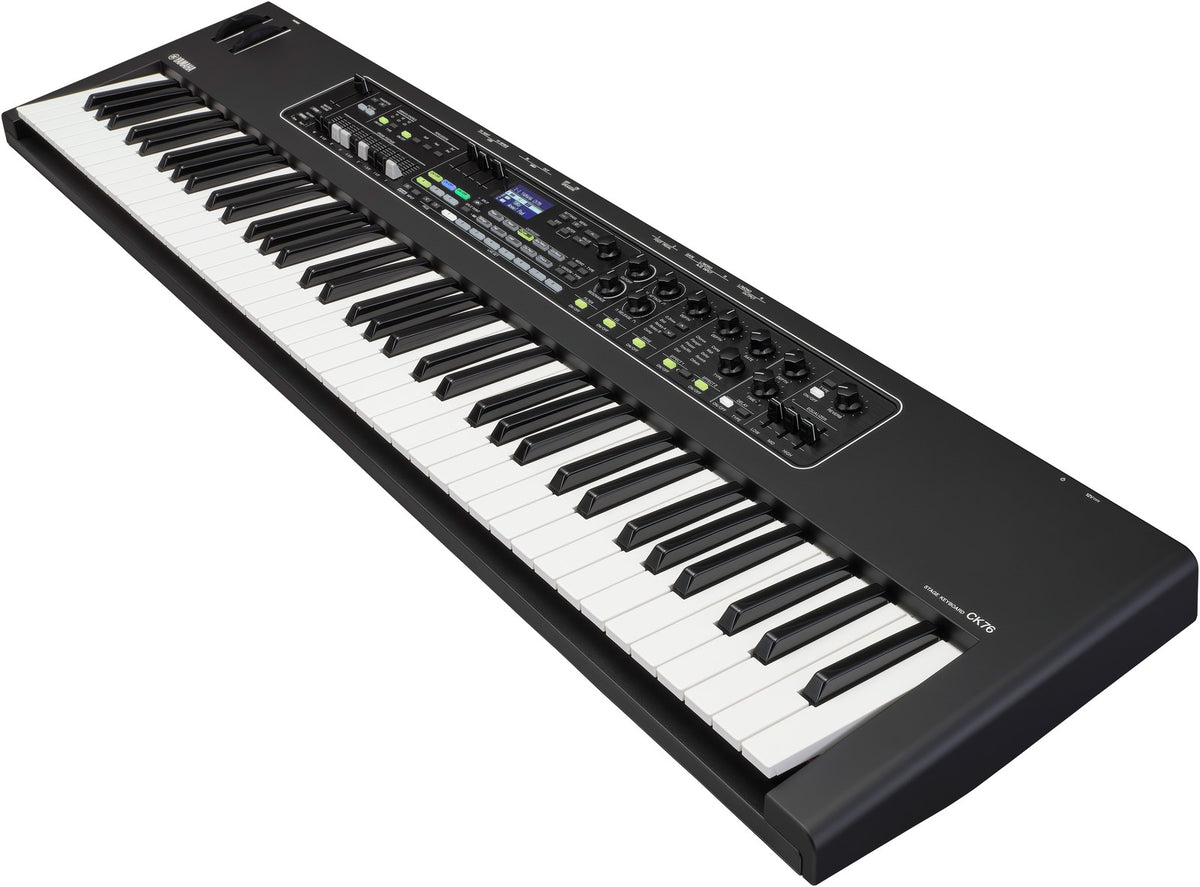

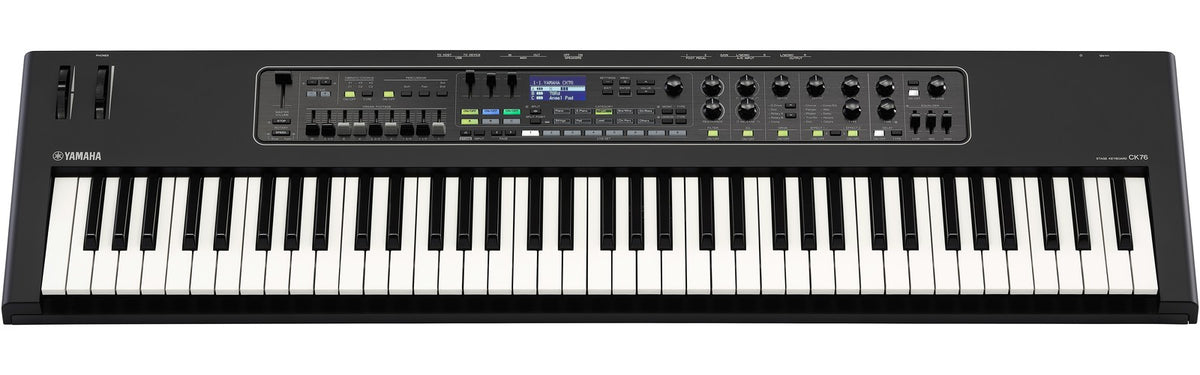

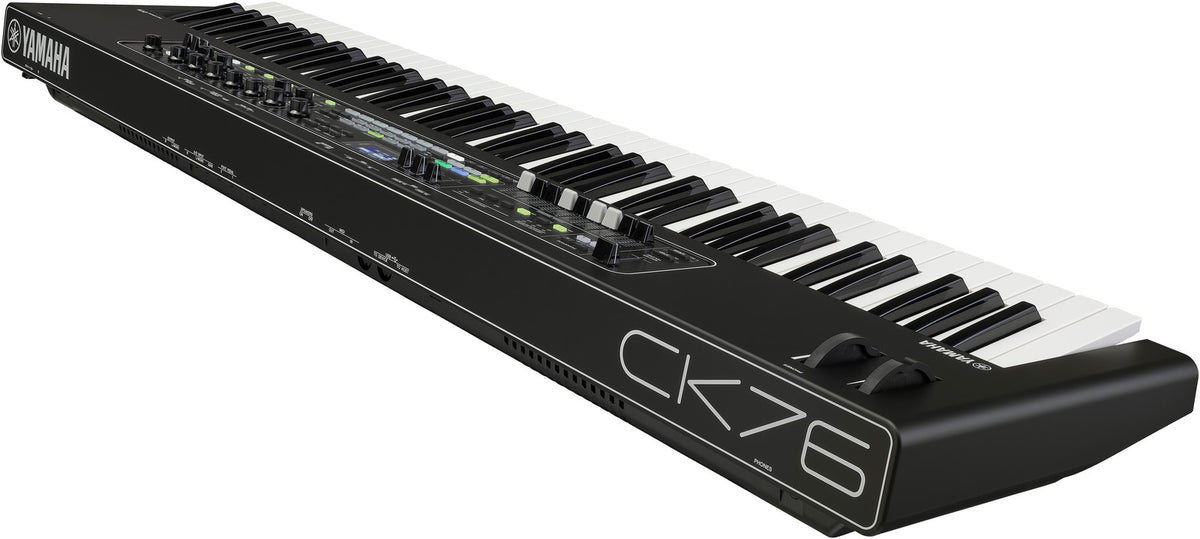

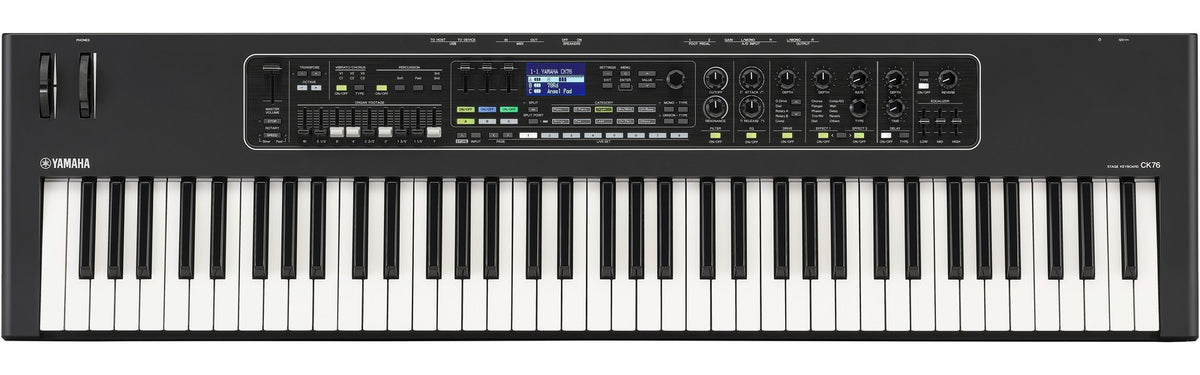

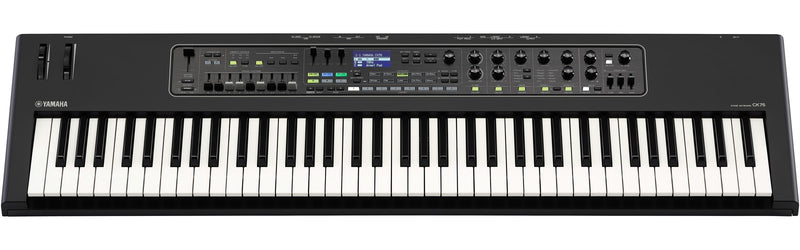

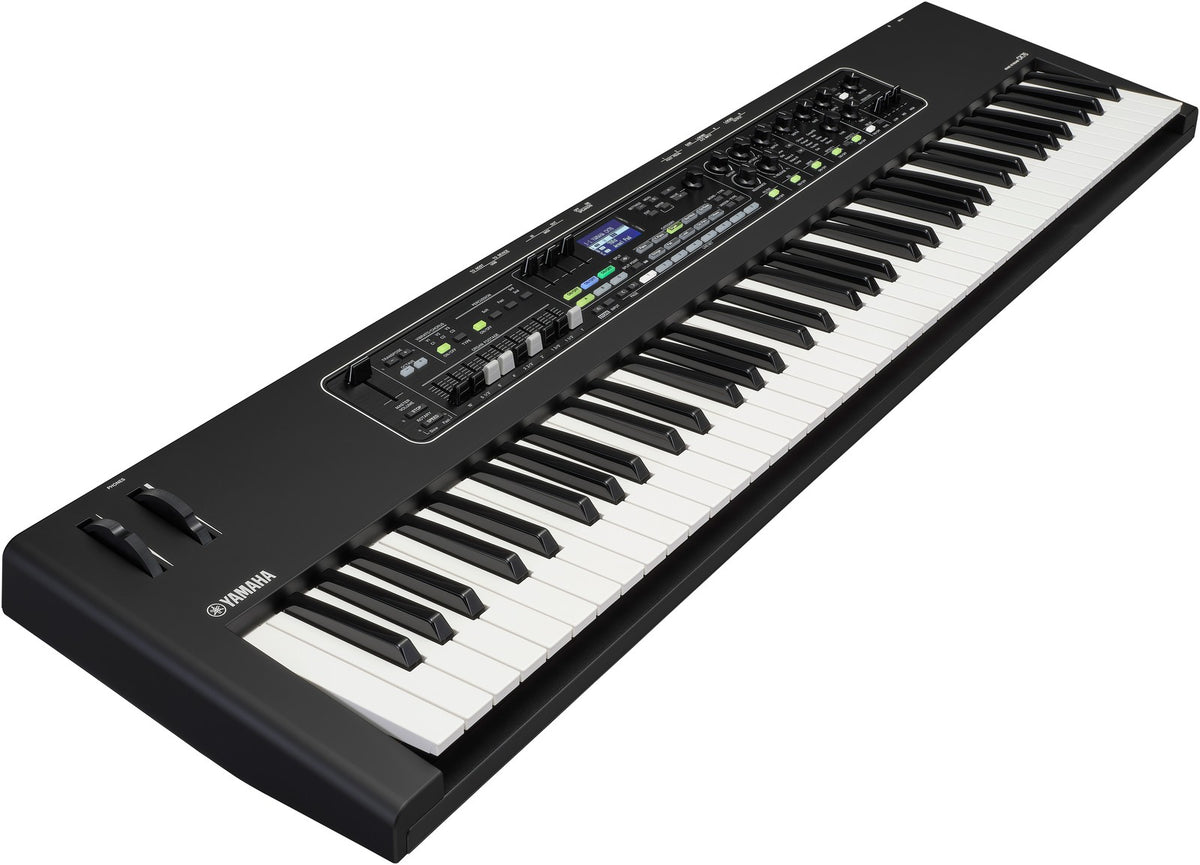

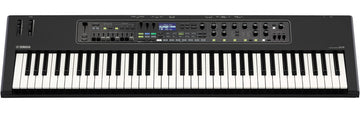

Yamaha CK76

A Link Between the CP and YC Worlds

Presented as a complement to the CP and YC series, the CK76 brings together two approaches to keyboard playing: the expressiveness of stage pianos and the flexibility of organs and synthesizers. Its appeal lies in this versatility: switch from piano accompaniment to an expressive organ, then add a pad, without having to multiply the number of instruments on stage.

Keyboard Design

The configuration announced at the end of the description is based on a 76-key semi-weighted FSB keyboard, velocity-sensitive. This type of touch is suitable for versatile use, from electric piano chords and synthesizer lines to organ playing. However, other data mentions an 88-key weighted GHS keyboard. The exact configuration should therefore be confirmed before purchase.

Sound Quality

The sound engine combines AWM2 technology and dedicated organ flutes. The 363 announced voices cover the essential families: acoustic and electric pianos, organs, strings, brass and synthesizers. The maximum 128-voice polyphony provides welcome headroom for layering and sustained chords.

For working without any additional setup, the description announces two built-in speakers and 2 x 6 W amplification. The stereo line outputs allow connection to a mixing console or sound system, while the headphone output makes silent practice easy.

Built-in effects

• Reverb and delay to give pianos, pads and solo parts more space.
• Chorus, Phaser and Tremolo to enhance electric pianos and modulated textures.
• Overdrive and Rotary effect to shape the character of organ sounds.

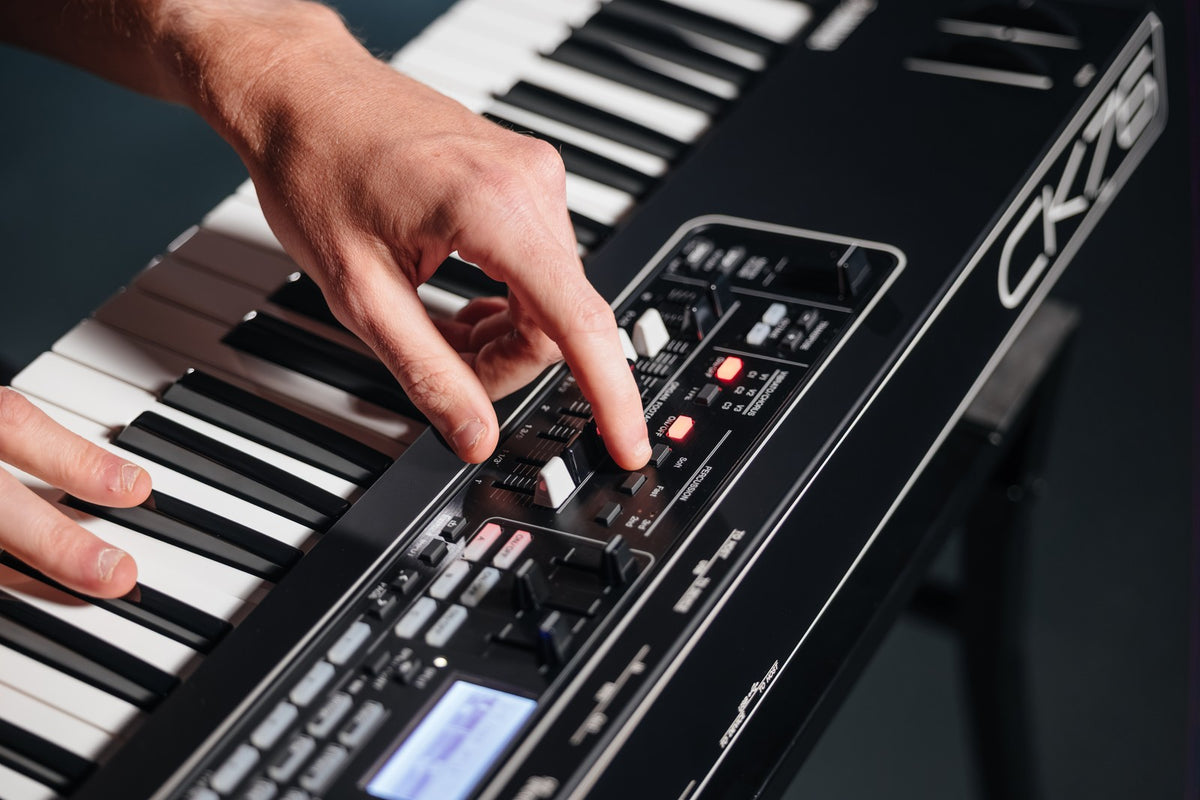

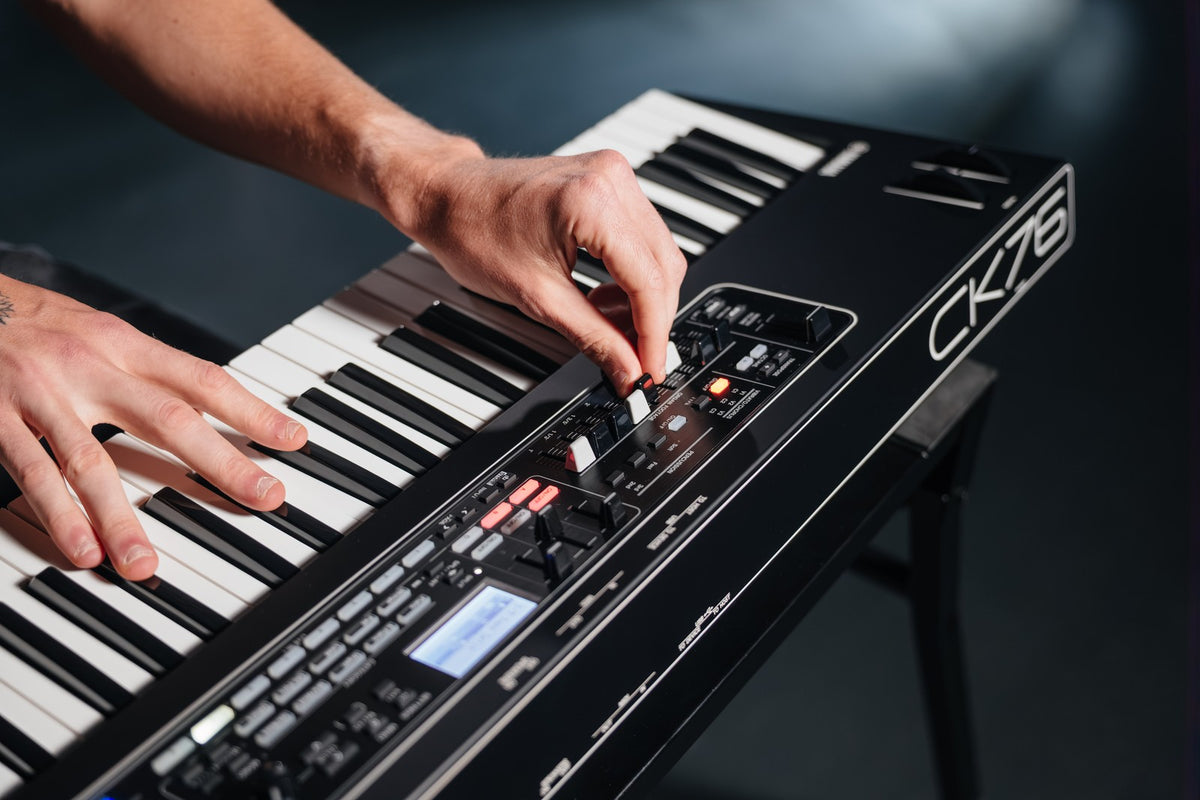

• Overall equalization and brightness control, with effects controls conveniently accessible on the front panel.

Technical specifications

Effects	Reverb, Delay, EQ, Chorus, Overdrive, Chorus / Tremolo, Phaser, Rotary	Touch	Semi-weighted
Arpeggiator	No	Split & layer	split 2 zones or 2 layers, layer, split
Bluetooth	No	Max polyphony	128
Controller	Pitchbend, Modulation, 9 physical harmonic bars, Volume fader, Drawbars	USB to Host port	Yes

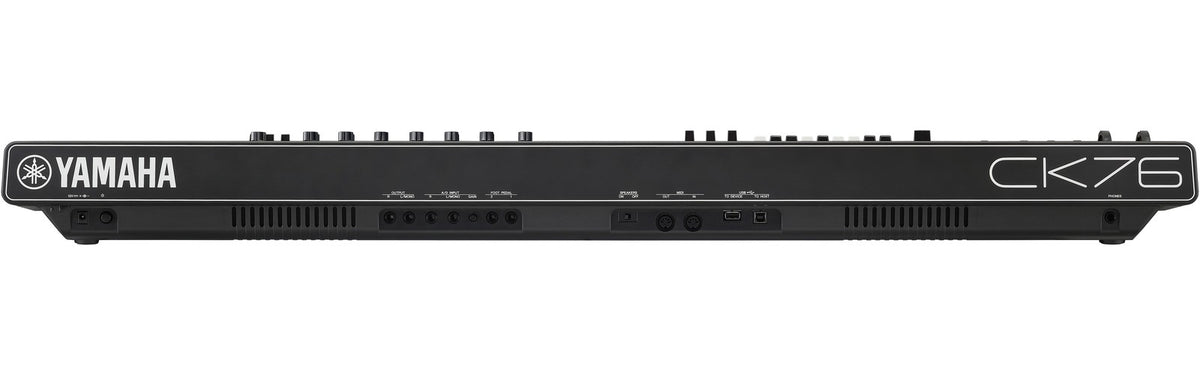

Number of speakers	2	Inputs	234, Sustain pedal, Midi, Bluetooth audio, Line in, 2 x jack, USB Midi, Control pedal
Velocity sensitive	Yes	Outputs	Midi, Headset, 2 x jack, USB Type B, 3.5 mm headphone, 6.5 mm headphone, USB Type A
MIDI DIN I/O	Yes	Color	Black
Number of keys	76	Finishing	Matt

Announced designation	CK76.	Announced number of sounds	363, also presented as more than 360 sounds.
Configuration announced in the summary	76 keys, semi-weighted FSB keyboard.	Sound families	pianos, electric pianos, organs, strings, brass and synthesizers.
Another configuration mentioned	88 keys, Graded Hammer Standard GHS action, progressive weighted touch, heavier in the bass and lighter in the treble.	Maximum polyphony	128 voices.
Velocity sensitivity	yes.	Number of built-in speakers	2.
Playing modes	Split and Layer.	Announced amplification	2 x 6 W.
Sound engine	AWM2 and dedicated organ flutes.	LC display	128 x 64.
