A Midrange Section Inherited from the Tone Hammer DNA
The DB316 carries the spirit of the famous Aguilar preamp Tone Hammer : a sculptable, musical midrange immediately useful in real situations. Where many passive basses offer no onboard control, and some 2-band preamps (bass/treble) leave the mids "fixed," the DB316 complements your rig with targeted control over the most crucial area for attack, tone, and clarity.
Designed as a mix placement tool, it can become your "always-on" EQ or an instant Plan B to change character between songs (round verse, more present chorus, deeper slap, etc.).
For Whom, Which Styles, and In What Situations?
The Aguilar DB316 is aimed at bassists who want to master their mids without complexity : from beginners seeking to understand "where the body of the sound lies" to seasoned musicians who need to adapt to a venue, backline, or dense mix. It shines in styles where the bass must remain clear: rock, funk, pop, blues, metal, gospel, and also in the studio when you want to place the bass precisely without affecting the rest of the spectrum.
On a pedalboard, it naturally sits at the start of the chain to correct the bass at the source, or before distortion to influence the grain (mids heavily condition the perception of distortion). Live, it is also an excellent "room corrector": a quick Level tweak on the right frequency and the bass regains its place.
Controls, Operation, and Pedalboard Integration

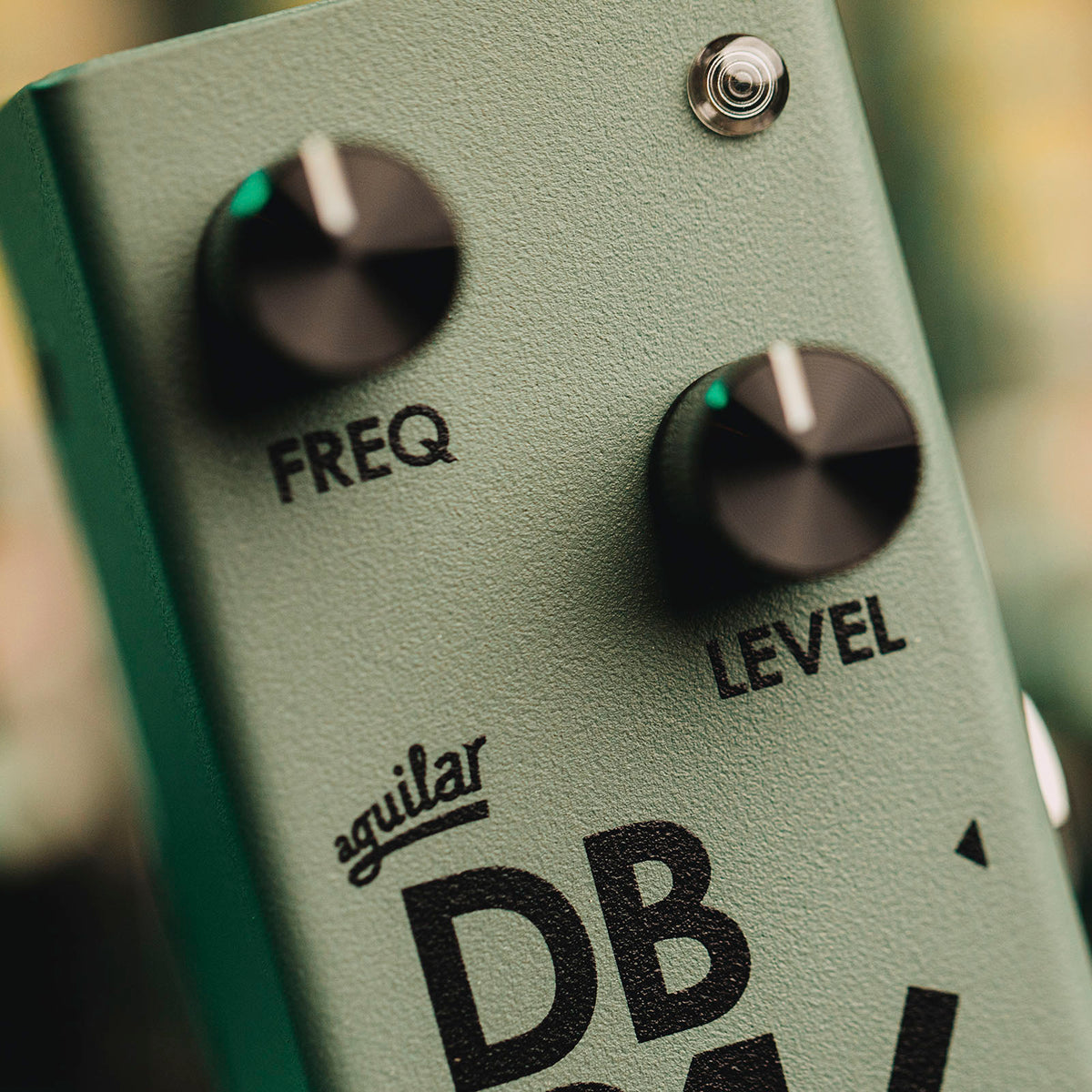

The DB316 gets straight to the point with two controls: Mid Freq selects the midrange frequency (sweep from 180 Hz to 1 kHz) and Level applies boost or cut on this band (from -17 dB to +17 dB). The result: you quickly find the problematic frequency to attenuate (boxy sound, muddy low-mids) or the area to push for better cut (pick attack, fingerstyle presence).
Its analog circuit favors a natural feel under the fingers, and the True Bypass ensures a direct signal when the effect is off. Practically, its micro format makes it easy to add a real EQ tool even on already crowded pedalboards, while maintaining a very "stage-friendly" workflow: a glance, a quick turn, and it's set.
The Sound
The DB316 does not aim to "reinvent" your bass: it emphasizes a clean and usable midrange sculpting. Boosted, it can add punch, grain, and a sense of proximity (perfect for a line that needs to lead the song). Cut, it helps recover a more open and modern sound, useful for slap or to leave space for guitars and keyboards.
The 180 Hz to 1 kHz range precisely covers the areas that make the difference: low-mids for thickness and "chest," mids for definition, upper mids for attack. The pedal responds well to playing nuances: once the right frequency is found, the Level control becomes a true character fader rather than a simple corrective.
Technical specifications
| Effects | EQ, Bass | Settings | level, mid freq |
| Technology | Analog | Type | sector |
| Format | Pedal | Use | Bass |
| Inputs | Instrument jack | Color | Green |
| Outputs | 1 x jack | Power supply included | No |
| True bypass | Yes | Power supply | DC 9 V |
| EQ | Yes | ||
| Category | Bass EQ | Documentation | Yes (depending on packaging) |
| Controls | Level, Mid Freq | Consumption | 6.5 mA |
| Midrange Frequency Range | 180 Hz to 1 kHz | Connector Type | 2.1 mm plug |
| Midrange Gain | -17 dB to +17 dB | Polarity | Center negative |
Questions frequently asked
What midrange frequency range does the Aguilar DB316 Midrange EQ cover?
The Mid Freq control sweeps the midrange frequencies from 180 Hz to 1 kHz, covering low-mids related to thickness as well as upper-mids that enhance attack.
Can the mids be boosted or cut on this pedal?
The Level knob applies an adjustable gain from -17 dB to +17 dB on the selected frequency. A cut can reduce a muddy low-mid, while a boost can enhance definition in the mix.

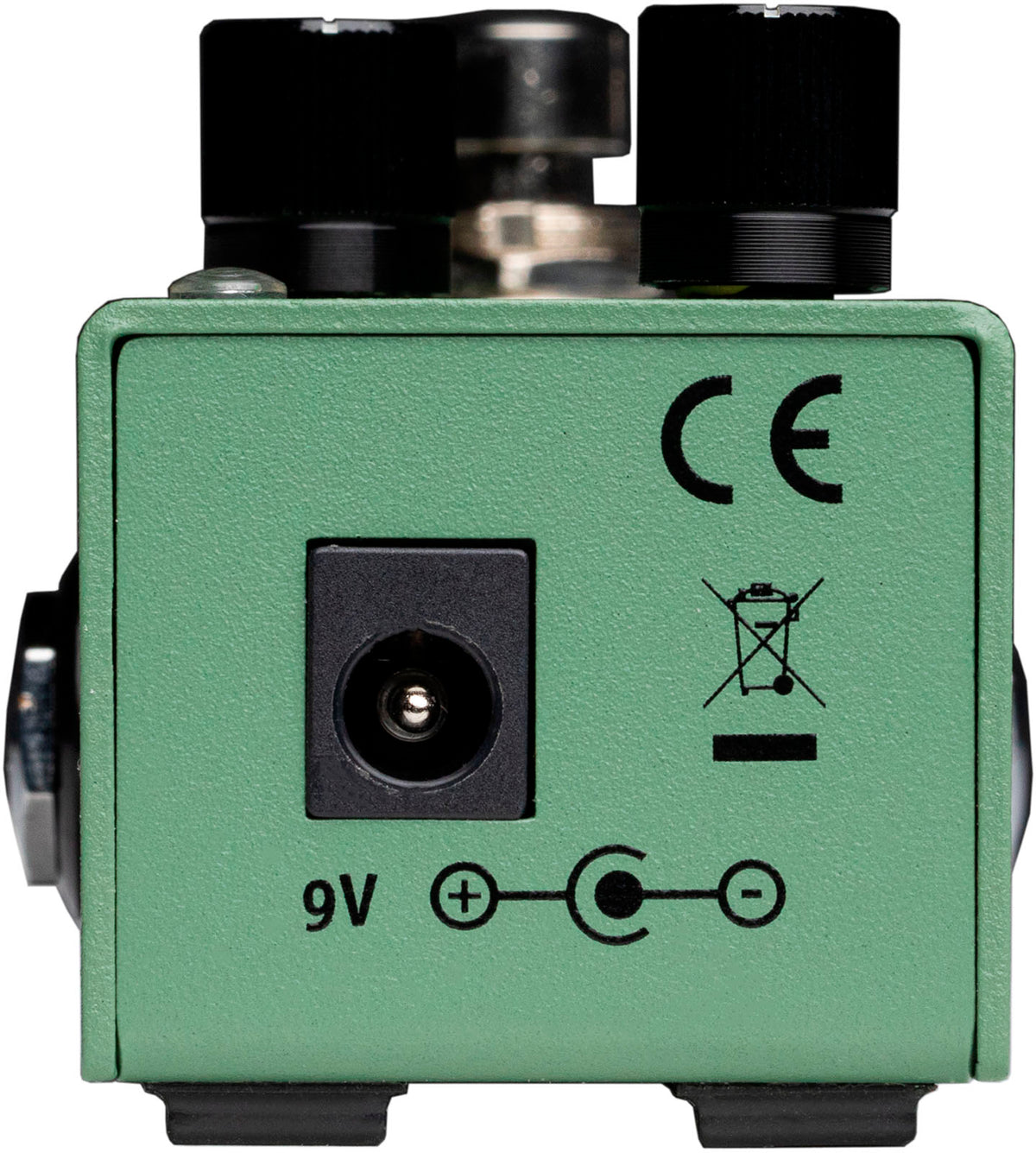

What power supply is required for the DB316?
This pedal runs on 9 V DC with a 2.1 mm plug and center-negative polarity. The power supply is not included. Its current draw is 6.5 mA.
Where should an Aguilar midrange EQ be placed in a bass pedalboard?
Placement early in the chain allows correction of the bass signal before other effects. Placed before distortion, the setting between 180 Hz and 1 kHz directly affects the resulting tone.
Does the DB316 have true bypass?
The analog circuit features true bypass, ensuring a direct signal path when the effect is off.
