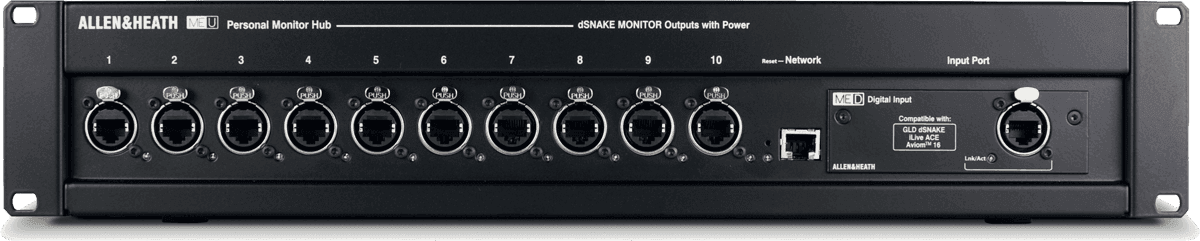

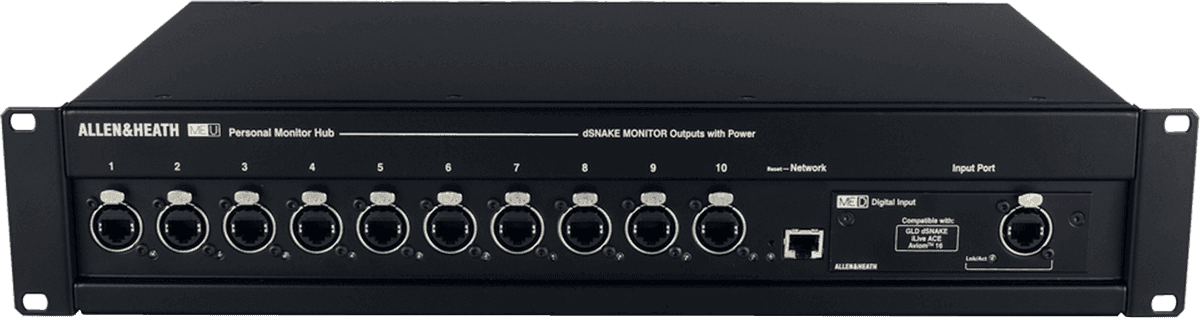

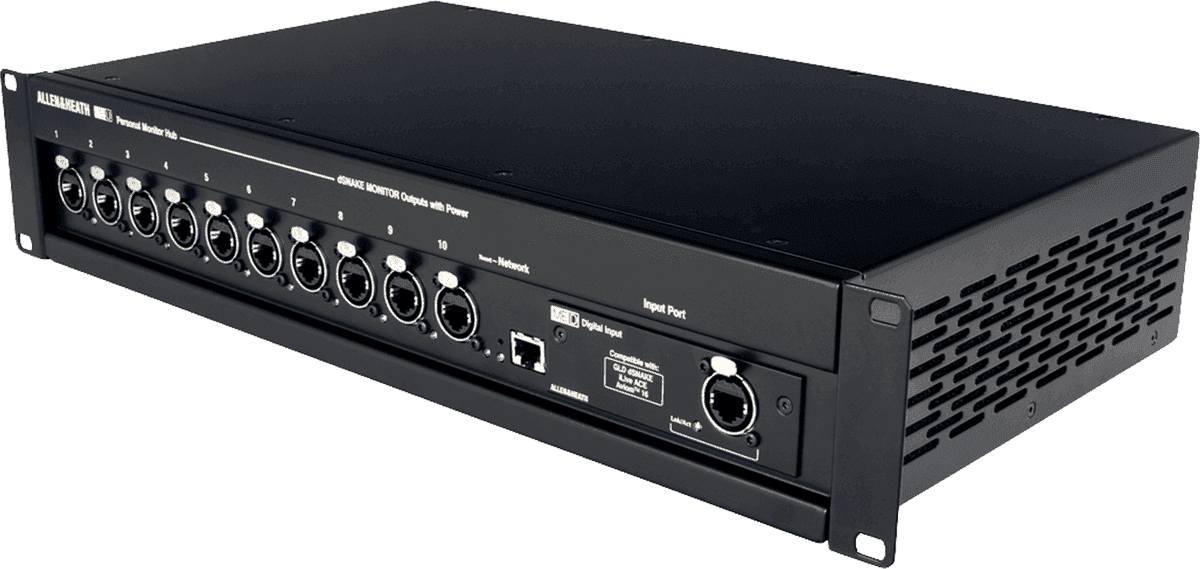

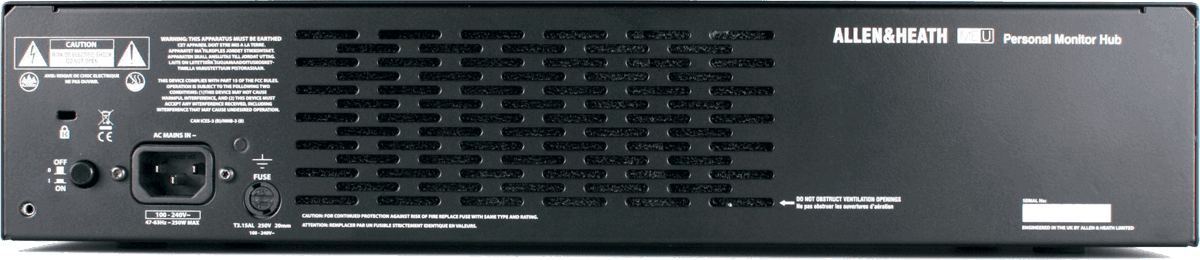

A Hub Designed for the ME Ecosystem and Integration with Digital Consoles
Designed to make the ME-1 personal mixers compatible with the majority of digital consoles, this hub relies on optional iLive-M type audio network cards (Dante, MADI, or EtherSound). It thus becomes the central point for PoE power supply and distribution for ME-1 mixers, both in the studio and on stage.Intended Uses and Target Users
Ideal for contractors, theaters, houses of worship, and schools, this hub simplifies the setup of a reliable personal monitoring system. Musicians benefit from consistent individual control, while sound engineers maintain a clear, scalable, and easy-to-maintain architecture.Technical specifications
| Number of channels | 10 | Category | hub |
| Bluetooth | No | Inputs (other) | 10 x etherCon |
| EQ | No | Color | Black |
| Motorised faders | No | Weight | 4.6 kg |
| Rackable | Yes | Dimensions (mm) | 483 x 253 x 92 |
| Rack unit | 2 | ||
Questions frequently asked
How many ME-1 personal mixers can this hub power?
The 10 front-facing etherCon ports power and distribute audio to up to 10 ME-1 mixers via PoE. A second hub can be daisy-chained to expand the system to 19 units.
Is the Allen & Heath ME-u compatible with Dante or MADI?
The expansion slot accepts optional iLive-M audio network cards for Dante, MADI, or EtherSound. This allows integration with many digital consoles.
How many audio sources are available on each ME-1?
Each port sends up to 40 audio sources to a ME-1 personal mixer, alongside PoE power.
Can the ME-1 mixers be configured from a computer?
A PC or Mac can be connected to the multi-application network to name mixers, manage IP addresses, and label channels. With an iLive system, channel names are automatically imported. This feature helps maintain patch consistency during soundchecks.
Is the ME-u hub rack-mountable?
The 2U rack-mountable format measures 483 x 253 x 92 mm and weighs 4.6 kg.
