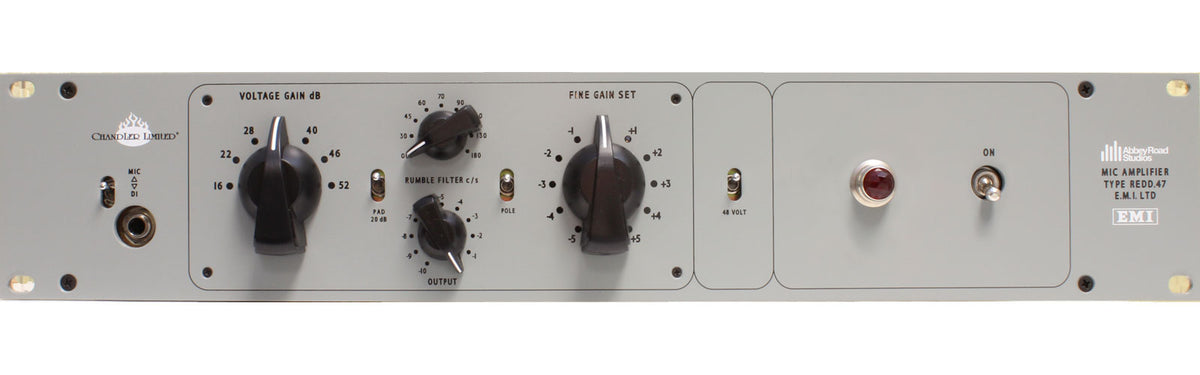

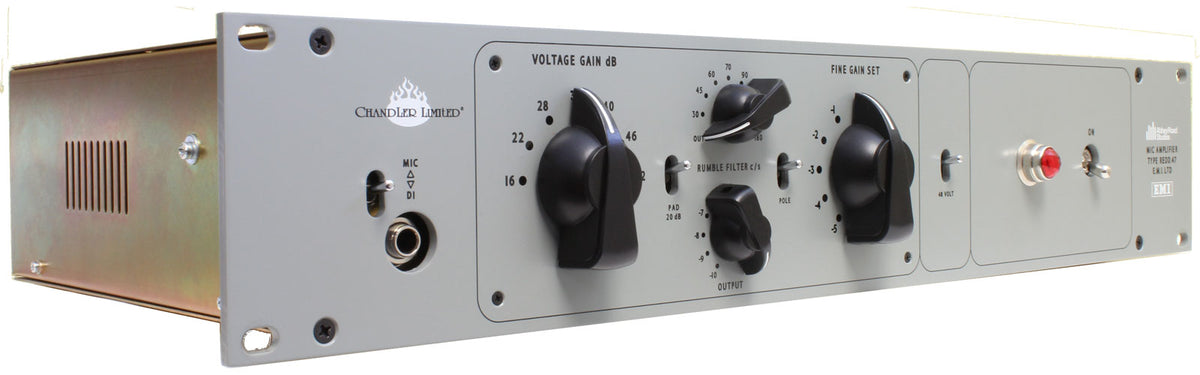

Chandler Limited REDD.47

From the EMI REDD.51 Console to Today's Racks: The Legacy of the REDD.47

The Chandler Limited REDD.47 is directly inspired by the EMI REDD.47 tube amplifier, a central module of the EMI REDD.51 consoles used at Abbey Road Studios between 1959 and 1968. At the time, this type of amplification was involved in many stages of a console's audio chain: mic and line inputs, effects sends, returns, and monitor outputs. It is precisely this sonic signature, associated with mid-60s Abbey Road productions, that Chandler Limited revives in a rack format designed for integration into today's studios.

Who Is It For and What Are Its Studio Uses?

The REDD.47 is aimed at sound engineers, producers, and musicians seeking a tube mic preamp with a strong character, capable of adding density and impact right at the source. On vocals, it delivers natural presence and projection; on drums (overheads, room, snare), it enhances attack and energy feel; on guitar or bass via the instrument input, it adds thickness and harmonic detail that sits easily in a mix. It's an excellent choice when you want an authentic vintage color without sacrificing essential features like pad, phase, and phantom power.

Tone, Gain, and Control: Features That Make the Difference

Usable Tube Saturation, from Clean to Drive

One of the major strengths of this Chandler Limited version lies in its increased gain compared to the original design. This headroom allows working with very clean takes, preserving high detail, or pushing the circuit to achieve a denser, more aggressive harmonic saturation typical of '60s aesthetics. The pre-clipping behavior, specified at 2% harmonic distortion, makes the drive more gradual and musical-ideal for imprinting a strong character at the source.

Integrated Modern Recording Tools

In the studio, versatility also means control. The -20 dB pad helps manage very loud sources (brass, drums, amps), while the phase inversion aids in optimizing coherence when using multiple microphones. The subsonic filter cleans up vibrations, mic stand noise, or rumble to preserve headroom before saturation and achieve a clearer low end.

Transformers, Tubes, and the "Console" Feel

The REDD.47 relies on a vintage-style audio path, with balanced transformers on input and output to recover that full, solid response often associated with historic consoles. The EF86 and E88CC tubes contribute to the sonic texture, natural compression, and the "glue" sensation in the low mids. The result: a preamp that doesn't just amplify but actively shapes the captured sound's identity.

Precise Controls: Detented Steps + Fine Adjustment

The main detented gain control offers appreciated reproducibility during sessions, while the variable fine adjustment allows precise level setting, dialing in saturation points, or maintaining the same tone at different volumes. This combination makes the REDD.47 equally comfortable in a "commit" recording approach or a more flexible workflow where every decibel counts.

Technical specifications

Number of channels	1	Rack unit	2
Valve	Yes

Type	1-channel tube microphone preamp 1 channel	Phase	switchable
Design	based on the preamp of the IME REDD.51 console	Phantom power	+48 V, switchable
Tubes	EF86, E88CC	Power supply	integrated
Total gain	57 dB	Transformers	balanced on inputs and outputs
Stepped gain	16 to 52 dB	Microphone/line input	balanced XLR
Fine gain adjustment	plus or minus 5 dB, variable	Instrument input	6.3 mm jack on the front panel
Filter	subsonic	Line output	XLR
Pad	-20 dB, switchable	Rack format	19 inches - 2U
