Apex Apex 176

An Apex Electronics Microphone Designed for Directional Sound Capture

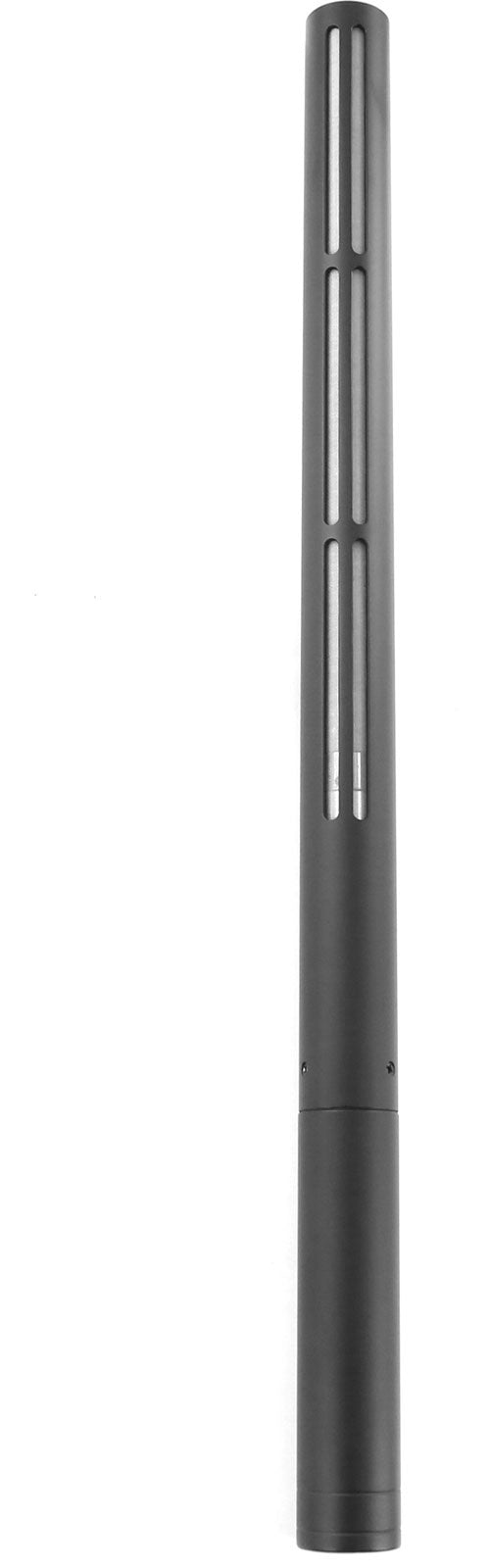

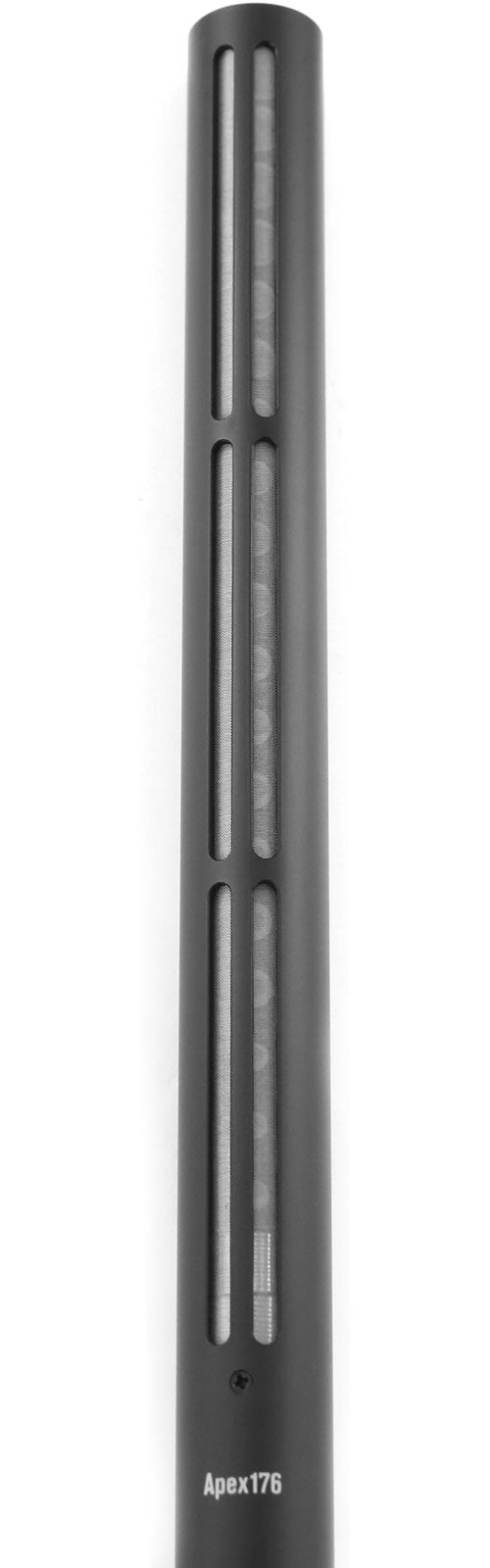

The Apex Electronics 176 is a condenser microphone in a slim format, designed for situations where you want to gain focus on a source while maintaining the precision and responsiveness typical of a condenser capsule. Its hypercardioid directivity makes it a relevant choice in real environments (home studio, set, rehearsals, recordings), when you cannot always perfectly control the acoustics or isolation between instruments.

Within the Apex Electronics range, the 176 positions itself as an efficient and pragmatic solution: clear specifications, professional XLR connectivity, and useful accessories included by default to start recording quickly.

Intended Uses and User Profiles

Thanks to its narrow directivity, the Apex 176 is aimed at users who want to capture more useful signal and less ambiance. It suits musicians and home studio users as well as recording teams and content creators who need a reliable directional microphone, easy to set up, and compatible with most audio chains (interface, preamp, mixing console, recorder).

It excels in recordings where precision is a priority: vocals in an untreated room, acoustic instruments to isolate within an ensemble, occasional stage pickup, or recordings where lateral and rear sounds need to be limited. Its ability to handle high sound pressure levels also helps when the source is close or energetic, without imposing excessive placement constraints.

Key Features: Directivity, Filtering, and Power Supply

Hypercardioid Directivity: Tighter, Clearer Capture

The hypercardioid directivity of the Apex Electronics 176 favors capturing what you aim at while further attenuating sounds coming from the sides. Practically, this facilitates the clarity of a voice or instrument in a busy context (room reflections, other musicians, ambient noise). This approach is ideal when working on placement rather than treatment, aiming for a cleaner track right from the recording.

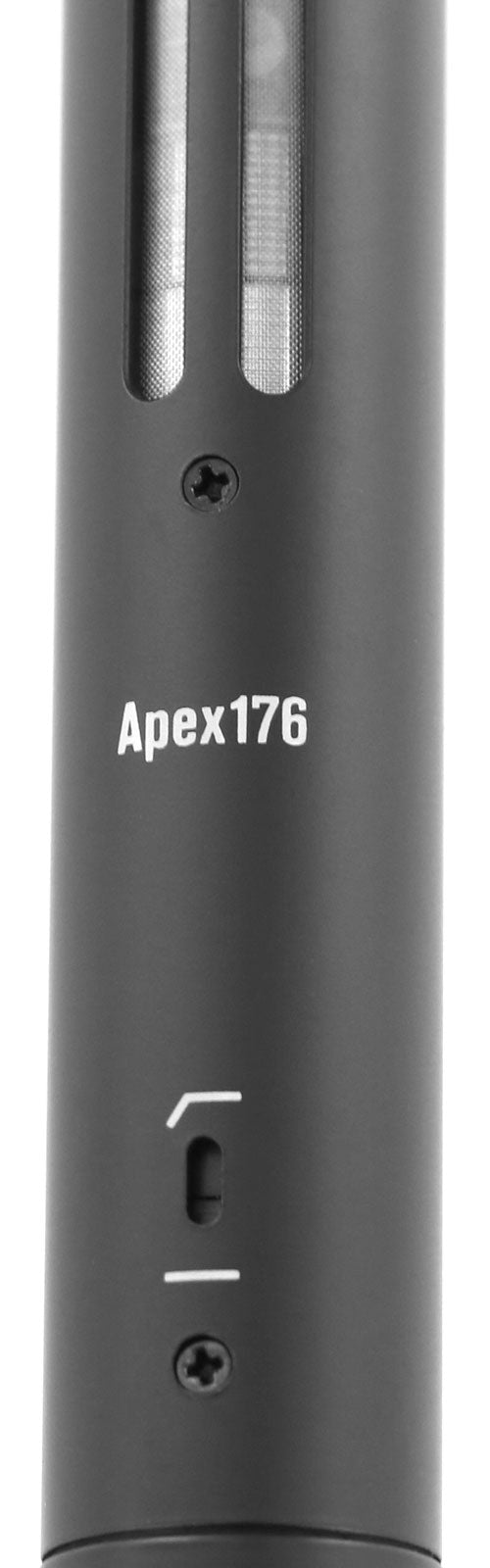

70 Hz High-Pass Filter: A Simple Tool to Clean Up the Low End

The 70 Hz high-pass filter is a practical asset in both recording and live capture. It helps limit unwanted noises that quickly clutter the low-frequency spectrum: vibrations transmitted through the stand, handling noise, ventilation hum, footsteps, or low-frequency energy that is often unnecessary depending on the source. This often results in a more usable recording with fewer heavy corrections during mixing.

Level Handling: Up to 132 dB SPL

With a maximum SPL rated at 132 dB (at 1 kHz), the 176 supports situations where the source is powerful or close. This margin is appreciated to maintain a dynamic capture and avoid clipping during recording, provided the preamp gain and placement are properly adjusted. For users, it guarantees daily versatility: you can switch from detailed to more energetic takes without changing microphones at the slightest context variation.

Phantom Power or 1.5 V Battery: Flexibility in the Field

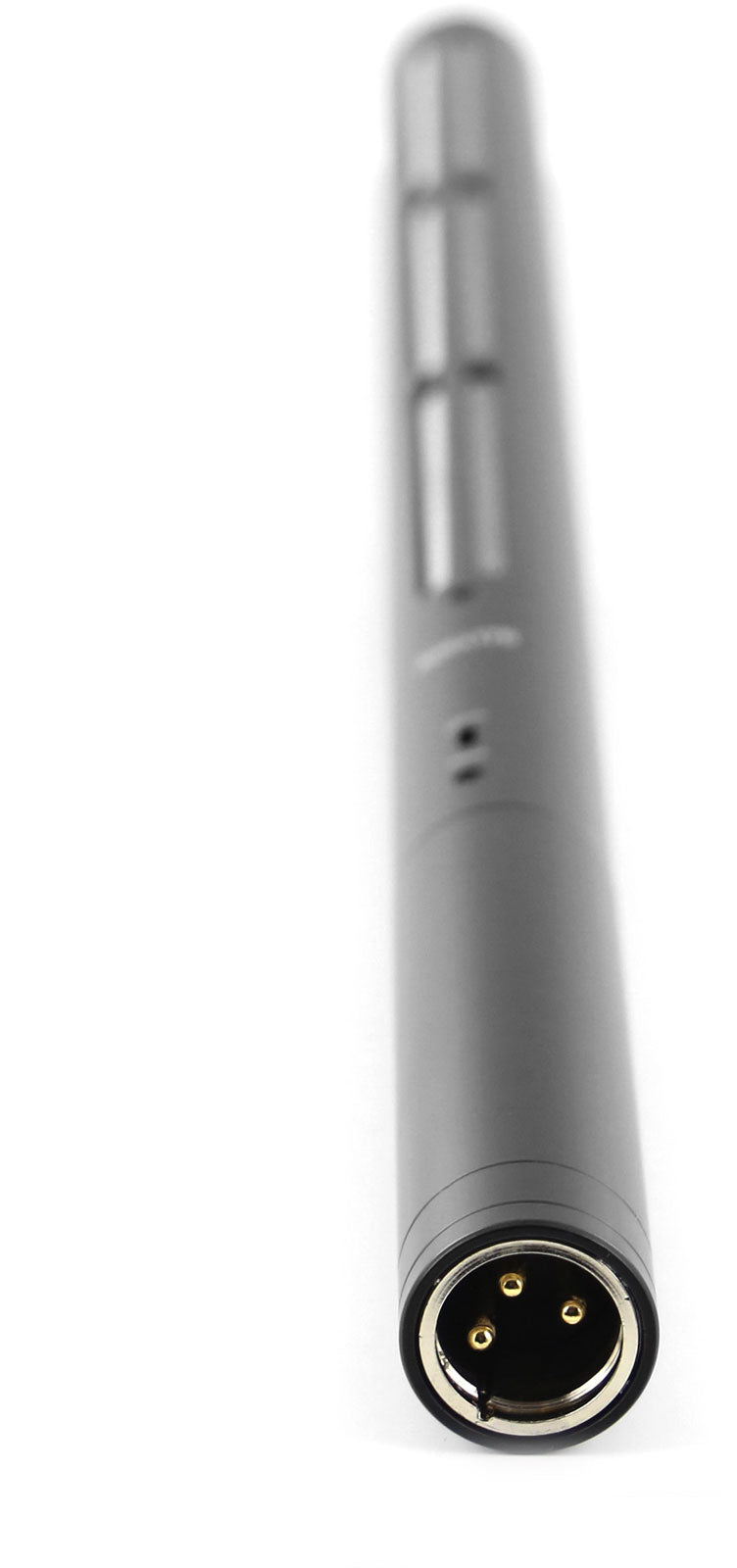

The Apex Electronics 176 can be powered by phantom power (via compatible audio interface, preamp, or console) or via a 1.5 V battery (sold separately). This dual option is a real advantage when alternating between studio and mobile use or when adapting to available equipment. The XLR connection ensures immediate integration into a standard audio chain, with common and robust cabling.

Included Accessories: Ready to Record

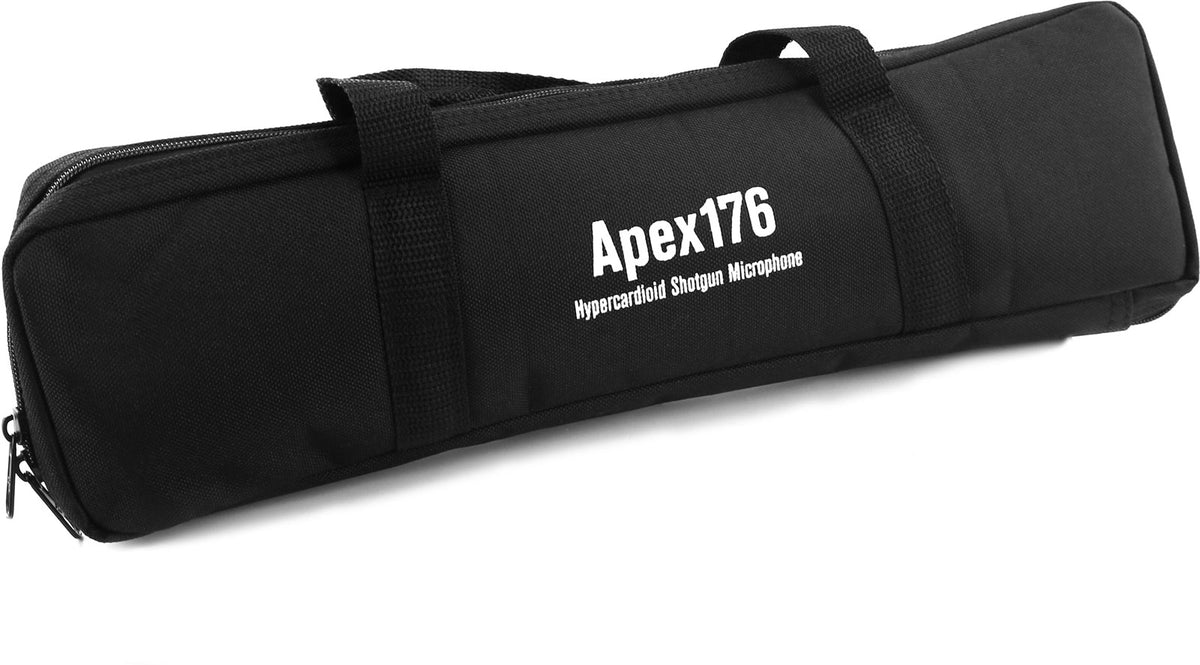

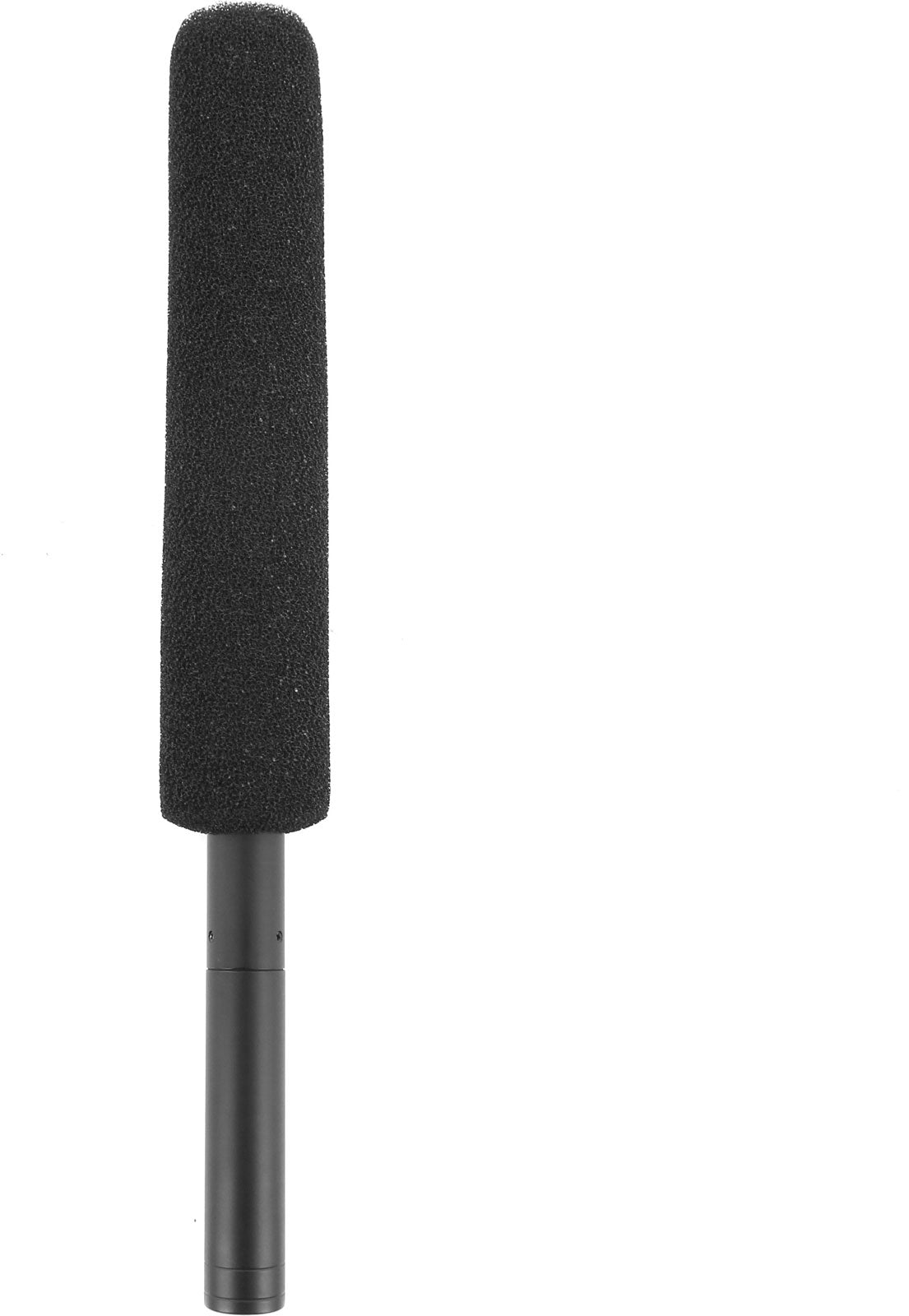

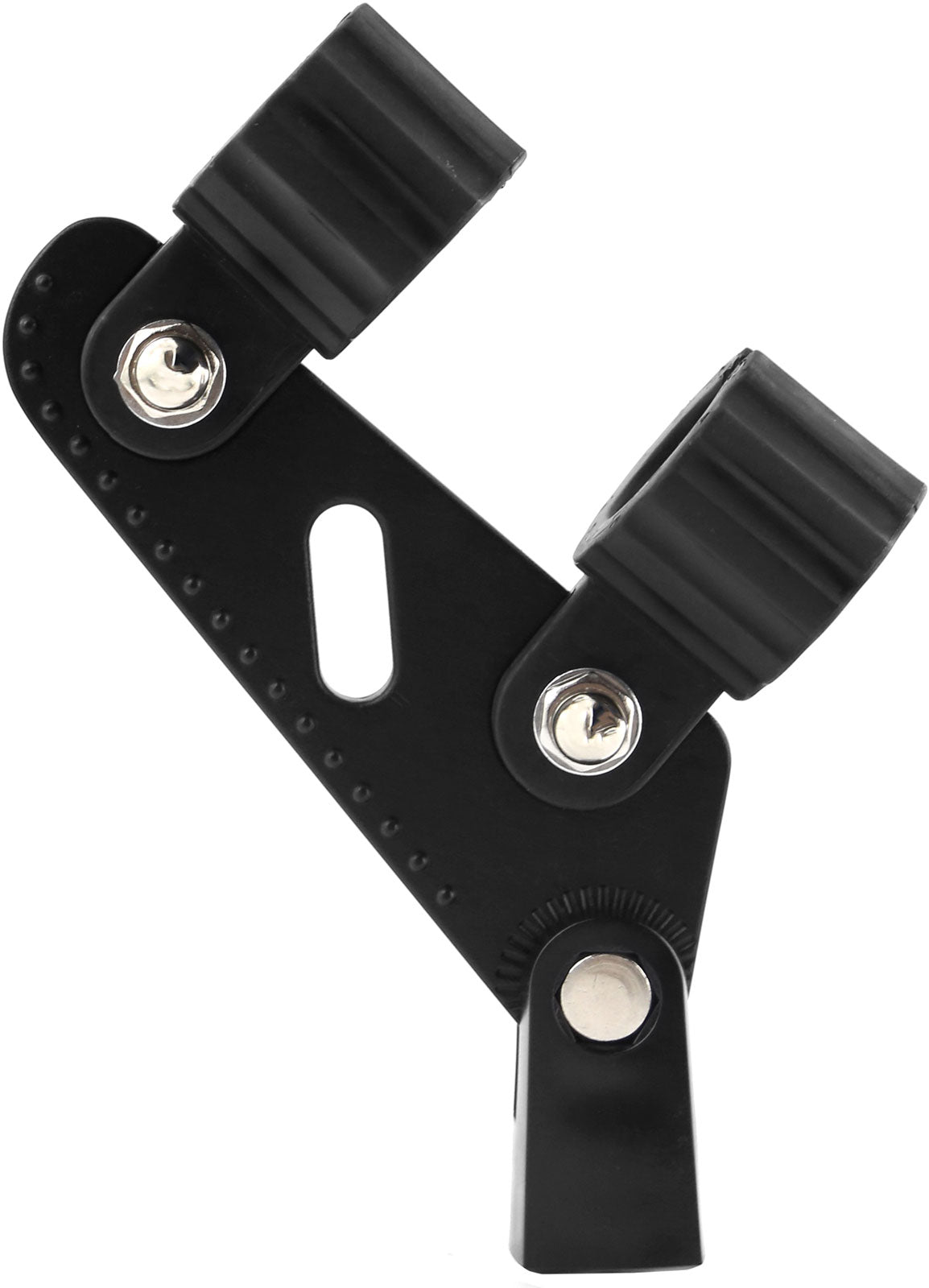

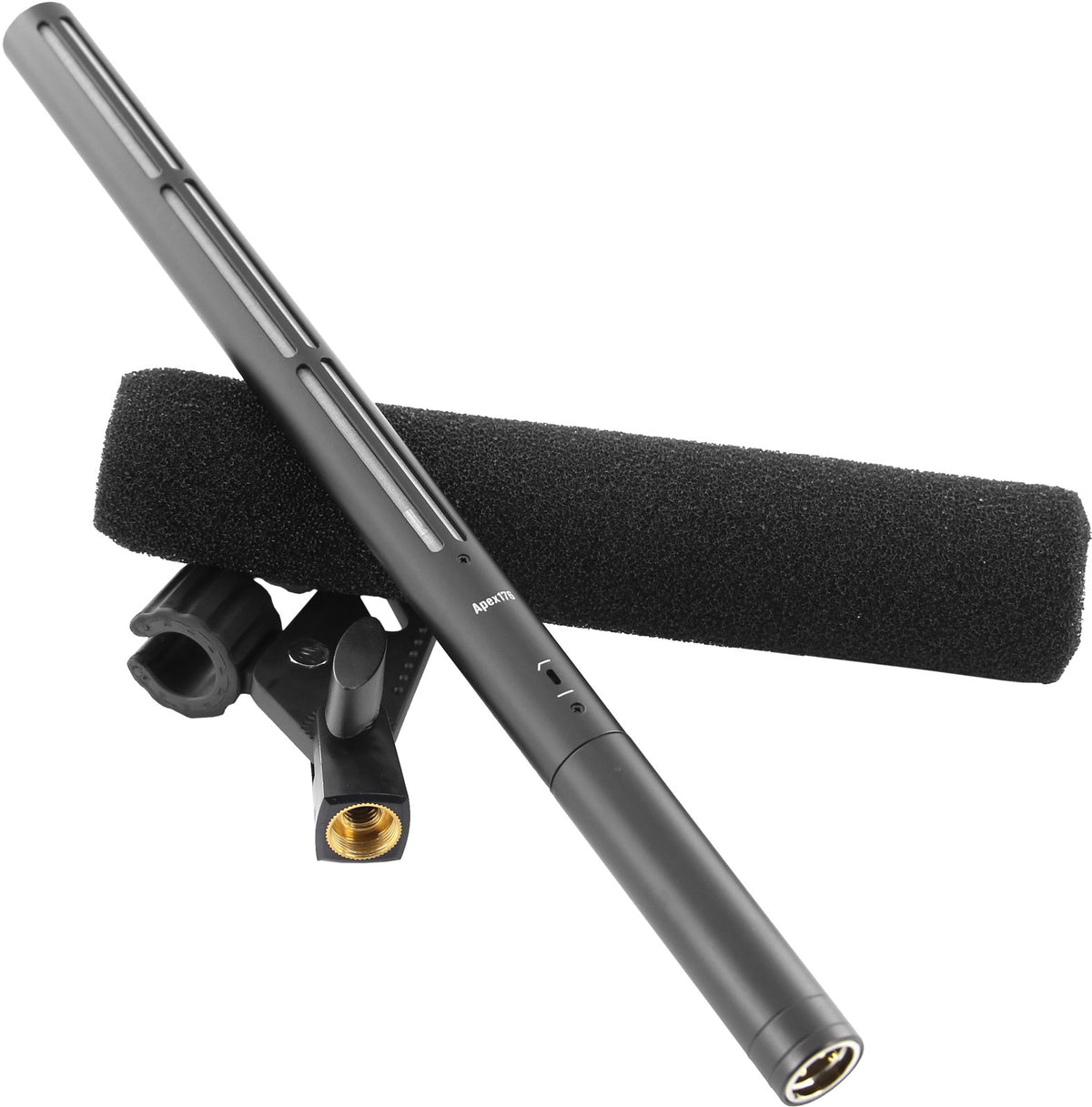

The microphone comes with a mic clip for quick mounting on a stand, a windscreen useful whenever moving air or plosives become problematic, and a carrying pouch to protect the microphone during transport and storage. Simple details, but they make a difference for regular use.

Technical specifications
