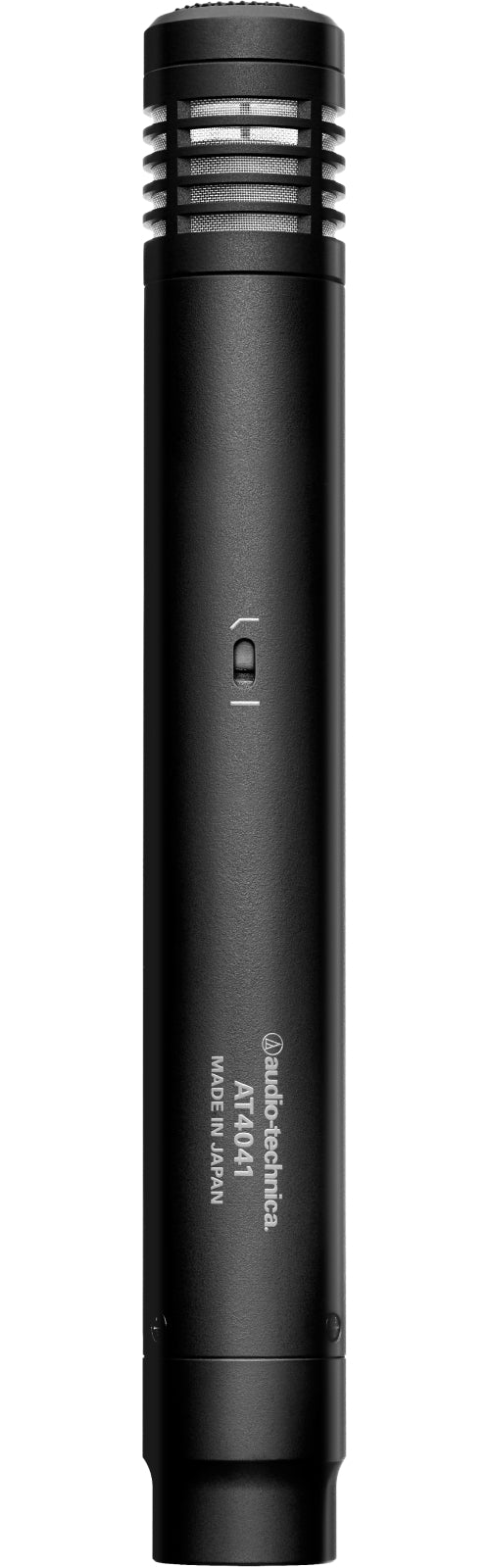

A Precision Model in Audio-Technica's Studio Line
Part of a range known for its neutrality and reliability, the AT4041 has established itself as a reference "pencil" microphone for demanding sound capture. Its permanently polarized capsule and refined electronics provide consistent and stable reproduction over time, ideal for engineers seeking a faithful sonic signature.
Who Is It For and What Are Its Uses?

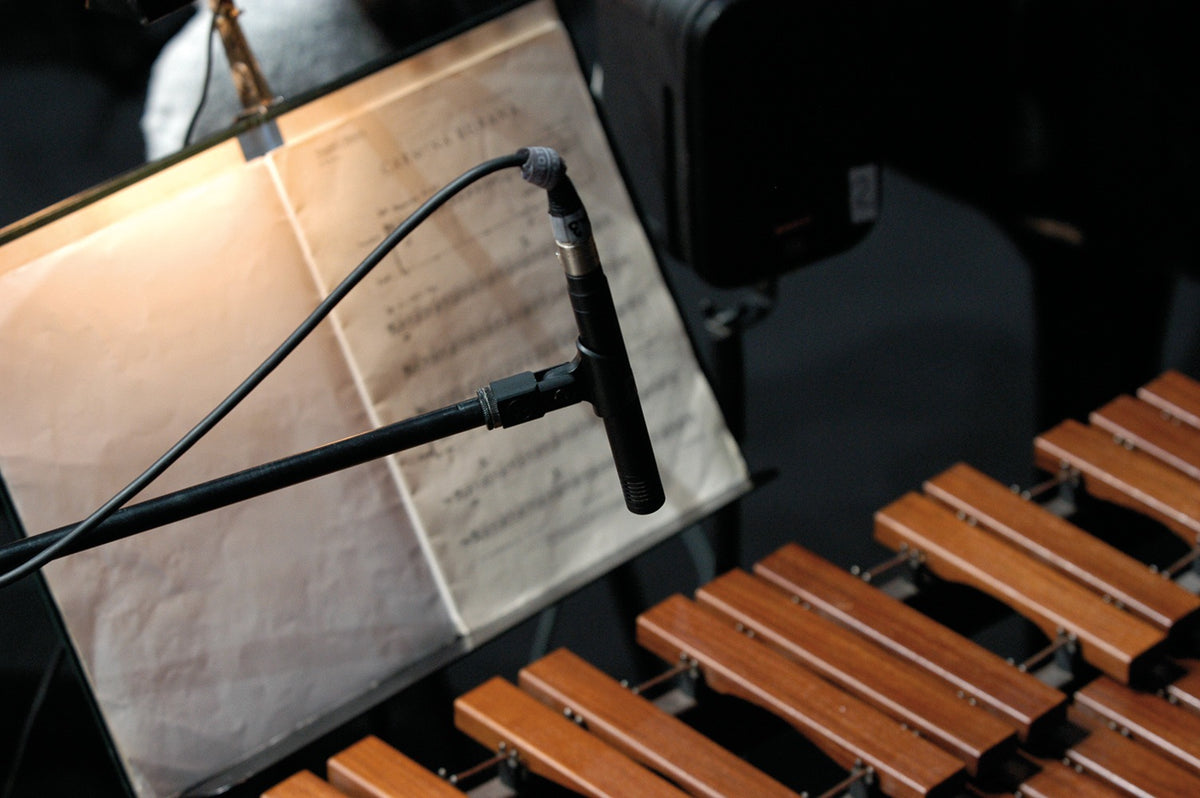

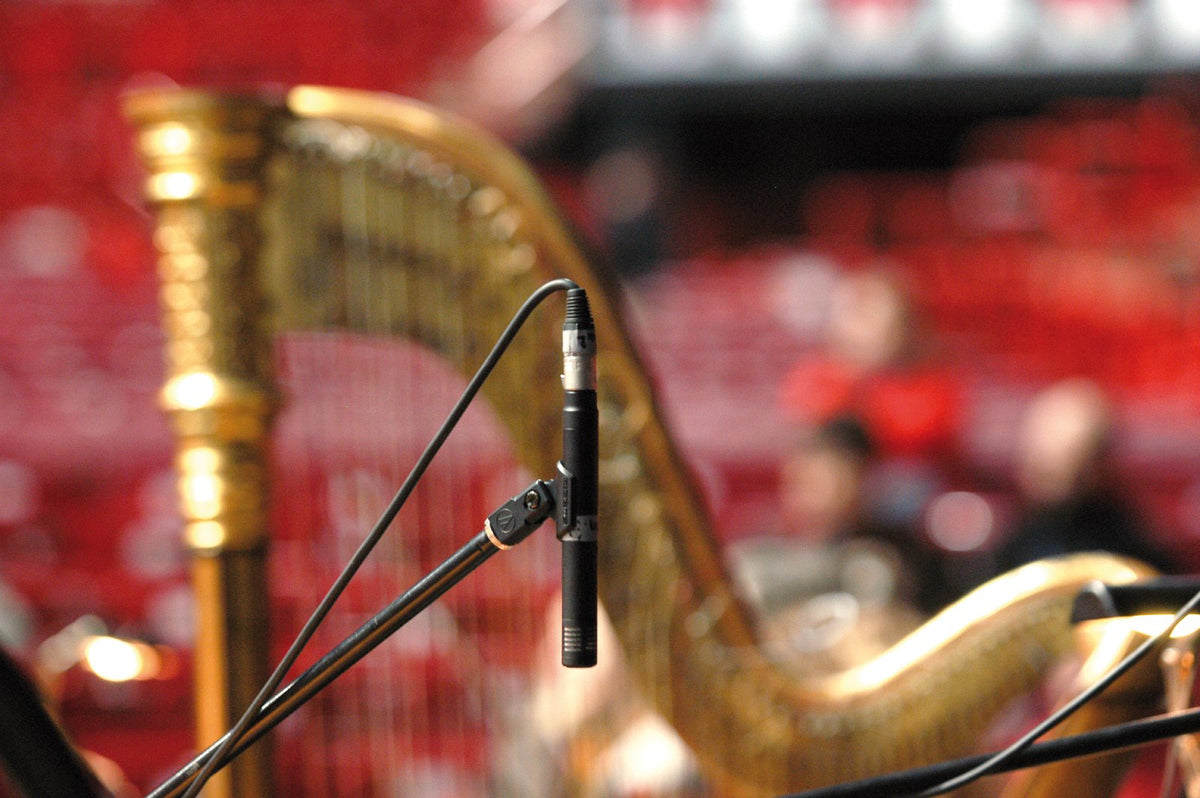

Designed for acoustic instruments and detailed sources, the AT4041 excels on folk guitars, pianos, strings, percussion, drum overheads, as well as woodwinds and brass. Its discreet form factor facilitates close placement, while the 80 Hz high-pass filter cleans up unwanted low frequencies both on stage and in the home studio.
Design and Features Serving the Recording Process
The fixed-charge capsule and precisely machined backplate reduce narrow frequency peaks and distortion. The absence of a transformer ensures a direct signal path, better handling of high levels, and a very clear transient image. The cardioid pattern, consistent across the useful spectrum, optimizes the source-to-ambient ratio.
The integrated switches offer a "flat" mode for natural capture, an attenuation for powerful sources, and a 12 dB/octave 80 Hz high-pass filter to control handling noise, hiss, and hum. Powered by 48 V phantom power (typical 4.2 mA), the microphone delivers an output level of -32 dB (25.1 mV), a signal-to-noise ratio of 70 dB, and a typical dynamic range of 121 dB, ensuring clean and expansive recordings.
Its black chrome turned brass body limits reflections and increases durability, while the integrated 3-pin XLRM connector ensures immediate integration into any studio setup.
Technical specifications
| Frequency response | 20 Hz - 20 kHz |
| Category | studio microphone |
| Directivity | cardioid |
| Capsule | Small diaphragm |
| Connection | XLR |
| Color | Black |
| Polar pattern | cardioid |
| Low-frequency attenuation (high-pass filter) | 80 Hz, 12 dB/octave |
| Output level | -32 dB (25.1 mV) ref 1 V/Pa |
| Maximum sound pressure level | 145 dB SPL, 1 kHz at 1% THD |
| Dynamic range (typical) | 121 dB, 1 kHz at max SPL |
| Signal-to-noise ratio | 70 dB, 1 kHz/Pa |
| Electronic design | transformerless |
| Power supply | 48 V DC, typical 4.2 mA |
| Switches | flat, attenuation |
| Materials | black chrome turned brass |
| Weight | 120 g |
| Dimensions | length 159.5 mm, body diameter 21 mm |
| Output connector | integrated 3-pin XLRM type |
| Included accessories | AT8405a clip for 5/8"-27 threaded stand, AT8159 foam windscreen, protective carrying case |
Questions frequently asked
Is the Audio-Technica AT4041 suitable for acoustic guitars and overheads?
Its cardioid polar pattern and frequency response from 20 Hz to 20 kHz are suitable for capturing folk guitars, pianos, strings, percussion, and drum overheads. The 159.5 mm length allows for close placement on these sources.
Does this microphone require phantom power?
48 V DC phantom power is required, with a typical current draw of 4.2 mA. The output is via a 3-pin XLRM connector.
What maximum SPL can it handle?
The maximum sound pressure level reaches 145 dB SPL at 1 kHz for 1% total harmonic distortion. A typical dynamic range of 121 dB is specified at 1 kHz at maximum SPL.
Is a low-cut filter built in?
An 80 Hz low-cut filter with a 12 dB per octave slope reduces unwanted low frequencies and handling noise.
What accessories are included with this pencil microphone?
The package includes an AT8405a clip for 5/8"-27 threaded stands, an AT8159 foam windscreen, and a protective case. The turned brass body features a black chrome finish.
