Art Tube MP Project

A Home-Studio Classic: The Tube MP Spirit in a Compact, Stackable Format

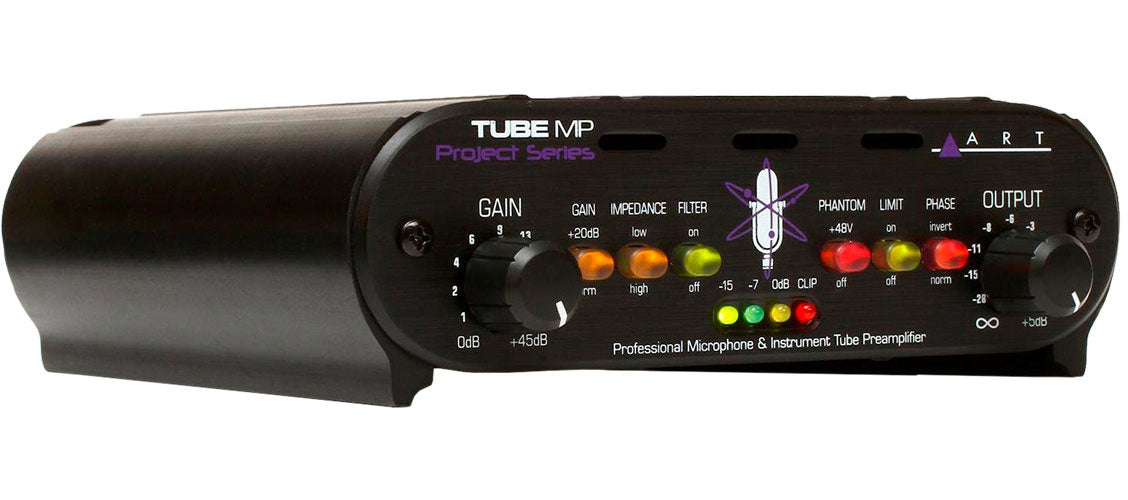

The Tube MP Project follows the philosophy of compact tube preamps designed to add musical coloration and a sense of "texture" to sources that can sometimes sound too clean in digital. Its streamlined aluminum profile, designed for "stack" mounting, makes it easy to integrate on a desk, in a nearby rack, or next to an audio interface. The approach remains deliberately straightforward: a mono channel, clear controls, and all the essential functions expected for clean recording with an added character boost.

Who Is This Preamp Most Useful For, and In What Applications?

This preamp is aimed at musicians, podcasters, content creators, and home-studio engineers who want to elevate input quality before conversion or complement an audio interface with an easy-to-dose analog color. It is especially relevant if you record vocals, electric guitars (via the DI function), bass, or keyboards on line output and seek a warmer, denser sound without complicating your signal chain.

Thanks to its high gain potential (over 70 dB), it can accommodate a wide variety of microphones and levels while maintaining comfortable adjustment range to tailor dynamics to your converter or console. The separate input gain and output level controls allow you to choose between a cleaner sound or, conversely, a more pronounced harmonic saturation by pushing the input stage and compensating at the output level.

Key Features: From Clean Signal to Tube Grit, with Real Control

12AX7A Tube: Texture, Harmonics, and "Warmth" Serving the Mix

The 12AX7A provides a harmonic response that can add depth to vocals and help certain electric instruments "cut through" a mix better. In practice, you can use it as the main preamp for recording or as a character stage to restore presence to a line source.

Gain and Output Controls: True Control Over Gain Structure

The combination of input gain and output level offers an effective method to adjust gain structure: you optimize the incoming level, manage coloration, then align the output level to your interface or recorder. This is key to limiting noise, preserving dynamics, and avoiding overdriving the next stage.

40 Hz High-Pass Filter and Switchable Impedance: Cleaner Signal Right From the Start

The switchable high-pass filter, based on a Bessel filter calibrated at 40 Hz, helps reduce rumble, handling noise, mic stand vibrations, or unnecessary low-end excess. The switchable impedance allows adapting the input according to the source to optimize response feel, clarity, and tonal balance, especially with certain guitars, basses, or line sources.

Built-in FET Limiter: Secure Peaks Without Stress

The built-in FET limiter is an asset for unpredictable takes: highly dynamic vocals, bass slaps, pick attacks, or percussion captured by microphone. It helps contain peaks and protect the downstream conversion stage while maintaining a musical behavior. For recording use, it is a valuable safeguard when you want to avoid clipping without adding multiple processing steps.

DI, Phase Inversion, Phantom Power, and Control LEDs: Ready for the Field

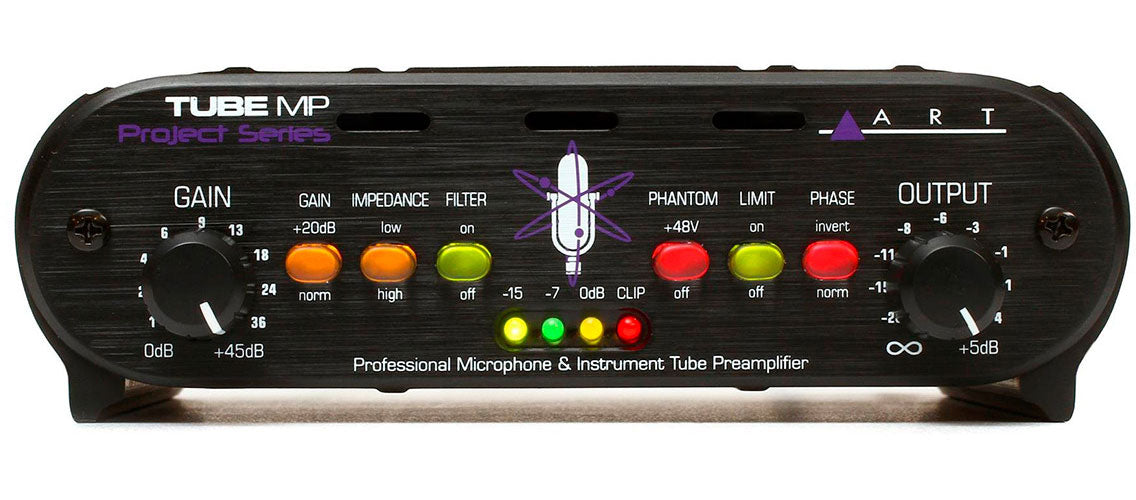

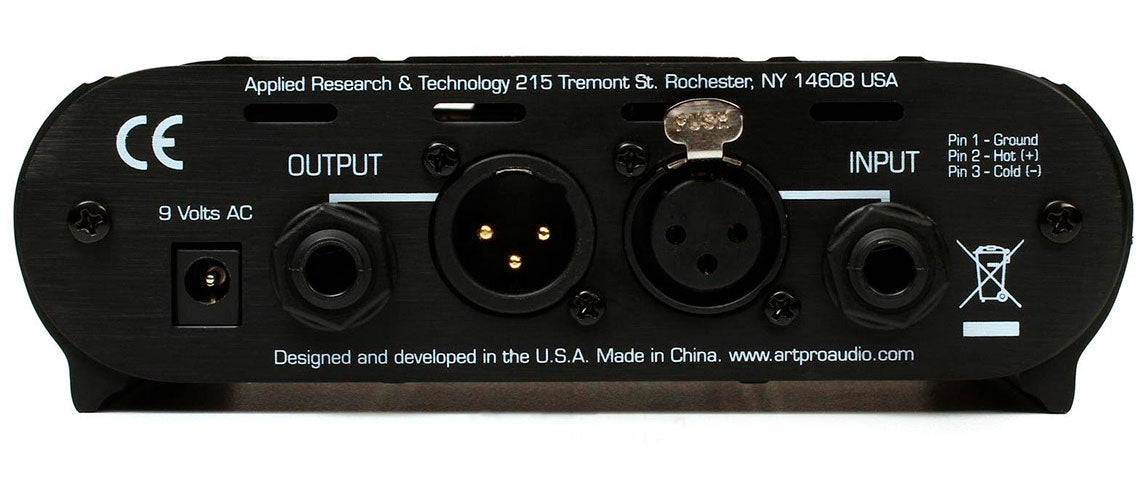

The Tube MP Project includes the direct box function to connect an instrument and output to a balanced input, a phase inverter useful in multi-mic setups or combined with a DI input, as well as switchable phantom power for condenser microphones. Control LEDs facilitate signal and level monitoring, speeding up gain staging and limiting surprises during sessions.

Technical specifications
