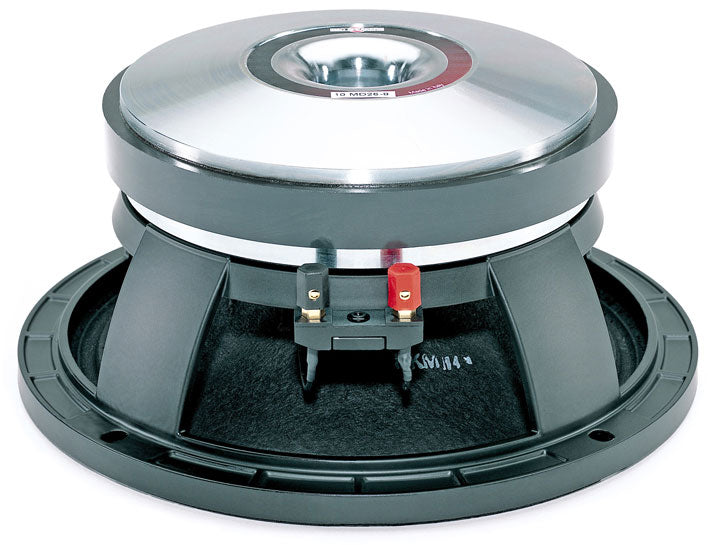

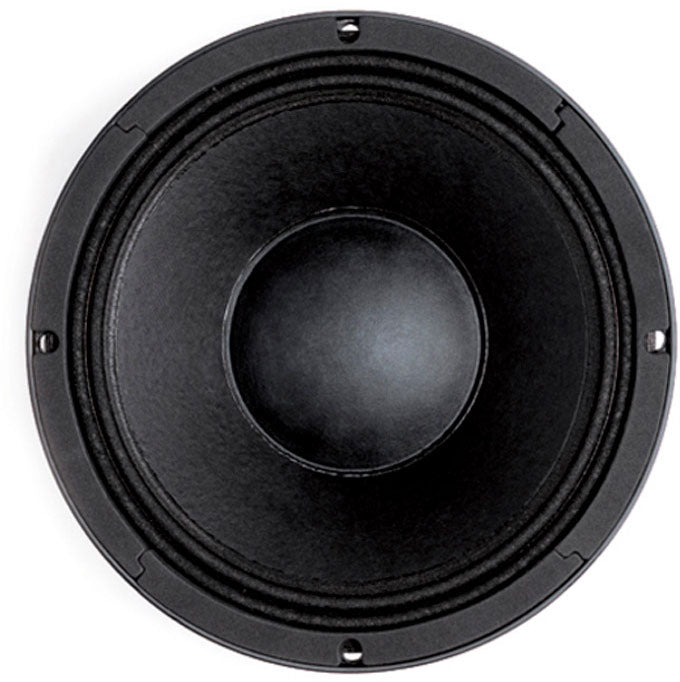

B&C Speakers 10MD26

A 10-inch Driver Designed for Professional Midrange Speakers

The B&C 10MD26 belongs to the line of 10-inch (25 cm) drivers designed for sound reinforcement: priority on efficiency, power handling, and midrange clarity. Its "low-mid / midrange" positioning makes it suitable for robust two-way speakers (with compression drivers) or multi-amplified systems, where a punchy, clean, and projected midrange is sought.

Who Is It For and What Are Its Applications?

This speaker is aimed at integrators, speaker manufacturers, sound technicians, and DIY enthusiasts who want a reliable transducer for live applications, DJ setups, clubs, stage monitors, or fixed installations. With its high sensitivity and usable range up to 4 kHz, it is particularly suited for configurations where vocals, snare drums, guitars, and overall presence need to remain clear even at high levels.

Design and Key Features for Precise and Efficient Midrange

High Efficiency and Dynamics

With 100 dB (1 W / 1 m), the 10MD26 is built to "deliver sound" quickly: you get high acoustic pressure with less electrical power than a less efficient model. Result: more dynamic headroom, better impact sensation, and easier integration into high-efficiency systems.

Power Handling and Thermal Stability

The 700 W AES power rating, combined with a 3-inch (76 mm) voice coil, targets sustained use at high volume. The aluminum coil wire helps control moving mass, which aids in maintaining midrange responsiveness while withstanding typical sound reinforcement stresses.

Mechanical Architecture Focused on Control

The double-roll suspension, exponential cone, and single spider form a system designed to remain controlled in the low-mid / midrange area. This approach promotes a cleaner response in the presence region and better transient reproduction, provided appropriate filtering and a load consistent with recommendations are respected.

Recommended Enclosure: Compact and Tuned Volume

The manufacturer recommends a 16-liter enclosure tuned to 80 Hz. This guidance emphasizes efficient behavior in a relatively compact volume, practical for designing compact and powerful speakers while maintaining useful support from 80 Hz depending on the system's overall architecture.

Technical specifications

Rackable	No	Type	Speakers
Category	sound reinforcement accessory

Model	B&C 10MD26	Cone	exponential
Nominal diameter	10 inches (25 cm)	Spider	single
Power handling	700 W AES	Fs	76 Hz
Nominal impedance	8 ohms	Qts	0.11
Sensitivity	100 dB (1 W / 1 m)	Xmax	1.5 mm
Frequency response	80 Hz to 4 kHz	Recommended volume	16 liters
Voice coil	3 inches (76 mm)	Tuning frequency	80 Hz
Coil wire	aluminum	Total diameter	262 mm
Magnet	ferrite	Height	124 mm
Suspension	double-roll	Weight	7.3 kg
