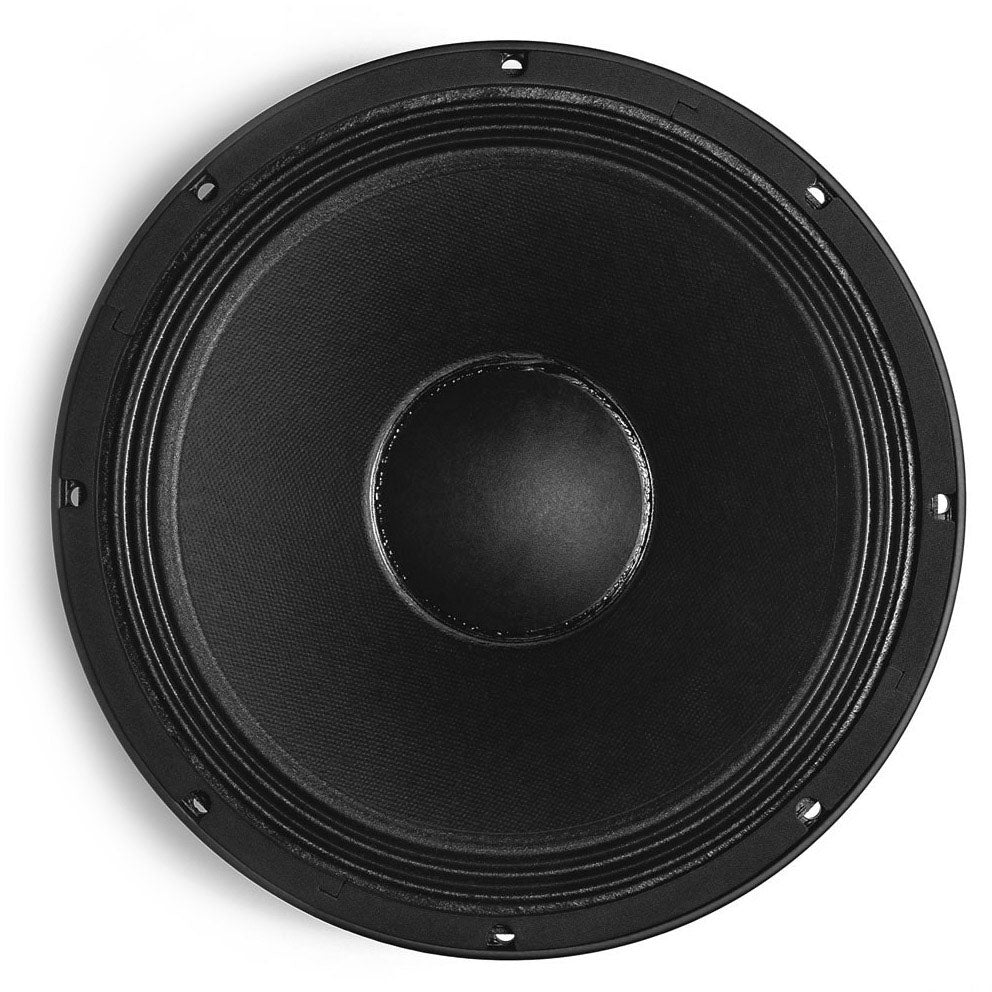

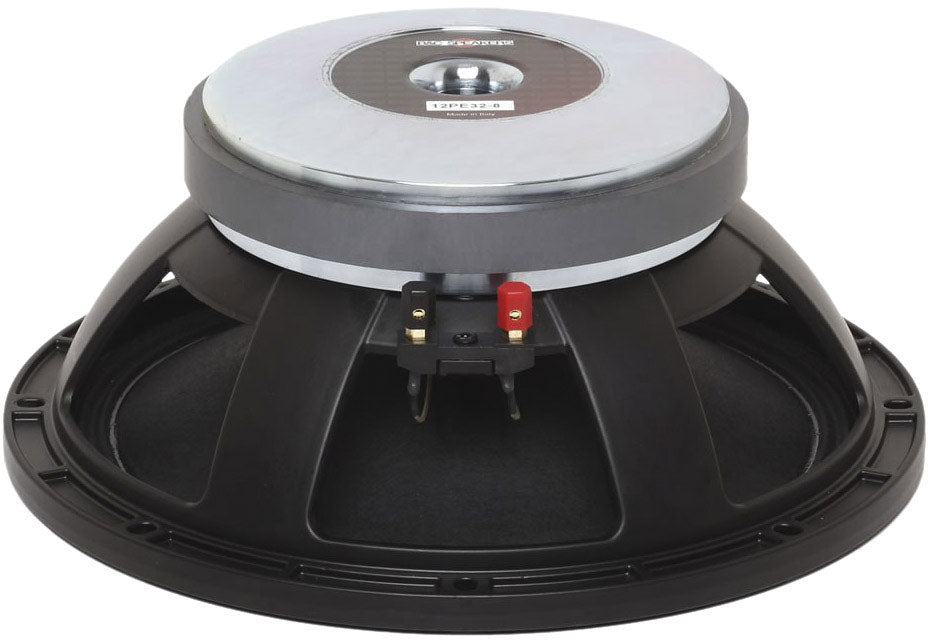

B&C Speakers 12 PE 32

A 12" B&C Designed for Professional Mid-Bass Applications

The B&C 12PE32 is a 12" (31cm) speaker designed to cover the strategic low-mid / midrange area, where impact, intelligibility, and projection of a system are crucial. Its philosophy is typically "pro": prioritizing high efficiency, fast response, and solid power handling to naturally integrate into multi-way speakers, stage monitors, or horn-loaded and optimized enclosure systems.

Who Is It For and What Are Its Uses?

This speaker is aimed at speaker builders, contractors, and technicians looking for a 12" driver capable of delivering energetic and clean midrange. It is particularly suitable for configurations requiring a clear attack (snare drum, guitar, projected vocals, brass) while maintaining a useful foundation in the lower spectrum. Thanks to its frequency response extending up to 4KHz, it can be used in 2-way (with a tweeter) or 3-way setups depending on your crossover and speaker design.

Design and Performance: Efficiency, Control, and Durability

Motorization Focused on Efficiency

With 101dB 1w/1m, the 12PE32 emphasizes efficiency: you easily achieve high output, which is a direct advantage in sound reinforcement and monitoring. The ferrite magnet offers a well-known compromise between stability, controlled cost, and thermal behavior, while the 4.0" (100mm) aluminum wire voice coil aims for good heat dissipation and optimized moving mass for responsiveness in the midrange.

Mid-Bass Response and Enclosure Integration

The 50Hz - 4KHz frequency response clearly positions this model as a versatile transducer for the low-mid/midrange area. The recommended enclosure volume of 31 liters with a tuning at 85Hz provides a useful starting point for a compact cabinet project, with a response oriented towards punch and dynamics. Parameters such as Fs 51Hz and Qts 0.18 suggest a design suited for vented enclosures and systems prioritizing control and projection.

Suspension and Mechanical Behavior

The triple roll suspension and exponential cone contribute to maintaining mechanical durability and the typical directivity/presence of a 12" sound reinforcement driver. The single spider complements this approach by maintaining consistent behavior within the operating range. With an Xmax of 2.8mm, this model is primarily designed for definition and efficiency rather than infra-bass: it excels in the range where impact and intelligibility must remain clean, even at high levels.

Technical specifications
