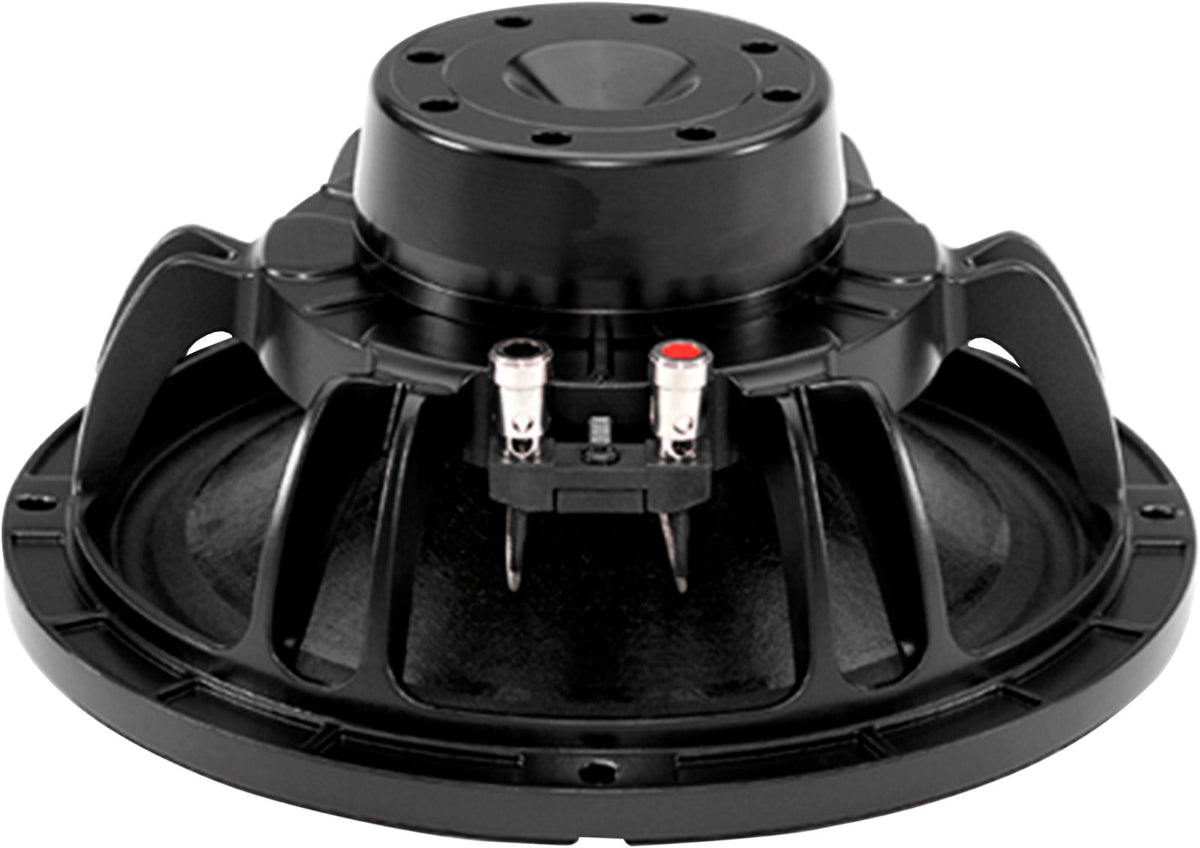

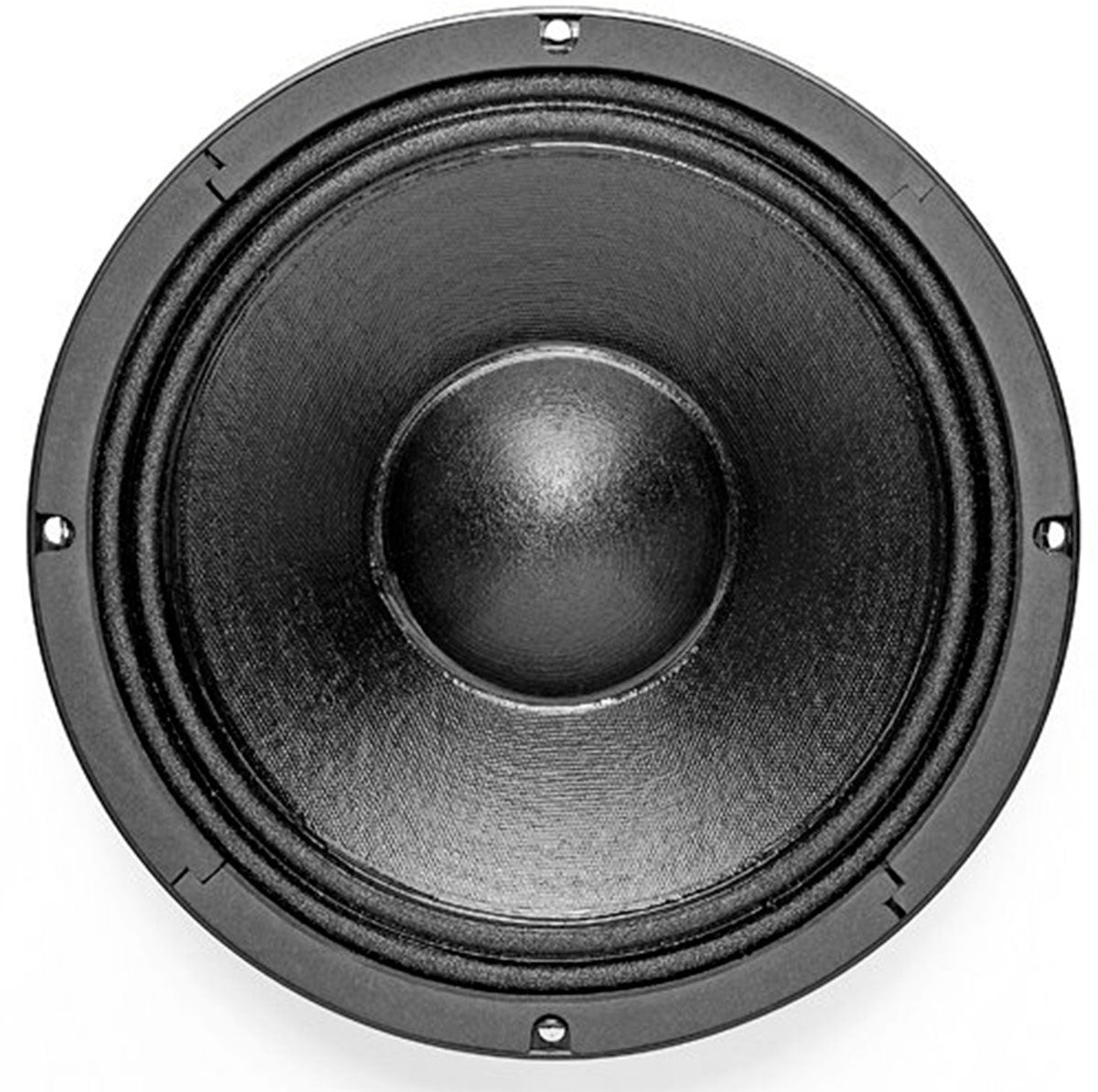

B&C Speakers 10NDL64 16 Ohms

A modern 10-inch driver designed for compact enclosures and efficiency

The B&C 10NDL64 16 belongs to the category of low midrange / midrange 10-inch (25 cm) drivers, a highly appreciated format for building versatile speakers: enough body to support the low end while maintaining a lively and clear midrange response. Its design emphasizes efficiency and integration in a reduced volume, with a recommended enclosure volume of 26 liters and a tuning at 62 Hz, which facilitates the creation of compact systems without sacrificing projection.

Thanks to its neodymium magnet, this model also targets configurations where weight and size matter: stage monitors, portable speakers, modular systems, or DIY projects focused on transportability. The specified frequency response (50 Hz to 3 kHz) clearly illustrates its purpose: to deliver a solid and clean low midrange while extending high enough for effective crossover filtering depending on the horn or compression driver used.

Who is this speaker for and what are its uses?

The 10NDL64 16 is aimed at users seeking a professional loudspeaker for manufacturing or repairing PA speakers: contractors, technicians, manufacturers, skilled DIYers, and speaker design enthusiasts. With its sensitivity of 97 dB (1 W/1 m) and power rating of 500 W AES, it is particularly suitable for speakers where a high sound level and a good dynamic headroom are desired without oversizing the amplification.

It naturally fits into a two-way speaker (10 inches + compression driver) for applications such as stage monitors, small front-of-house systems, or versatile speakers oriented towards vocals/instruments. It can also be integrated into multi-way systems where the 10-inch driver handles the low midrange/midrange role, especially when the goal is to improve intelligibility and attack (snare drum, guitar, vocals) while maintaining a robust low-end foundation.

Design, components, and key elements for controlled reproduction

64 mm voice coil: power handling and control

The 64 mm (2.5 inches) voice coil with aluminum wire is a common choice for PA drivers aiming for a good balance between thermal endurance, responsiveness, and moving mass. Paired with a 500 W AES power rating, it allows sustained high levels over time, provided an appropriate enclosure and crossover are used in harmony with the rest of the system.

Neodymium: compactness and ease of integration

The neodymium magnet helps limit the total weight (2.9 kg) while maintaining effective motor strength. This is a tangible advantage for portable speakers and setups with multiple drivers: every kilogram saved simplifies handling, reduces stress on structures, and improves daily practicality.

Double-roll surround and 6 mm Xmax: mechanical durability

The double-roll surround and 6.0 mm Xmax contribute to the stability of the moving assembly, useful when the 10-inch driver must deliver a substantial low midrange at high levels. This approach aims for cleaner reproduction at high volume, with more predictable transient behavior and better control when the speaker is pushed hard.

Treated cone and reliability-oriented design

The exponential cone features a waterproof treatment front and back, a relevant asset for intensive use (transport, humidity variations, stage conditions). The single spider completes the assembly with an efficient architecture, maintaining a focus on performance and reliability for regular use.

Integration advice: recommended volume and tuning

The recommendation of a 26-liter enclosure with a 62 Hz tuning provides a clear guideline for speaker design. This is a strong point for DIY projects: starting from a quantified and realistic base, consistent with the resonance frequency (Fs 56 Hz) and Qts parameters (0.26). Depending on the goal (more punch, deeper extension, vent optimization, crossover choice), these indications serve as a reference to refine alignment while preserving the model's spirit: efficiency, clarity, and effectiveness in the low midrange.
