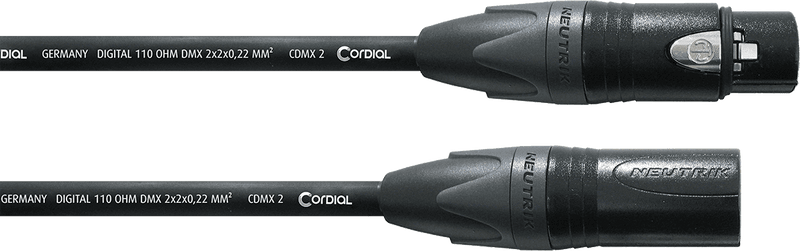

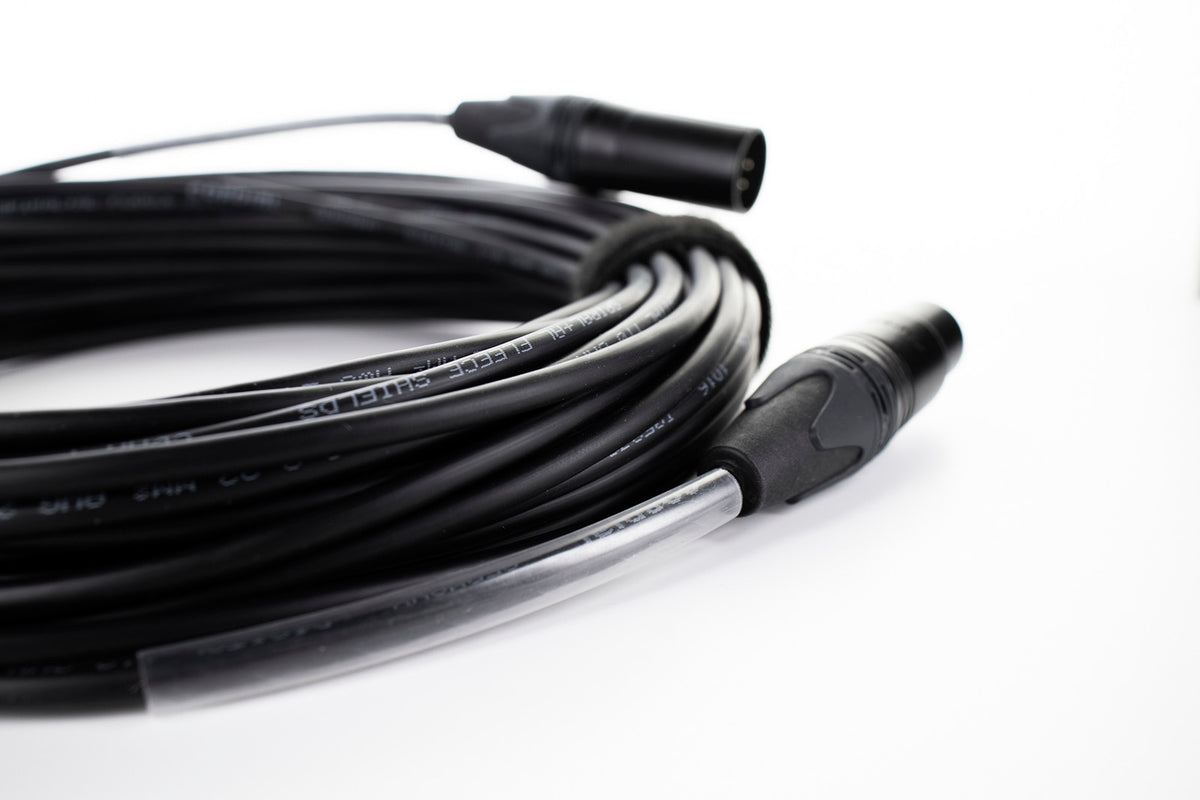

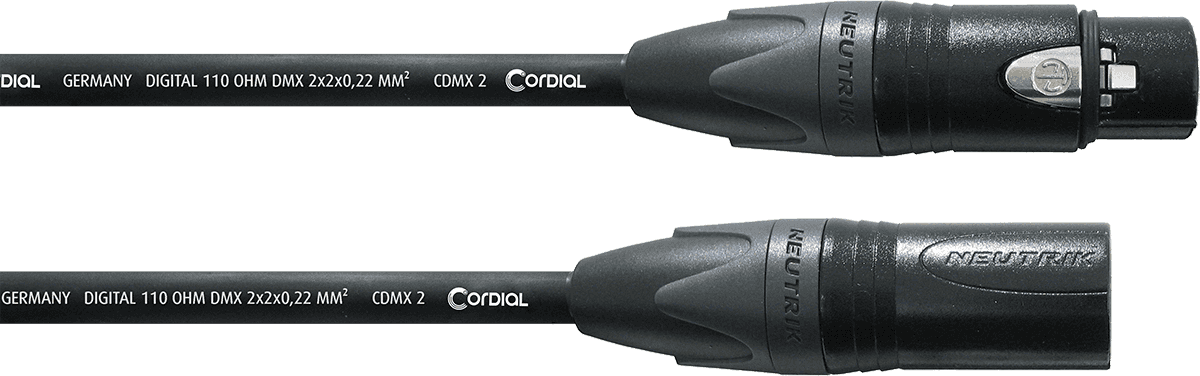

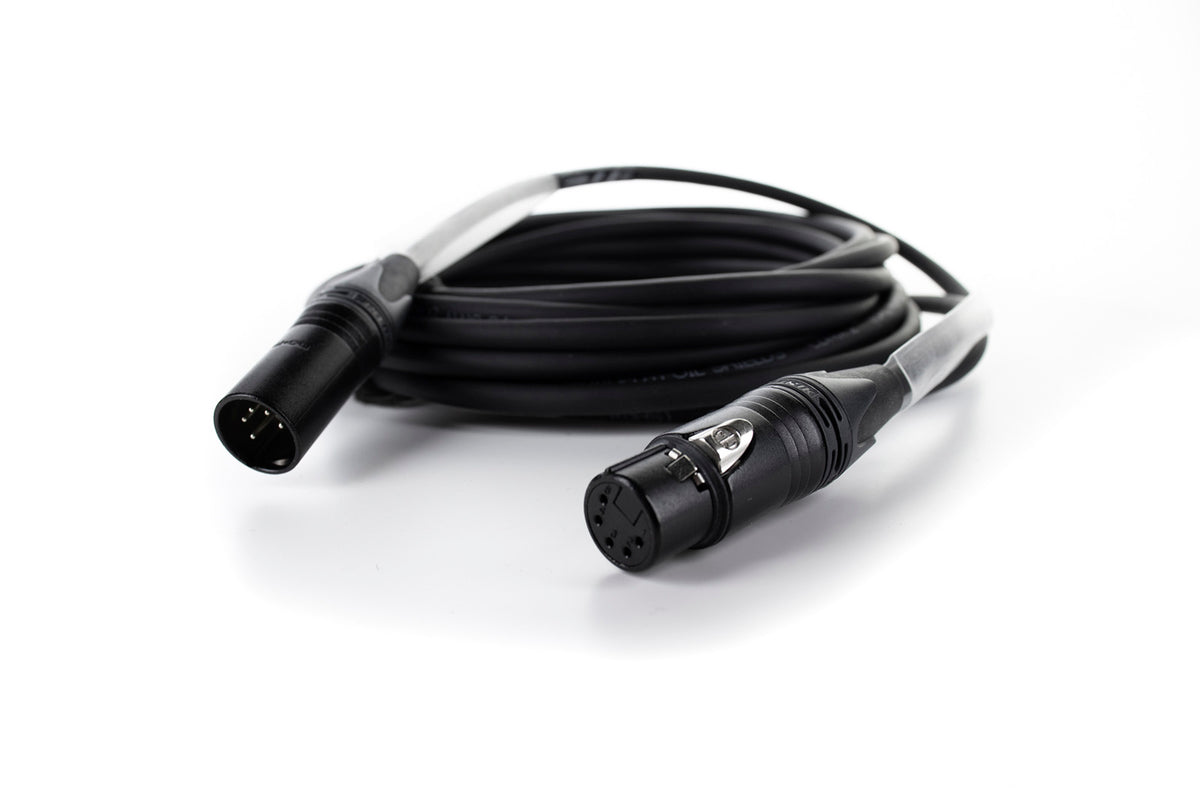

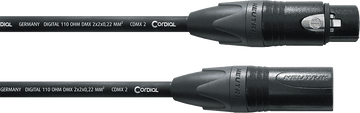

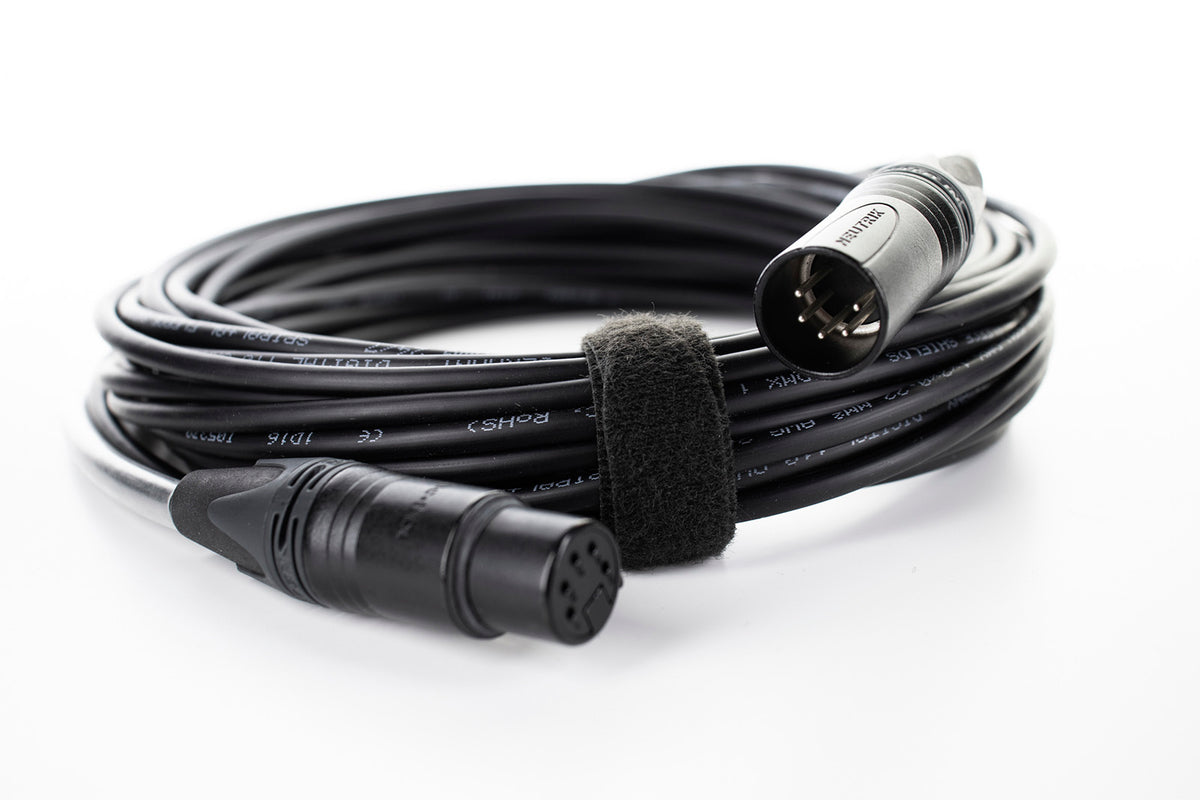

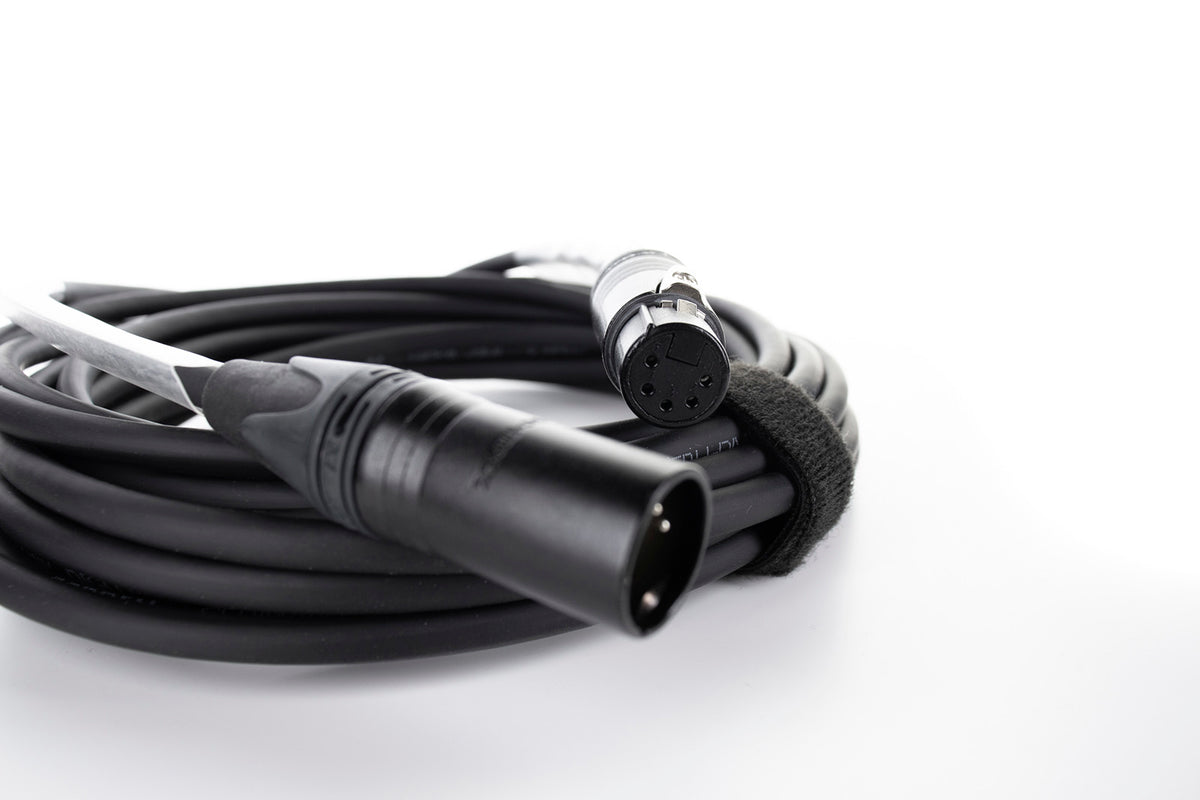

The Essentials to Know About the Cordial CDX-2 10 m
- 5-pin DMX cable designed for reliable control of professional lighting systems.
- Stable DMX 512 signal transmission thanks to a design that meets the demanding requirements of stage and event use.
- Robust Neutrik connectors for excellent mechanical durability during setups, teardowns, and tours.
- Double shielding with tinned copper braid and aluminum foil to minimize interference.
Technical specifications
| Number of channels | 512 | Oxygen-free copper | Yes |

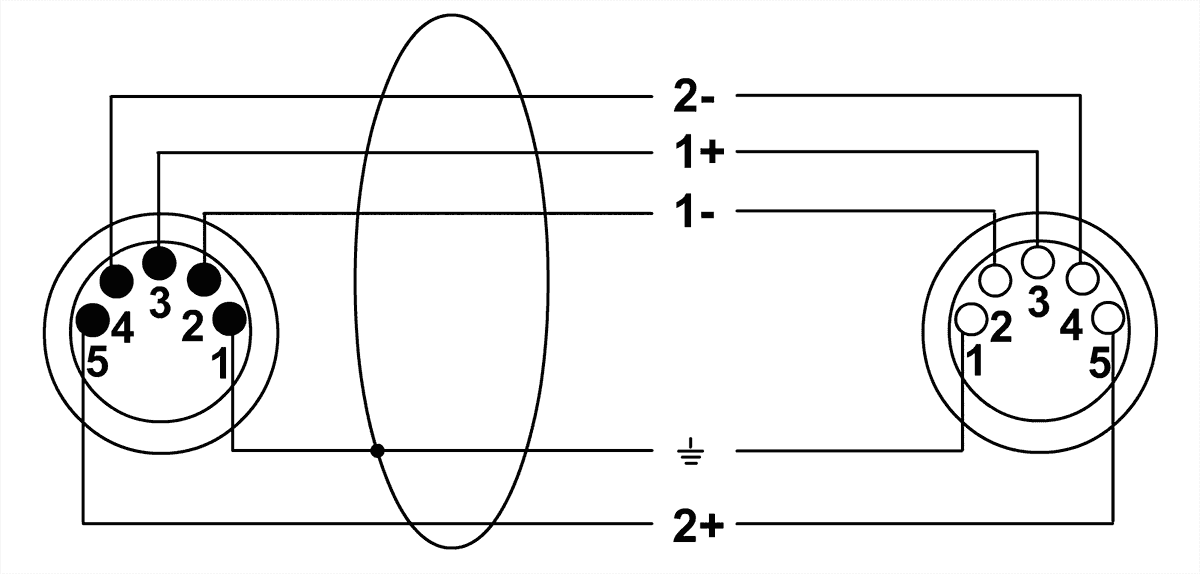

| Connectors | 5-pin female XLR, 5-pin male XLR | Connector brand | Neutrik |
| From connectivity | XLR 5-pin male | Number of pairs | 1 |
| Towards connectivity | XLR 5-pin female | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned copper braid and laminated aluminum foil |
| Format | straight | Color | Black |
| Sheath material | PVC | Length (m) | 10 m |
Questions frequently asked
Is this DMX cable compatible with a console using 5-pin XLR?
The connection uses a 5-pin male XLR on one end and a 5-pin female XLR on the other. It is suitable for lighting equipment using DMX 512 connectors with 5 pins.
What is the length of the Cordial CDX-2 10 m?
The total length is 10 m, allowing connection between control elements, a splitter, or fixtures with an appropriate cable margin for the stage.
Is the cable sufficiently shielded for lighting installations?
A double shielding combines a tinned copper braid and a laminated aluminum foil. This construction reduces interference in environments with power, audio, or video cables. The conductor is oxygen-free copper with a cross-section of 0.22 mm².
What connectors are fitted on this DMX cable?
Neutrik 5-pin XLR connectors are fitted on both ends, with one male and one female plug.
Is this cable suitable for moving head lights and LED bars?
It supports DMX 512 transmission over a pair, to connect moving heads, dimmers, LED bars, and DMX-compatible machines. The black PVC jacket and transparent heat-shrink tubing on the ends facilitate integration into technical setups.
