An EHX Pitch Shifting Reference, Reinvented in Pico Format
The Pitch Fork is among the modern pitch shifting pedals that popularized a polyphonic approach that's easy to dial in, capable of tracking both single notes and chords. With the Pico Pitch Fork, Electro-Harmonix retains this DNA and pushes it further into a Pico chassis designed for dense pedalboards, while keeping the "plug and play" spirit that made the series famous.
Who Is the Pico Pitch Fork For?
This pedal is aimed at guitarists (and bassists) who want to expand their palette without complexity: octave up/down to thicken a riff, harmonies for two-voice leads, detune to simulate a subtle chorus, or quick pitch bends in momentary mode. It naturally fits in rock, metal (instant downtuning), pop, indie, funk, and textured music, both in studio and live settings where precision and responsiveness are key.
Controls, Modes, and Flexibility: Everything Designed for Playing

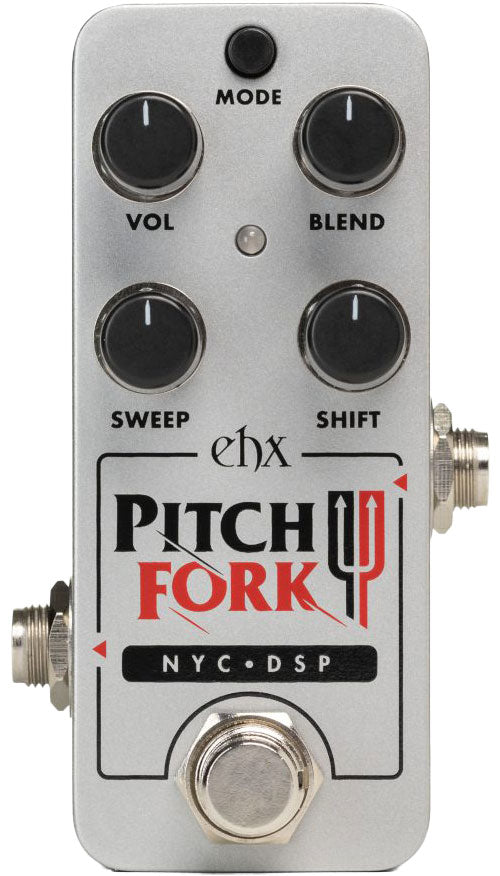

The heart of the Pico Pitch Fork is its SHIFT selector (10 intervals) combined with the MODE button that chooses the transposition direction: Up (red LED), Down (green LED), or Dual (orange LED) to generate two intervals simultaneously. The BLEND knob lets you go from a completely clean signal to a 100% shifted signal, while VOL adjusts the overall output level to maintain consistent volume between bypass and effect.
The SWEEP control adds a "performance" dimension: by setting the sweep time, you get faster or slower pitch rises/falls when switching between bypass and effect, perfect for tremolo-arm/whammy-style parts without an expression pedal. On stage, the footswitch can operate in Latching (classic on/off) or Momentary (effect active only while holding the switch), ideal for accents, phrase endings, or spot impacts.
Finally, Electro-Harmonix included a real plus for pedalboard integration: multiple selectable bypass topologies (digital, buffered analog, hybrid) to optimize either smooth transitions or signal purity in bypass depending on your chain. Note: the pedal must be powered to pass the signal, even in bypass.
The Sound
The Pico Pitch Fork stands out with a clean, modern, and stable sound, with tracking designed to remain musical on chords and voicings. At 100% wet, you get a clear transposition, ideal for simulating another register (baritone-like, octave lead, "drop" riffs), while with a more subtle BLEND, it becomes a very expressive doubling tool: slight detune to thicken, discreet octave to add body, or Dual harmonies that fill the space without overpowering the playing.
The Pitch Fork family is regularly adopted by guitarists with very distinctive playing styles (notably seen with Jack White, Jonny Greenwood, and Billy Gibbons according to observed rigs), and the Pico version has been spotted more recently on modern setups oriented towards groove and textures, for example with Mark Speer. Result: a pedal equally comfortable for immediate "fun" sounds as for more sophisticated harmonized layers.
Technical specifications
| Effects | Octaver / Harmony, Effects | Type | sector |
| Technology | Digital | Use | electric guitar |
| Format | Pedal | Color | White |
| Audio | mono | Footswitch | Latching and Momentary |
| Transposition range | up to plus or minus 3 octaves | Main bypass | buffered bypass |
| Number of options | 30 (10 intervals x 3 modes) | Selectable bypass topologies | Digital Bypass, Analog Bypass (buffered), Hybrid Bypass |
| Modes | Up, Down, Dual | Input | 6.35mm Jack (impedance 2.2 megaohms, max input level: +1.5 dBu) |
| Intervals (Up/Down) | Detune, Minor Second, Major Second, Major Third, Perfect Fourth, Perfect Fifth, Major Sixth, One Octave, Two Octaves, Three Octaves | Output | 6.35mm Jack (impedance 680 ohms, max output level: +2.1 dBu) |
| Intervals (Dual) | Detune, Deep Detune, Major Second Up + Major Sixth Up, Major Third Up + Perfect Fifth Up, Perfect Fourth Up + Perfect Fifth Down, Perfect Fifth Up + One Octave Down, Major Sixth Up + Perfect Fifth Down, One Octave Up + One Octave Down, Two Octaves Up + One Octave Down, Three Octaves Up + One Octave Down | Chassis | compact Pico format |
| VOL | output volume | Dimensions | 92.71 x 50.8 x 50.8 mm |
| BLEND | dry/wet mix (from 100% dry to 100% wet) | Required power | 9VDC |
| SHIFT | interval selection | Consumption | 100 mA |
| SWEEP | sweep time for pitch bends (up to 4 seconds, minimum disables sweep) | Polarity | center negative |
| MODE button | Up / Down / Dual selection (multicolor LED) | ||
Questions frequently asked
What range of pitch shifting does the Electro-Harmonix Pico Pitch Fork offer?
The pitch shift goes up to ±3 octaves, with 10 intervals available in both Up and Down modes. The Dual mode combines two intervals simultaneously, including high octave + low octave or high fifth + low octave.
Does the Pico Pitch Fork allow a whammy effect without an expression pedal?
The SWEEP setting creates a pitch sweep when the effect is engaged or disengaged, with an adjustable duration up to 4 seconds. When set to minimum, the sweep is disabled.
What footswitch modes are available?
Two operating modes are offered: Latching for standard on/off activation, and Momentary to keep the effect active only while the switch is pressed. The latter mode enables momentary bends and end-of-phrase accents.
Can it operate on a pedalboard with a 9 V power supply?
This pedal requires a 9 V DC power supply with center negative and consumes 100 mA. It must remain powered to pass the signal, including when in bypass.
What bypass and connectivity options are provided?
Three selectable topologies are included: Digital Bypass, Buffered Analog Bypass, and Hybrid Bypass. The mono input on 6.35 mm jack has an impedance of 2.2 MΩ, while the 6.35 mm jack output is rated at 680 Ω.
