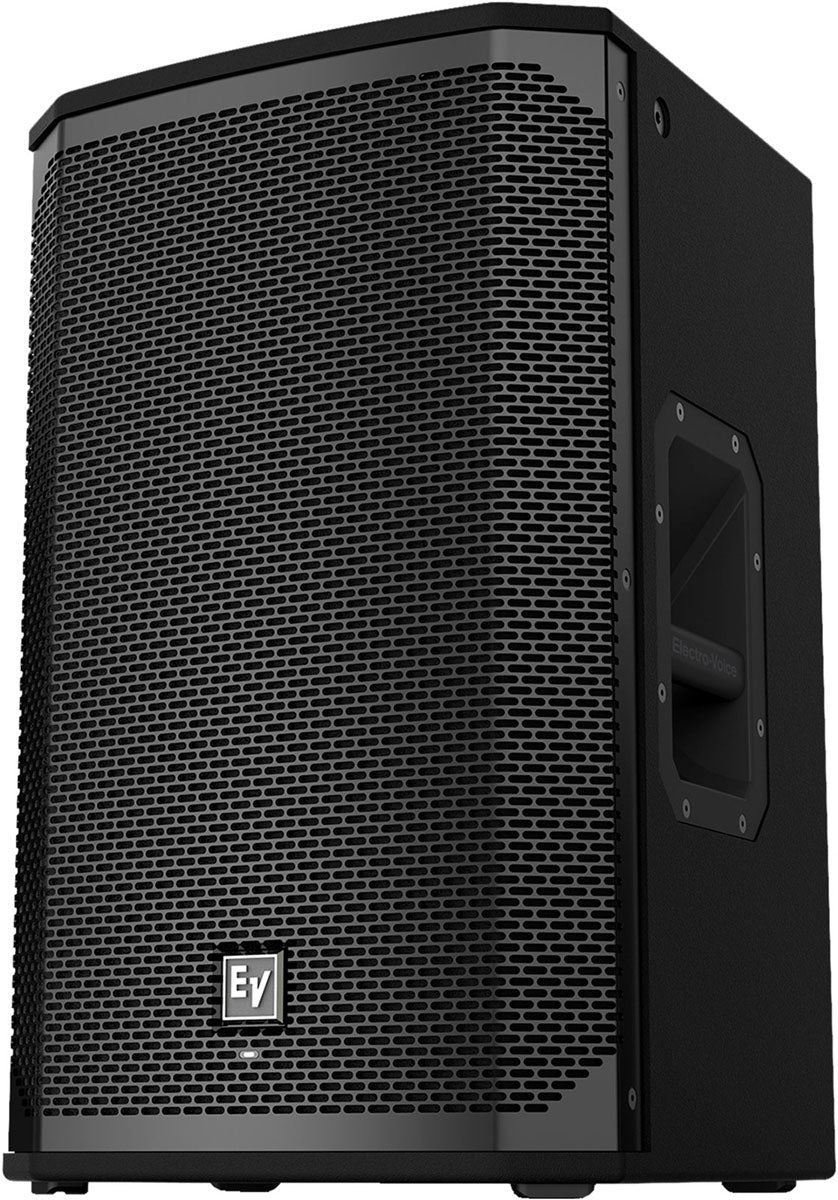

Electrovoice EKX 12

Name: EKX 12
Brand: Electrovoice
SKU: 418124
Price: 694.00 EUR
Availability: InStock

694,00 €VAT incl.

3,10 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 418124

EAN : 8717332960606

This item is covered for 3 years

Information

Essential Information About the Electro-Voice EKX-12 Passive Speaker
• High Power and Level Handling : 350 W continuous and up to 1400 W peak, with a maximum SPL rated at 131 dB to effectively sound live performances.
• Precise Dispersion : 90 deg x 60 deg coverage to better cover the audience and limit "off-axis" zones.
• Reliability-Focused Design : 15 mm plywood enclosure with internal bracing, EVCoat finish, and steel grille with powder coating.
• Stage and Installation Ready : 35 mm pole mount, 8 M10 rigging points, and dual Speakon (NL4) connectors.

EKX 12

694,00 €VAT incl.

3,10 € Ecotax included

Reference price

The EKX-12: The Electro-Voice Spirit Serving Portable and Professional Sound Reinforcement

With the EKX-12, Electro-Voice emphasizes a passive speaker designed to meet the demands of musicians, contractors, and integrators seeking a solid compromise between acoustic performance, durability, and ease of setup. Its 12-inch format remains a highly appreciated standard for building a coherent system that is easy to transport and deploy, whether as a front-of-house speaker or as fill in a larger configuration.

What Uses Is the Electro-Voice EKX-12 Ideal For?

The EKX-12 targets bands, DJs, houses of worship, multipurpose rooms, and event providers who want a passive speaker capable of delivering projection and good intelligibility for both vocals and instruments. When paired with a suitable amplifier (and processing/limiter if needed), it forms a reliable foundation for concert, conference, or event sound reinforcement, with the option to add a subwoofer to extend low-frequency impact.

Technical specifications

Bluetooth

Questions frequently asked

What amplification should be chosen for the Electro-Voice EKX-12?

This passive speaker has a nominal impedance of 8 ohms, with a minimum of 7.5 ohms. Suitable external amplification is therefore necessary, with processing or limiter if required by the setup.

Does the EKX-12 speaker go low enough in bass without a subwoofer?

The frequency response reaches 82 Hz at -3 dB and 55 Hz at -10 dB. A subwoofer can be added to extend impact in the low end, while a high-pass frequency of 55 Hz is recommended.

What is the sound power and dispersion of this passive speaker?

The maximum sound pressure level announced is 131 dB, with an axial sensitivity of 95 dB. The SST waveguide provides a dispersion of 90° horizontal and 60° vertical.

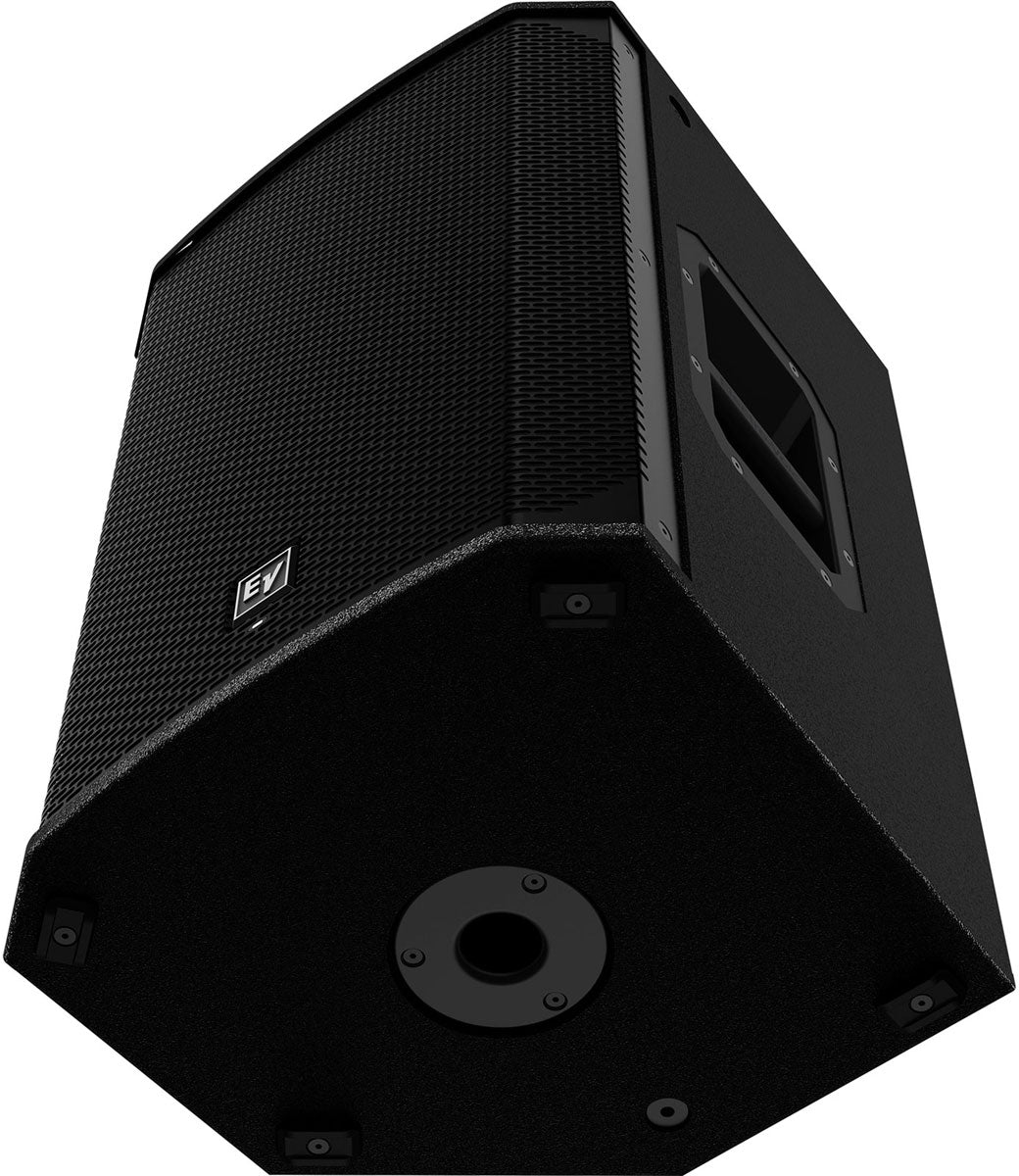

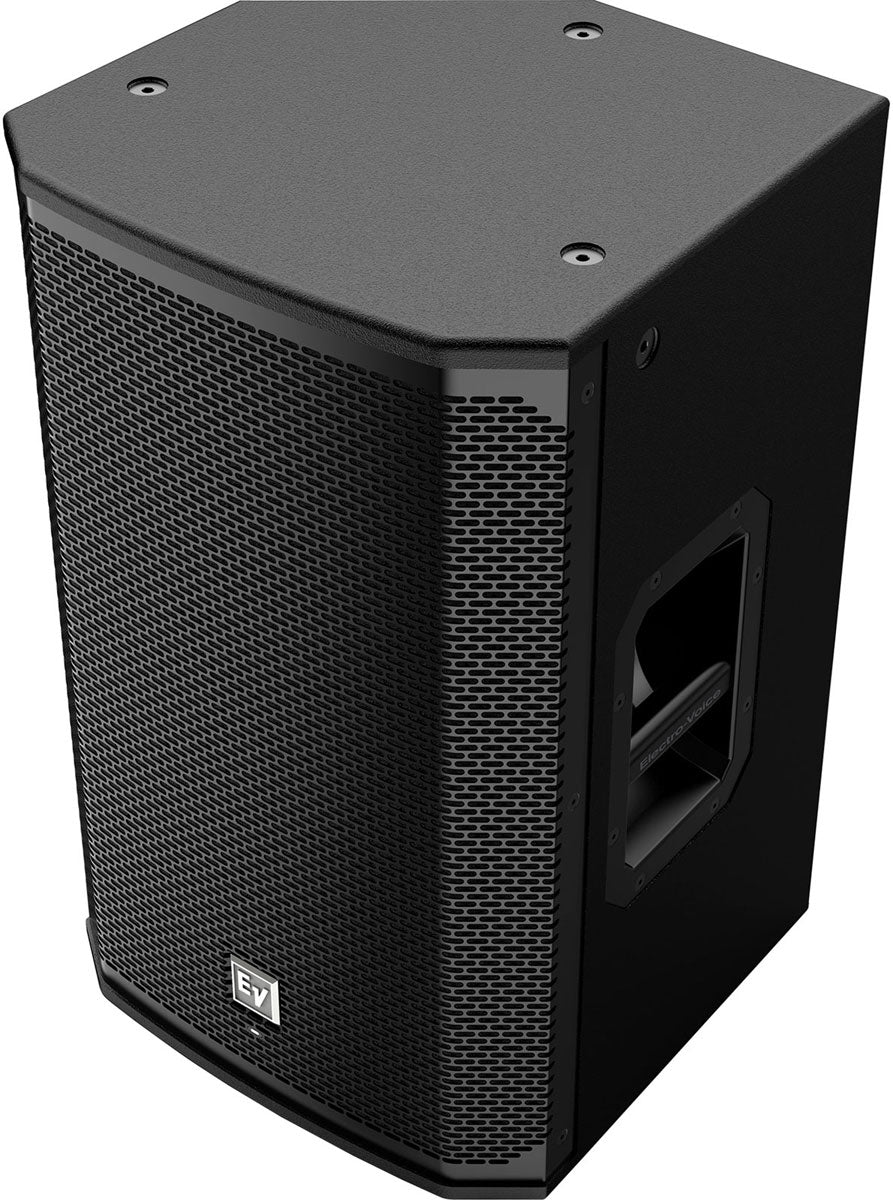

Can it be pole-mounted or flown?

Pole integration is provided via a 35 mm socket. Eight M10 rigging points also allow for suspended installation depending on the configuration.

What is the weight and what materials are used for the EKX-12?

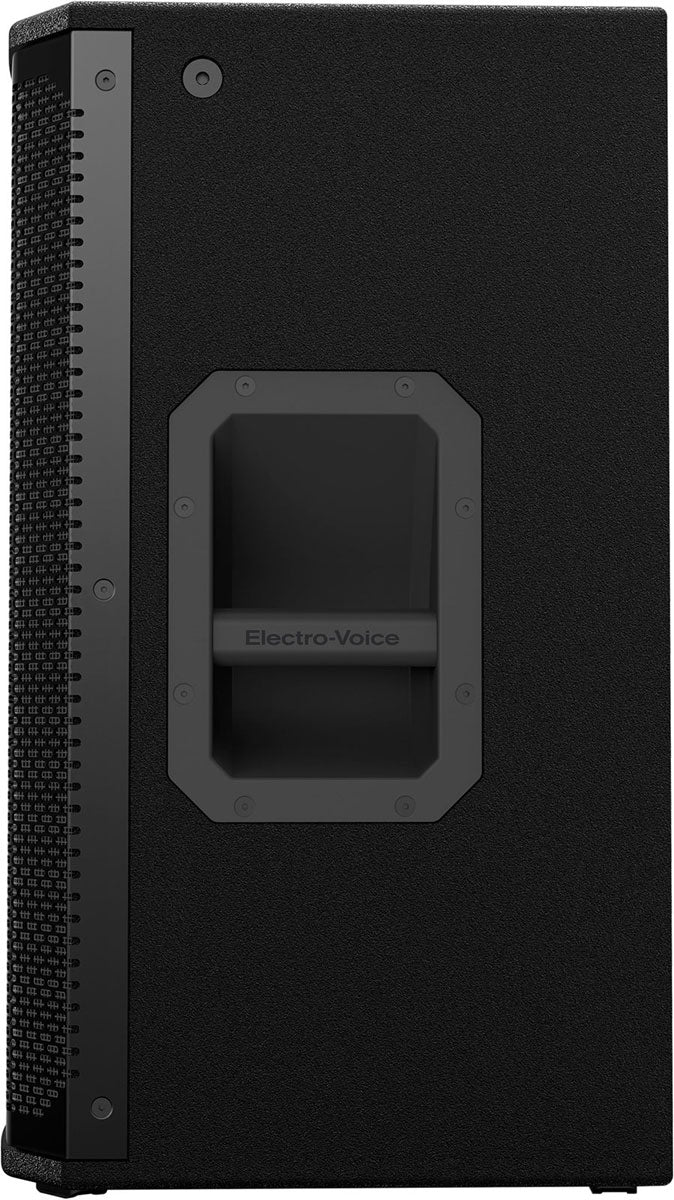

The 15 mm plywood enclosure weighs 17.4 kg and measures 607 x 375 x 356 mm. The EVCoat finish and 18 AWG powder-coated steel grille protect the speaker during transport and handling. A handle is integrated into the cabinet.
