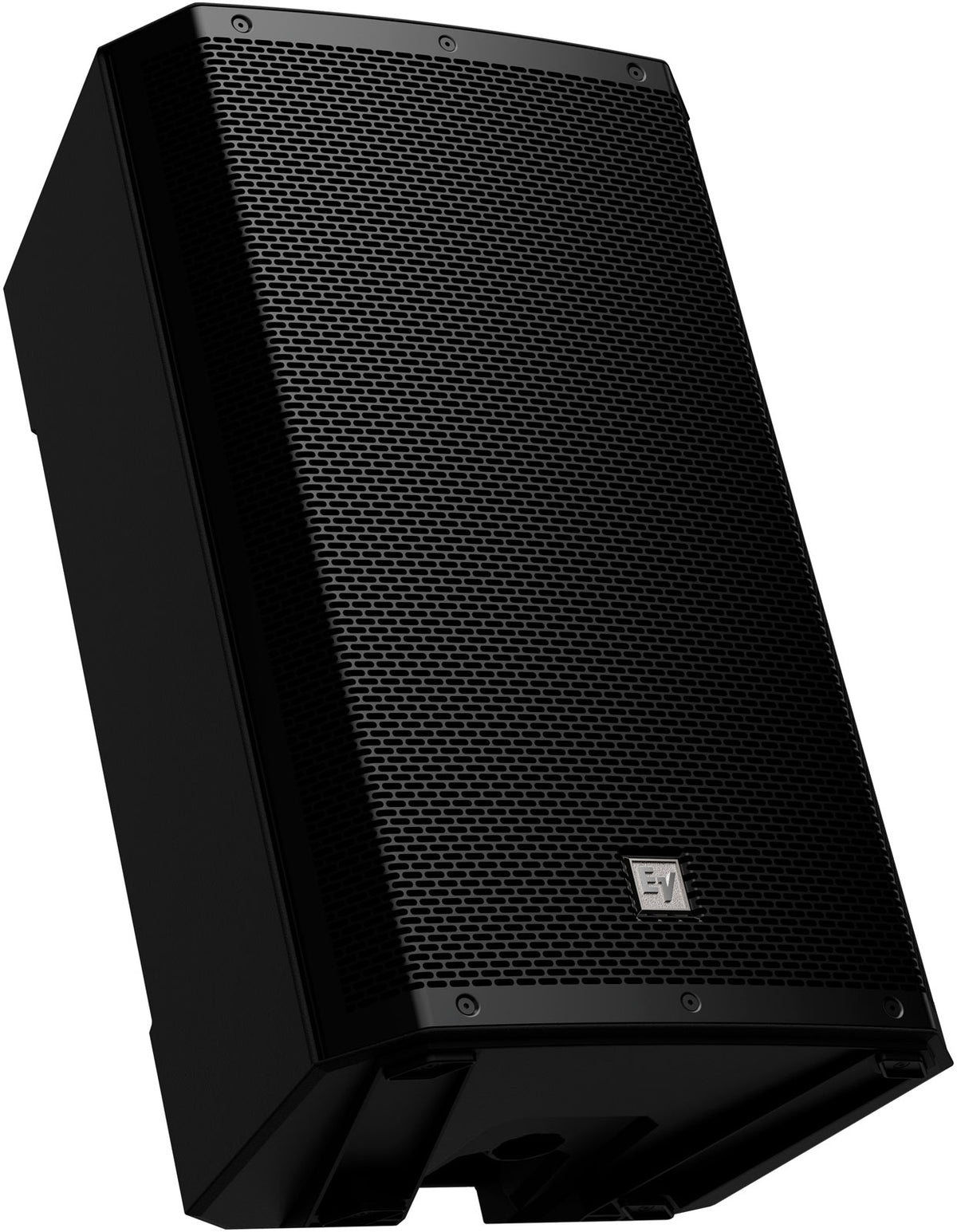

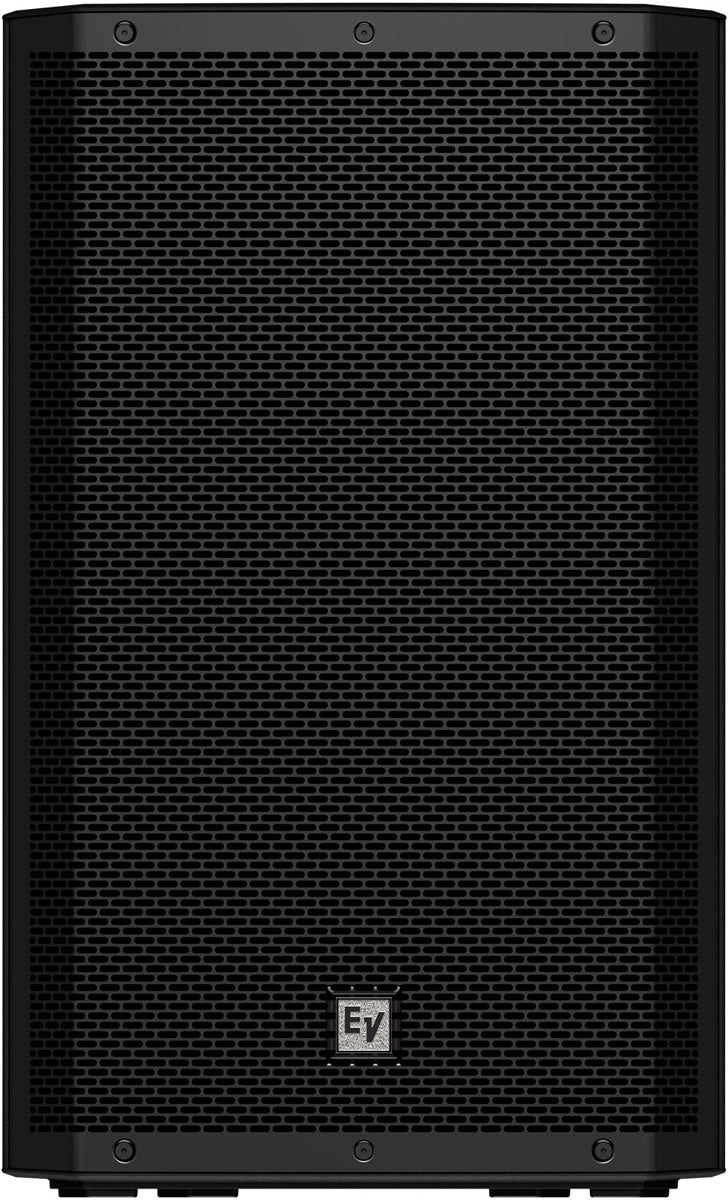

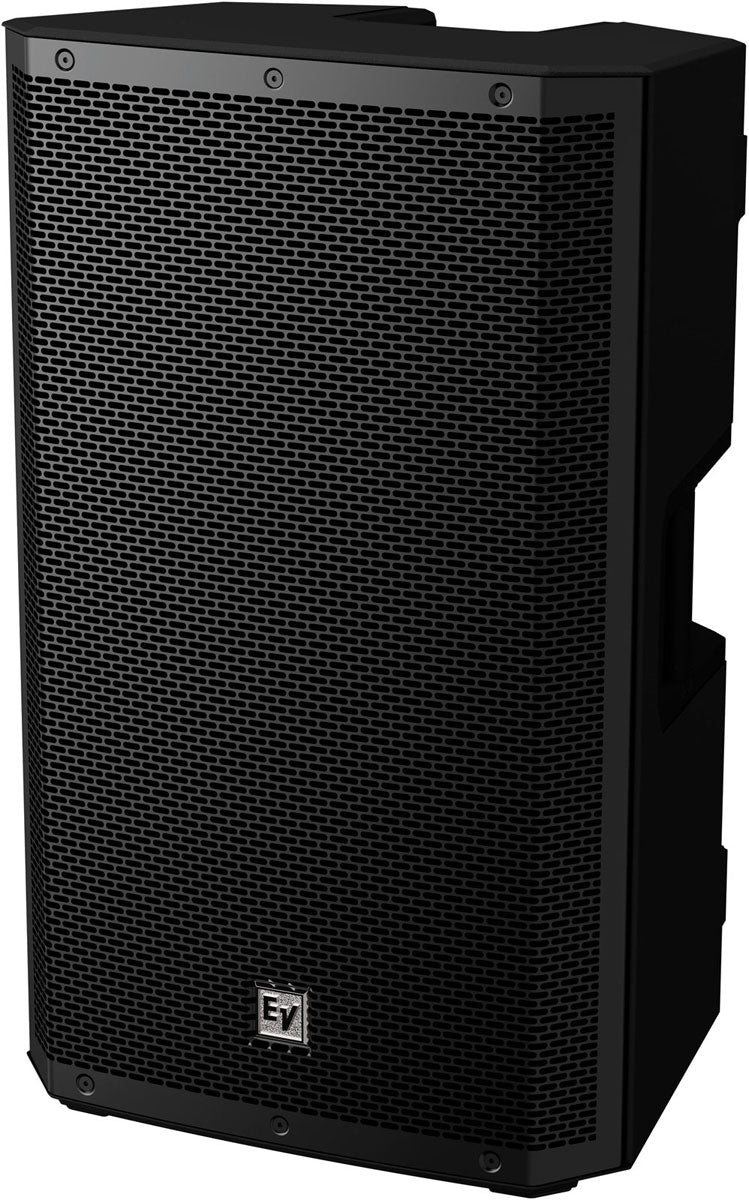

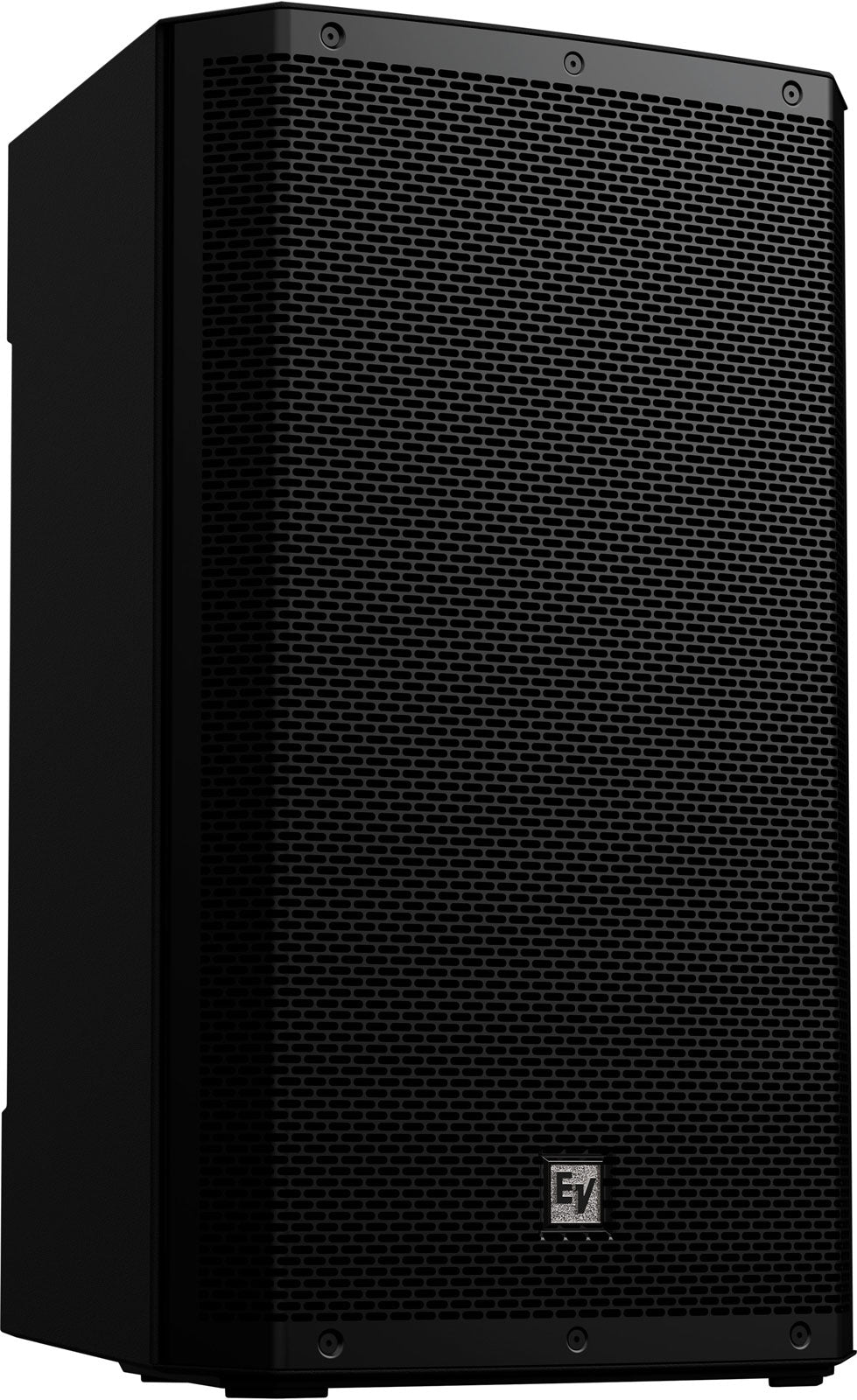

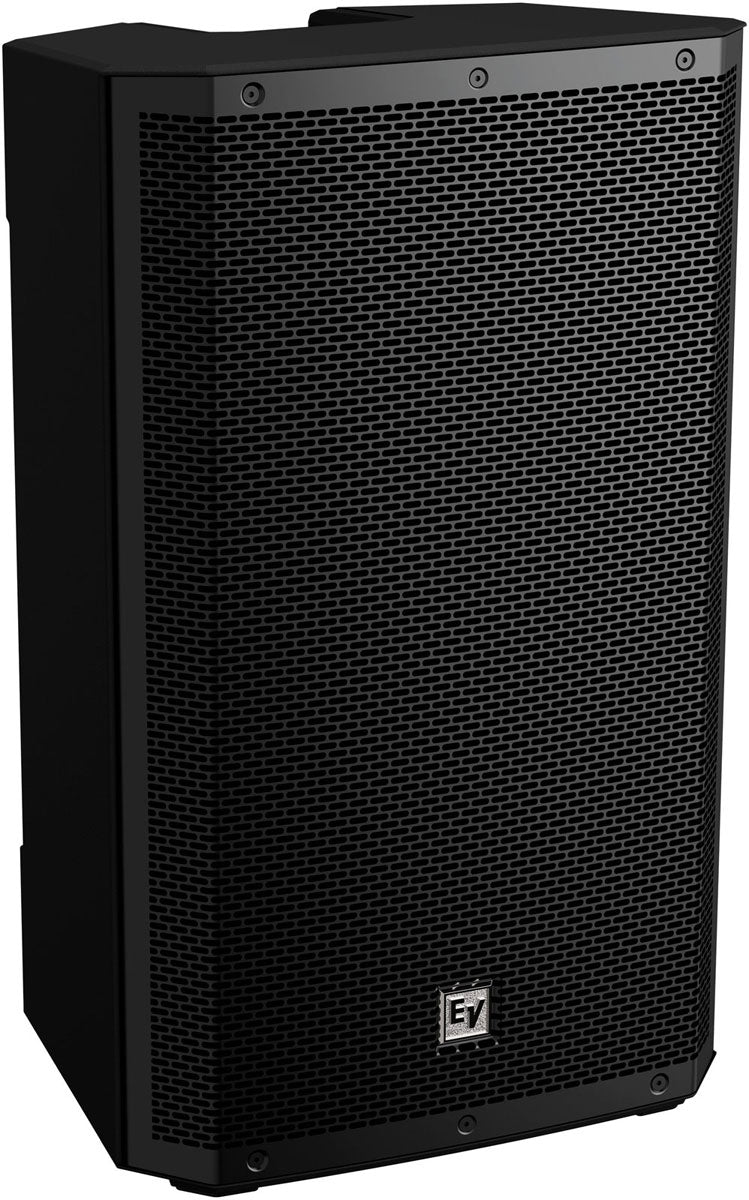

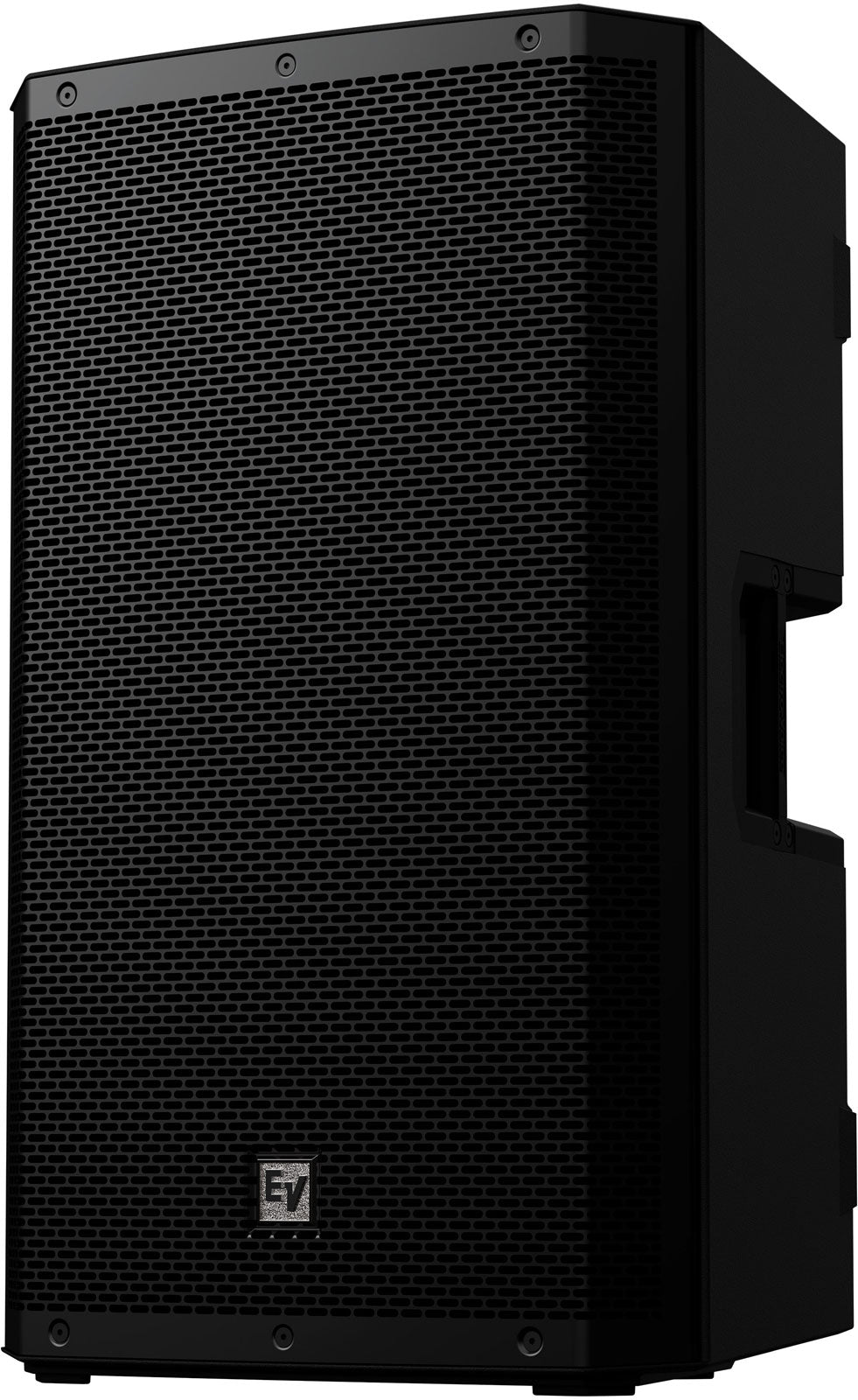

Electrovoice ZLX-15-G2
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Electrovoice
https://www.electrovoice.com
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
A ZLX "G2" Designed to Extend the DNA of the Series
The ZLX-15-G2 embodies the spirit of the ZLX series: offering a reliable PA speaker that is easy to integrate and coherent for many setups (small to medium stages, rehearsals, mobile gigs, multipurpose rooms). This "G2" version retains the format and pragmatic approach of the series, featuring a 2-way architecture and a lightweight enclosure to create an efficient system for front-of-house, side-fill, or stage monitoring.
Who Is the ZLX-15-G2 For, and What Are Its Ideal Uses?
This Electro-Voice passive speaker targets musicians, bands, DJs, and service providers looking for a 15-inch passive speaker capable of handling high levels while remaining easy to transport. On front-of-house, it delivers a pronounced presence in the low end for vocals, keyboards, guitars, and playlists rich in bass. As a stage monitor, its beveled edges allow sound to be directed toward the performer, which is practical for setups where space is limited without sacrificing impact.
Acoustic Choices Focused on Projection, Impact, and Clarity
Bass and Power Handling: Bass Reflex Enclosure + 15-inch Driver
With its Bass Reflex system and WECA2158 15-inch (380 mm) ferrite magnet driver, the ZLX-15-G2 is designed to produce broad and energetic bass, useful both for music playback and instrument reinforcement. The specified frequency response of 68 Hz to 18 kHz (-3 dB) and frequency range of 53 Hz to 20 kHz (-10 dB) enable a full-bodied sound while maintaining good clarity across the entire mix.
Controlled Directivity: SST Waveguide
The SST waveguide manages projection and coverage uniformity. The stated directivity of H90deg x V60deg helps better target the listening area, an advantage when aiming to cover an audience evenly or to limit off-axis sound spill on stage and in reverberant rooms.
Precise High Frequencies: Titanium Driver and 2 kHz Crossover
The high-frequency section relies on a DH-1K (35 mm) titanium dome tweeter. The 2 kHz crossover ensures a smooth transition between the woofer and tweeter, preserving definition and articulation on vocals, cymbals, synths, and mix details. The specified axial sensitivity of 93 dB SPL (1 W / 1 m) facilitates achieving a good level with appropriate amplification.
Designed for Stage and Installation: Connectivity and Ergonomics

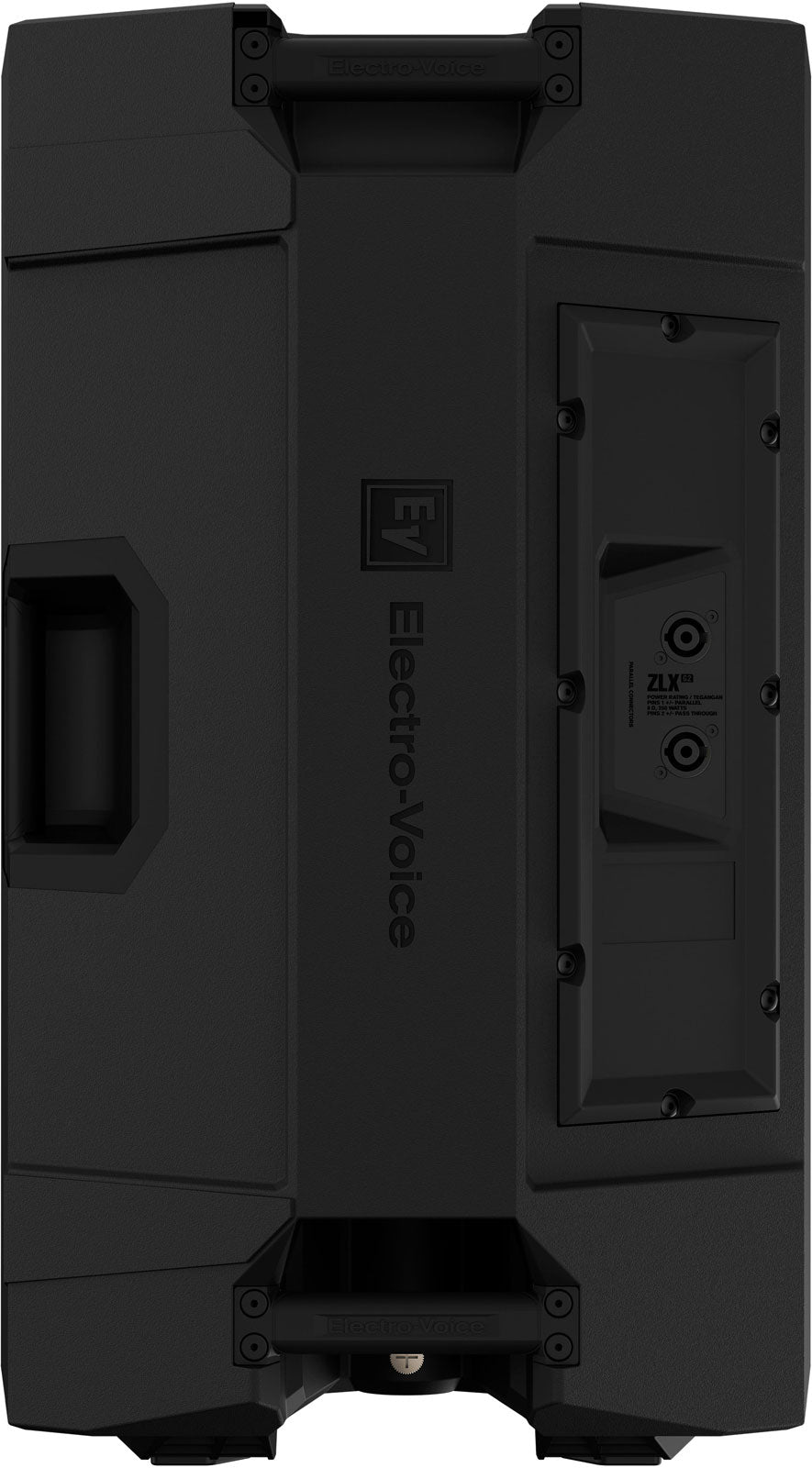

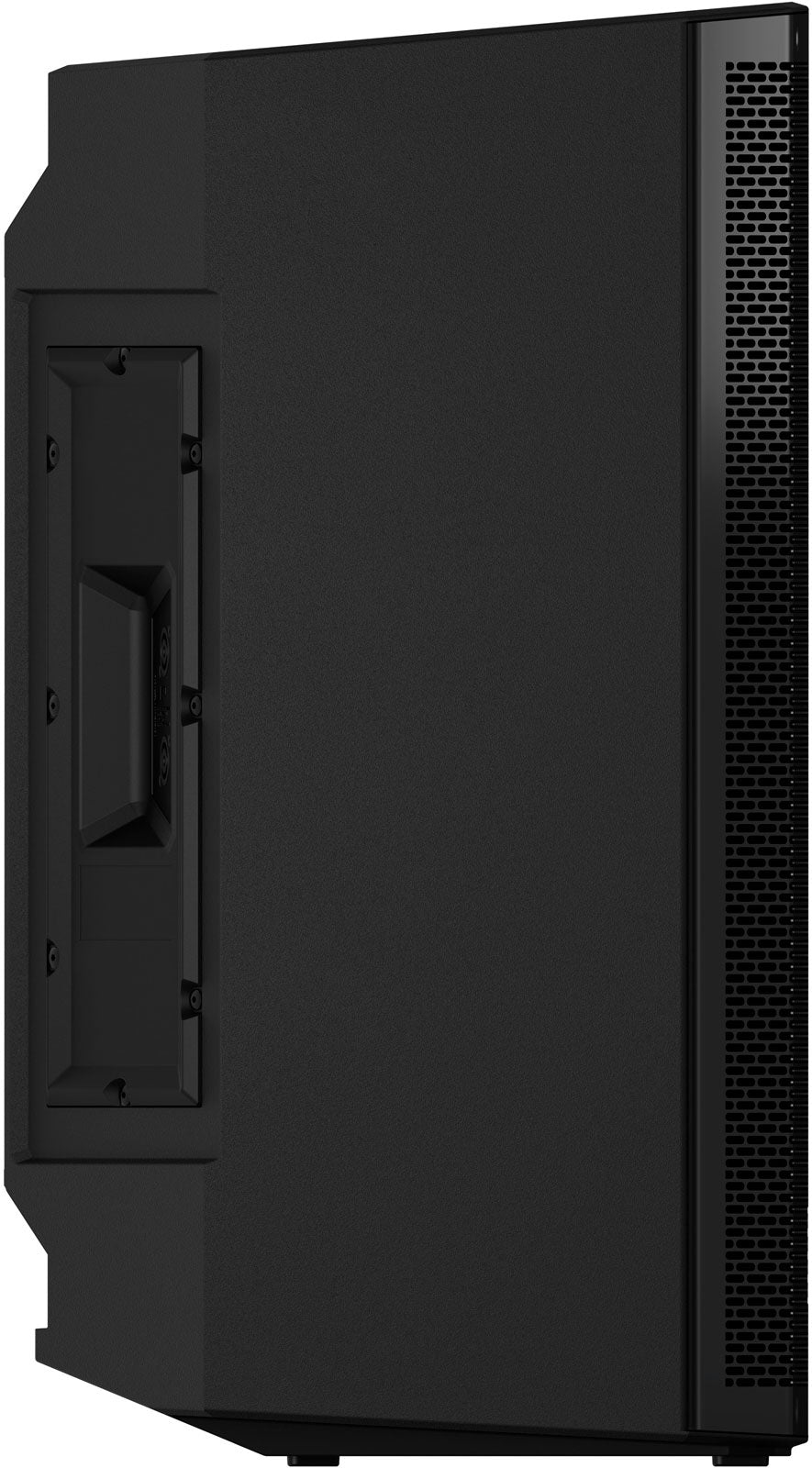

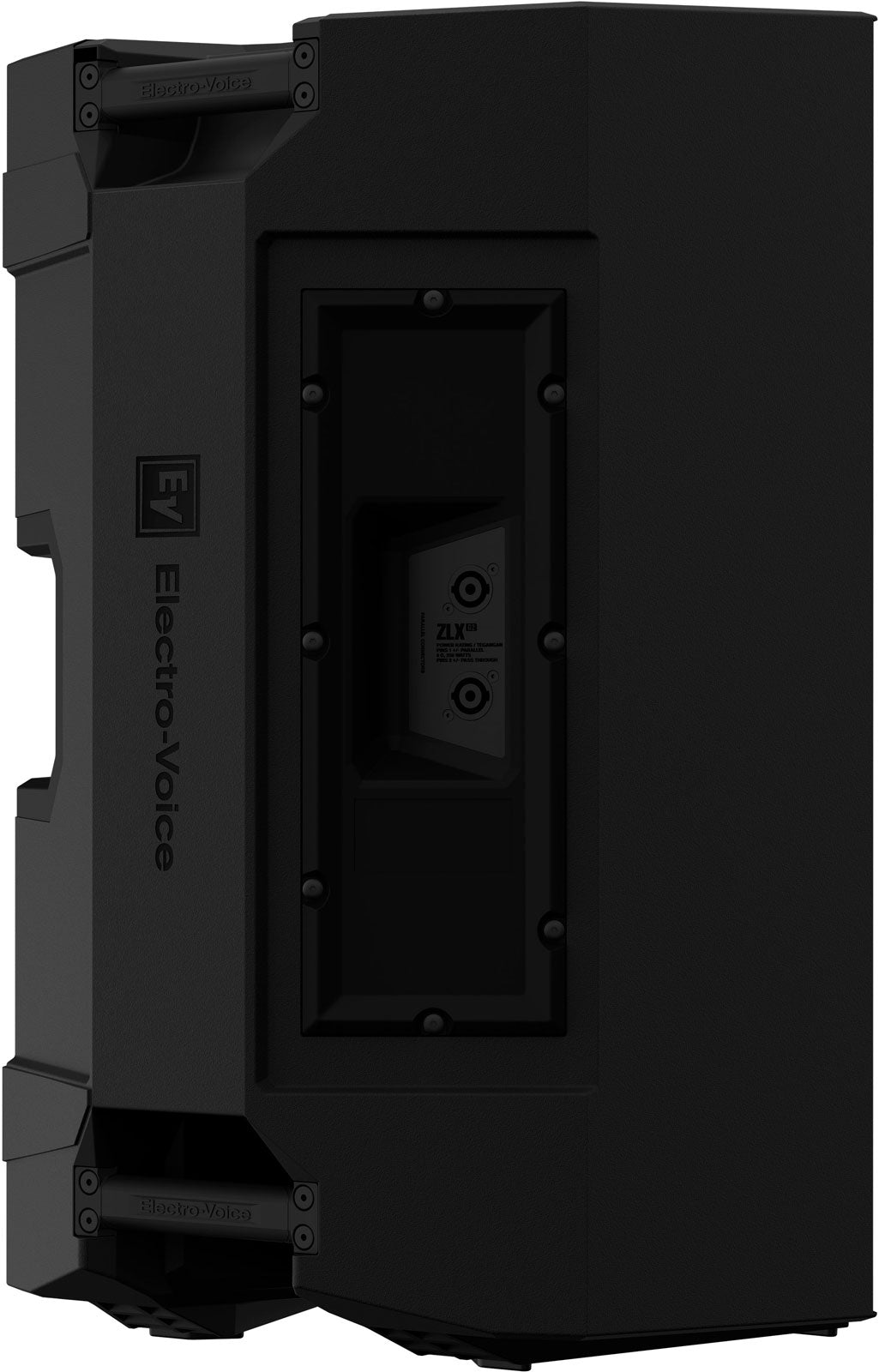

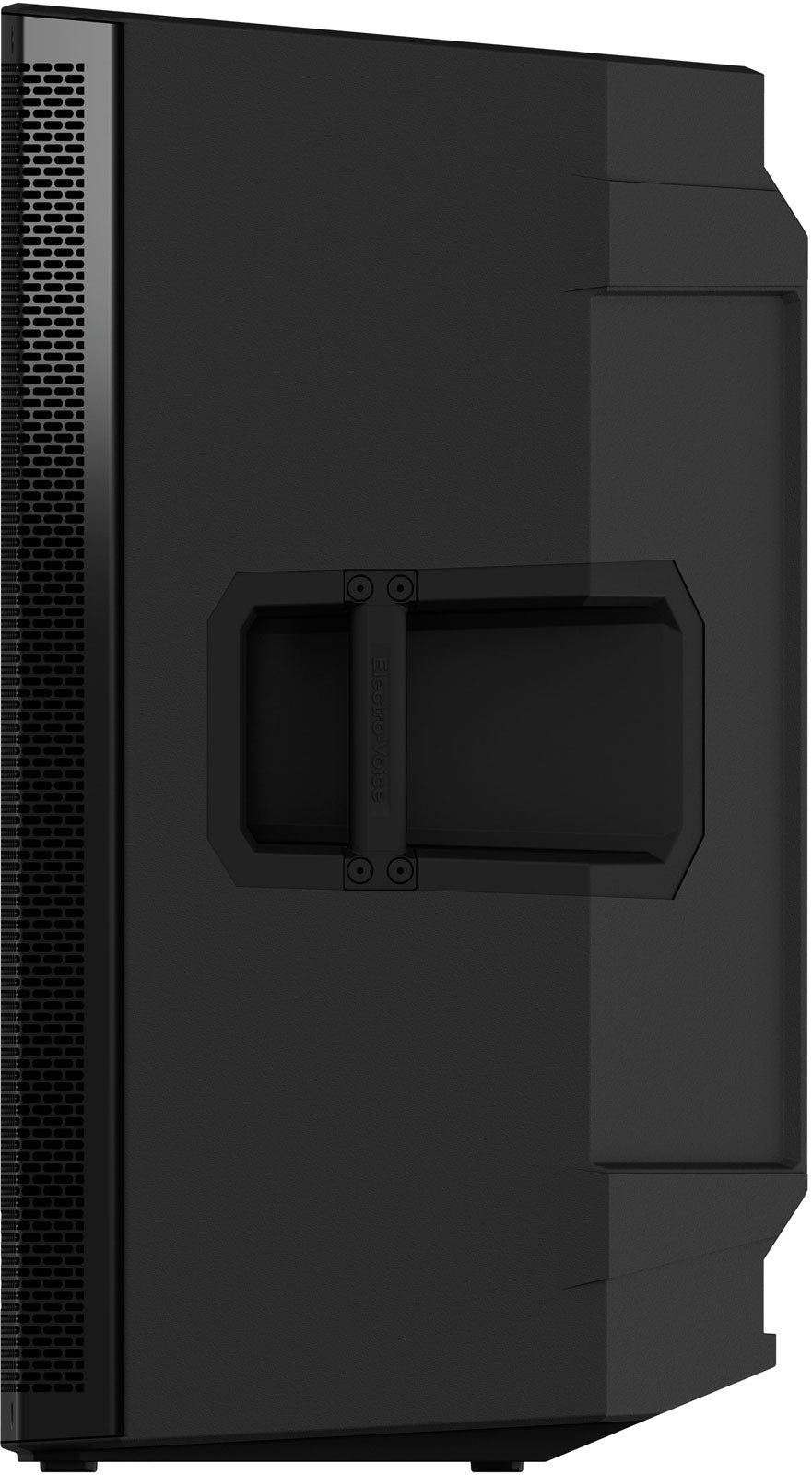

The ZLX-15-G2 adopts a simple and robust approach: 2 Speakon connectors for daisy-chaining, a black polypropylene enclosure designed for mobility, and a 35 mm pole mount for stand mounting. The beveled edges (55deg on the side + 23deg on the rear) enhance versatility as stage monitors while maintaining stable placement.
Note: The cover and mounting accessories are sold separately, allowing you to customize the setup according to your usage (frequent transport, fixed installation, etc.).
Technical specifications
| Bluetooth | No | ||
| Model | Electro-Voice ZLX-15-G2 | Directivity | H90deg x V60deg |
| Speaker | Passive 2-way | High-pass Filter | 48 Hz |
| Enclosure | Bass Reflex | Crossover Frequency | 2 kHz |
| Waveguide | SST | Frequency Response | 68 Hz to 18 kHz (-3 dB) |
| Cabinet | Black polypropylene | Frequency Range | 53 Hz to 20 kHz (-10 dB) |
| Impedance | 8 ohms | Connectors | 2x Speakon |
| Peak Power | 1000 W | Beveled Edges | 55deg on the side + 23deg on the rear |
| RMS Power | 250 W | Pole Mount | 35 mm |
| Maximum Sound Pressure Level | 126 dB SPL | Cover and Mounts | sold separately |
| Axial Sensitivity | 93 dB SPL 1W/1m | Dimensions (H x W x D) | 698 x 423 x 383 mm |
| Woofer | WECA2158 15-inch (380 mm), ferrite magnet | Net Weight | 16.5 kg |
| Tweeter | DH-1K 35 mm, titanium dome | ||
Questions frequently asked
Which amplification should be chosen for a passive speaker with 8 ohms and 250 W RMS?
This speaker has an impedance of 8 ohms and an RMS power of 250 W, with a peak power rating of 1000 W. Amplification compatible with an 8-ohm load is required, as no amplifier is built in.
Can the ZLX-15-G2 be used as a stage monitor?
The 55° angled cuts on the sides and 23° at the back allow for floor use as a stage monitor. Its black polypropylene enclosure weighs 16.5 kg.
What connectivity is available on this speaker?
Two Speakon connectors are provided for connection and linking. No Bluetooth function is integrated.
What sound coverage does the SST waveguide offer?
The SST waveguide provides a dispersion of 90° horizontally and 60° vertically. This coverage targets a listening area with even sound distribution.
Is it necessary to add a subwoofer with this 15-inch speaker?
The Bass Reflex enclosure and the WECA2158 15-inch driver cover a frequency response from 68 Hz to 18 kHz at -3 dB. For sound reinforcement requiring more energy below 68 Hz, adding a subwoofer may be considered. The high-pass filter is set at 48 Hz.
