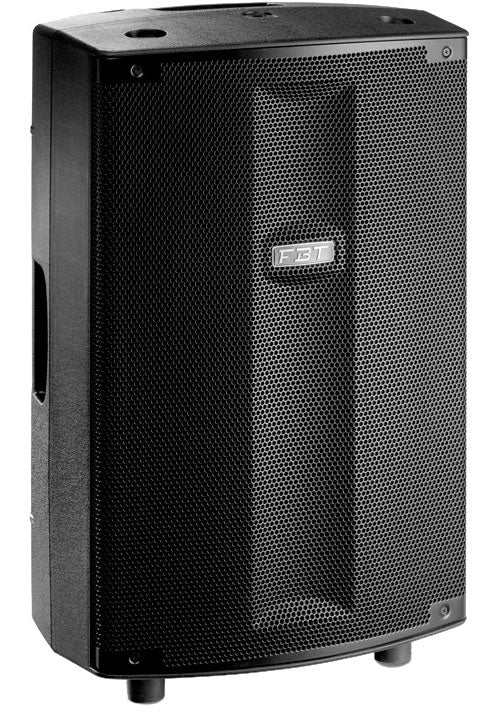

FBT Promaxx 114A
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
FBT
https://www.fbt.it
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
PROMAXX: the "made in Italy" DNA at the service of the series
The PROMAXX series was designed to offer true audio quality and a distinctive "made in Italy" style, suitable for both live applications and fixed installations. At the heart of the speaker is an FBT amplification module with switch-mode power supply: a modern architecture adapted for intensive use, with excellent efficiency.
The low-frequency section is handled by a Class D amplifier (700 W RMS), while the high frequencies benefit from a Class H/AB amp (200 W RMS), a design choice aimed at definition and precision in the upper spectrum.
For whom and for what: stage, DJ, vocals, and installation
This active PROMAXX speaker is aimed at musicians, professionals, and DJs looking for a powered sound reinforcement speaker capable of handling high levels while maintaining good clarity. It is also suitable for vocal/instrument setups, stage monitors, and compact systems for bars, small venues, events, and places of worship.
Thanks to its shape allowing use as a stage monitor (angles 12deg, 40deg, and 55deg), it easily integrates into a live setup. The 35 mm pole mount allows installation on a speaker stand, and the M10 points facilitate certain fixed mountings.
DSP, bi-amplification, and components: a speaker ready to perform
Bi-amplification and amplifier architecture
The 700 + 200 W RMS bi-amplification allows separate management of the energy dedicated to lows and highs. The targeted result: solid dynamics on the bass, and a finer, more controlled reproduction in the treble, especially during demanding uses (vocals upfront, compressed music like DJ sets, or "touring" programs).
Digital processing and presets
Digital signal processing (DSP) helps you quickly adapt the curve to the situation: vocal intelligibility, warmer listening, or a more "loudness" style sound. Two USER slots allow you to save your DSP settings to recall your sound instantly.
- DSP presets : ORIG/LIVE, VOCAL, DJ, TOURING, LOUDNESS, WARM
- Memories : USER 1 and USER 2
Components and dispersion
The 2-way configuration relies on a 14" neodymium B&C woofer and a 1.4" B&C driver. The 90deg x 60deg dispersion is designed to effectively cover a listening area, whether front of house or as reinforcement, while maintaining coherent directivity on stage.
Technical specifications
| Bluetooth | No | ||
| Amplification, drivers, enclosure, design, assembly | 100% made in Italy | Max SPL | 135.5 dB |
| Bi-amplification | 700 + 200 W RMS | Dispersion (H x V) | 90deg x 60deg |

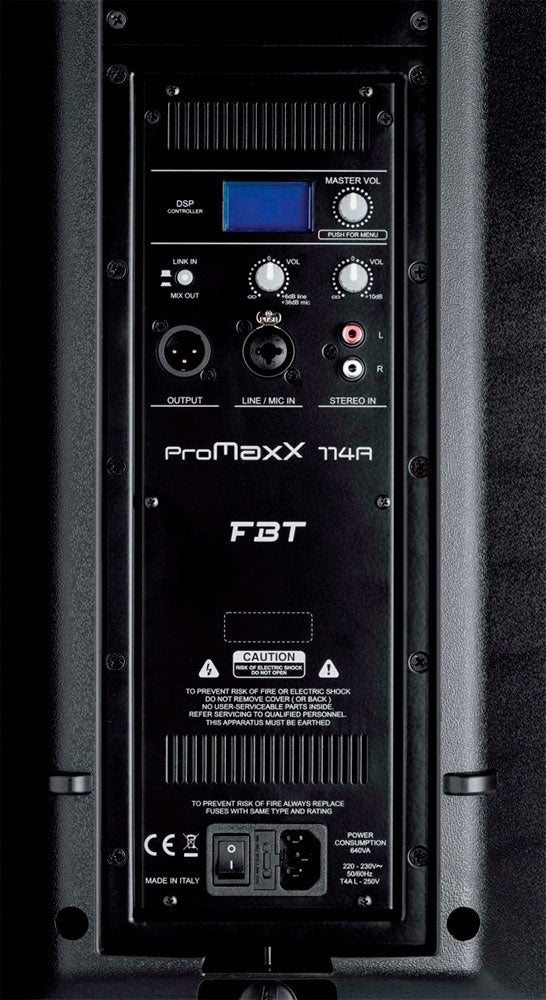

| Signal processing | digital (DSP) | Inputs | XLR/6.35mm Jack combo + stereo RCA |
| EQ control | 6 DSP presets | Output | XLR Link |
| Drivers | 14" neodymium B&C woofer + 1.4" B&C compression driver | Dimensions | 402 x 644 x 345 mm |
| Frequency response (+/- 6 dB) | 45 Hz to 20 kHz | Weight | 17.4 kg |
Questions frequently asked
FBT Promaxx 114A: what RMS power is available?
The bi-amplification delivers 700 W RMS for low frequencies and 200 W RMS for high frequencies. This architecture pairs a Class D amplifier for the bass and a Class H/AB amplifier for the highs.
Can it be used as a stage monitor?
Its enclosure allows for floor use at angles of 12°, 40°, and 55°. The configuration features a 14-inch B&C neodymium speaker and a 1.4-inch B&C driver in a 2-way setup.
What DSP settings are offered?
Six presets are available: ORIG/LIVE, VOCAL, DJ, TOURING, LOUDNESS, and WARM. Two USER memories, USER 1 and USER 2, allow saving custom DSP settings.
What sound coverage does the speaker provide?
Dispersion is 90° horizontal and 60° vertical, with a maximum SPL rating of 135.5 dB. The frequency response range is specified as 45 Hz to 20 kHz, ±6 dB.
Does the Promaxx 114A have Bluetooth and what connections are available?
No Bluetooth functionality is integrated. An XLR Link output allows sending the signal to another speaker, while a 35 mm socket is provided for pole mounting.
