Essential Information on the HK Audio L5MKII-112FA Active Speaker
- LINEAR 5 MKII Series redesigned: lighter, more compact, and designed for touring and live performance.
- Powerful network DSP remotely controllable via Ethernet (RJ45) for precise and reproducible settings.
- Controlled coverage of 80 x 60 degrees with a horn rotatable by 90 degrees to optimize sound dispersion.
- High efficiency up to 135 dB peak, 600 W RMS (1200 W peak) for an effective 2-way 12-inch front speaker.
From the LINEAR 5 lineage to MKII: an evolution for the field
The L5MKII-112FA continues the tradition of the "LINEAR 5" speakers made in Germany, while integrating major advancements of the MKII generation. Highlights include modernized electronics, optimized dimensions, and network connectivity. Sound providers and bands will find a front speaker built for the road, perfectly compatible with the new subwoofers in the series and their cardioid presets.
Who is it for and what are its uses?
Designed for sound providers, orchestras, and DJs, this 12-inch 2-way speaker excels as a front of house unit for club concerts, corporate events, or mobile gigs. Its remote control and protection tools ensure safe operation, while its compact format facilitates setup on stands or in small setups.
Technical specifications
| Battery | No | EQ | 10 channels |
| Category | Soundsystem | Baseplate width | 35 mm |
| Type | active speaker | Mixer | No |
| Insert type | M8 | Cutaway | No |
| Peak power | 1200 W | SPL Max / peak | 135 dB |
| Peak power, type | RMS | SPL max | 128 dB |
| Number of channels | 2 channels | Speaker structure | MDF |
| Amplification | Active amplified | Transport | 2 handles |
| Application | Facade | Inputs | combo XLR/jack, RJ45 |
| Bluetooth | No | Outputs | link XLR, XLR DSP |
| Connection | Combo, RJ45, XLR | Color | Black |
| Controls | limiter, high pass filter switch, polarity inversion, mute switch, low pass filter control, delay, equalization | Finishing | Wood |
| Speaker diameter | 12" | Power output | 600 W |
| Number of speakers | 1 | Power / type | RMS |
| Tweeter | 1,7" | Quantity | 1 |
| Horizontal dispersion in degrees | 80.0000 | Mounting | On 35 mm stand |
| Vertical dispersion in degrees | 60.0000 | Weight | 21.9 kg |
| DSP | Yes | Dimensions (mm) | 370 x 670 x 365 |
Questions frequently asked
Is the HK Audio L5MKII-112FA suitable for front of house use?
This 2-way active speaker is designed for front of house at club concerts, corporate events, and mobile performances. Its 12-inch driver is paired with a 1.7-inch tweeter. The maximum sound pressure level reaches 128 dB SPL and peaks at 135 dB.

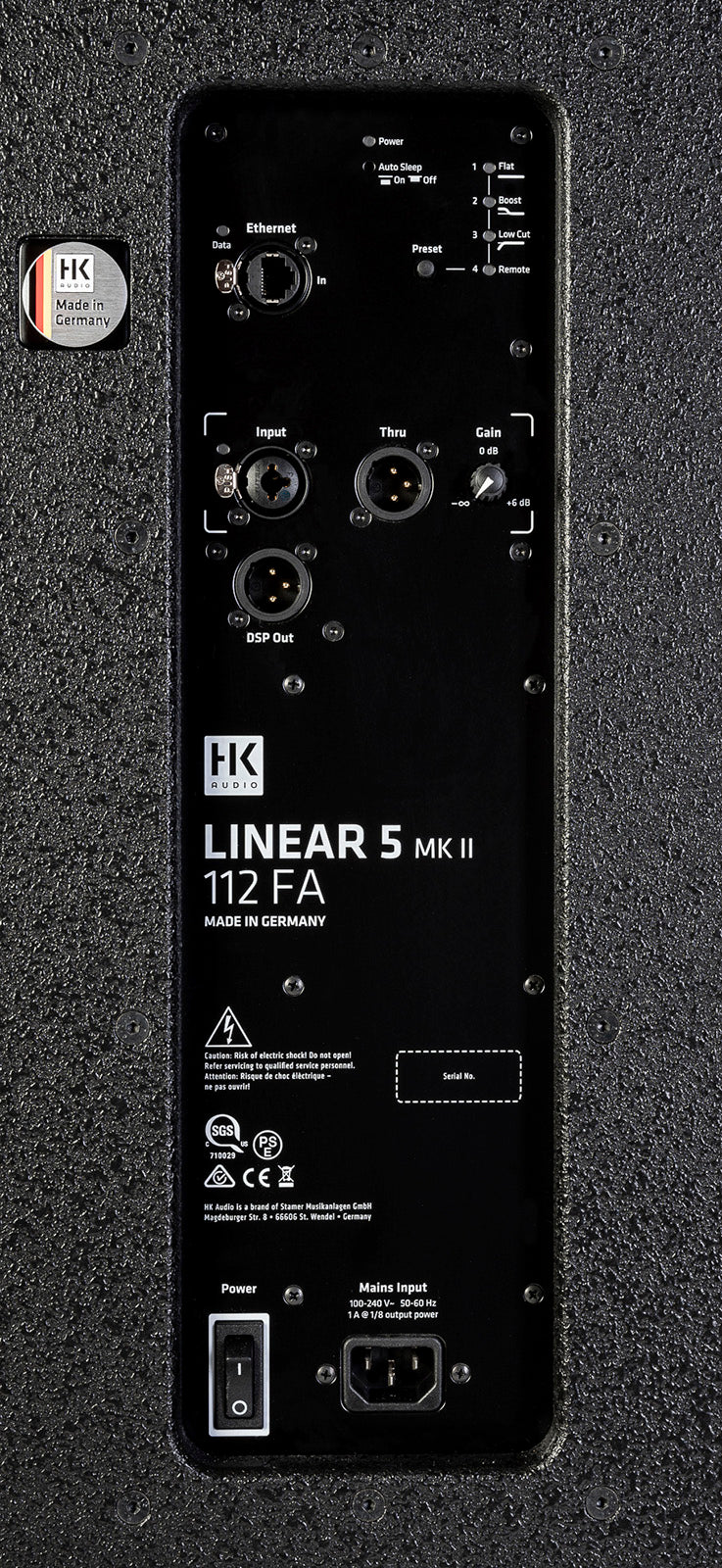

What connectivity options are available on this HK Audio speaker?
The input combines XLR and jack connectors, complemented by an RJ45 port for Ethernet networking. Link XLR and XLR DSP outputs allow signal pass-through and system integration.
Can the speaker be controlled remotely via Ethernet?
The built-in DSP is controlled via Ethernet and offers a 10-band EQ, high-pass and low-pass filters, delay, presets, mute, polarity inversion, and a limiter. Scenes can be created, saved, and replicated over the network.
What is the coverage of the horn?
The horn provides an 80° horizontal and 60° vertical dispersion. A 90° rotation is possible to adjust the orientation of the coverage.

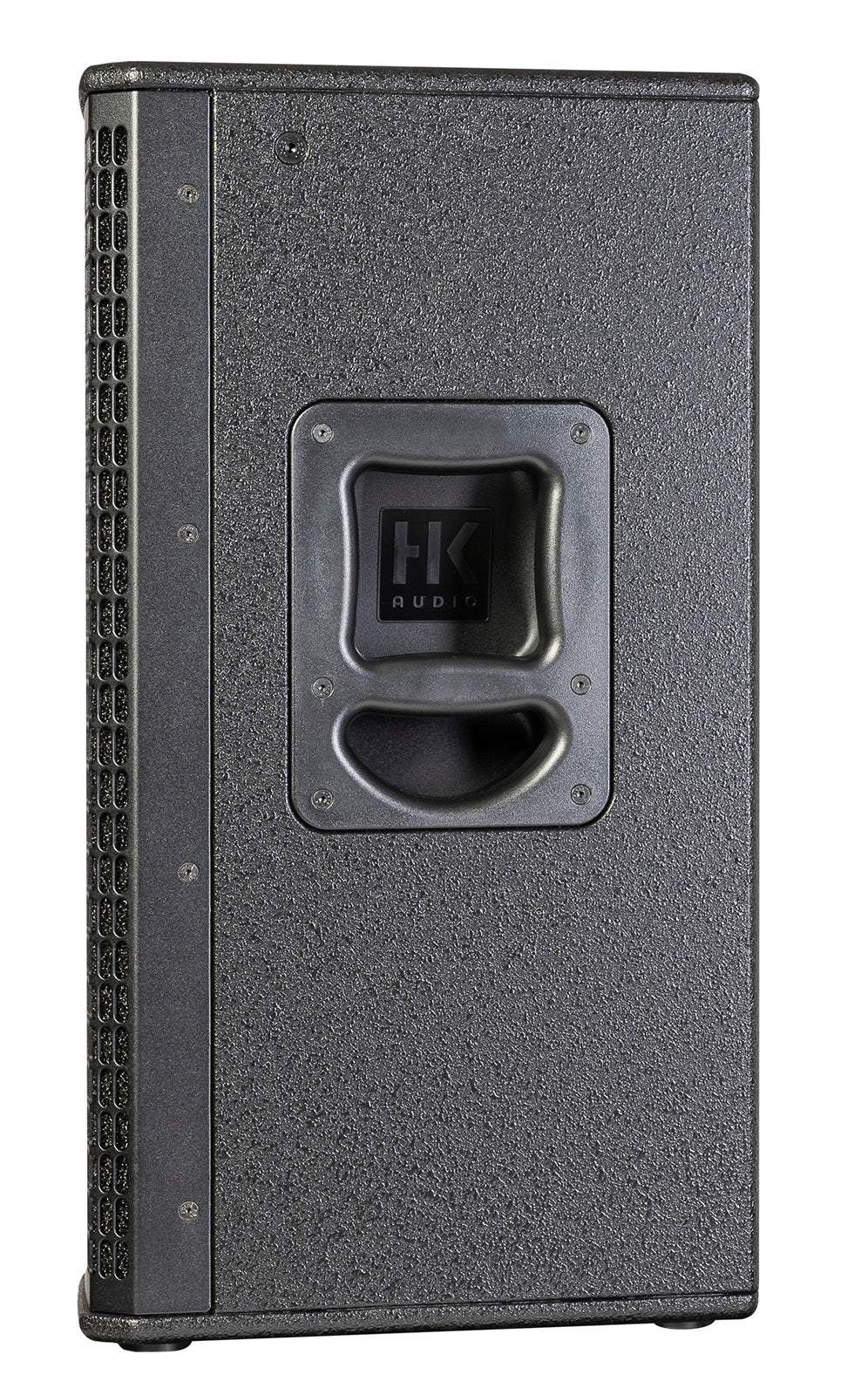

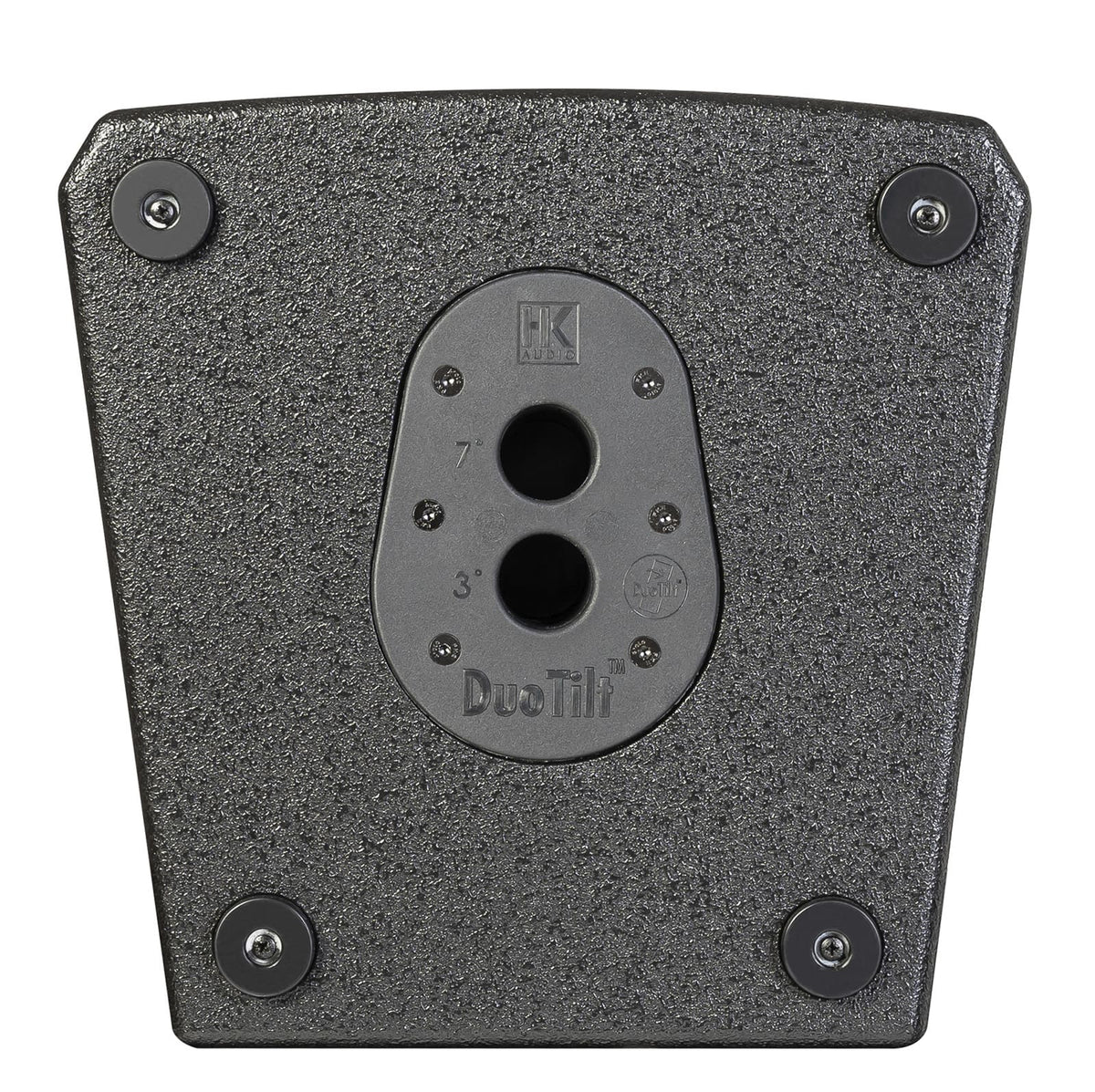

Can it be pole-mounted and easily transported?
A 35 mm socket allows pole mounting. The enclosure, made of birch plywood and MDF, measures 37 x 67 x 36.5 cm, weighs 21.9 kg, and features two handles for transport.
