JBL CONTROL 23-1 - BLANC (UNITE) - B-STOCK
Estimated Shipping Widget will be displayed here!
- This product is guaranteed for 6 months
Couldn't load pickup availability
Manufacturer Information
JBL
https://www.jbl.com
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
Warranty period: 6 months
Only 1 product available
Description valid only for the model sold new.

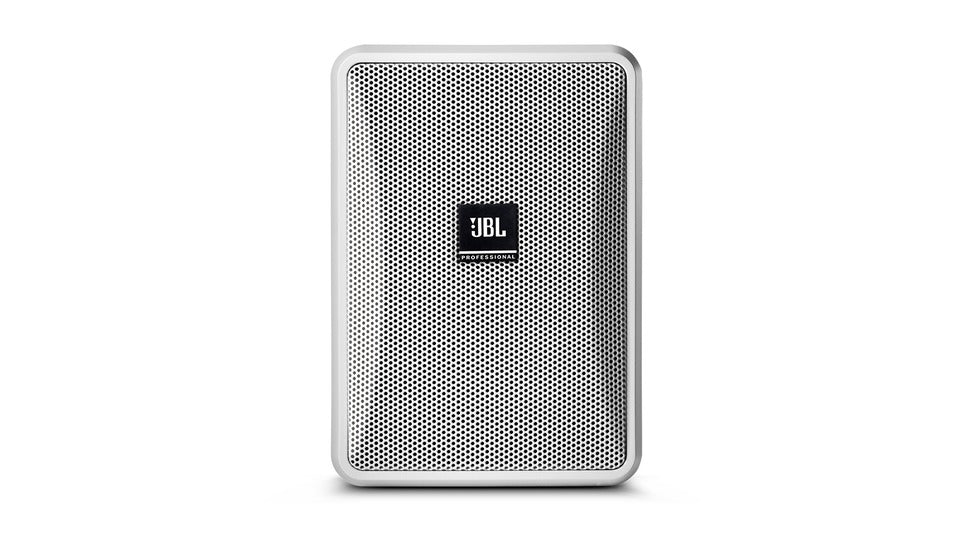

Pair of 2-way 76 mm wall speakers, white
The Control 23-1 is a 2-way 76 mm speaker featuring a rich sonic character. It offers wide coverage with uniform dispersion and includes multiple mounting options. Its contemporary design allows it to be installed in a wide range of décors. The Control 23-1 is an excellent choice for a variety of applications, including retail stores, restaurants, fitness clubs, theme parks, music cafés, lounges, and any other location requiring high-quality sound reinforcement for background music or announcements, both indoors and outdoors.
Key Features:
- Contemporary design
- Invisiball® mounting technology
- Optional U-bracket mounting
- Weather-resistant protection
- Low impedance and built-in 100V transformer
- Wide dispersion
- High-quality sound reproduction
Technical specifications
| Dispersion | 100° H x 100° V |
| Sensitivity 1 W / 1 m | 86 dB |
| Maximum SPL | 103 dB continuous |
| Nominal impedance | 8 ohms |
| LF | 76 mm fiberglass cone with Weather-Edge protection |
| HF | 13 mm PEI diaphragm |
| Enclosure | High Impact Polystyrene (HIPS) with UV-resistant paint |
| Grille | Zinc-plated, optional WeatherMax™ protection MTC-23WMG-1 |
| Dimensions (H x W x D) | 200 x 141 x 111 mm |
| Weight | 1.8 kg |
| Included accessories | Invisiball wall mounting system, 6 x 100 mm key |
Questions frequently asked
Can the JBL Control 23-1 be installed outdoors?
Its HIPS polystyrene enclosure is coated with UV-resistant paint, while the 76 mm woofer includes Weather-Edge protection. A grille with WeatherMax protection is available optionally under the reference MTC-23WMG-1. This speaker is advertised for both indoor and outdoor installations.
What amplifier power is required for a Control 23-1 at 8 ohms?
The nominal impedance is 8 ohms, which requires an amplifier compatible with this load. No rated power handling is indicated in the provided information.
What sound coverage does this JBL wall speaker offer?
The dispersion is 100° horizontal and 100° vertical, allowing even coverage over a wide area.
Is the wall mount included?
The Invisiball wall mounting system is included, with a 6 x 100 mm key. The speaker measures 200 x 141 x 111 mm and weighs 1.8 kg. These elements enable preparing the wall installation according to the support constraints.
What does Stock-B mean for the white JBL Control 23-1?
The item is described as nearly new, with original packaging replaced and no manual provided. The warranty offered is 6 months, and only one unit is available.
