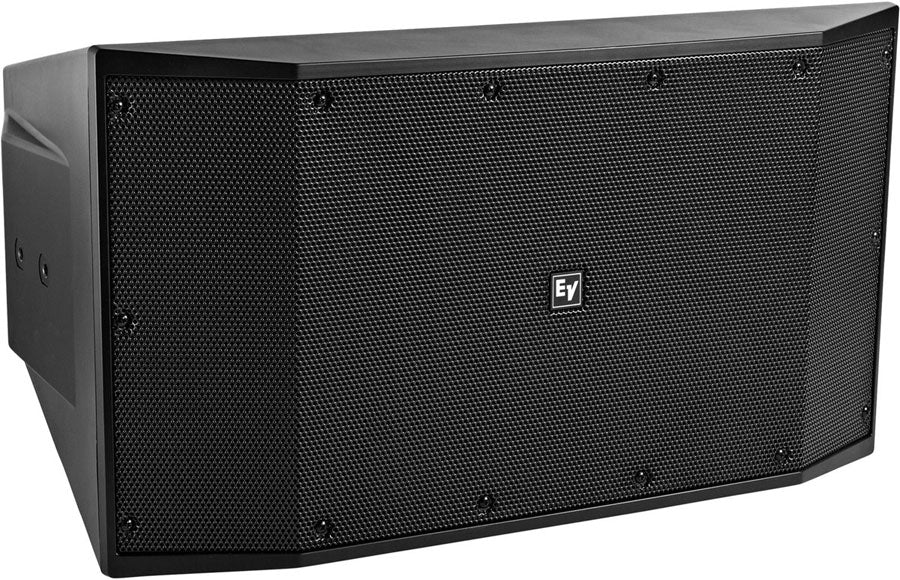

Electrovoice Evid-S10 1DB

A Compact Subwoofer Designed to Complement the EVID Series

The Electro-Voice EVID-S10.1D serves as the natural reinforcement for speakers in the EVID series when adding depth to the low end without overburdening the setup. Its compact size facilitates integration in environments where space is limited, while maintaining true sound level capability for professional applications.

Suitable Installations and Uses

This subwoofer is particularly well-suited for fixed installations : bars and restaurants, retail stores, multipurpose rooms, event spaces, places of worship, or reception areas. Its indoor/outdoor design also makes it an excellent choice for terraces, patios, or permanent outdoor installations when a more present bass is desired for background music, audiovisual content playback, or speech reinforcement requiring a fuller system.

With a frequency response from 33 Hz to 500 Hz (-10dB) and a maximum sound pressure level rated at 120dB (up to 126dB peak ), it provides the foundation needed to add body to mixes, enhance the sense of space, and improve overall system perception even at moderate volumes.

Key Features: Durability, Connectivity, and Bass Optimization

Weather Protection and IP Ratings

Designed to withstand field conditions, the EVID-S10.1D is weather-resistant with an IP54 rating. For more exposed installations, it can achieve IP65 with vent protection, a significant advantage to reduce risks from water splashes and dust in outdoor environments.

Impedance Modes to Suit Amplification

The subwoofer operates in low impedance and offers two practical configurations: 8 Ohm stereo mode or 4 Ohm mono mode. This flexibility optimizes wiring and amplifier channel allocation according to system size while maintaining a clear architecture for maintenance.

Recommended Filtering for Clean Bass

For controlled use, a recommended high-pass filter at 40Hz (slope 24dB/octave ) helps limit unnecessary or overly demanding frequencies below the useful band. The result: cleaner bass, better power handling, and enhanced protection for long-term installations.

Euroblock Connectivity and Neat Integration

Connectivity relies on 2 removable locking 4-pin Euroblock connectors, a standard appreciated in fixed installations for mechanical durability and tidy wiring. The subwoofer accepts cables up to 12 AWG (2.05 mm), useful for long cable runs and minimizing losses.

Technical specifications

Model	Electro-Voice EVID-S10.1D	Power	400W
Type	compact subwoofer	Power (peak)	1600W
Usage	indoor and outdoor	Recommended high-pass filter	40Hz (24dB/octave)
Durability	weather-resistant	Impedance	8 Ohm (stereo mode)
Certification	IP54	Connectors	2 x removable locking 4-pin connectors (Euroblock)
Ideal complement	EVID series speakers	Maximum cable size	12 AWG (2.05 mm)
Drivers	2 x 10" (254mm) low-frequency drivers	Input transformer (70V/100V)	optional
Frequency response	33 Hz to 500 Hz (-10dB)	Transformer taps	optional
Sensitivity	94dB	Dimensions (H x W x D)	356 x 651 x 491 mm
Maximum sound pressure level	120dB	Net weight	17.9 kg
Maximum sound pressure level (peak)	126dB	Included hardware	2 x subwoofer feet
