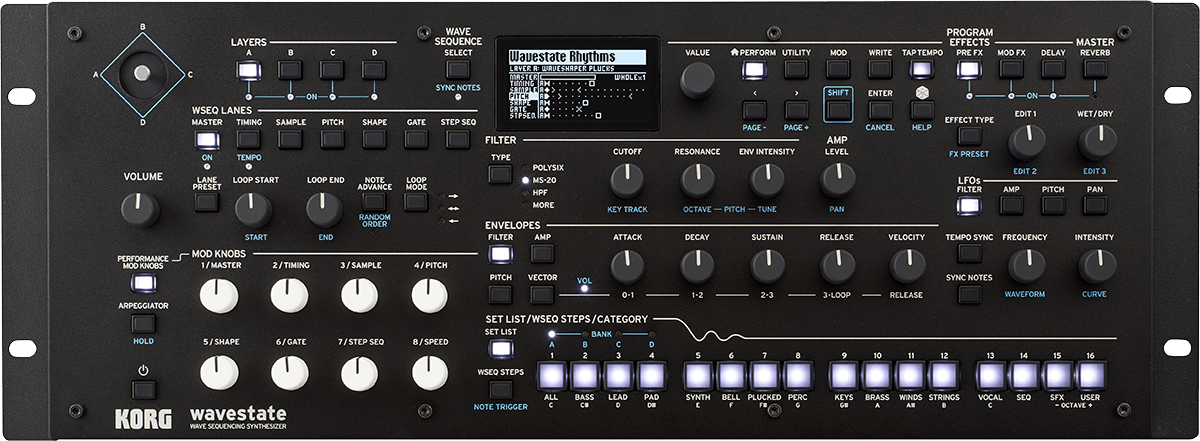

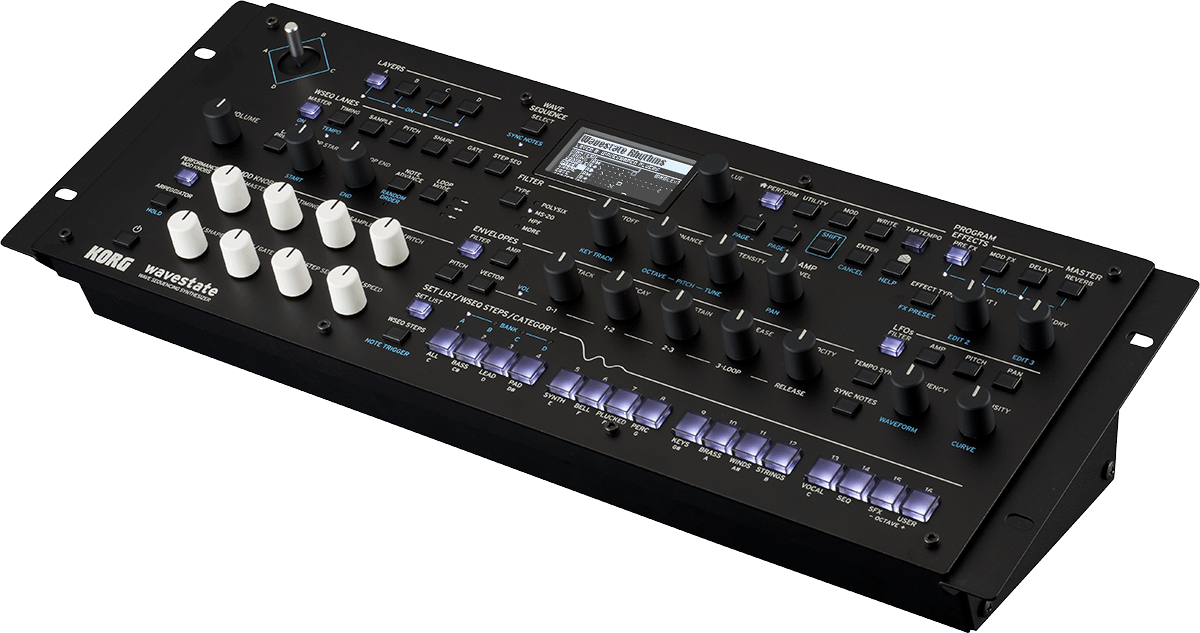

Korg Wavestate Module

A "Wavestation" Legacy, Modern and Sound Design-Oriented

The Korg wavestate follows the lineage of Korg instruments dedicated to moving pads and complex timbral sequences. Its Wave Sequencing 2.0 engine modernizes the approach to "wave sequences" by making programming faster, more modular, and perfectly suited to current production needs. Within the Korg range, it is an obvious choice for those seeking a digital synth crafted for atmospheres, pulses, and rich sonic transitions.

Who Is the wavestate For?

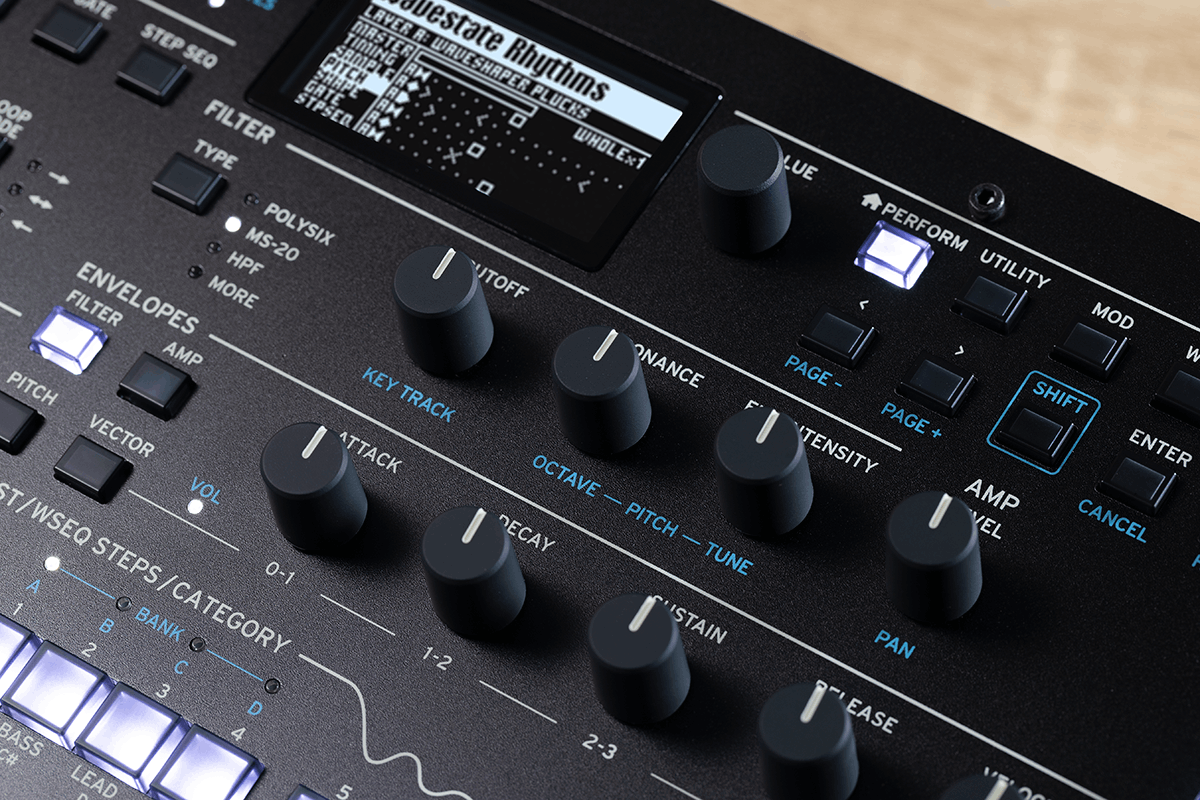

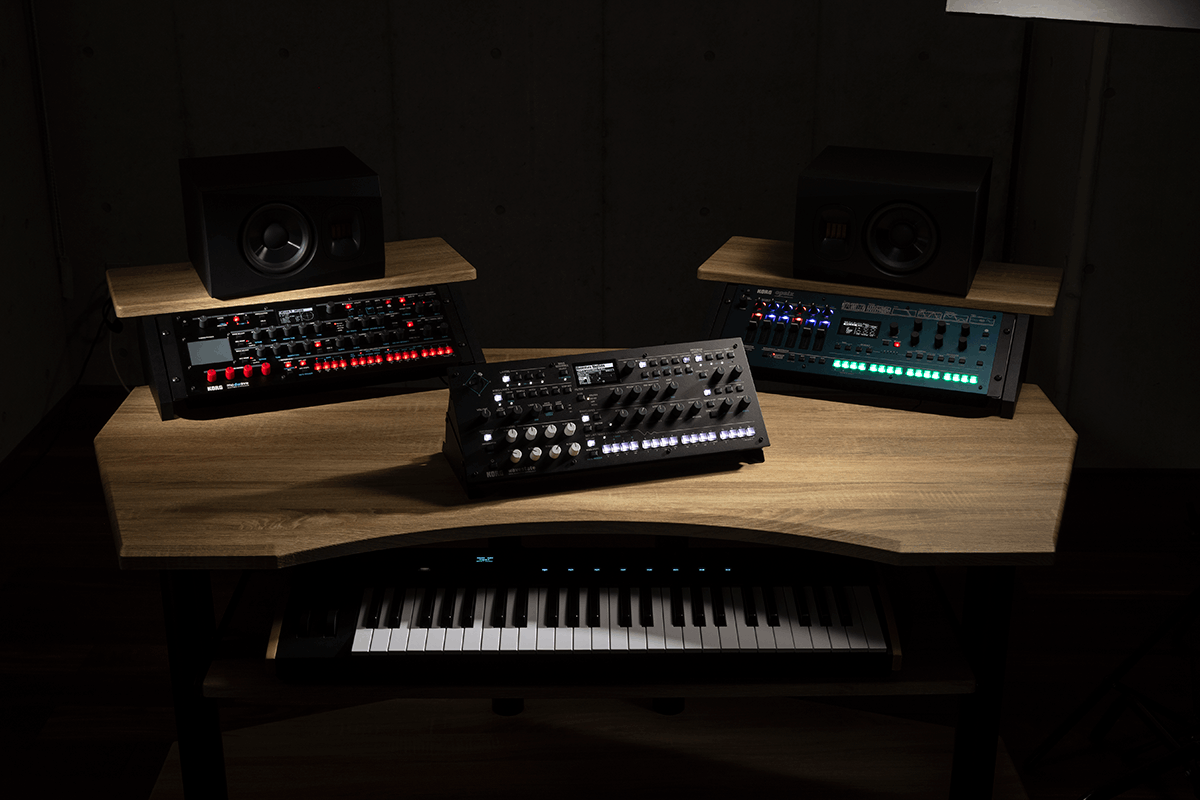

Ideal for experienced musicians and sound designers, the wavestate excels in ambient, cinematic, electronica, melodic techno, synthwave, and sound design applications. In the studio, it shines at building living pads, organic arpeggios, and evolving layers without multiplying tracks. On stage, its controllers and Performance logic enable expressive variations, morphing, and subtle movements, all while maintaining clear readability via the OLED screen.

Technical specifications

Number of effects	14	Envelope	ADSR
Arpeggiator	Yes	LFO	3

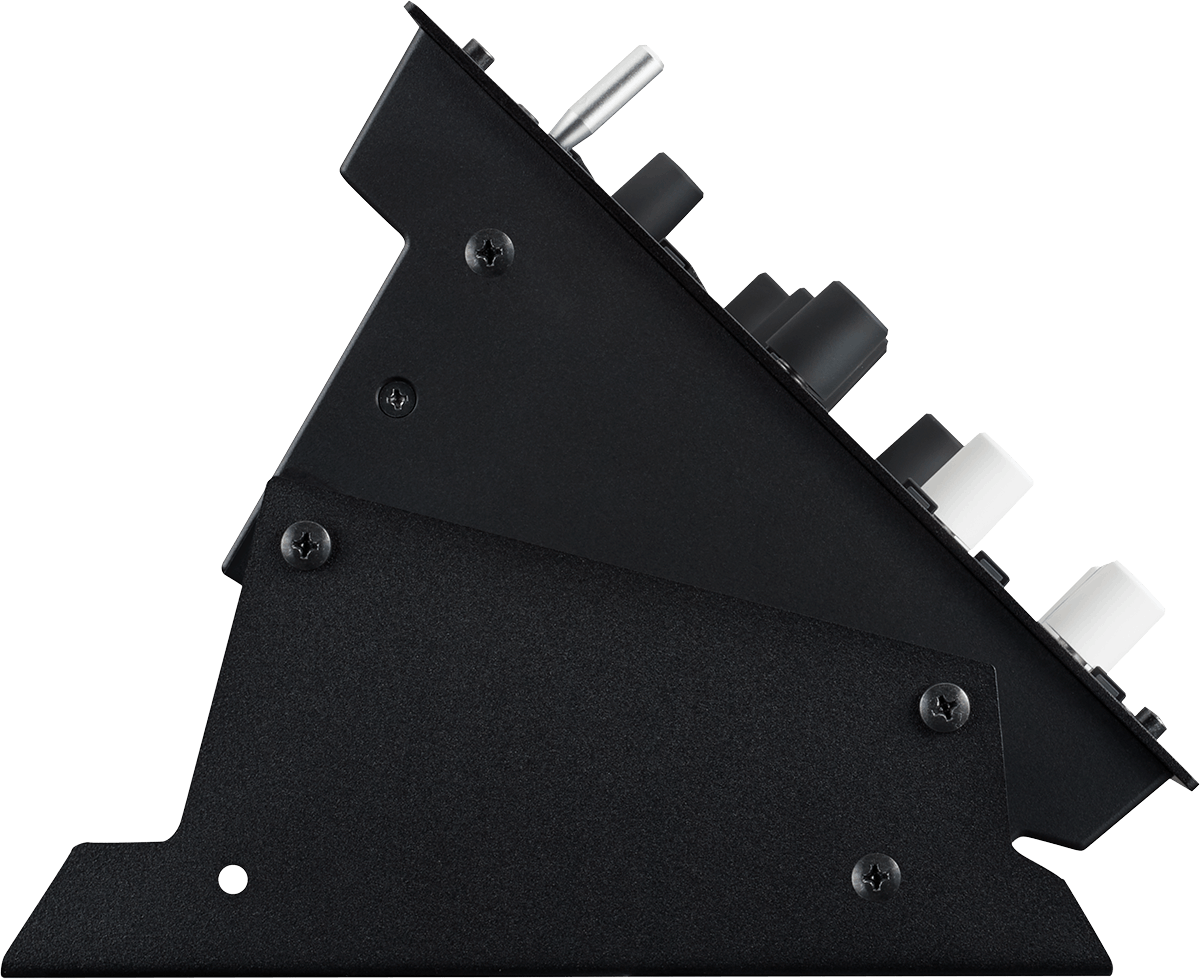

Filters	Multiple modeling	Accessories included	Racking kit, Power supply

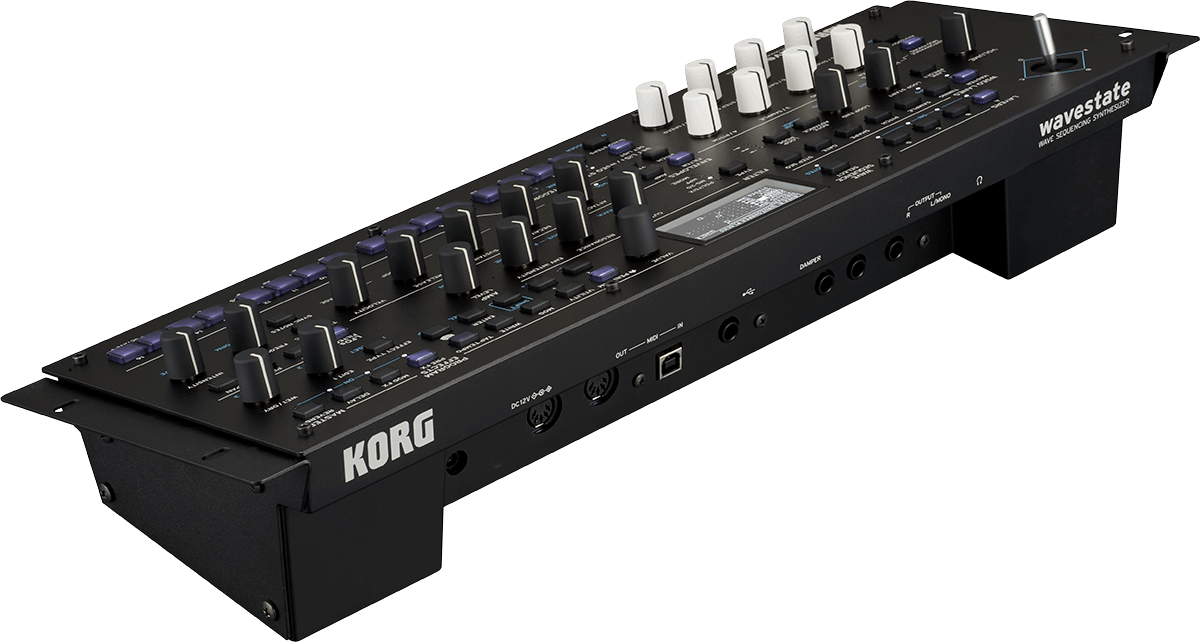

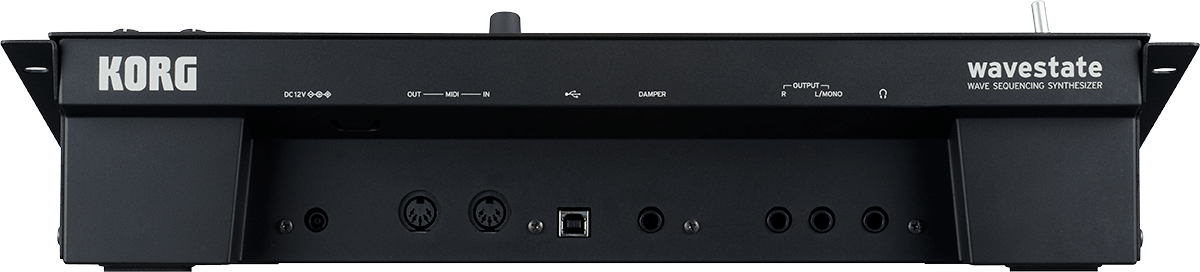

User memories number	740	Inputs	Sustain pedal, Midi, USB Midi
Max polyphony	120	Color	Black
Velocity sensitive	Yes	Sequencer	Yes
Synthesis type	Wave Sequencing	Preset number	240
Category	Digital synth	Display	OLED
Transposition	Yes	Weight	1.7 kg
Sound generator	Sample playback	Dimensions (mm)	483 x 172 x 113

Max. polyphony	96	Controller	Pitchbend, Modulation

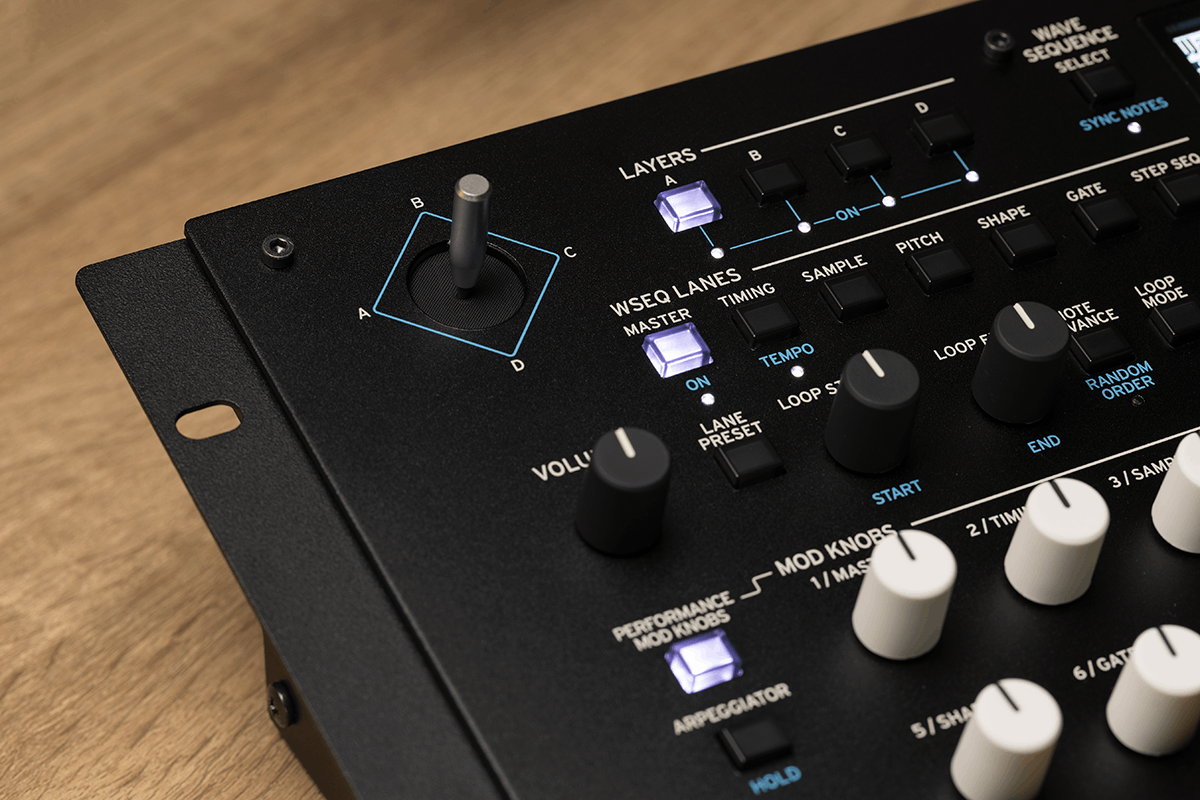

Included Sound Bank	over 240 Performances, 740 Programs and 1,000 Wave Sequences	Controllers	Modulation wheel, Pitch wheel, X/Y vector joystick, 8x Program/Performance modulation buttons
No. of Presets	240	Other Sources	3x Envelopes, Vector Envelope, 3x LFOs, 2x Mod Processors, 2x Note Tracks, Step Sequencer Lane, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate/Gate+Damper, Note-On Trigger/Note-On Trigger+Damper, Note Number, Aftertouch/Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
User Memories	740	Destinations	Most parameters can be modulated, including individual Wave Sequence step parameters ; depending on the length of the Wave Sequence, there may be more than 1,000 potential modulation targets per Program
Storage Capacity	tens of thousands of User Performances	No. of effects	14
Performance	4 layers, reverb, equalization ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences, etc. is supported but not required)	Pre FX	Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
Program	Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay	Mod FX	Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
2-pole	LPF, HPF, BPF, Band Reject	Delay	L/C/R Delay, Multiband Modulation Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
4-pole	LPF, HPF, BPF, Band Reject	Reverb	Early Reflections, Overb
Filter Models	Multi Filter, MS-20 LPF, MS-20 HPF, Polysix	Performance EQ	4-band Parametric EQ
