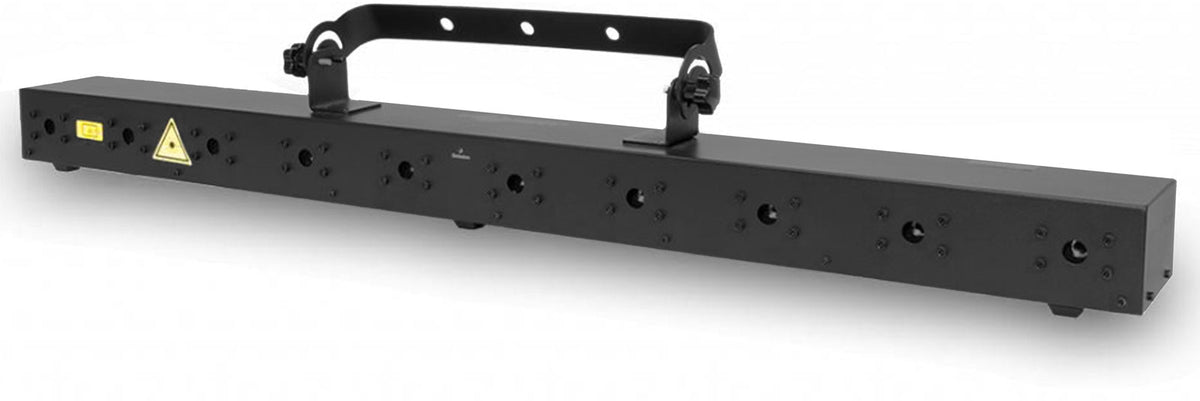

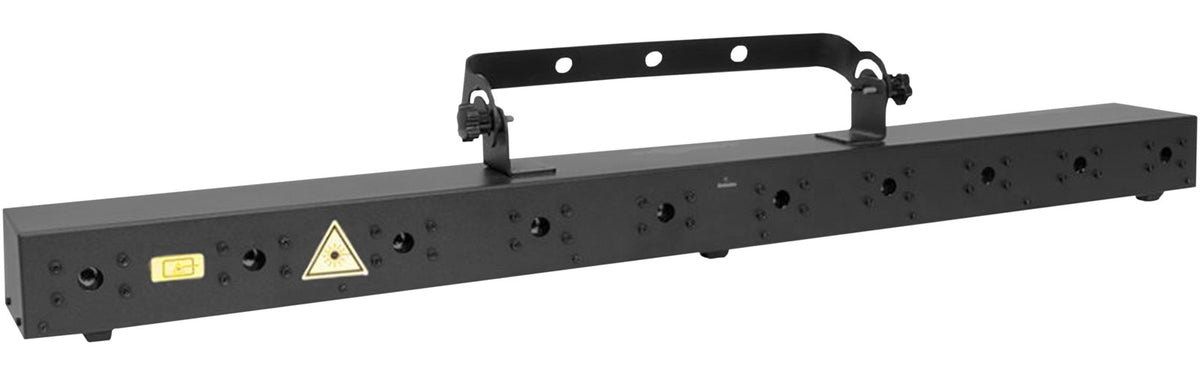

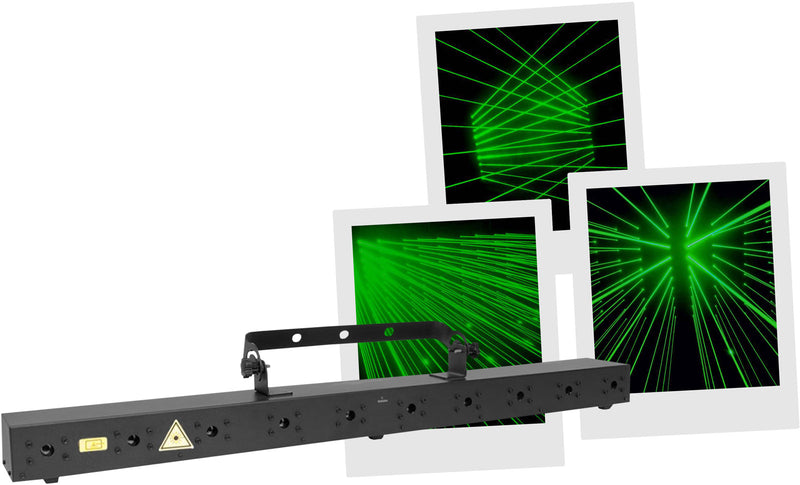

Laserworld BeamBar 10G MK3

A Green Laser Bar That Shapes the Stage Space

Designed to draw pure and perfectly parallel lines, the Laserworld BeamBar 10G instantly transforms a stage, dance floor, or entrance aisle into a true luminous corridor. Its 1-meter line distributes ten dense green beams that cut through smoke and haze, creating spectacular perspectives and a graphic "wall" ideal for highlight moments. In musical or standalone mode, it generates smooth and rhythmic sequences; in DMX mode, it integrates with timecode and your cues for precise shows during concerts, club nights, corporate events, or weddings.

Who Is the BeamBar 10G For?

This laser bar is aimed at mobile DJs who want a signature effect without deploying a large amount of equipment, lighting technicians and event service providers seeking a reliable and quick-to-deploy beam curtain, as well as club and venue operators looking for a strong visual identity element. It is also suitable for theatre companies and studios for graphic scenes, video credits, or striking backlighting.

Features and Innovations

At the heart of the BeamBar 10G, ten green semiconductor diodes at 520 nm deliver tight and homogeneous beams. The analog modulation accessible via DMX allows precise intensity control: gradual fades, nuanced strobes, and tempo-synced pulses maintain stable colorimetry without perceptible "steps." The automatic, musical, master-slave, and DMX modes cover all scenarios, from plug-and-play to advanced integration in a lighting console. The front-facing alignment screws facilitate optical calibration to achieve a straight curtain, perfectly parallel fans, or perspective effects depending on the chosen angle. Class 3B requires responsible operating practices: the bar comes with an interlock connector and key to secure on-site ignition and comply with current procedures.

Technical specifications

Laser sources	semiconductor diodes	Laser class	3B
Color	green at 520 nm	Safety accessories	interlock connector and key included
Total guaranteed output power	750 mW	Power supply	100 V - 250 V AC, 50/60 Hz
Power per module	10 x 75 mW (520 nm)	Power consumption	50 W
Beam characteristics	approx. 3.0 mm / 1.1 mrad	Dimensions	1000 x 160 x 80 mm
Laser alignment	front-facing adjustment screws	Weight	9.0 kg
Operating modes	musical, standalone, DMX, master-slave
