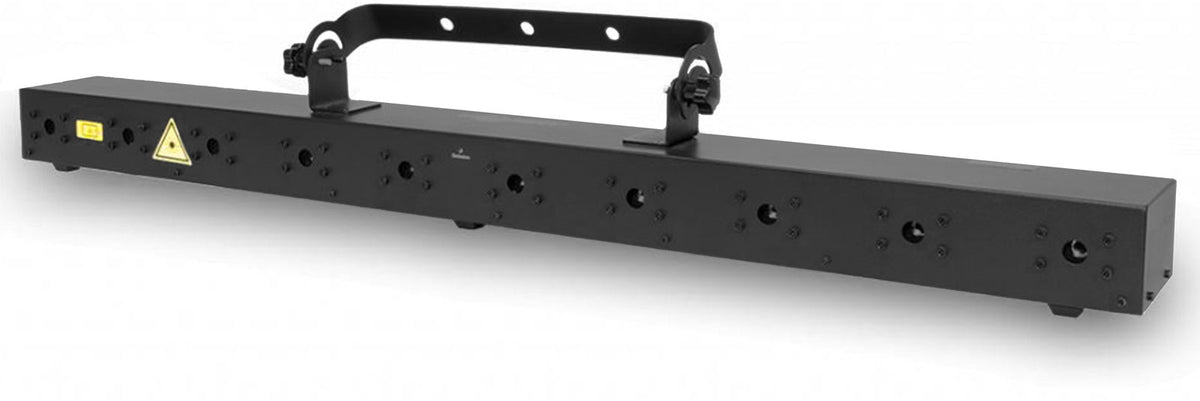

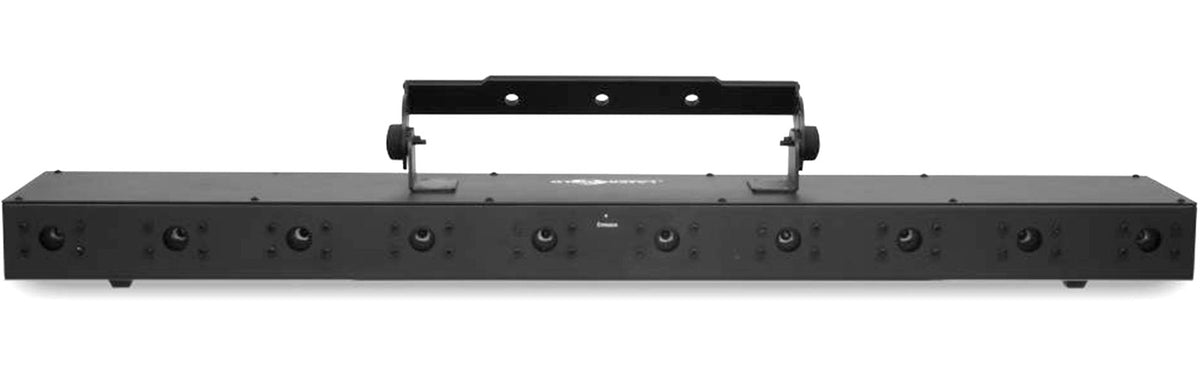

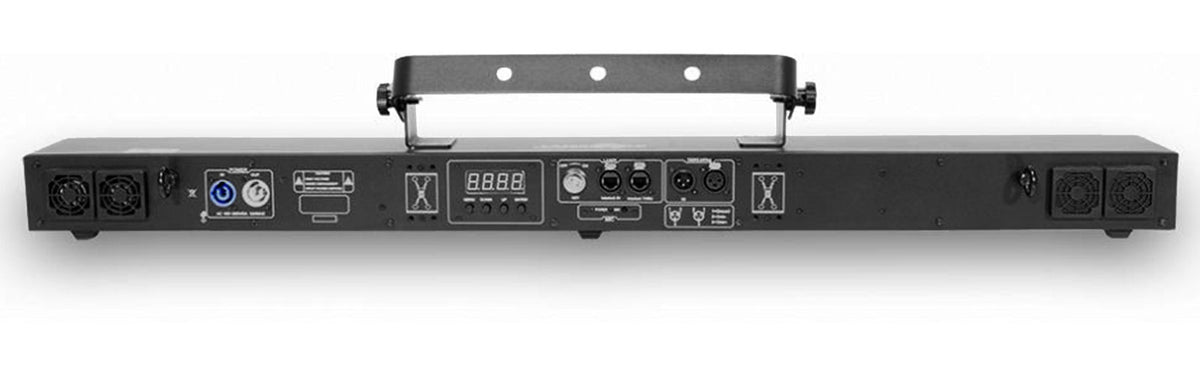

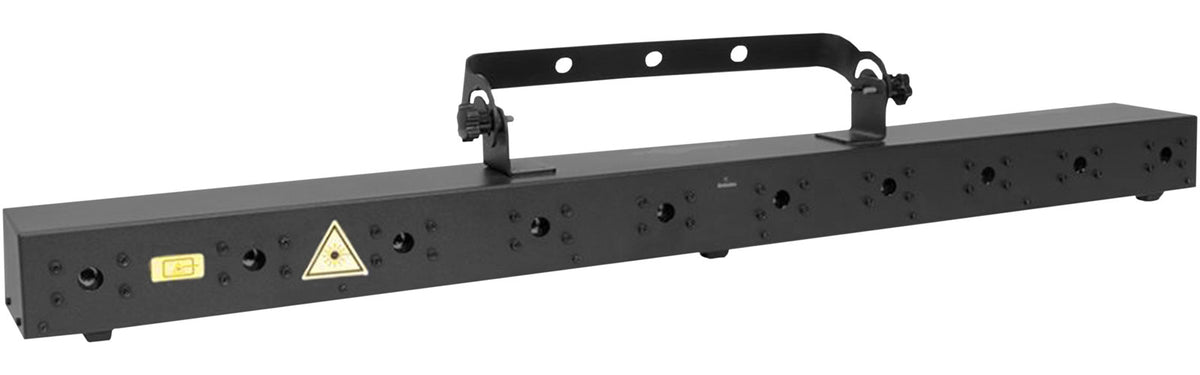

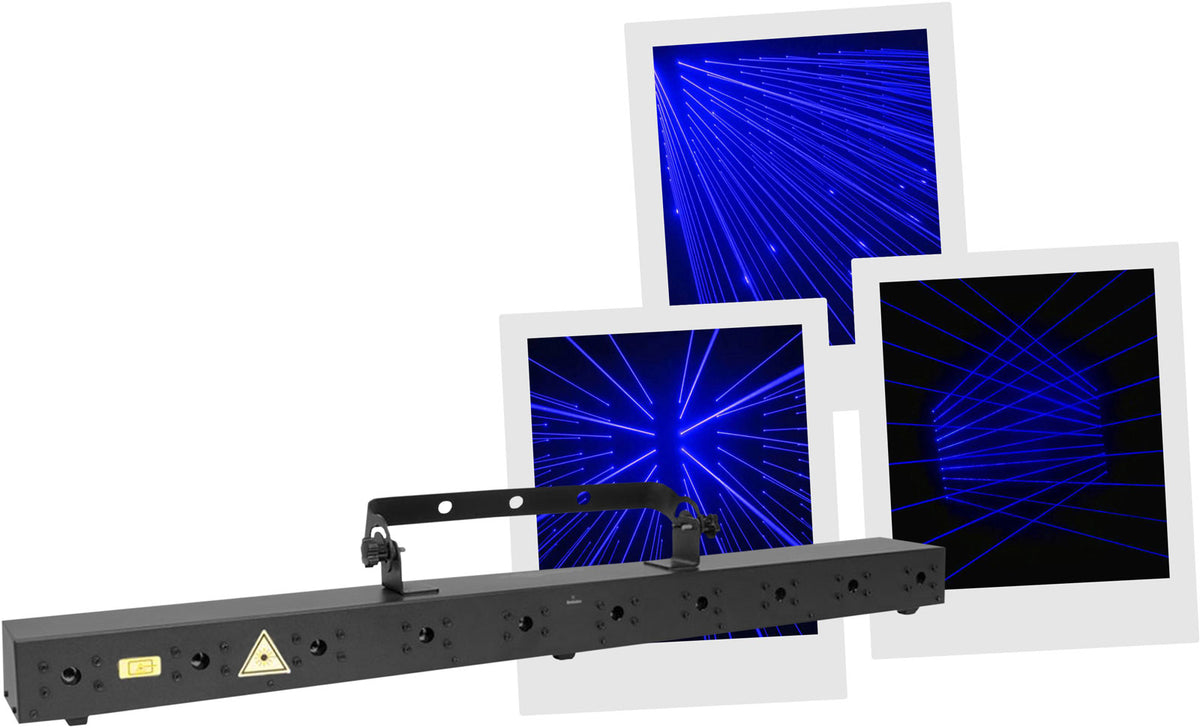

Laserworld BeamBar 10B
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Laserworld
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
Blue beams that sculpt space, from stage to club
Designed to produce striking aerial effects, the Laserworld BeamBar 10G MK3 - 450 - BLUE excels in stage shows, DJ performances, and fixed installations in bars or clubs. Its 10 parallel beams allow the creation of light curtains, synchronized sweeps, and rhythmic chases that cut through smoke and structure the stage. In events (weddings, galas, corporate parties), it delivers a premium staging with a strong visual impact while remaining easy to operate daily. At home or in the studio, it becomes a creative landmark for your video content, live recordings, and compact scenographies.Who is this laser bar for?
The BeamBar 10G MK3 - 450 - BLUE is aimed at mobile DJs seeking an immediately impressive effect, lighting technicians looking for a reliable laser bar to integrate into a DMX rig, club and bar operators in search of a signature effect, as well as event companies and theaters needing a robust product that is quick to deploy and compatible with timecode-paced shows. Advanced private users will find a compact solution to create professional looks in small spaces with a gentle learning curve.Features and innovations
A true Swiss Army knife of laser lighting, this bar features 10 blue semiconductor diode modules emitting at 450 nm. Each beam is thin and impactful thanks to approximately 3.0 mm / 1.1 mrad characteristics, offering ideal range and definition for aerial effects above the audience (used in compliance with current regulations). Analog modulation via DMX provides continuous brightness nuances, enabling precise fades, dynamic accents, and natural musical integration in audio mode. The front-facing adjustment screws facilitate alignment and ensure perfectly parallel lines for crisp fans and crossed fans. Control is flexible with standalone, music, DMX, and master-slave modes: launch an internal program, follow the music, or integrate the bar into a DMX-controlled set. On the operational side, the 85-250 V AC power range and 50 W consumption simplify integration on stage or in fixed installations, while the included safety accessories (key and interlock connector) secure the use of a Class 3B laser. For optimal results, pair the BeamBar with light haze and position it horizontally or at an angle to multiply visual perspectives and depth effects.Technical specifications
| Laser sources | semiconductor diodes |
| Number of modules | 10 (individual beams) |
| Wavelength | 450 nm (blue) |
| Guaranteed total output power | 1,400 mW |
| Power per module | 10 x 120 mW at 450 nm |
| Beam characteristics | approx. 3.0 mm / 1.1 mrad |
| Laser class | 3B |
| Brightness control | analog modulation via DMX |
| Operating modes | music, standalone, DMX, master-slave |
| Possible effects | light curtains, sweeps, chases on 10 beams |
| Power supply | 85 V - 250 V / AC, 50/60 Hz |
| Power consumption | 50 W |
| Dimensions | 1000 x 160 x 80 mm |
| Weight | 9.0 kg |
Questions frequently asked
What power and beam color does the BeamBar 10B offer?
The bar delivers a guaranteed total power of 1,400 mW at 450 nm, which corresponds to a blue emission. Its 10 modules each develop 120 mW.
Can the BeamBar 10B be controlled via DMX?
DMX control allows brightness to be managed through analog modulation with smooth fades. Standalone, sound-active, and master-slave modes are also available.
What effects can be created with the 10 beams?
The 10 individual beams allow creating light curtains, sweeps, and chases. The front adjustment screws are used to align them to form parallel lines.
What are the dimensions and weight of this laser bar?
The device measures 1,000 x 160 x 80 mm and weighs 9.0 kg.
What safety precautions are provided for this Class 3B laser?
Class 3B laser classification requires usage in compliance with applicable regulations. A safety key and an interlock connector are supplied. The beams have a characteristic size of approximately 3.0 mm / 1.1 mrad.
