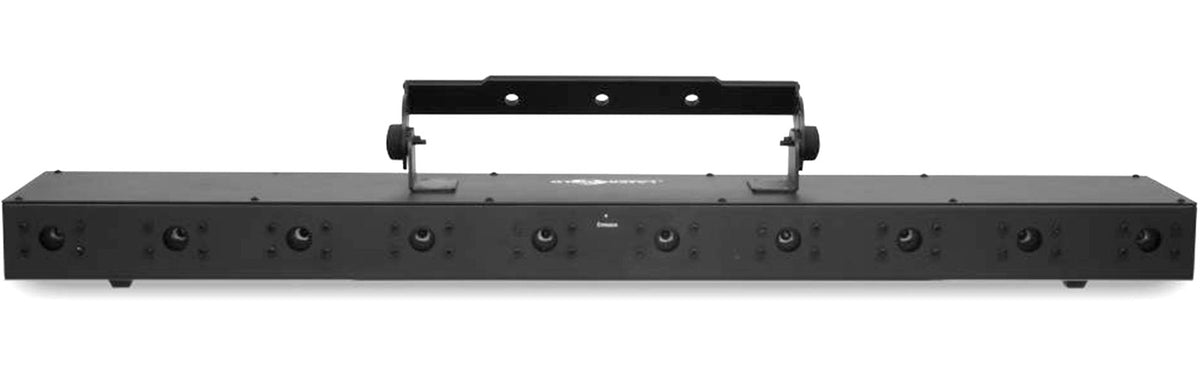

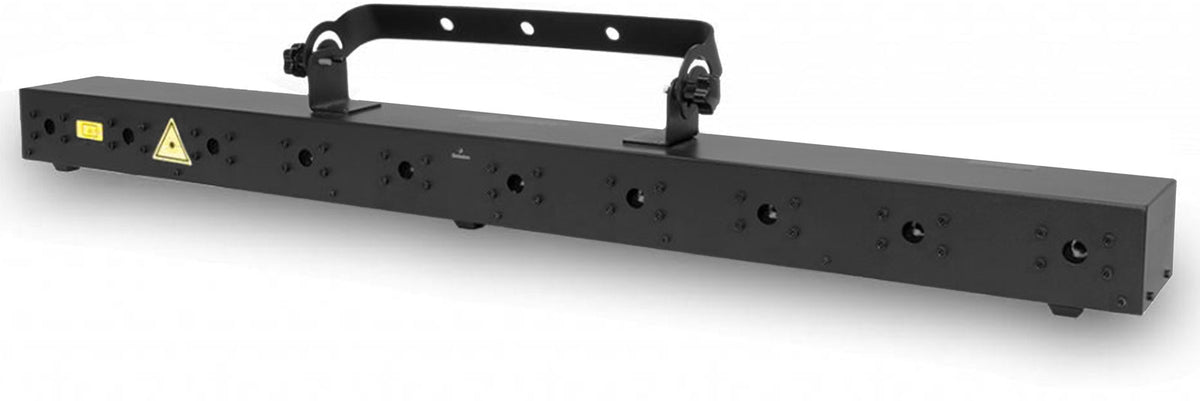

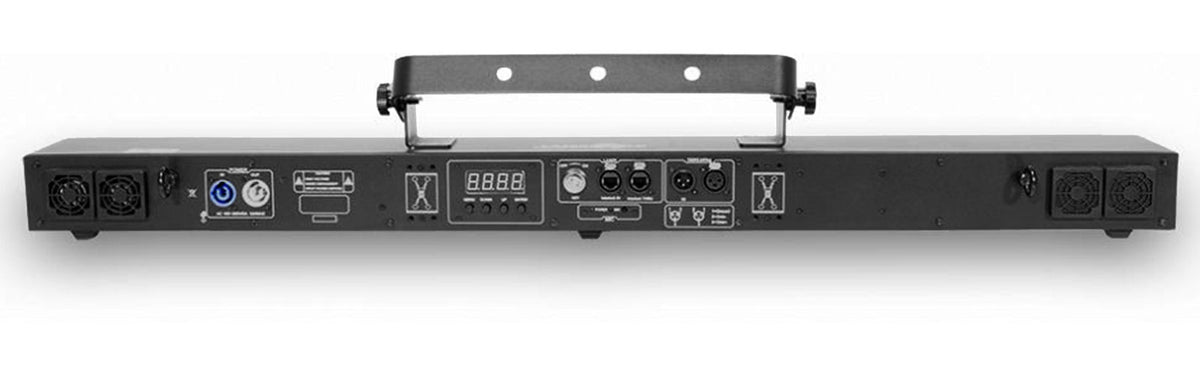

Laserworld BeamBar 10R MK3
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- 10-beam red 638 nm curtain ultra-visible, each beam individually controllable for spectacular chases and sweeping effects.
- Total guaranteed power of 1,200 mW (10 x 120 mW) for a clear presence in clubs, stages, and events.
- DMX control with analog modulation for smooth brightness variations, precise stroboscope, and natural transitions.
- Quick front alignment thanks to adjustment screws, plus standalone, music, and master-slave modes to fit any setup.
Manufacturer Information
Laserworld
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
Elevate Your Shows with a Sharp Beam Curtain
Designed for stages, clubs, and event performances, the Laserworld BeamBar 10R MK3 638 Red creates a true "wall" of parallel beams. Positioned at the back of the stage, on a truss, or on the floor, it produces dynamic chases, lateral waves, and sharp cuts that sculpt the space. In standalone or music mode, it instantly energizes a dance floor; in DMX mode, it becomes a precise scenography tool to pace drops and breaks.
Who Is This Laser Bar For?
Ideal for the mobile DJ seeking a strong visual impact with quick setup, it also appeals to lighting technicians and venue operators thanks to its reliability, DMX control, and easy front alignment. Artistic collectives, companies, and bars-clubs will find a ready-to-use solution for immersive shows without heavy programming. Experienced private users can integrate it into a fixed installation to transform a home studio or dedicated room.
Features and Innovations
The BeamBar 10R MK3 aligns ten red diode modules at 638 nm known for their vivid output and excellent visibility. Each beam, initially tight (3.0 mm) with low divergence (1.1 mrad), maintains sharp definition in smoke, ideal for graphic effects. DMX control is enhanced with analog brightness modulation: progressive dimming, clean stroboscope, subtle fades, and sharp accents. Thanks to master-slave mode, multiple bars synchronize to create large light architectures, while standalone and music modes allow instant shows without a controller. Front-facing alignment screws simplify precise beam orientation, saving valuable setup time. Class 3B requires safety compliance; the included interlock connector and key contribute to safe and standards-compliant operation.
Technical specifications
| Laser sources | diodes | Laser class | 3B |
| Color | red 638 nm | Accessories | interlock connector, key, power cable, user manual |
| Guaranteed output power | 1,200 mW | Power supply | 85 V - 250 V AC, 50/60 Hz |
| Red power | 10 x 120 mW / 638 nm | Power consumption | 50 W |
| Beam characteristics | 3.0 mm / 1.1 mrad | Dimensions | 1000 x 160 x 80 mm |
| Brightness control | analog modulation via DMX | Weight | 9.0 kg |
| Operating modes | music, standalone, DMX, master-slave | ||
You will also like
Laserworld
BeamBar 10B MK3
Laserworld
BeamBar 10G MK3
Laserworld
BeamBar 10B
J.collyns
Atena 4K RGB
Laserworld
CS-3000 RGB
Cameo
LUKE 1000 RGB - PROFESSIONAL LASER SHOW 1000 MW RGB
Laserworld
FX Gobo Wheel
Algam Lighting
Spectrum 1500 RGB+
Questions frequently asked
What power and beam color does the BeamBar 10R MK3 offer?
The guaranteed output power reaches 1,200 mW, distributed over 10 red diodes of 120 mW at 638 nm. The beams have a diameter of 3.0 mm and a divergence of 1.1 mrad.
Can this laser bar be controlled via DMX?
DMX control allows for analog brightness modulation, with smooth dimming, strobe, and fades. Standalone, sound-active, and master-slave modes are also available.
How to synchronize multiple BeamBar 10R MK3 units?
The master-slave mode enables synchronization of multiple bars to create chases, sideways waves, and extended beam architectures.
Is the BeamBar 10R MK3 suitable for installation on truss or on the floor?
Its dimensions of 1000 x 160 x 80 mm and weight of 9.0 kg allow installation at the back of the stage, on truss or on the floor. Alignment screws placed on the front facilitate precise orientation of the ten beams.
What safety equipment is provided with this 3B laser bar?
Classified 3B, this bar comes with an interlock connector and a key. The power cable and user manual are included; the power supply accepts 85 to 250 V AC, 50/60 Hz.
