Impactful Laser Shows for Live and Installation Use
The Laserworld DS-3000 RGB MK3 stands out on stage, in clubs, and at events (weddings, corporate parties, galas) by creating precise beams, enveloping tunnels, and graphic animations that leave a lasting impression. In theater, it enhances scenography with sharp lines and spectacular volumetric effects when used with haze. In fixed installations (bars, concert halls, amusement parks), its wide beam angle effectively covers the dance floor or stage while minimizing the number of devices needed.
Who This Laser Projector Is For
Designed for lighting technicians, technical providers, and mobile DJs seeking a versatile RGB laser, it also meets the needs of club operators and venue managers who want professional results with simple integration. Its compactness and universal power supply facilitate touring, while its multiple control modes adapt equally well to DMX desks and ILDA systems for finely scripted shows. Being Class 4, it is intended for trained operators and controlled environments.
Features and Innovations
Based on an RGB diode source, the DS-3000 RGB MK3 delivers a guaranteed 3 W power precisely distributed between red (650 mW at 638 nm), green (900 mW at 520 nm), and blue (1,600 mW at 450 nm). This architecture ensures balanced whites and saturated colors, ideal for vector graphics and volumetric beams. Its 40 kpps @ 8deg scanner enables clean curves, sharp text, and smooth animations without stuttering, while the 50deg beam angle easily covers wide stages. The projector offers over 120 built-in patterns (tunnels, waves, sawtooth, false ceiling, etc.) usable in standalone mode, sound-to-light reactive mode, or master/slave chaining for multi-projector setups. For control, you can choose the precision of ILDA for programmed shows or the simplicity of DMX for quick cues at the console. The Class 4 laser rating, interlock, and safety key ensure compliance with professional operational best practices. The beam exits at about 4 mm diameter with a 0.9 mrad divergence (full angle), guaranteeing a powerful visual impact and convincing range.
Technical specifications
| Source type | RGB laser diodes |
| Total guaranteed power | 3,000 mW |
| Red | 650 mW / 638 nm |
| Green | 900 mW / 520 nm |
| Blue | 1,600 mW / 450 nm |
| Laser class | 4 |
| Beam specifications (full angle) | approx. 4 mm / 0.9 mrad |
| Scanner | 40 kpps @ 8deg |
| Beam angle | 50deg |
| Built-in patterns | over 120 (false ceiling, tunnels, sawtooth, waves, etc.) |

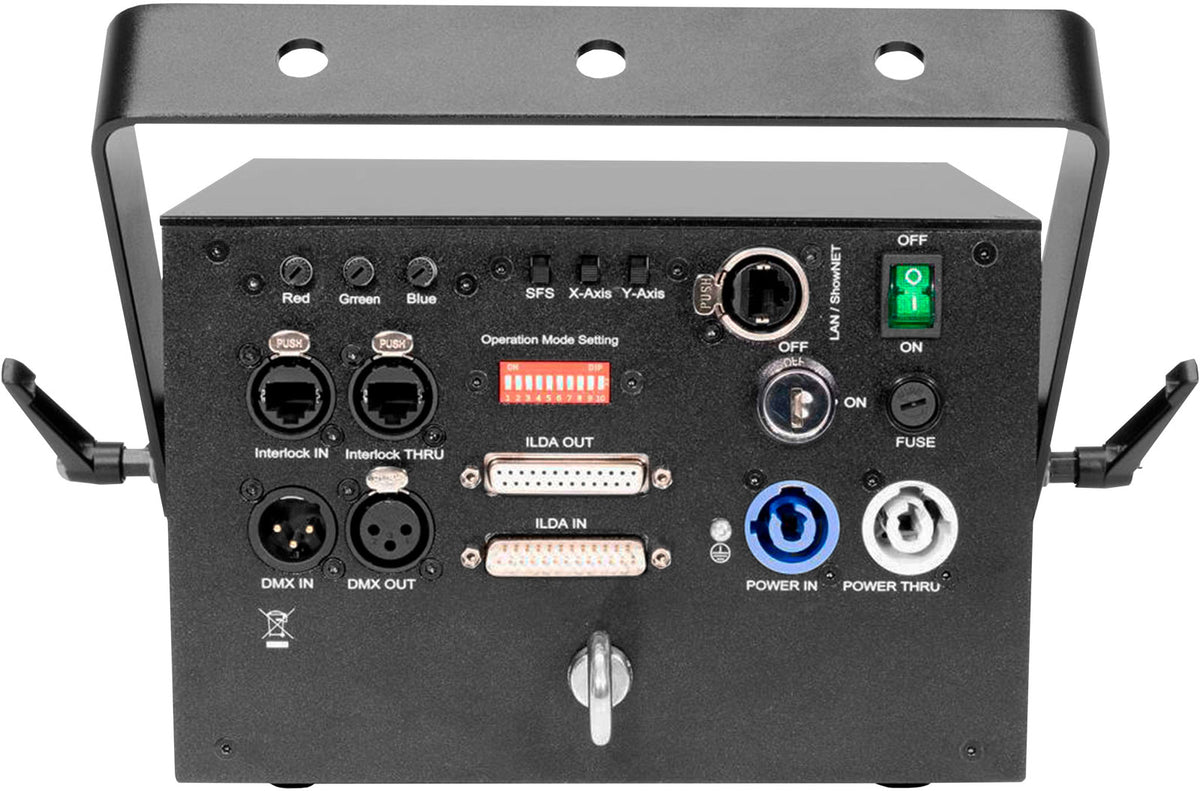

| Operating modes | ILDA, DMX, standalone, sound-to-light, master/slave |
| Power supply | 85 V - 250 V AC, 50/60 Hz (internal power supply) |
| Power consumption | 80 W |
| Dimensions | 210 x 170 x 145 mm (L x W x H) |
| Weight | 4.3 kg |
| Class 4 | use restricted to trained operators with appropriate safety procedures and protected public areas |
Questions frequently asked
Is the Laserworld DS-3000RGB MK4 DMX and ILDA compatible?
Control is available via DMX for cues from a console and via ILDA for programmed shows. Standalone, music-reactive, and master/slave modes are also integrated.
What RGB laser power is available?
The guaranteed power reaches 3,000 mW, distributed as 650 mW red at 638 nm, 900 mW green at 520 nm, and 1,600 mW blue at 450 nm.
Is this laser suitable for a large stage or club?
The 50° aperture angle allows coverage of a wide stage or dance floor. The approximately 4 mm beam has a divergence of 0.9 mrad full angle. With 3 W power and the use of haze, volumetric effects can be created.
What is the scanner speed of the DS-3000RGB MK4?
The scanner operates at 40 kpps at 8°, a value suitable for vector drawings, text, and graphic animations.
What precautions are required for a class 4 laser?
Operation is reserved for trained operators with appropriate safety procedures and protected public areas. A safety key and interlock are provided.
