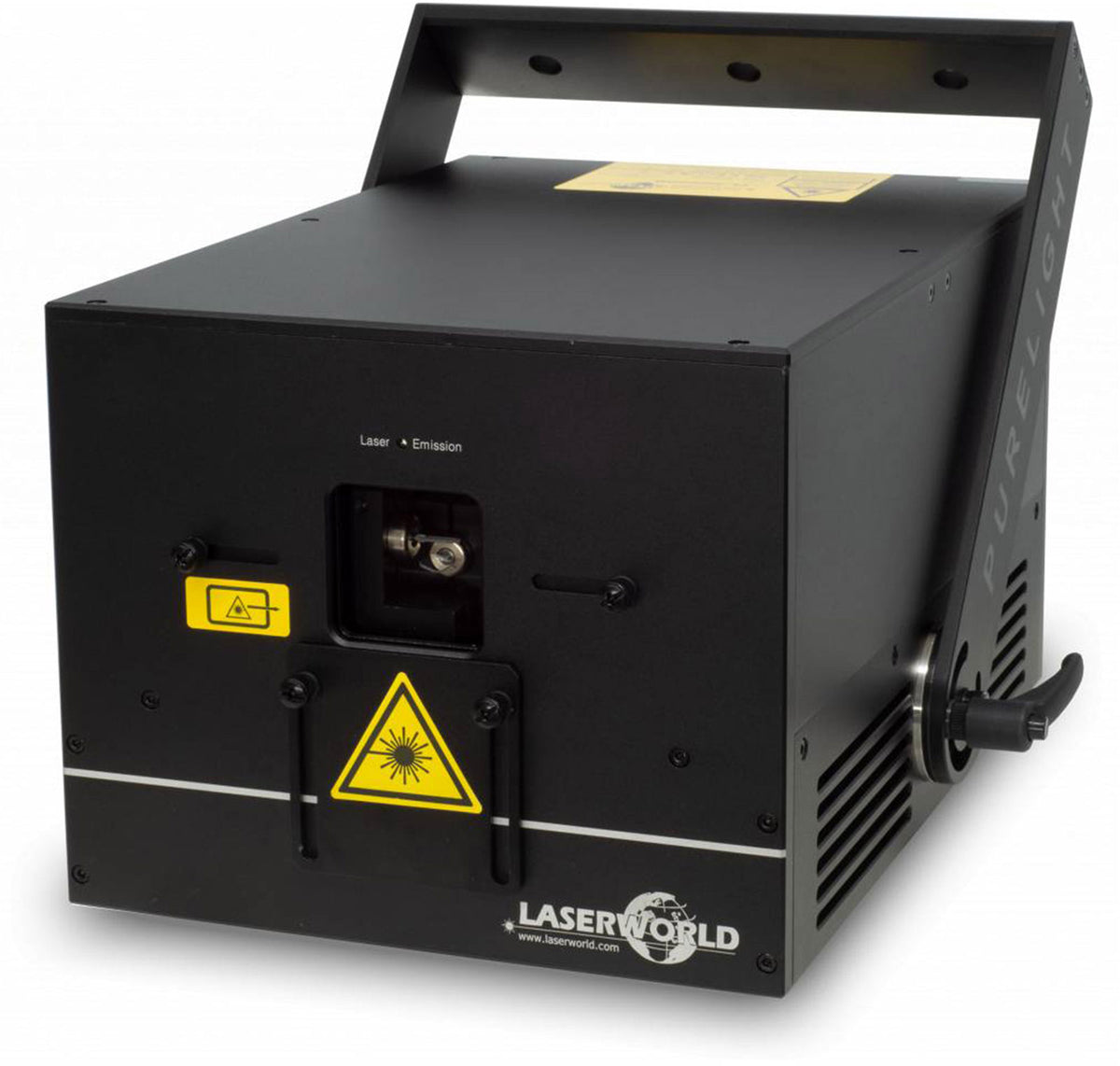

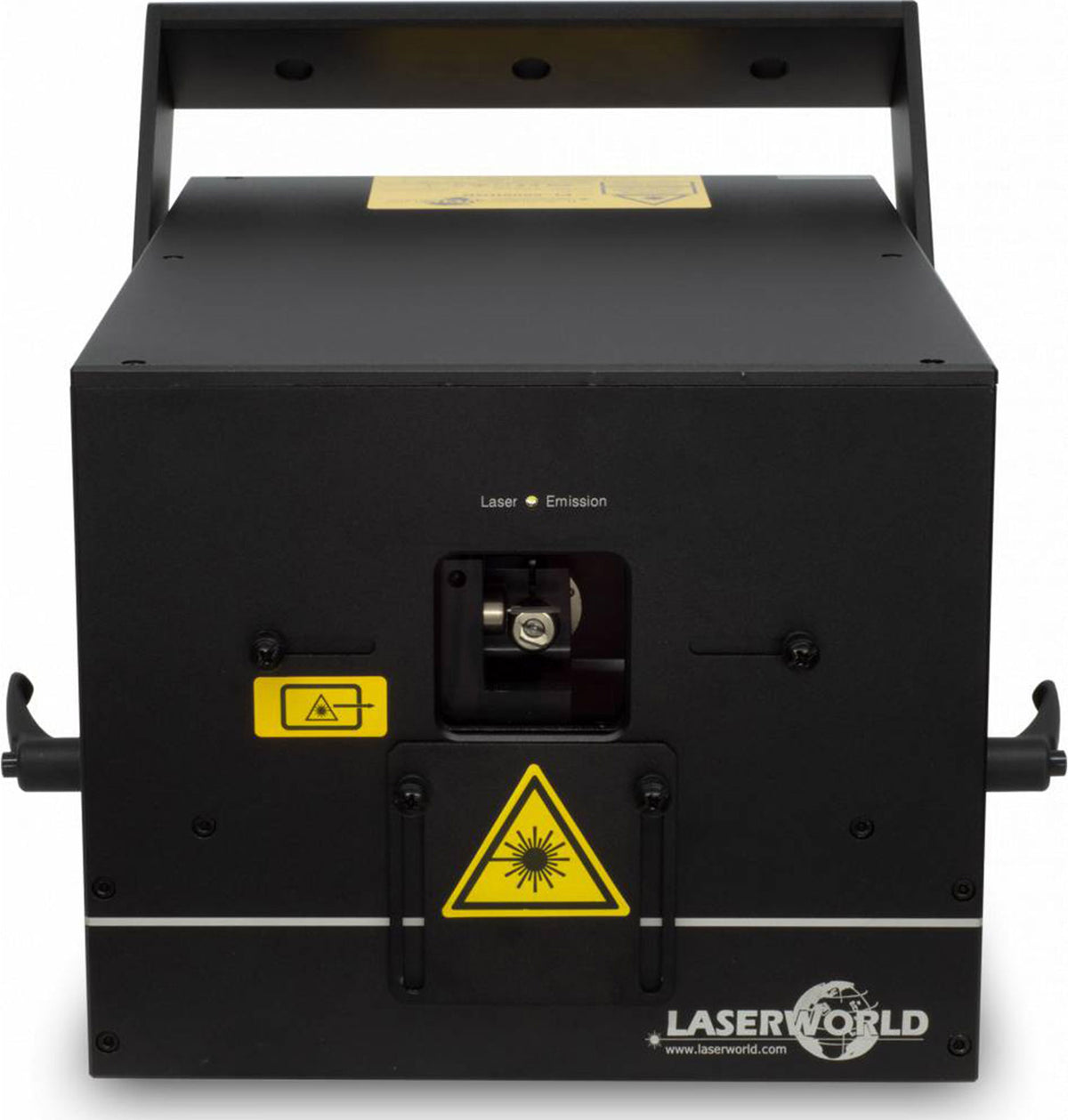

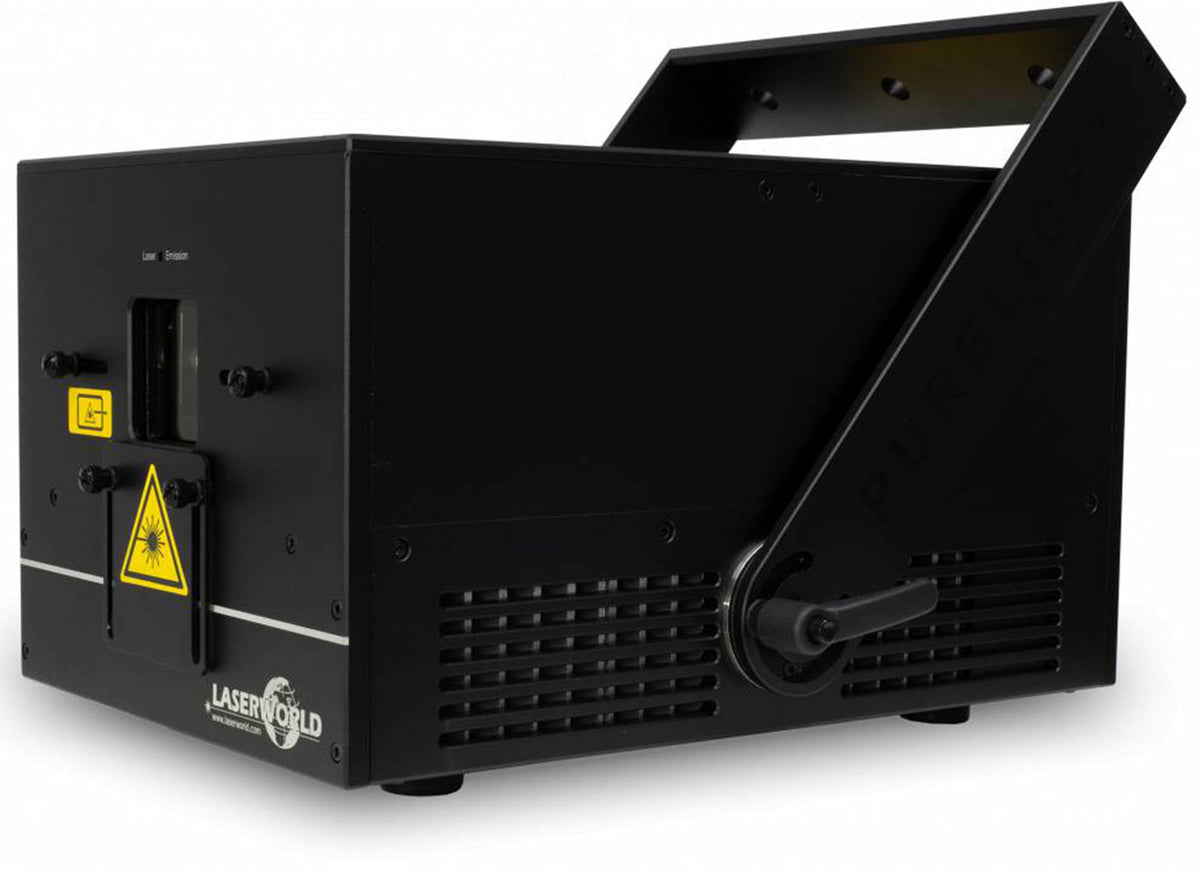

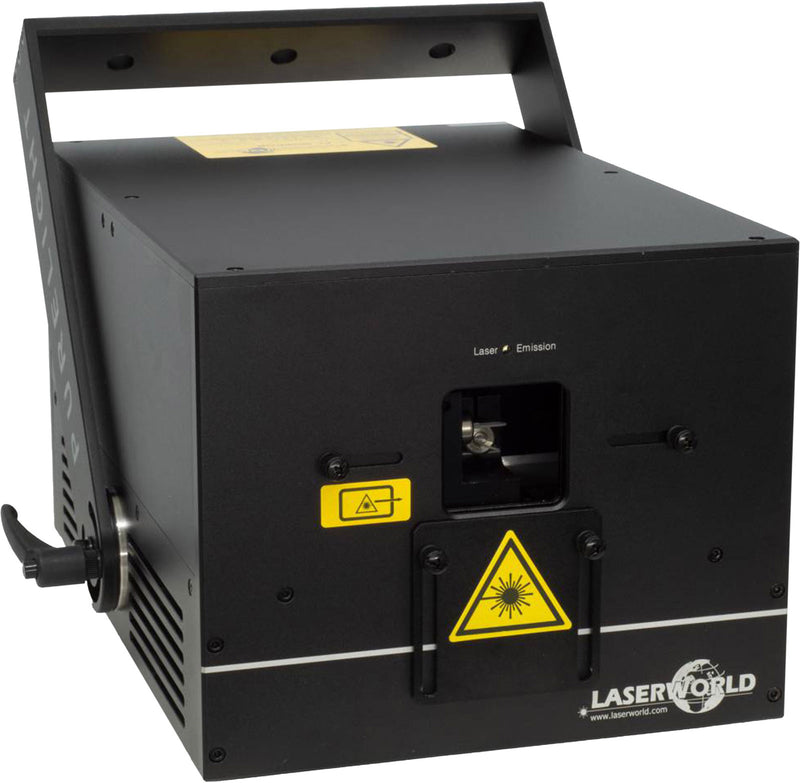

A Laser Projector Designed for Stage, Events, and Fixed Installations
Built for tours, clubs, theaters, and corporate events, the Laserworld PL-6000G delivers impactful and readable green laser shows, even in ambient lighting. Its power/definition combination enables both enveloping volumetric effects with haze and sharp graphic projections on screens, cycloramas, or facades. In fixed installations (bars, concert halls, amusement parks), its extensive connectivity facilitates integration into existing lighting infrastructures.

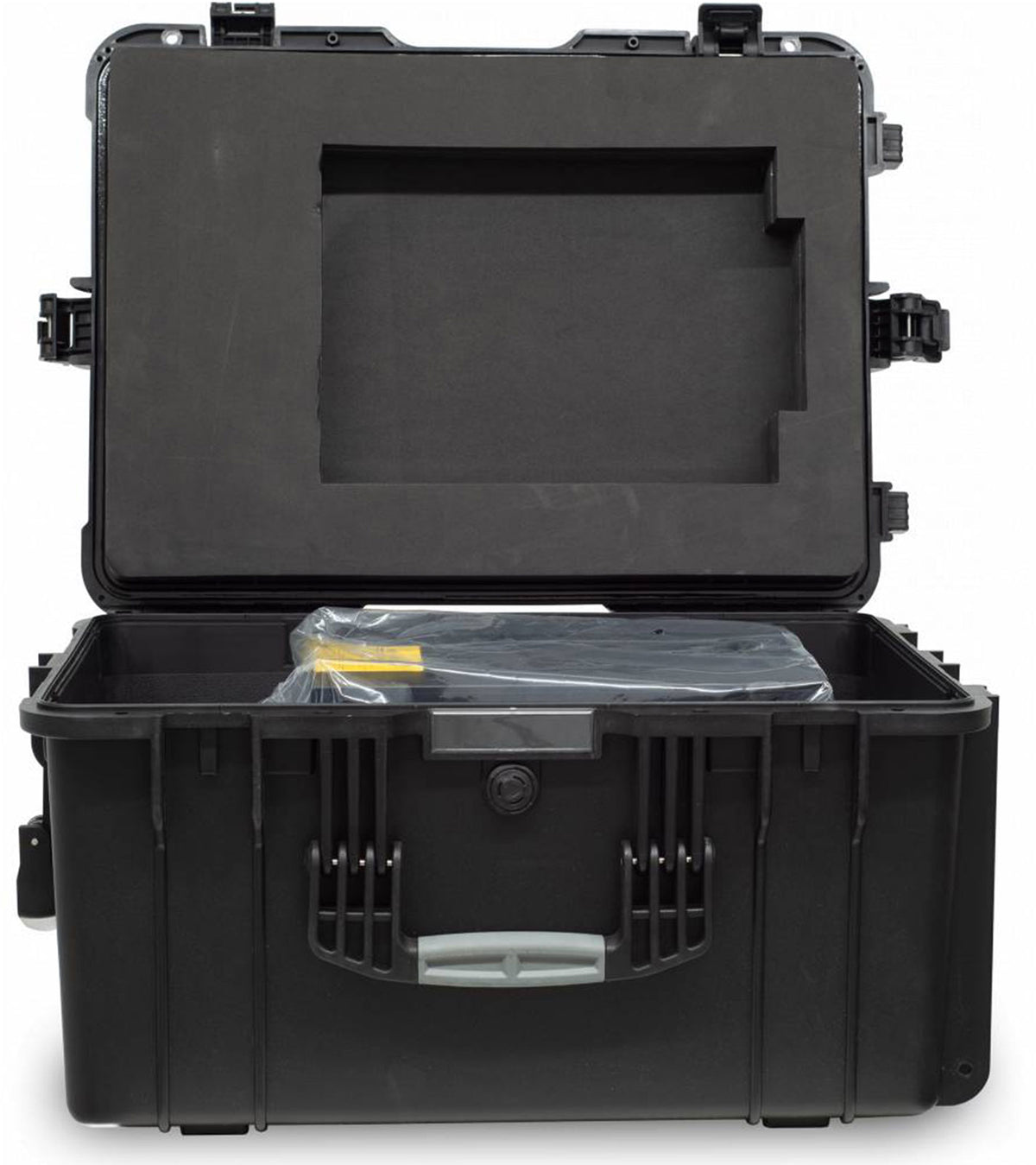

For mobile DJs and service providers, its compact format and supplied flightcase speed up setup while securing transport. The standalone and master/slave modes multiply possibilities when quickly deploying multiple synchronized units and achieving professional results without a PC.
Who Is the Laserworld PL-6000G For?
For lighting technicians, laser designers, and operators seeking a reliable and precise 6 W green laser projector for graphics, logos, and volumetric effects. For event professionals and rental companies needing a robust device, easy to chain (power, DMX, ILDA), and compatible with network lighting consoles. For DJs/hosts looking to upgrade with a highly visible monochrome output and an integrated effects library. Finally, for venue operators and AV integrators desiring a long-term solution with safety parameter recording at the device level.
Features and Innovations
The PL-6000G incorporates 520 nm diodes whose analog modulation provides fine intensity control, ideal for gradients, precise contours, and balancing between volumetric and tracing effects. Its 35 kpps (ILDA) scanner system allows fast and stable writing, while the up to 50-degree scan angle opens the field to large surfaces and constrained placements.

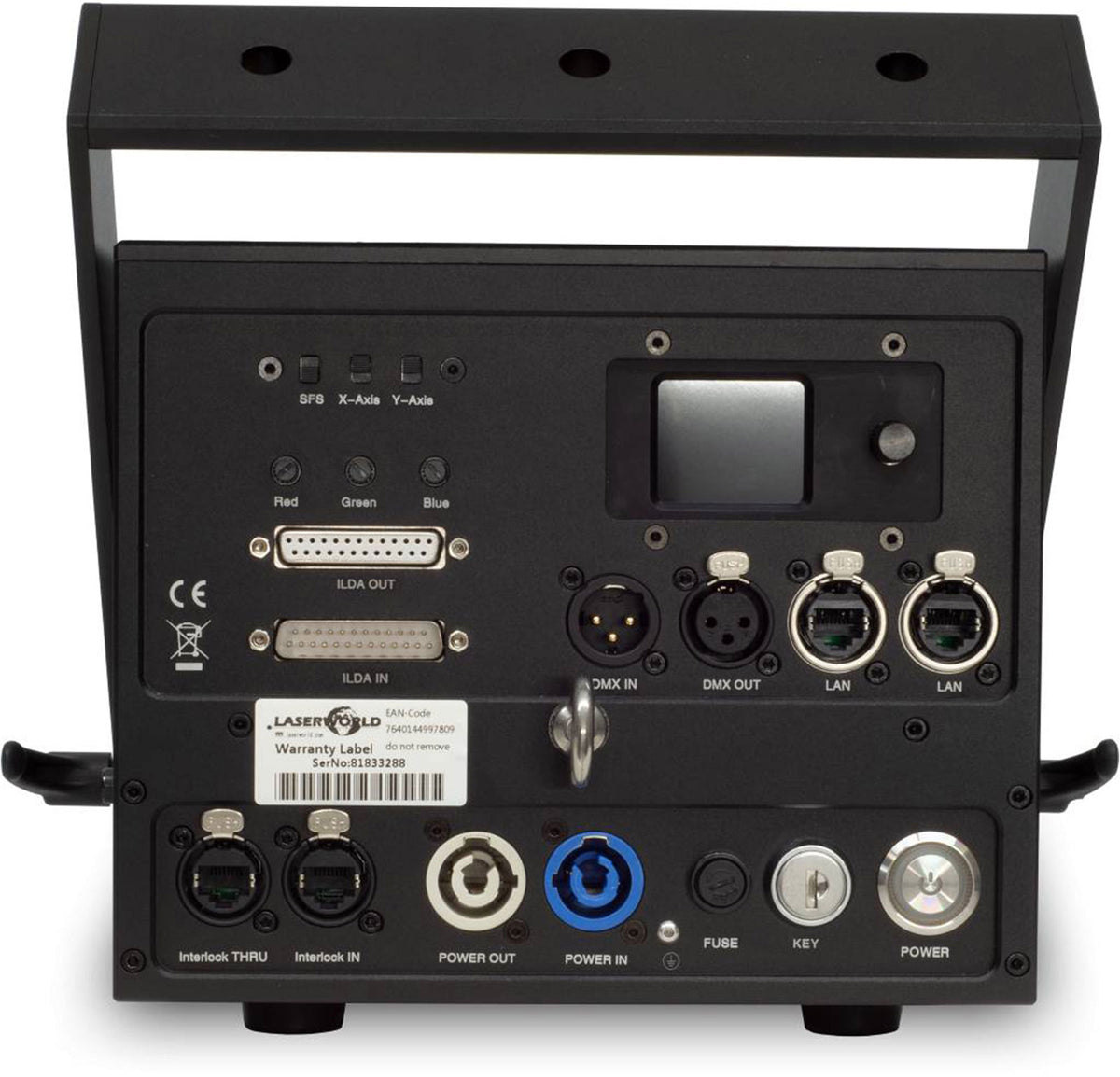

Connectivity is comprehensive: ILDA, DMX, ArtNet, LAN, ILDA streaming, and SD card, plus Auto and master/slave modes for instant deployment. The included "Showeditor" license enables programming shows and logos, with upgrade options to "Showcontroller". The recordable safety parameters stored directly in the projector apply to all modes for consistent operation, and Power, DMX, and ILDA pass-through functions simplify chaining multiple units.
With approximately 120 internal patterns (tunnels, waves, sawtooth, etc.), a powerful laser strobe, and fine size/position adjustments, the PL-6000G covers turnkey shows as well as custom creations. Designed as a Class 4 laser, it is intended for trained operators and integrates easily with standard safety protocols and accessories.
Technical specifications
| Source type | laser diodes |
| Color | monochrome green |
| Wavelength | 520 nm |
| Guaranteed output power | 6,000 mW |
| Green channel power | 6,300 mW |
| Modulation | analog |
| Beam characteristics | approx. 6.0 mm diameter |
| Divergence | 1.0 mrad |
| Scanners | 35 kpps (ILDA) |
| Maximum scan angle | 50 degrees |
| Operating modes | ILDA, DMX, LAN, ArtNet, ILDA streaming, built-in SD card, standalone mode, master/slave |
| Additional modes | Auto and computer control |
| Included software | "Showeditor" license (upgradable to "Showcontroller") |
| Pass-through/chaining | Power, DMX, and ILDA for linking multiple units |
| Basic patterns | approx. 120 effects (tunnel, wave, sawtooth, etc.) |
| Dynamic effects | laser strobe, scaling, position, and rotation |
| Laser class | 4 |
| Power supply | 85 V to 250 V AC, 50/60 Hz |
| Power consumption | 540 W |
| Dimensions | 320 x 220 x 180 mm |
| Weight | 10.1 kg |
Questions frequently asked
Is the Laserworld PL-6000G MKII ShowNet compatible with ArtNet and ILDA?
The connectivity includes ILDA, DMX, LAN and ArtNet protocols, as well as ILDA streaming. Power, DMX and ILDA passthroughs allow daisy chaining multiple units.
What is the laser's power and color?
Thanks to its 520 nm green diodes, this projector delivers a guaranteed output power of 6,000 mW. The green channel power reaches 6,300 mW with analog modulation.
Is this 6 W laser suitable for projecting logos and graphics?
The 35 kpps scanners according to the ILDA standard ensure fast and stable tracing. The scan angle can reach 50 degrees. Analog modulation allows precise intensity control for gradients and outlines.
Can the PL-6000G operate without a computer?
Its standalone mode, built-in SD card and 120 internal patterns enable operation without a computer.
What precautions does laser class 4 require?
Classified as a class 4 laser, this device is intended for trained operators. Safety settings can be saved directly in the projector and apply in all operating modes.
