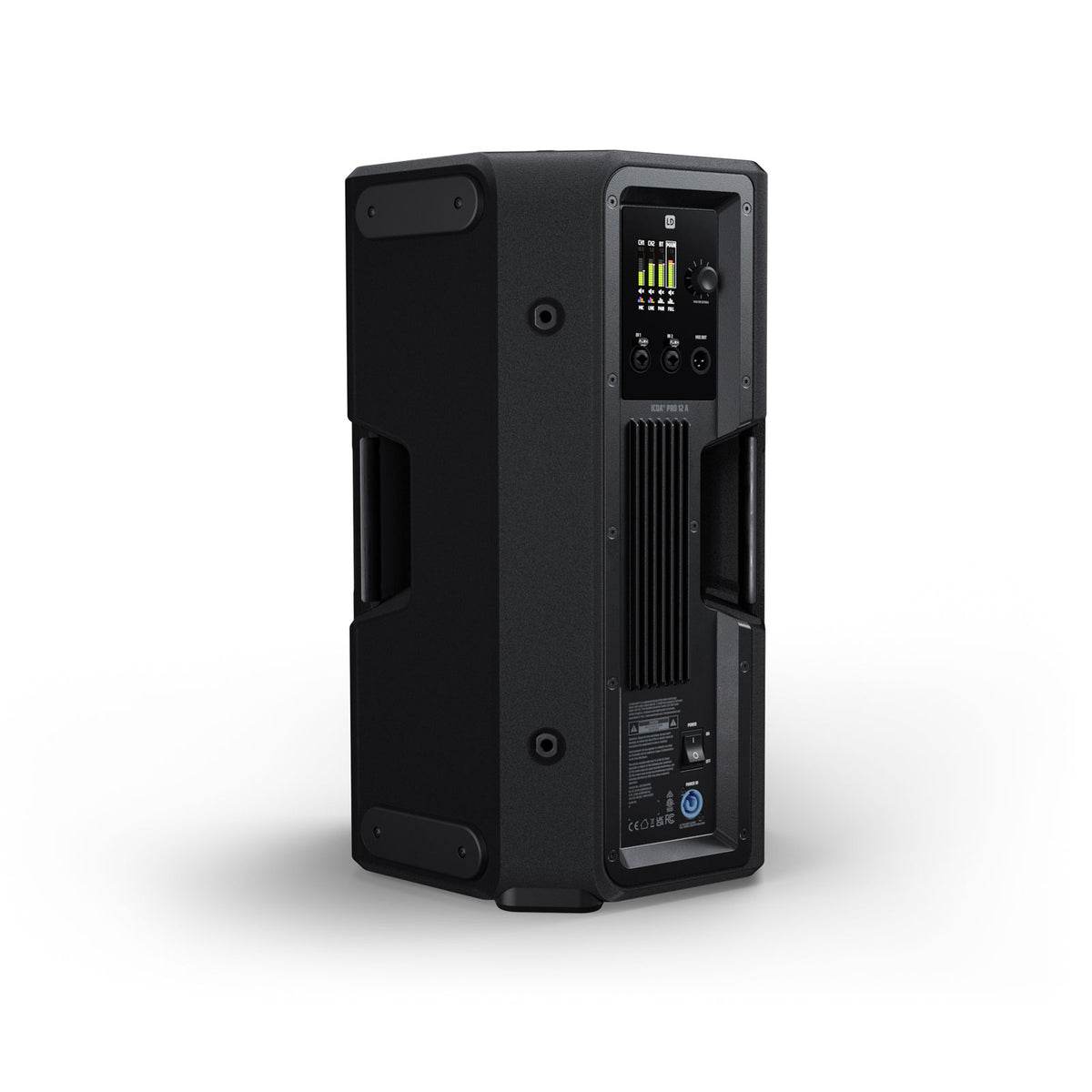

LD Systems ICOA PRO 12 A

An ICOA PRO designed for precision and versatility in professional environments

The ICOA PRO 12 A is a compact professional loudspeaker designed to cover a wide range of applications without compromising definition. Its key feature is the combination of the flexibility of a 12-inch format with the precision of a true coaxial system: the goal is to achieve phase coherence and a more natural response, making it equally suitable for front-of-house use, stage monitoring or fixed installations. With its extended bandwidth and "road-ready" design, it is aimed at setups that demand impact, clarity and rapid deployment.

From the stage to the club: who is the ICOA PRO 12 A designed for?

This active loudspeaker is ideal for club concerts, live performances, DJ sets, corporate events and fixed installations requiring clean, controlled sound reinforcement. Its format allows it to be used on its own in full range, as a satellite with a subwoofer, or as a stage monitor thanks to its dedicated tilt angle. It is particularly well suited to users looking for a loudspeaker that is easy to transport and quick to set up, yet capable of delivering high output with stable, detailed sound.

Processing, dispersion and control: a loudspeaker designed for precise adjustment

12-inch coaxial design: coherence, precision and a "natural" sound

The 12-inch woofer (3-inch voice coil, custom-built) and tweeter (titanium diaphragm, 3 inches) are mounted in a coaxial configuration with a shared magnetic circuit. This architecture is designed to provide improved time coherence and a more consistent phase response, resulting in highly intelligible sound: vocals, guitars, brass and percussion attacks gain definition while retaining a uniform projection.

BEM rotatable horn: putting the energy where it belongs

The large constant-directivity rotatable horn, optimized using BEM, provides a uniform stated dispersion of 90deg x 50deg. Its design enables horn loading for both the low and high frequencies, concentrating sound energy down into the midrange (approximately 600 Hz) while maintaining control in acoustically demanding environments. In practice, this helps to better "aim" at the listening area, limit unwanted reflections and improve intelligibility.

Powerful low end in full range mode and Class D amplification

Thanks to its optimized bass-reflex ports, the ICOA PRO 12 A reaches down to 53 Hz and delivers convincing reproduction in full range configuration. Its Class D amplification provides up to 1000 W continuous power (2000 W peak) and a maximum level of 133 dB SPL, with dynamic headroom designed to maintain powerful, clean sound even as the volume increases.

SysCore DSP, presets, EQ and Delay: quick adaptation to the room

The SysCore DSP incorporates FIR/IIR filters, a crossover and sophisticated limiters to preserve clarity and operational safety, even at high levels. The settings are designed to be effective in real-world use: 4 application presets (including a low-latency mode for stage monitoring), a Delay function, as well as 4-band parametric EQs on the input and output channels, allowing the response to be adjusted precisely according to the source, position (on a stand, as a wedge or flown) and acoustics.

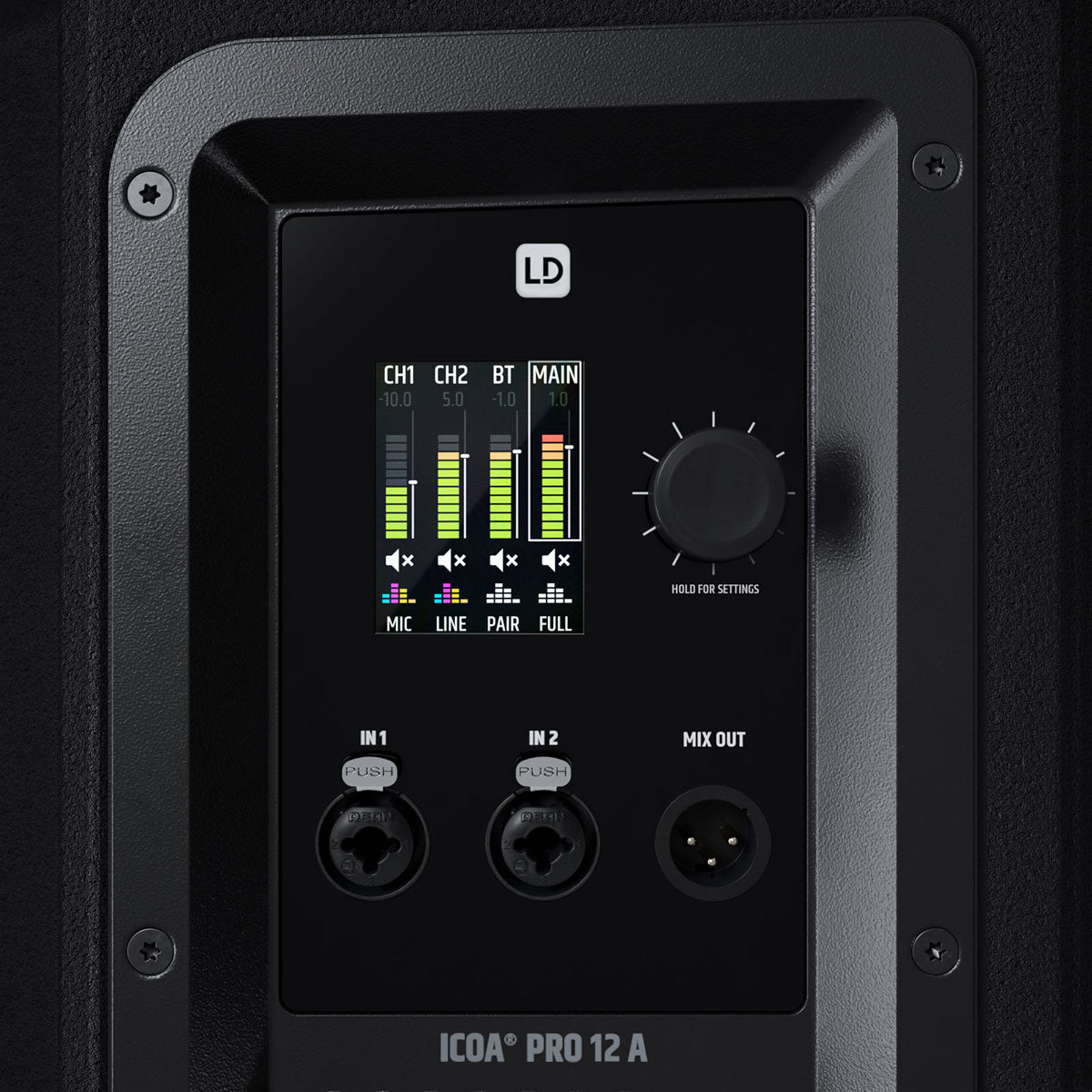

Intuitive interface and wireless control

Navigation is handled via a color screen and a single encoder for quick access to essential parameters. For more advanced control, the free "ICOA PRO" app enables remote control from a smartphone or tablet, the pairing of multiple loudspeakers, and the quick creation of a stereo setup with up to two loudspeakers and four subwoofers. Music streaming is managed via Bluetooth 5.1, with TWS for stereo playback between two ICOA PRO 12 A units.

Technical specifications

Bluetooth

Yes

Applications	full range, satellite, stage monitor, installation	Crossover	800 Hz
Maximum sound level	133 dB SPL max.	Dispersion	90deg x 50deg
Amplifier	Class D	Free " ICOA PRO " app	remote control via smartphone and tablet (iOS and Android)

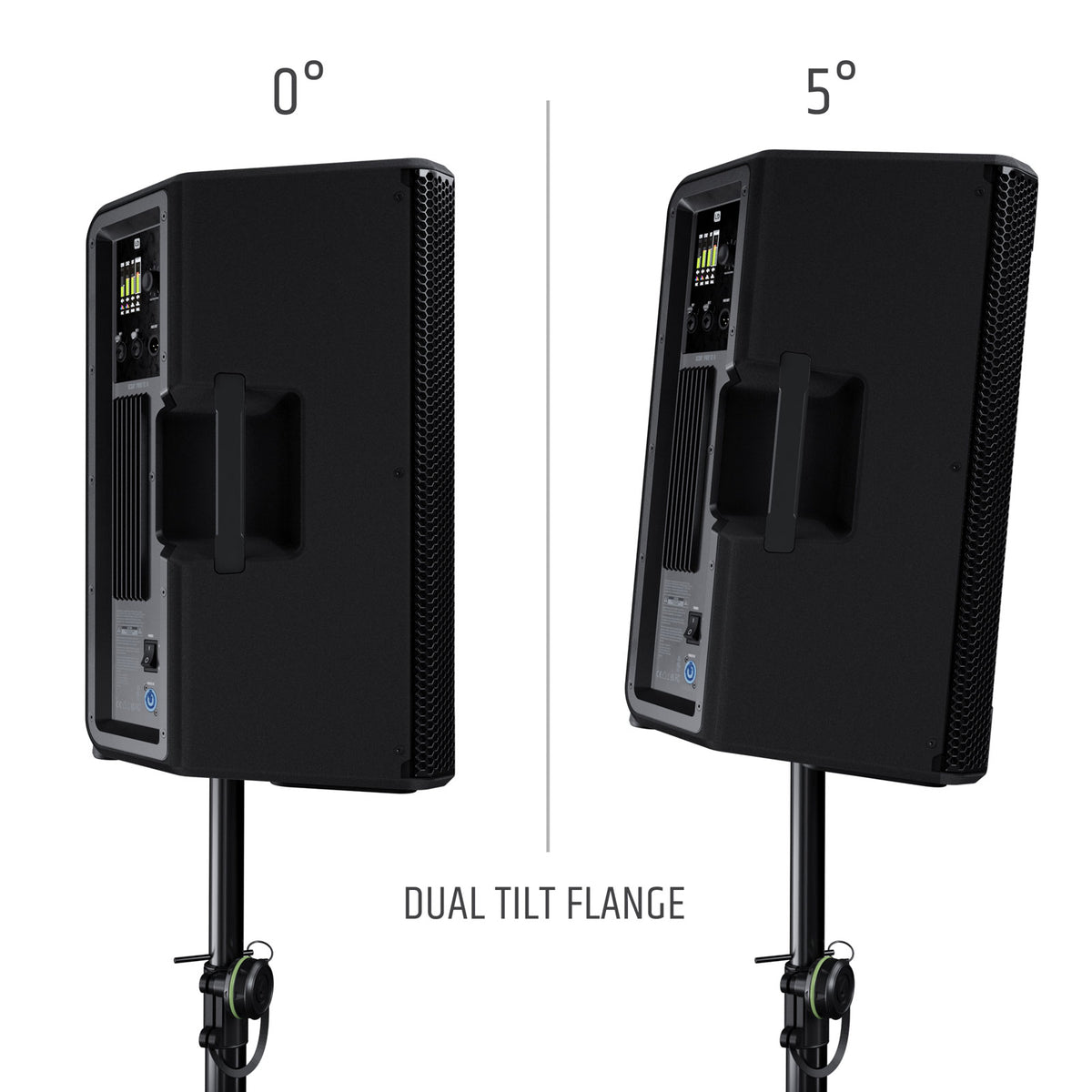

Low-frequency response	down to 53 Hz	35 mm pole mount with dual tilt	0deg and 5deg
Woofer	12 inches, 3-inch voice coil	Stage monitor tilt angle	50deg
High-frequency driver	titanium diaphragm, 3 inches
