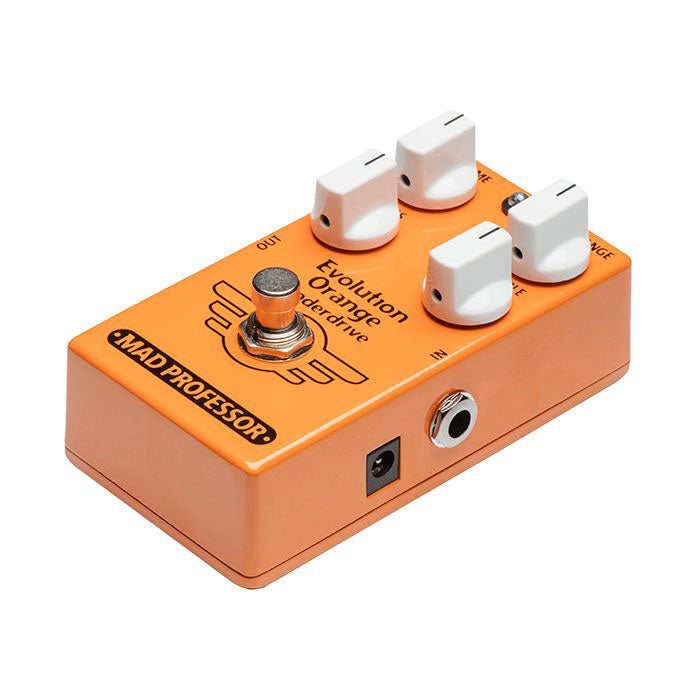

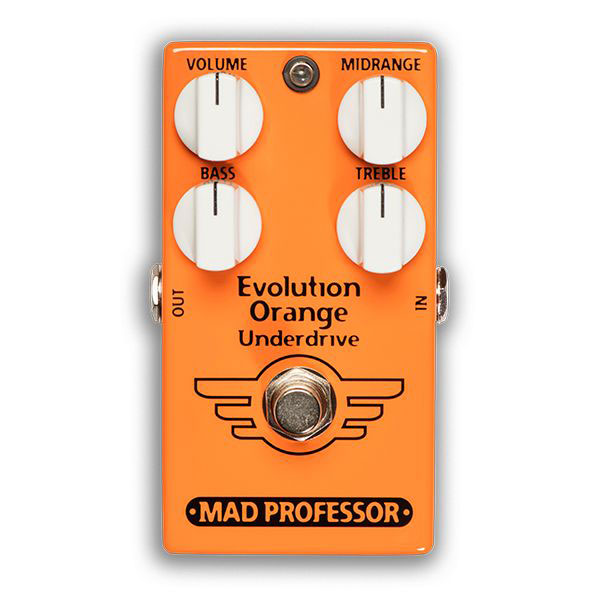

Mad Professor Evolution Orange Underdrive

An "Anti-Overdrive" That Became a Stage Tool

The Evolution Orange Underdrive (EOU) does not seek to add gain but to intelligently remove it. Where an overdrive thickens and saturates a clean sound, the EOU does the opposite: it allows you to get a cleaner and more defined sound starting from a crunch tone you already like. This "addition by subtraction" philosophy makes it a unique pedal on a pedalboard, designed for guitarists who play "dirty" most of the time but want to instantly regain clarity, sparkle, and definition.

For Whom, Which Styles, and In What Contexts?

This effects pedal is aimed at both intermediate guitarists and experienced musicians who build their sound around an old-school amp: one channel, one volume, and a nice natural saturation when pushed. In blues, rock, classic rock, roots, or indie styles, the EOU is formidable for switching from a crunchy rhythm to a cleaner verse without touching amp settings.

Live, it can give the impression of having a second, clearer channel. In the studio, it helps keep an amp in its "sweet spot" while varying texture and achieving cleaner takes without losing the dynamic feel under the fingers.

Controls and Operation: Sculpting the "Clean" Where Overdrive Begins

The heart of the EOU is how it works on the midrange : this is often where overdrive concentrates and "clutters" the sound when you roll back the guitar volume. With the EOU, you can first attenuate what goes into the amp via the Volume knob, then reshape your tonal balance with Bass and Treble to regain air and attack.

And if you need the opposite, the EOU can also transform into a highlighting tool: by boosting Midrange and Volume, you get a midrange boost useful for leads, thickening a rhythm part, or repositioning the guitar in the mix center without adding unnecessary saturation.

The Sound

The Evolution Orange Underdrive delivers a very "amplifier-like" feel: it doesn't sound like stacking an effect but rather reorganizing the existing saturation. Expect a more articulated result, with chords standing out better, tighter lows, and adjustable brightness, all while preserving the grain of your pushed amp. It's an ideal approach if you like the response of an amp on the edge of breakup but want a more usable "clean" than just cleaning up with the guitar's volume knob.

Technical specifications

Effects	Boost, Overdrive	Type	sector
Format	Pedal	Use	electric guitar
EQ	3 channels	Color	Orange

Midrange	+/-15 dB at 400 Hz	Current consumption	10 mA at 9 V
Treble	+/-15 dB at 7 kHz	Power supply voltage range	8 V to 18 V DC
Bass	+/-15 dB at 100 Hz	Current	10 mA
Volume	controls the overall output level when the pedal is engaged	Required voltage	9 V DC (also works within 8 V to 18 V DC range)
Input impedance	approximately 500 k?	Power supply	DC adapter with 2.1 mm center-negative plug, or 9 V battery type 6F22
Output impedance	approximately 5 k?
