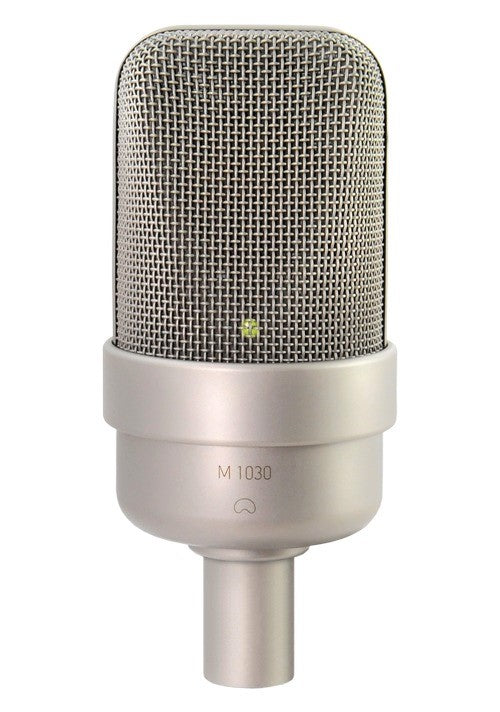

Microtech Gefell M1030 Set

A modern studio microphone optimized around a large diaphragm capsule

The Microtech Gefell M1030 combines a large-diaphragm condenser capsule with recent electronic design, featuring a body format adapted to studio constraints. The goal is clear: to offer a universal recording microphone capable of meeting the demands of discerning users, whether professional or semi-professional, while remaining easy to integrate into a standard 48 V phantom-powered recording chain.

At the heart of the M1030 is a performance-oriented approach: optimized housing, impedance converter described as innovative, and pursuit of extremely low self-noise. This philosophy positions the M1030 as a primary recording tool, tailored for broadcasting and studio sessions where transparency, stability, and repeatability are paramount.

Who is it for and what studio applications?

The M1030 targets recordings where both definition and control are expected. For vocals, it suits singing as well as voiceovers, dialogues, and narration, with articulation enhanced by the slight presence boost between 8 and 14 kHz. Practically, this helps the voice remain intelligible in dense arrangements while maintaining a solid foundation thanks to a frequency response extending down to 40 Hz.

Its versatility extends to instruments: acoustic and amplified guitars (depending on placement), keyboards, percussion, wind and string instruments. The combination of low noise and high permissible SPL allows recording both highly dynamic sources and delicate passages without having to excessively "push" the preamp gain, a key point for maintaining a clean and usable signal in mixing.

Precision, rejection, and dynamics: a results-oriented design

Balanced frequency response with usable presence

The M1030 condenser capsule is described as offering a homogeneous frequency response, with a slight emphasis in the 8 to 14 kHz range. This range typically corresponds to attack, air, and intelligibility. The desired result is a clear and "open" sound, useful for vocals, strings, and close ambiance recordings without relying solely on equalization.

Cardioid directivity: easier placement and less bleed

With cardioid directivity, the M1030 helps isolate the main source and limit bleed, an immediate advantage in both home studios and booths. This off-axis control is valuable for dialogues (room noise reduction), vocal recordings (less headphone and monitor bleed), or percussion, where capturing impact while keeping other elements under control is desired.

Impedance converter and low noise: more headroom before saturation

The electronic impedance converter is based on a circuit topology described as completely innovative and optimized. The dual intention is to reduce background noise while increasing the maximum possible level. Practically, this results in crystalline recordings with very low distortion over a wide dynamic range. The M1030 is thus comfortable with loud sources (up to 142 dB SPL with K less than 0.5 percent) while remaining relevant for delicate captures where operational silence is critical.

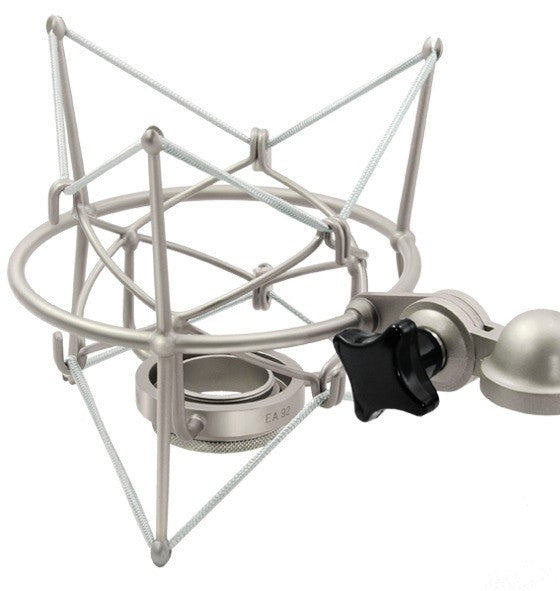

Another announced benefit: reduced sensitivity to mechanical shocks and structure-borne noise. Combined with the included suspension, this contributes to cleaner recordings, especially on stands in "live" environments (footsteps, vibrations, handling).

Technical specifications

Frequency response	40 Hz - 20 kHz	Capsule	Large Diaphragm
Category	studio microphone	Connection	XLR
Directivity	cardioid	Color	Grey

Type	condenser microphone, large diaphragm capsule	Max output level	RL = 1 k?: 17 dBu
Sensitivity at 1 kHz	21 mV/Pa	Dynamic range of electronic circuits	135 dB
Output impedance	100 Ohms	Current consumption (P 48, DIN 45596, IEC 268-15)	3.6 mA
Self-noise (CCIR 468-4)	13 dB	Output connector	3-pin XLR, gold-plated contacts

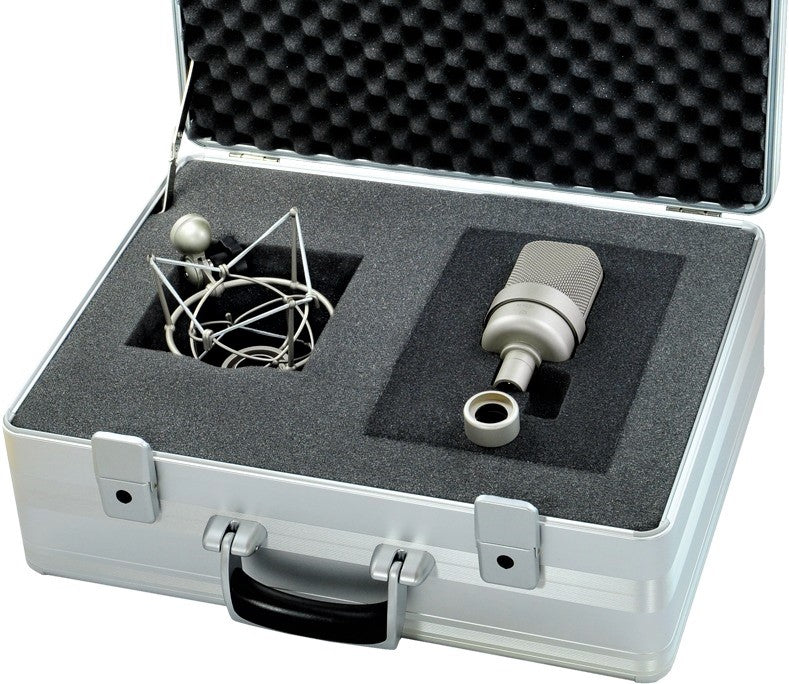

Self-noise (DIN EN 60 651)	7 dB-A	Included	shock mount and metal case
Signal-to-noise ratio referred to input (A-weighted)	81 dB	Dimensions	145 mm x 66 mm
Max SPL with K less than 0.5 percent	142 dB	Weight	355 g
