A Vintage Heritage, a Modern Reference at Soyuz
Part of the "017" lineage, the 017 FET translates the aesthetic of classic large-diaphragm condensers into a contemporary, reliable, and reproducible approach. Alongside the 017 Tube, it embodies Soyuz's vision: fully handmade microphones capable of delivering the depth and warmth prized in historic models, with the precision and consistency expected from a modern tool.
Who and What Is It For?
Designed for sound engineers, professional studios, and demanding creators, the 017 FET excels on lead vocals, strings, piano, overheads, and instruments rich in transients. Its clear FET character highlights nuances without harshness, especially in the high frequencies, while maintaining a balanced low end that facilitates mix integration.
Technologies and Design Serving the Result
Handcrafted Capsule and Musical Voicing
The large 34 mm gold-plated capsule, machined and hand-tensioned, ensures excellent sensitivity to micro-details and an "open" sound that flatters both delicate and complex sources. The carefully managed off-axis response preserves timbral coherence in the room.
Fast and Stable FET Electronics
The FET circuit provides a quick transient response, exemplary stability, and easy use via 48 V phantom power. Compared to the 017 Tube, the 017 FET prioritizes precision and high-level handling without the maintenance associated with tubes.
Versatile Cardioid Polar Pattern
The cardioid pattern helps isolate the source and manage room acoustics. An optional omnidirectional capsule expands possibilities for natural recordings and ensembles.
Technical specifications
| Frequency response | 20 Hz - 20 kHz | Capsule | Large Diaphragm |
| Category | studio microphone | Connection | XLR |
| Directivity | cardioid | Color | Grey |
| Type | Large diaphragm FET condenser microphone | Self-noise | >18 dB (A-weighted) |
| Polar pattern | Cardioid (interchangeable with optional omnidirectional capsule) | Power supply | 48 V phantom power |
| Sensitivity | 15 mV / Pa | Included | Elastic suspension and wooden case |
| Output impedance | 200 Ohms | Dimensions (L x D) | 226 x 55 mm |
| Maximum SPL level | 140 dB | Weight | 930 g |
Questions frequently asked
Is the Soyuz 017 FET suitable for recording lead vocals?
The 34 mm gold-plated large-diaphragm capsule is designed to capture the micro-details of lead vocals. The frequency response ranges from 20 Hz to 20 kHz, with a balanced low end.
What power supply is required for this microphone?
A 48 V phantom power supply is necessary for its FET electronics to operate.
Can it be used to record drums or very loud sources?
With a maximum SPL of 140 dB, this microphone can be used on high-level sources. The FET circuit is designed for fast transient response. It is particularly suitable for overheads and instruments with prominent attacks.
What accessories come with the microphone?

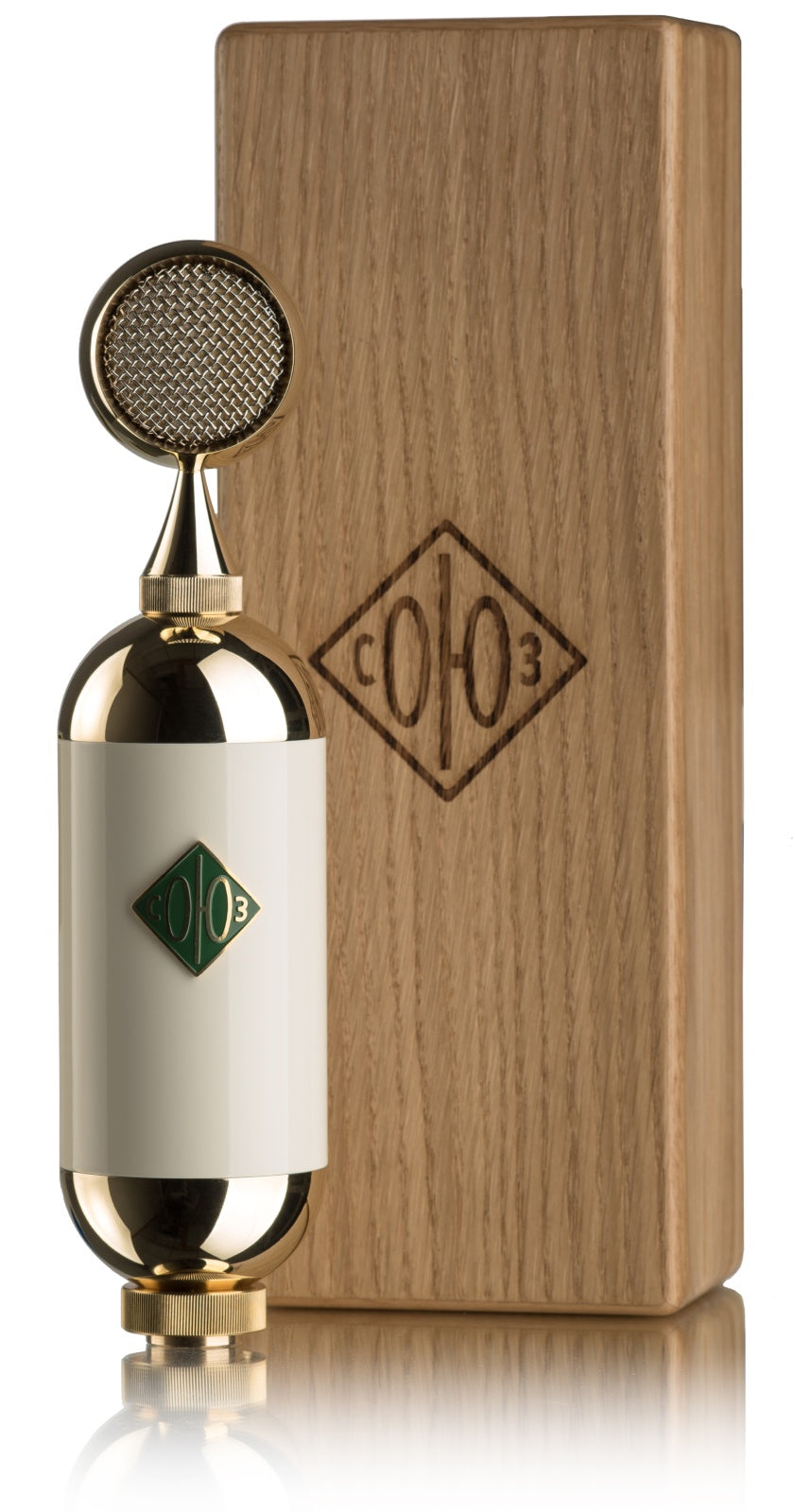

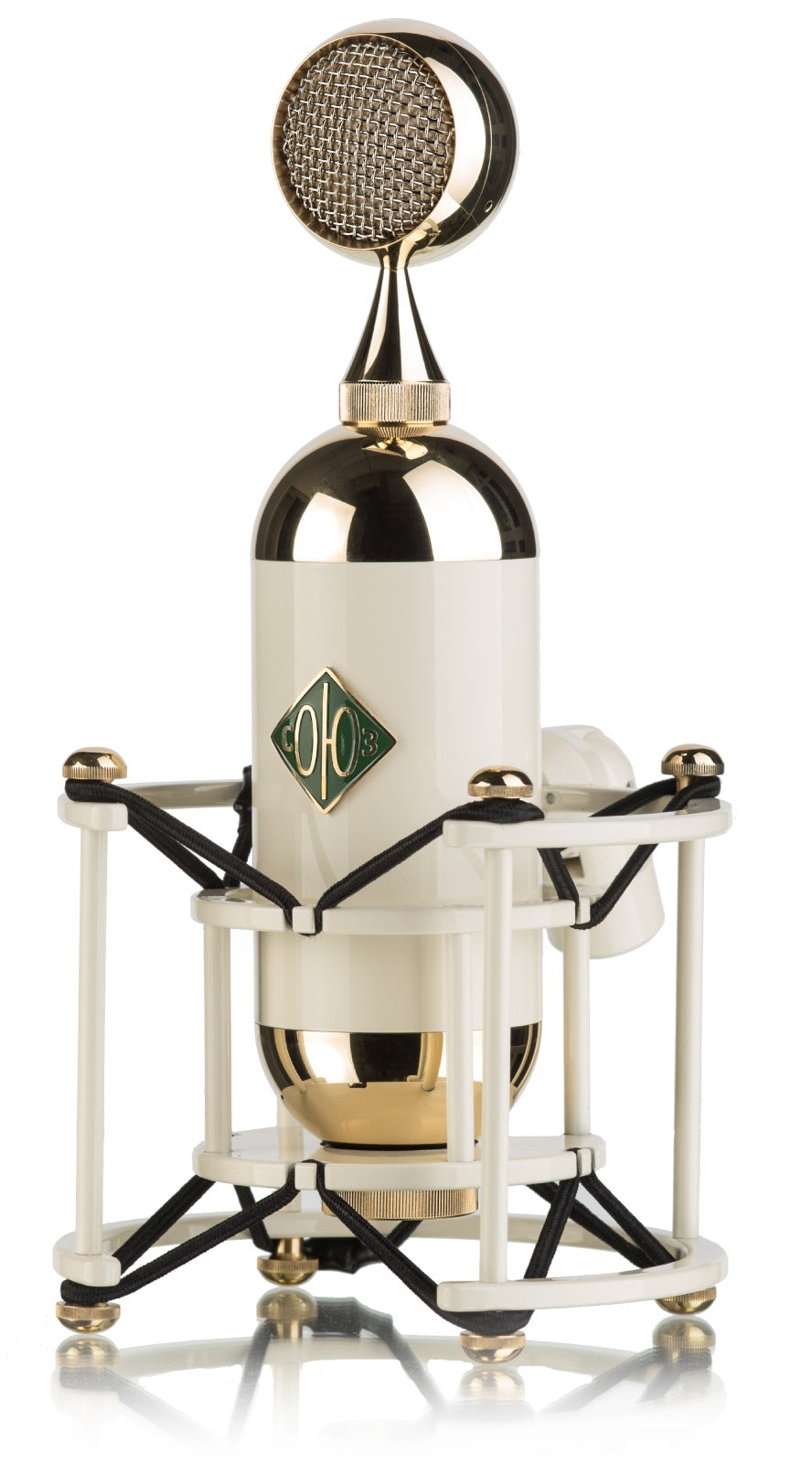

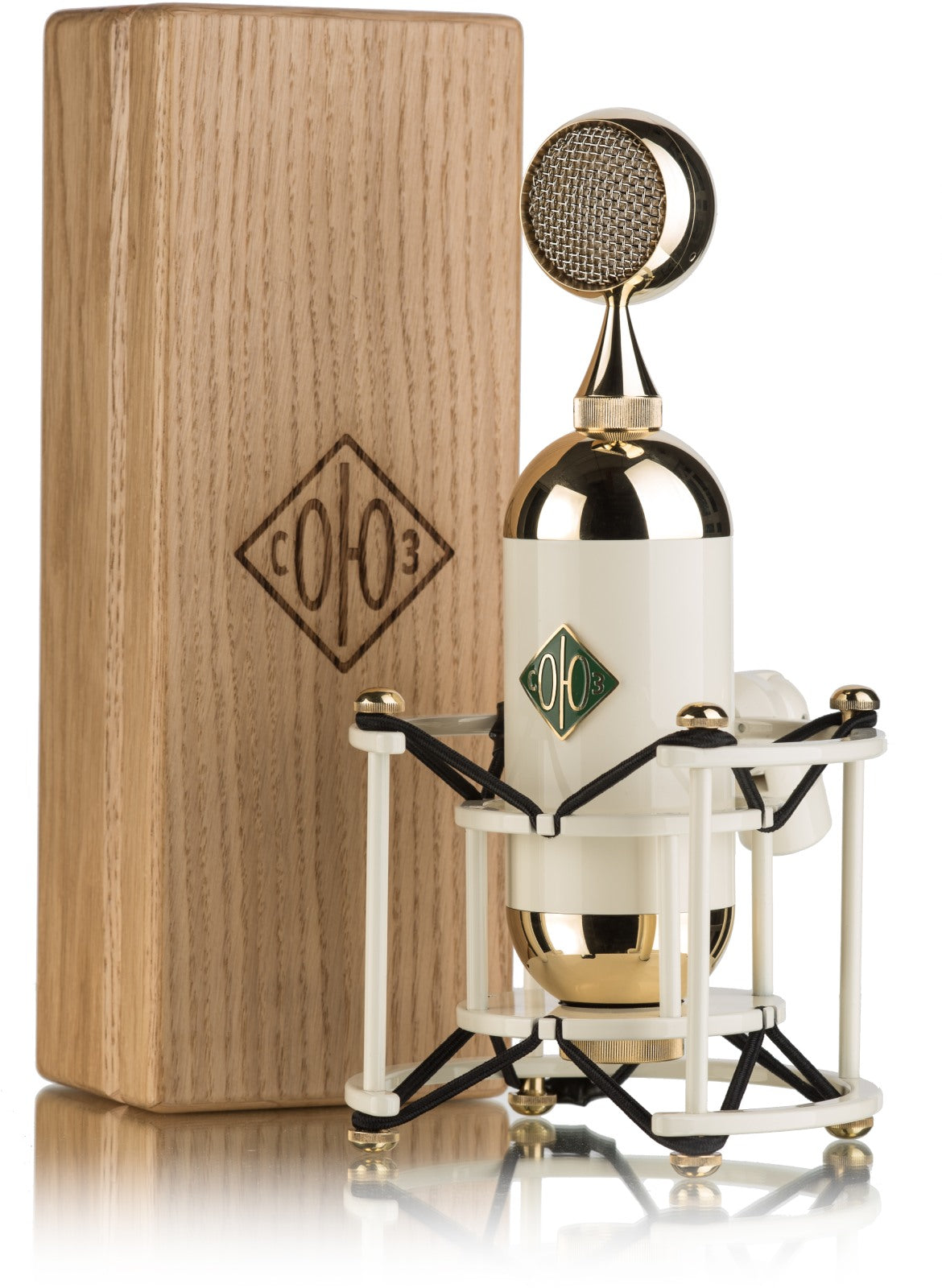

A shock mount and a wooden case are included. The microphone measures 226 x 55 mm and weighs 930 g.
Can the cardioid pattern be changed?
A cardioid pattern is factory-installed to help isolate the source. An optional omnidirectional capsule is available to expand recording options.
