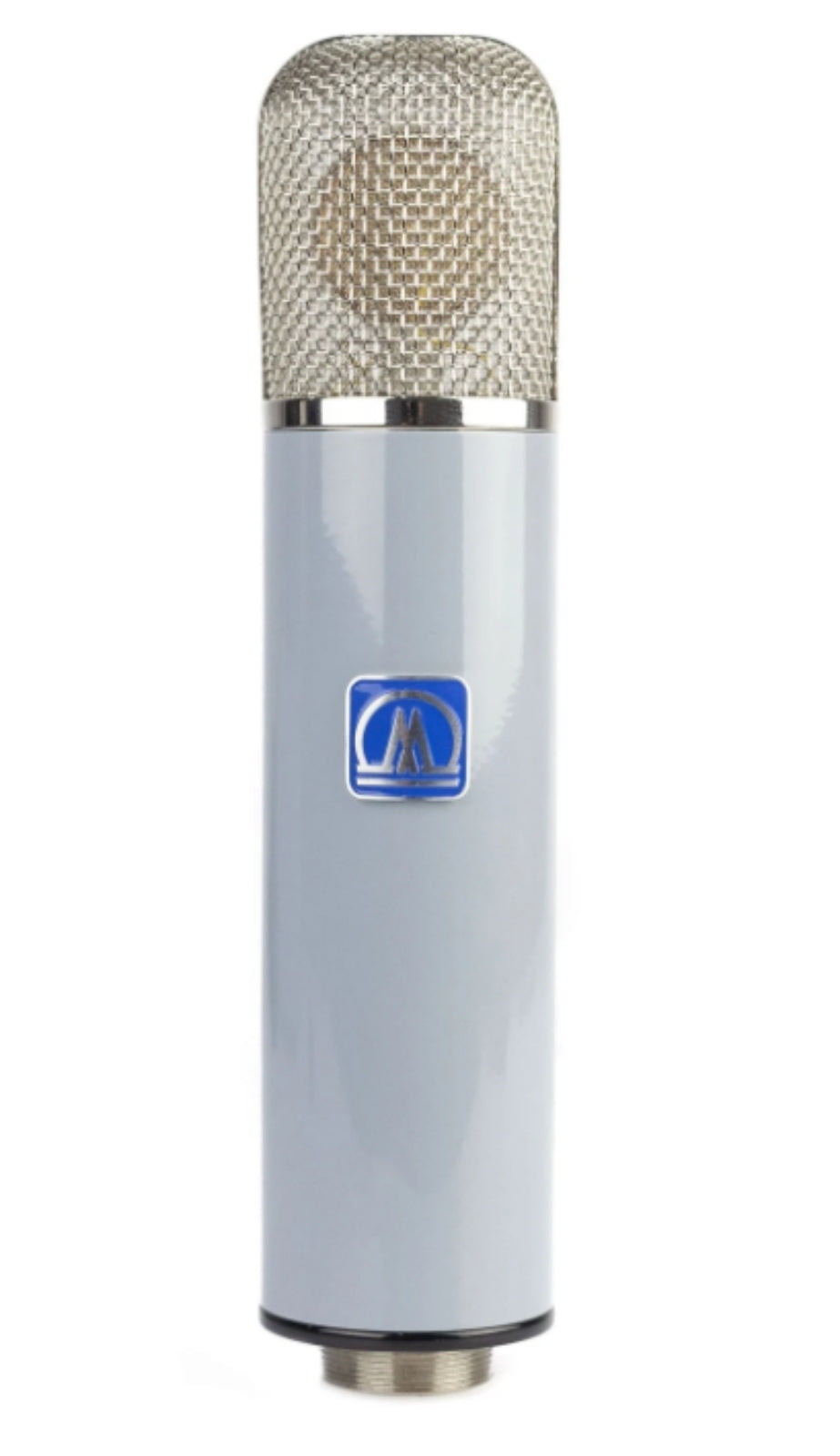

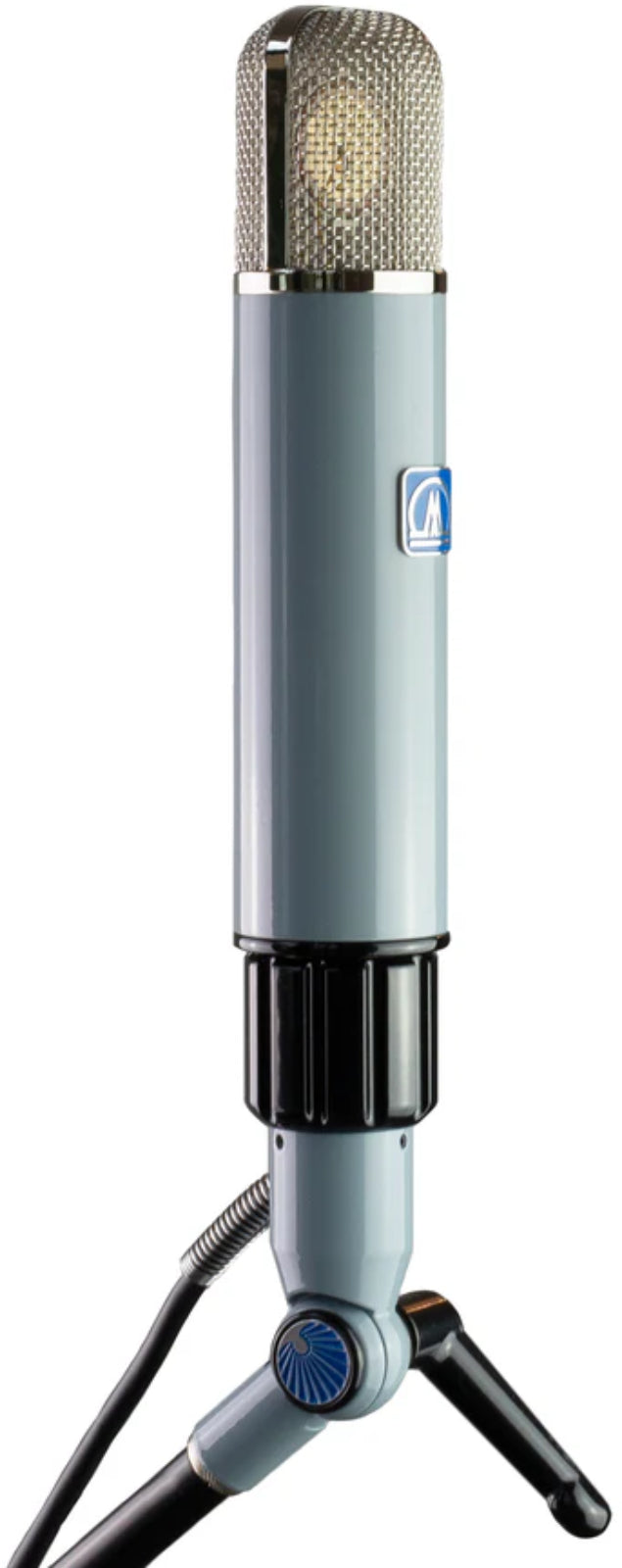

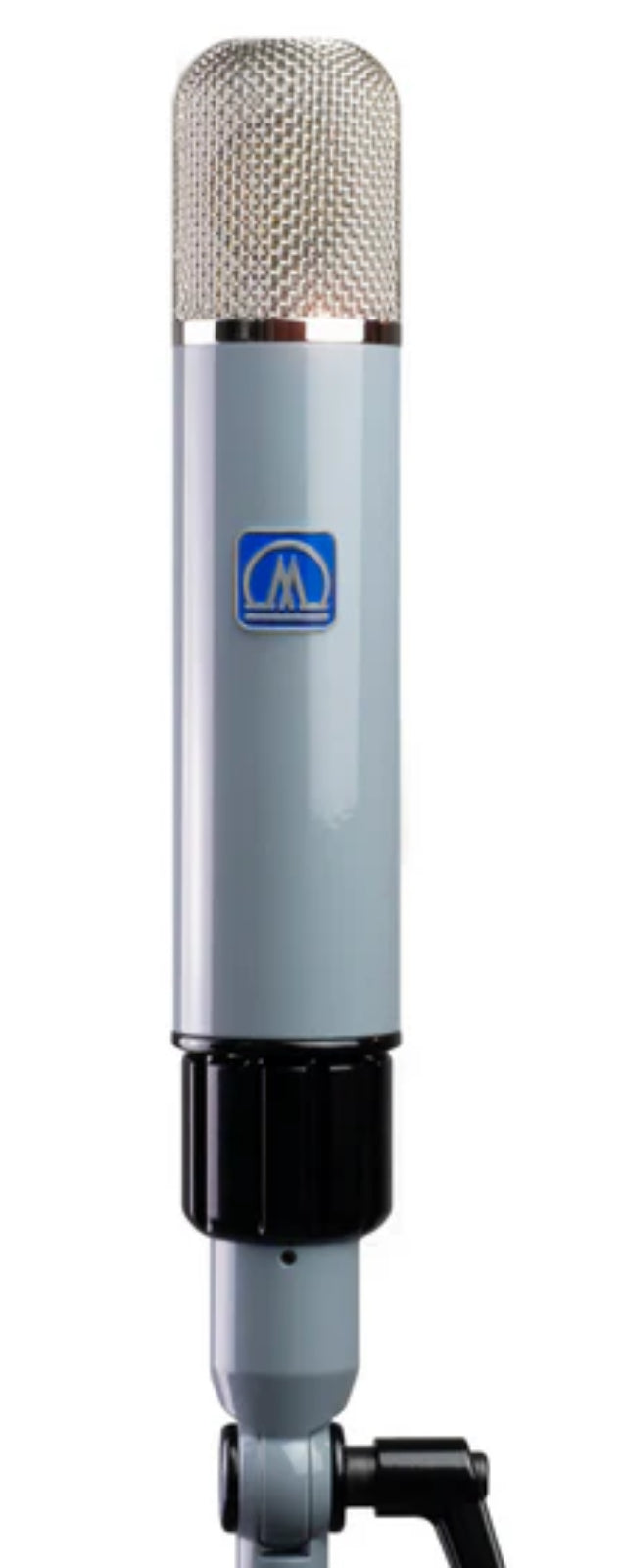

Essential Information About the Myburgh M1 Tube Condenser Microphone
Essential Information About the Myburgh M1 Tube Condenser Microphone
- High-End Sound Signature: M7 Thiersch Mylar capsule for natural mid presence, silky highs, and defined lows.
- Next-Generation Electronics: 100% original circuit with selected Russian tube, low noise of 15 dBA, and dynamic range up to 124 dB SPL.
- Total Studio Versatility: Variable directivity from omni to figure-8, with a "100% cardioid" option on the power supply.
- Professional Reliability: Designed and assembled in Germany, custom Pikatron transformers, 7 m Mogami cable, and waterproof flight case.
Manufacturer Information
MYBURGH
------------------------
Safety manager:
Email:
Address:
A Reinvented German Heritage
The M1 follows the tradition of great German tube microphones while adopting a decidedly contemporary approach. Its M7 Thiersch Mylar capsule captures the spirit of vintage legends, while the completely redesigned electronics aim for precision, stability, and consistency as a modern studio tool.
Designed for Vocals... and Much More
Ideal for demanding vocal recording, the M1 reveals texture without sibilance and maintains exemplary clarity at high gain. It also excels on acoustic guitars, piano, strings, brass, woodwinds, percussion, or as overheads, thanks to its variable directivity and ability to handle powerful sources without perceptible distortion.
Key Features and Innovations
At the heart of the M1, a completely new circuit optimizes dynamics while minimizing noise. The military-grade Russian tube, chosen for thermal stability and longevity, works in conjunction with dedicated Pikatron transformers (microphone and PSU) to ensure clean transient response, precise stereo imaging, and controlled 200-ohm output impedance.
The continuous directivity range-from omnidirectional to figure-8, including cardioid-facilitates advanced recording techniques (solo, duo, MS, stereo pairs). The "100% cardioid" mode accessible from the PSU offers immediate repeatability in sessions. The robust metal construction and acoustically stable design limit unwanted resonances, while the 7-pin Binder and Neutrik XLR connectors, coupled with the supplied Mogami Neglex 3172 cable, ensure reliable and silent transmission.
Sonically, the extended frequency response from 20 Hz to 20 kHz and the linearity of the internal stage (30 Hz to 20 kHz) provide remarkable fidelity. The low self-noise of 15 dBA preserves micro-details, and the maximum SPL of 124 dB allows for powerful recordings without saturation.
Technical specifications
| Frequency response - start | 20 Hz | Capsule | Large Diaphragm |
| Frequency response - end | 20 kHz | Connection | XLR |
| Category | studio microphone | Color | Grey |
| Directivity | omnidirectional, cardioid, bidirectional | ||
| Type | Tube condenser microphone, large diaphragm | Connectors | 7-pin Binder and 3-pin Neutrik XLR |
| Circuit | 100% original and fully redesigned | Cable | Mogami Neglex 3172 (7 m / 23 ft) |
| Tube | Military-grade Russian tube, high stability | Length (mic only) | 22.5 cm (8.85 in) |
| Transformers | Custom-made (microphone + PSU) by Pikatron | Length with swivel mount | 35.5 cm (14 in) |
| Internal Preamplification | Linear from 30 Hz to 20 kHz | Microphone weight | 0.6 kg (1.3 lb) |
| Output Impedance | 200 ohms | Weight with mount | 1.9 kg (4.2 lb) |
| Frequency Response | 20 Hz - 20 kHz | Shipping weight | 9 kg (20 lb) |
| Sensitivity | 24 mV/Pa | Presentation Case | Custom M1 case |
| Equivalent Noise Level | 15 dBA | Flightcase | Waterproof transport case |
| Max SPL | 124 dB | Mount | Swivel pouch |

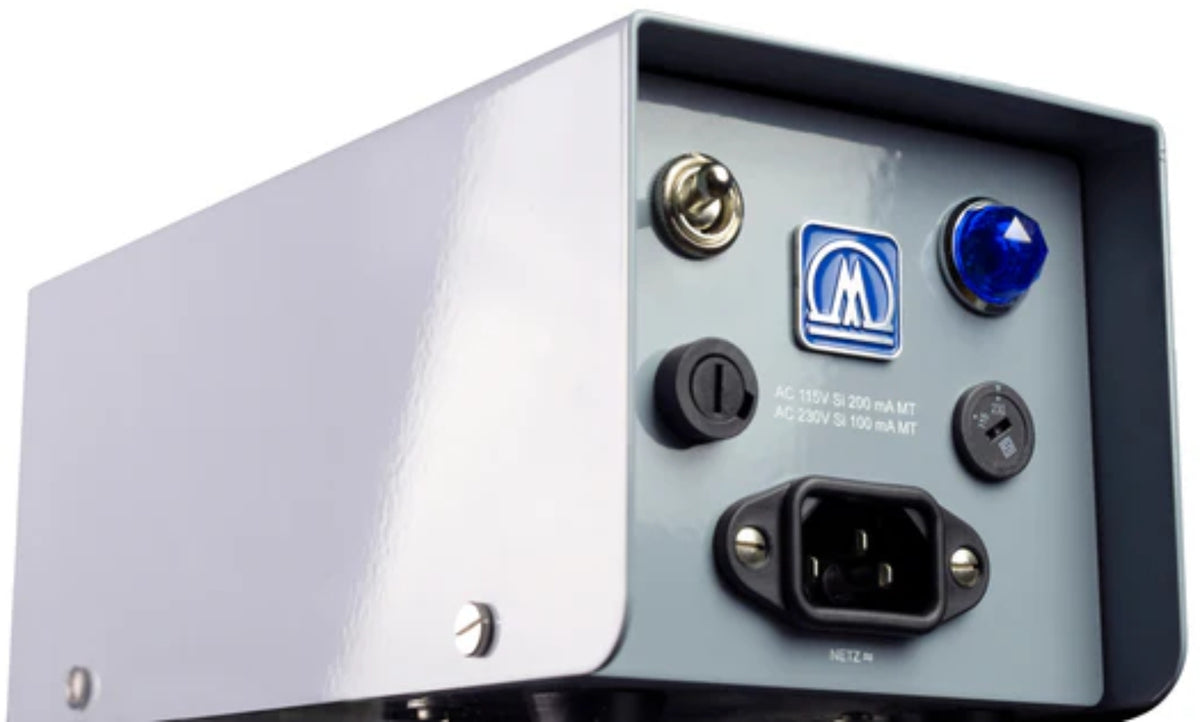

| Polar Patterns | Variable (Omni / Cardioid / Figure 8) + 100% cardioid on PSU | Power Supply | External PSU with directivity selector |
| Body | Robust metal, acoustically stable design | ||
You will also like
Neumann
M49V Set
Golden Age Audio
ELA M251E
Neumann
U67
Neumann
U87 AI Stereo Set
AKG
C12VR
Neumann
M150
Chandler Limited
REDD Microphone
Neumann
M149
Questions frequently asked
Is the MYBURGH M1 suitable for recording vocals?
Its M7 Thiersch Mylar capsule and sensitivity of 24 mV/Pa are suited for detailed vocal capture. The equivalent noise level of 15 dBA helps preserve nuances on quiet sources.
What polar patterns are available on this valve microphone?
The polar pattern is continuously adjustable between omnidirectional, cardioid, and figure-8 from the external power supply. A 100% cardioid mode is also accessible on the PSU to instantly recall this setting.
Can the M1 be used on loud instruments?
With a maximum SPL of 124 dB, this model can be placed on drums, brass, or as overheads. The stated frequency response ranges from 20 Hz to 20 kHz. The internal preamp stage is linear from 30 Hz to 20 kHz.
What cable is supplied with the microphone?
A 7 m Mogami Neglex 3172 cable is included, with a 7-pin Binder connector on the microphone side and an XLR connection on the external power supply side.

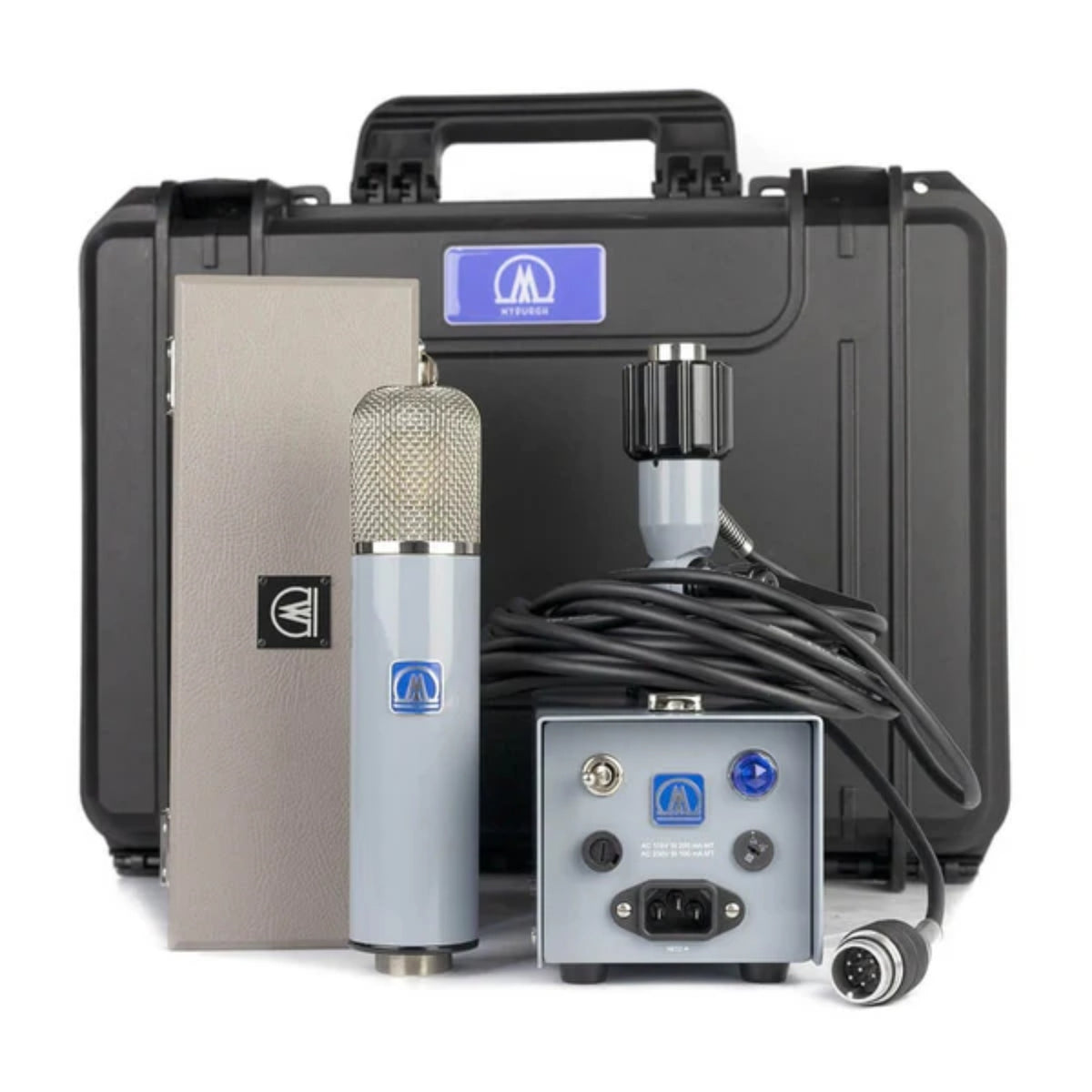

What accessories come with the MYBURGH M1?
The package includes an external PSU with polar pattern selector, a custom M1 case, and a waterproof carrying case. A swivel mount is also provided; the combined weight of microphone and mount is 1.9 kg.
