An Icon Reinvented with Respect
Born in the 1950s, the M 49 established itself as one of the most influential tube microphones in studio history. This revision respects its DNA while introducing subtle modern refinements to recapture the "magic" of the originals with the reliability expected today. The result: the broad and silky texture that made its reputation, now optimized for contemporary workflows.
Who and What For?
The M 49 is a premium choice for sung vocals, voice-over, and solo instruments requiring a warm presence and authoritative low end. Its variable directionality allows shaping the soundstage according to the room, placement, and desired aesthetic, whether for an intimate vocal recording or a detail-rich acoustic ensemble.
Features and Innovations That Make the Difference

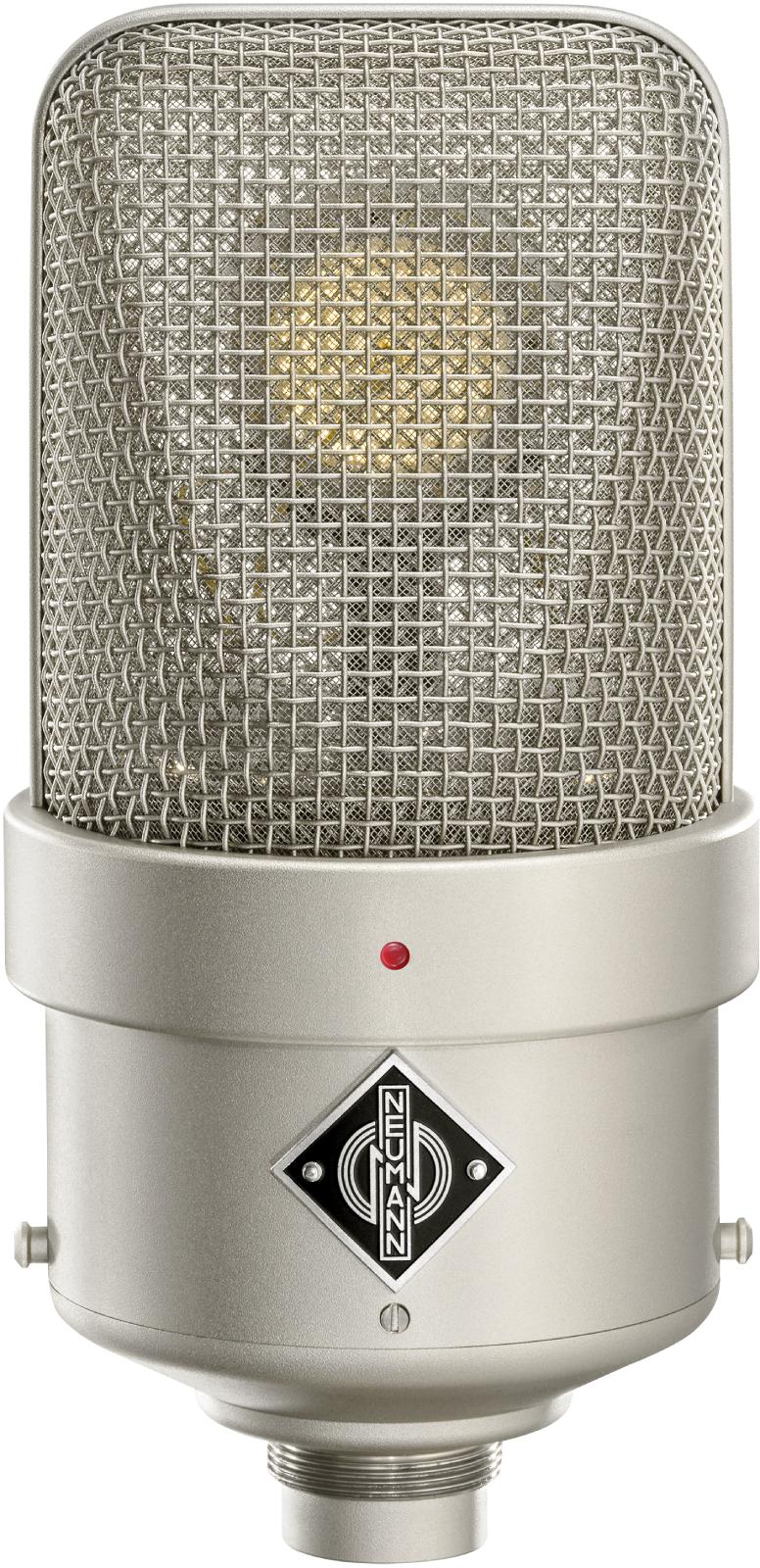

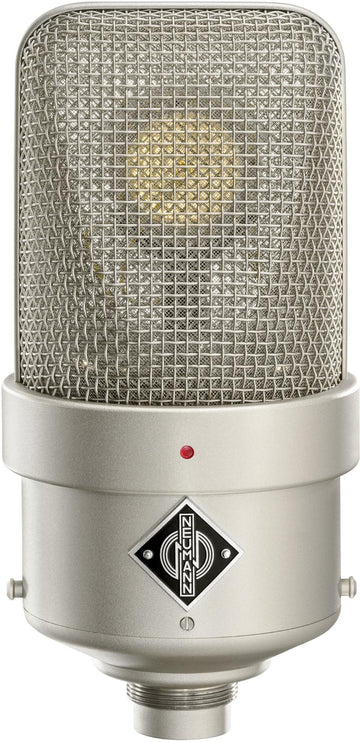

At the heart of the M 49, a large diaphragm capsule and tube electronics operating as a pressure gradient receiver produce natural transduction with remarkably controlled noise. The external directionality controller allows continuous adjustment of polar patterns, ensuring consistent off-axis response and excellent room management.
Two "built to order" options enhance its modern performance. First, the bass extension down to 12 Hz lowers the high-pass filter cutoff frequency (from 30 Hz), an asset for capturing the foundation of low voices or the dimension of a room without cutting the sub-bass. Second, the fixed cardioid mode - the most used in studios - increases sensitivity by 2 dB while reducing equivalent noise by 3 dB, ensuring a more intimate proximity effect and an even quieter noise floor. These options are factory-set and not user-adjustable.
Technical specifications
| Frequency response | 40 Hz - 16 kHz | Capsule | Large Diaphragm |
| Category | studio microphone | Connection | XLR |
| Directivity | omnidirectional, cardioid, bidirectional | Color | Grey |
| Type | Large diaphragm tube microphone | Maximum sound pressure level for k < 0.5% | 125 dB (cardioid) |
| Acoustic principle | pressure gradient receiver | BTO fixed cardioid mode option | +2 dB sensitivity and -3 dB equivalent noise |
| Directionality | variable at a distance (omnidirectional, cardioid, figure-8) | Nominal output impedance | 200 Ohms |

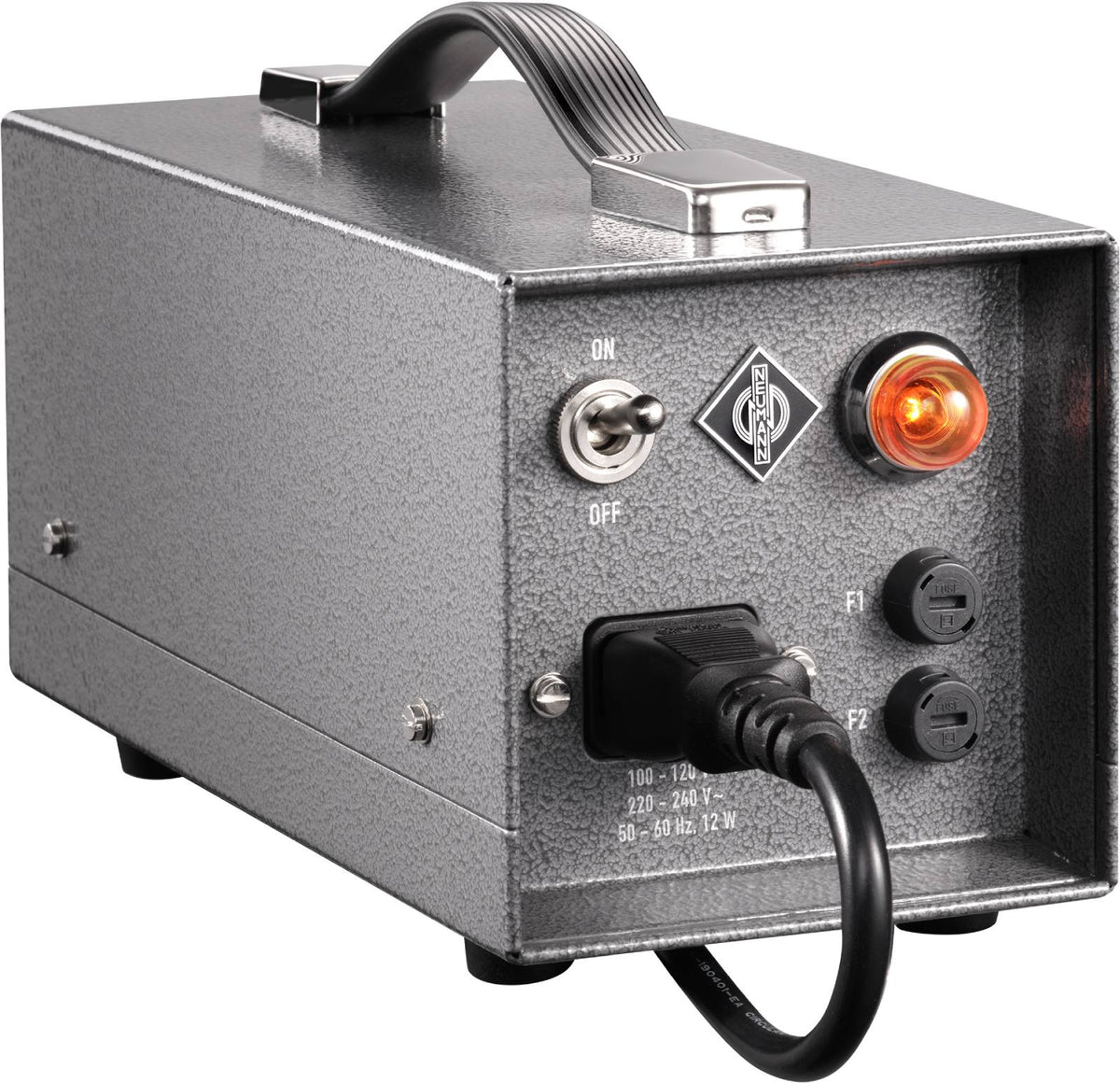

| Directionality control | NM V controller included | Nominal load impedance | 1000 Ohms |

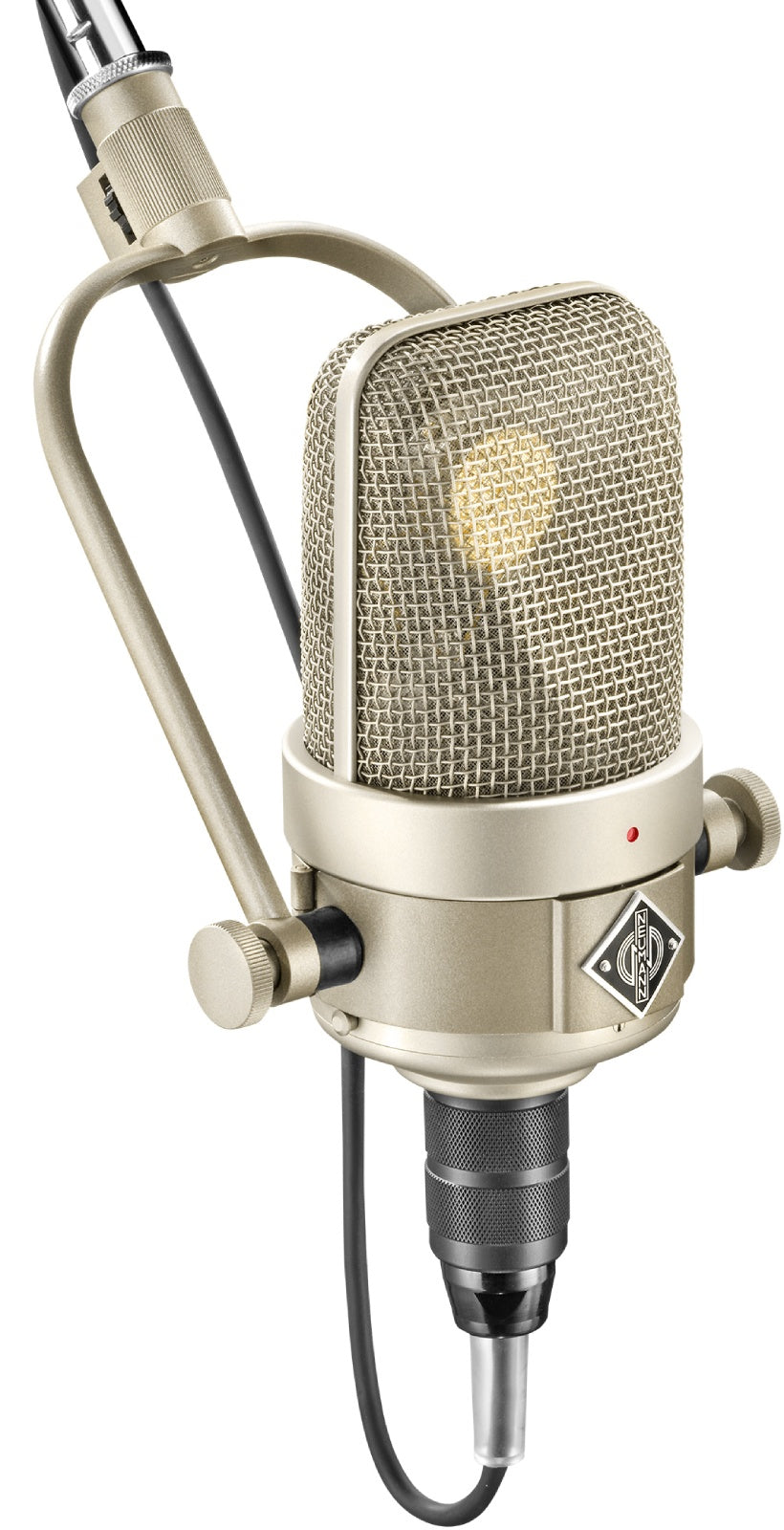

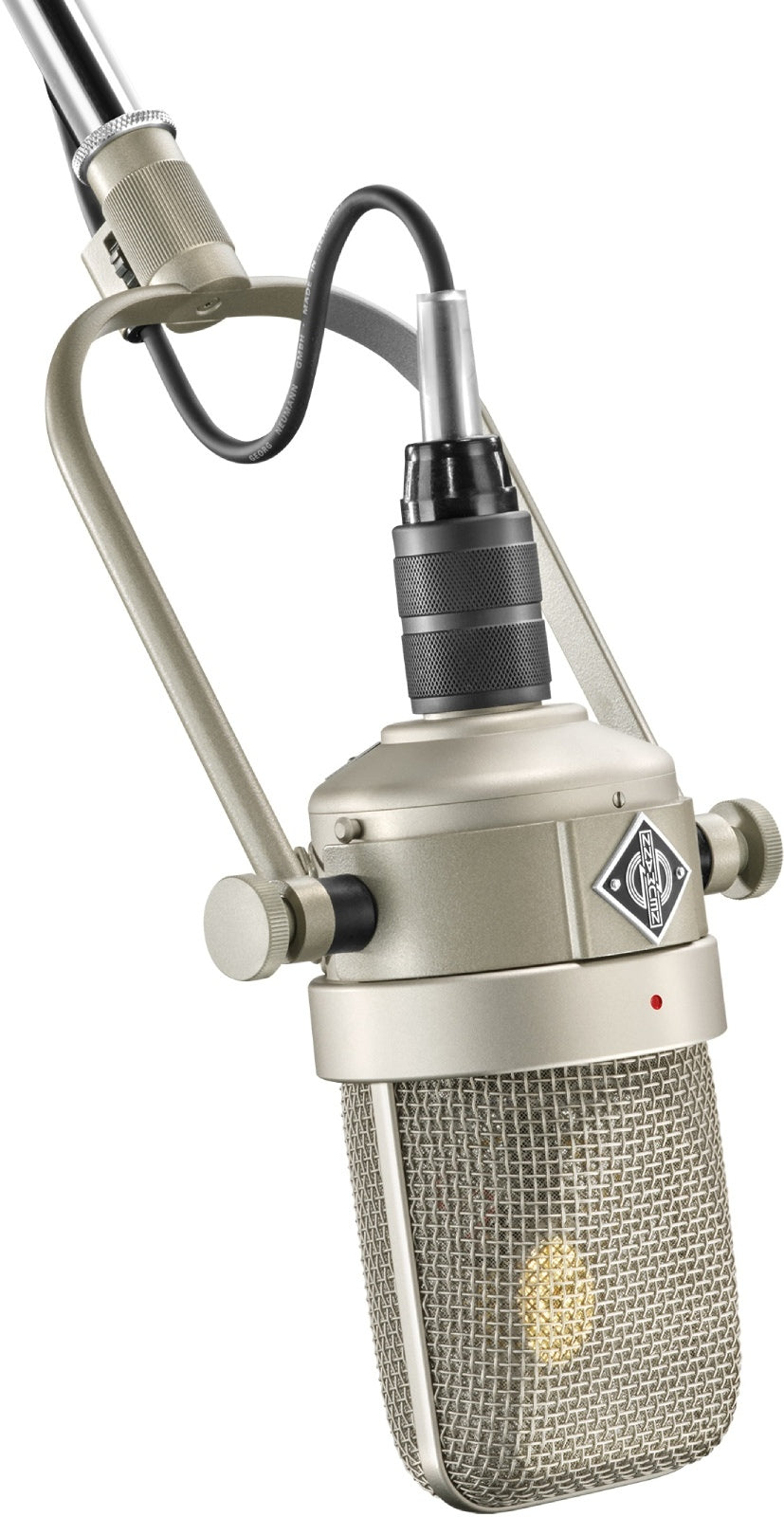

| Typical sensitivity | 6.5 / 8 / 10 mV/Pa (+/-1 dB), equivalent to -43.5 / -42 / -40 dBV | Included accessories | NM V directionality controller, KC5 cable, MZ 49A elastic suspension |
| BTO option | bass extension and high-pass cutoff lowered to 12 Hz | Microphone dimensions (L x Ø) | 163 x 80 mm |
| Signal-to-noise ratio (A-weighted) | 73 / 74 / 75 dB | Microphone weight | 800 g |
| Equivalent noise level (A-weighted) | 21 / 20 / 19 dB-A | ||
Questions frequently asked
Is the Neumann M49V Set suitable for vocal recording?
Its large diaphragm capsule and tube electronics are designed for sung vocals and voice-over work. The frequency response ranges from 40 Hz to 16 kHz, with a maximum sound pressure level of 125 dB SPL in cardioid mode for k < 0.5%.
How to adjust the microphone's directionality?

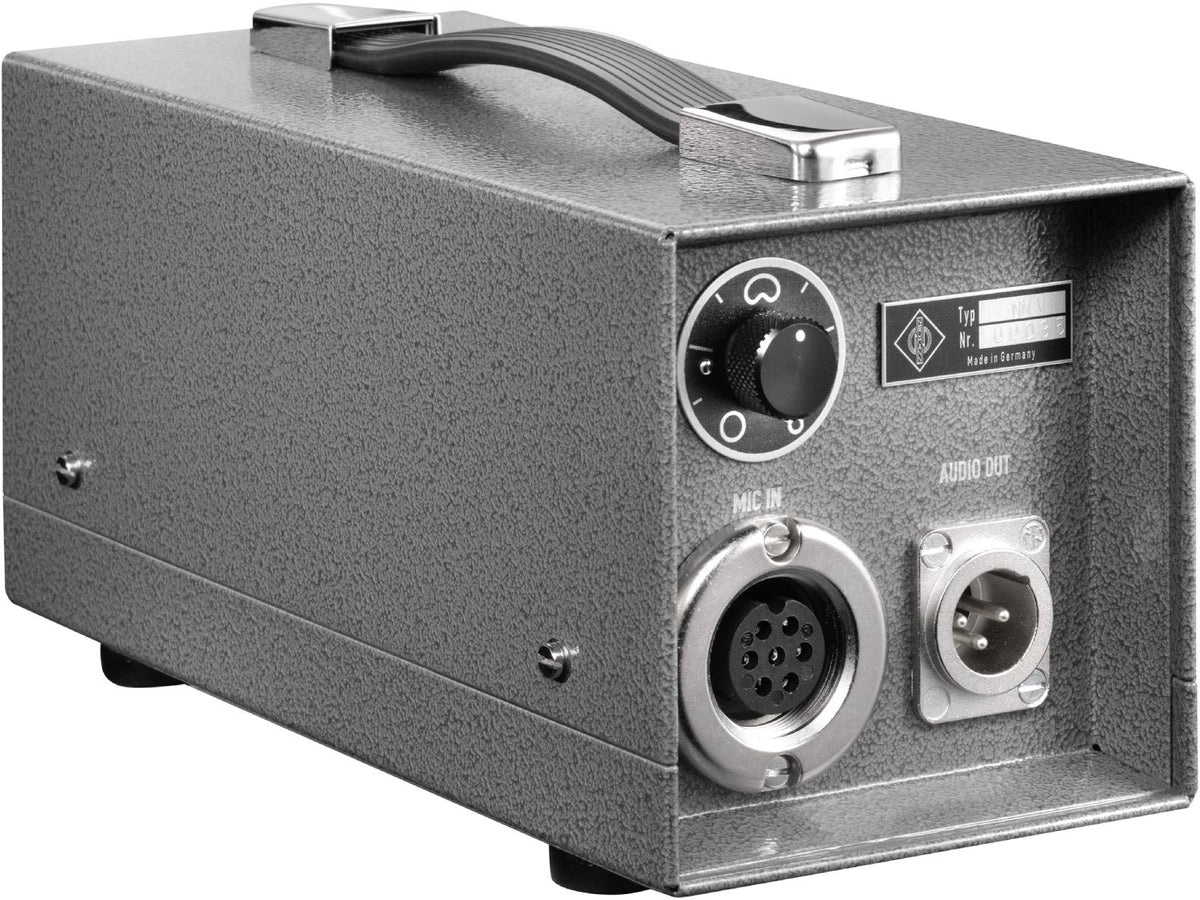

The included external NM V controller allows continuous adjustment between omnidirectional, cardioid, and figure-8 patterns. This control enables adaptation of the pickup to the room and source placement.

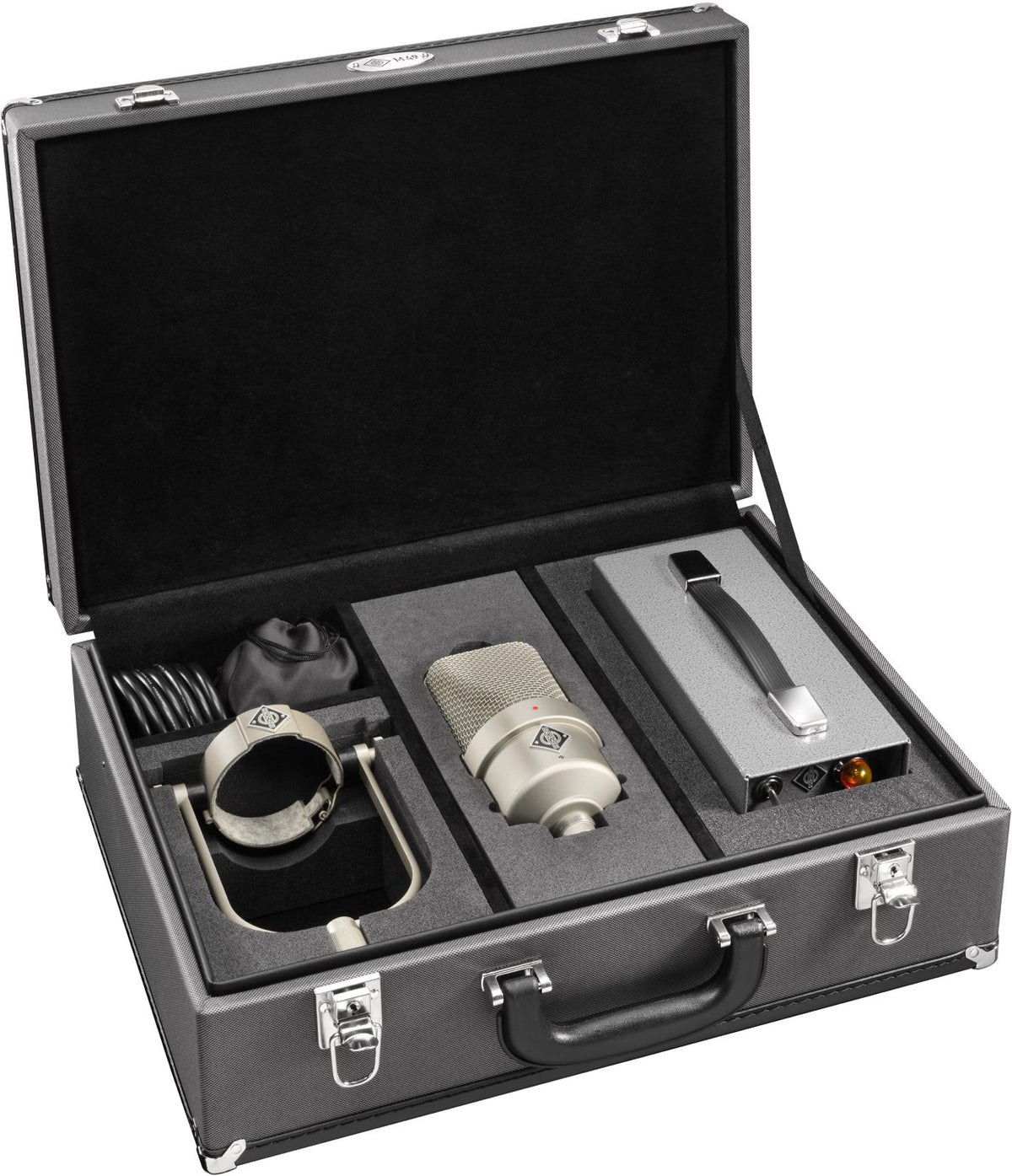

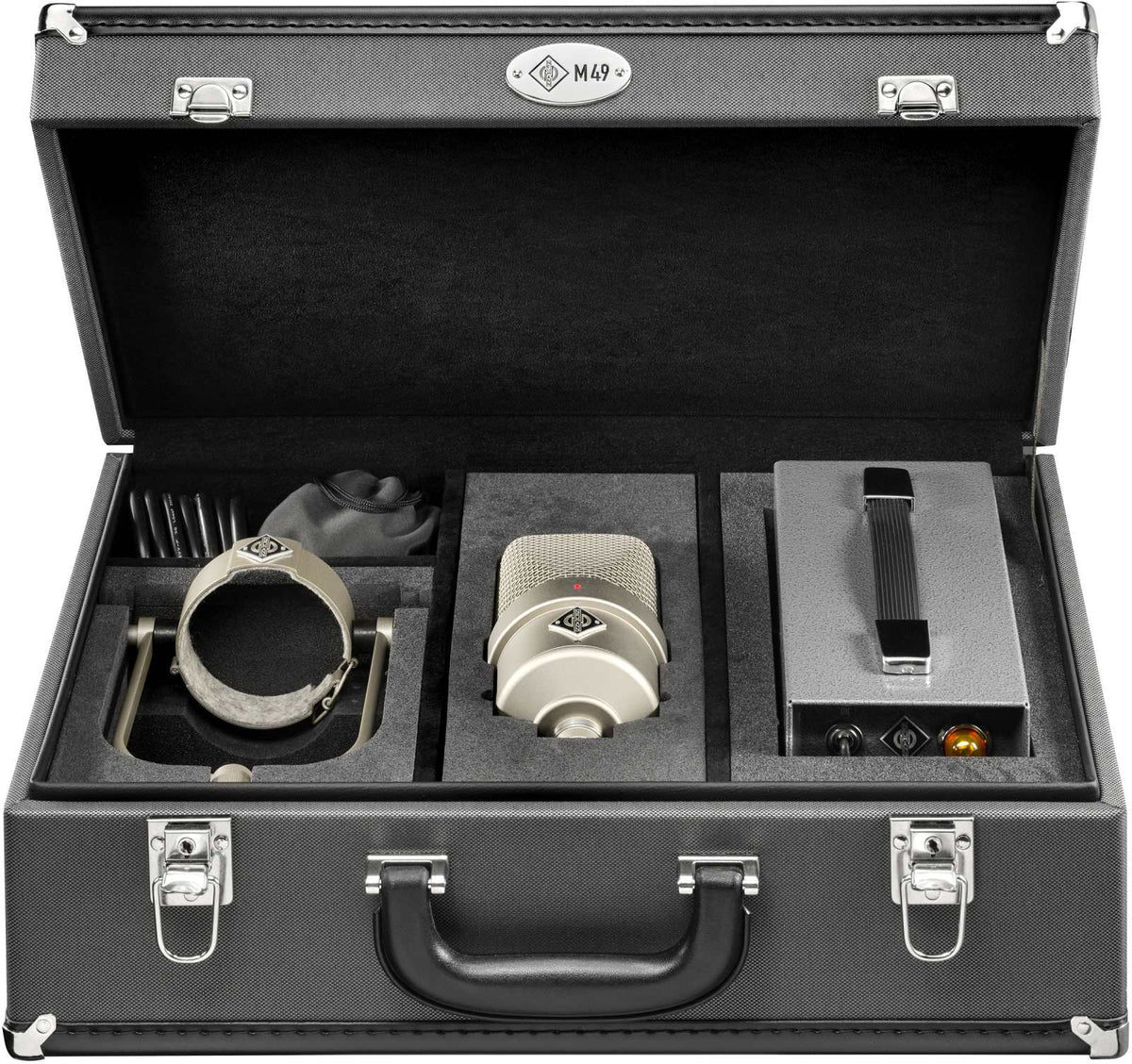

What accessories are included with this tube microphone?
The directionality controller NM V, the KC5 cable, and the MZ 49A elastic suspension are provided.
What type of connector and impedance does the M49V Set have?
The output uses an XLR connector with a nominal impedance of 200 ohms. A nominal load impedance of 1,000 ohms is specified.
Can the M 49 BTO options be added after purchase?
The built-to-order options are factory-set and cannot be modified by the user. The bass extension lowers the high-pass filter to 12 Hz instead of 30 Hz. The fixed cardioid mode adds 2 dB of sensitivity and reduces equivalent noise by 3 dB.
