A Modern Classic in the Series 180
Spiritually descended from the legendary KM 84, the KM 184 is at the heart of Neumann's Series 180 fixed capsule microphones (alongside the KM 183 and KM 185). It carries forward the neutrality DNA that has built the brand's reputation, while modernizing the electronics and ergonomics to meet today's studio and stage demands.
Who Is It For and What Are Its Uses?
Designed for demanding sound engineers, producers, and recordists, the KM 184 excels on acoustic instruments: piano, guitar, strings, woodwinds, brass, percussion, and drums. Its discreet size makes it an ally for TV/radio recording. In pairs, it shines in XY, ORTF, or NOS configurations for coherent stereo, suitable for ensembles as well as soloists. It can also be used for classical vocals when authenticity is paramount.
What Makes the Difference in Studio and on Stage
Its smooth and linear frequency response features a slight boost around 9 kHz to add brilliance without harshness. The frequency-independent cardioid ensures exemplary rear rejection down to low frequencies, limiting off-axis coloration and facilitating placement in complex environments.
The transformerless output circuit guarantees minimal noise, very low distortion, and optimal compatibility with long mic lines. Powered by P48 phantom power, the KM 184 preserves the capsule's sonic integrity, delivering fast transients, a stable image, and precision that make it a versatile reference from classical music to heavy metal.
Technical specifications
| Frequency response | 20 Hz - 20 kHz | Connection | XLR |
| Category | studio microphone | Color | Grey |
| Directivity | cardioid | ||
| Type | Small-diaphragm condenser microphone | Current consumption | 3.2 mA |
| Sensitivity at 1 kHz into 1 k? | 15 mV/Pa +/- 1 dB | Nominal impedance | 50 ohms |
| Equivalent noise level, CCIR | 22 dB | Nominal load impedance | 1 k? |
| Equivalent noise level, A-weighted | 13 dB-A | Connector | 3-pin XLR female |
| Maximum SPL for 0.5% THD | 138 dB | Included accessories | 1x microphone clip and 1x windscreen |
| Signal-to-noise ratio, CCIR (ref. 94 dB SPL) | 72 dB | Diameter | 22 mm |
| Signal-to-noise ratio, A-weighted (ref. 94 dB SPL) | 81 dB | Length | 107 mm |
| Maximum output voltage | 10 dBu | Weight | 80 g |
| Power supply voltage (P48, IEC 61938) | 48 V +/- 4 V | ||
Questions frequently asked
Is the Neumann KM 184 Nickel suitable for recording an acoustic guitar or a piano?
The small diaphragm cardioid capsule is designed for capturing acoustic guitar, piano, strings, woodwinds, and percussion. Its frequency response from 20 Hz to 20 kHz features a slight boost around 9 kHz.
Can two KM 184s be used for stereo recording?
With two microphones, stereo techniques such as XY, ORTF, or NOS can be implemented for recording ensembles or soloists.
What power supply is required for the KM 184?
48 V phantom power (P48) is required, with a tolerance of ± 4 V. The current consumption is specified as 3.2 mA. The connection is made via XLR.
Can the KM 184 handle high sound pressure levels?
The maximum sound pressure level reaches 138 dB SPL at 0.5% total harmonic distortion. This rating allows for capturing percussion and drums.

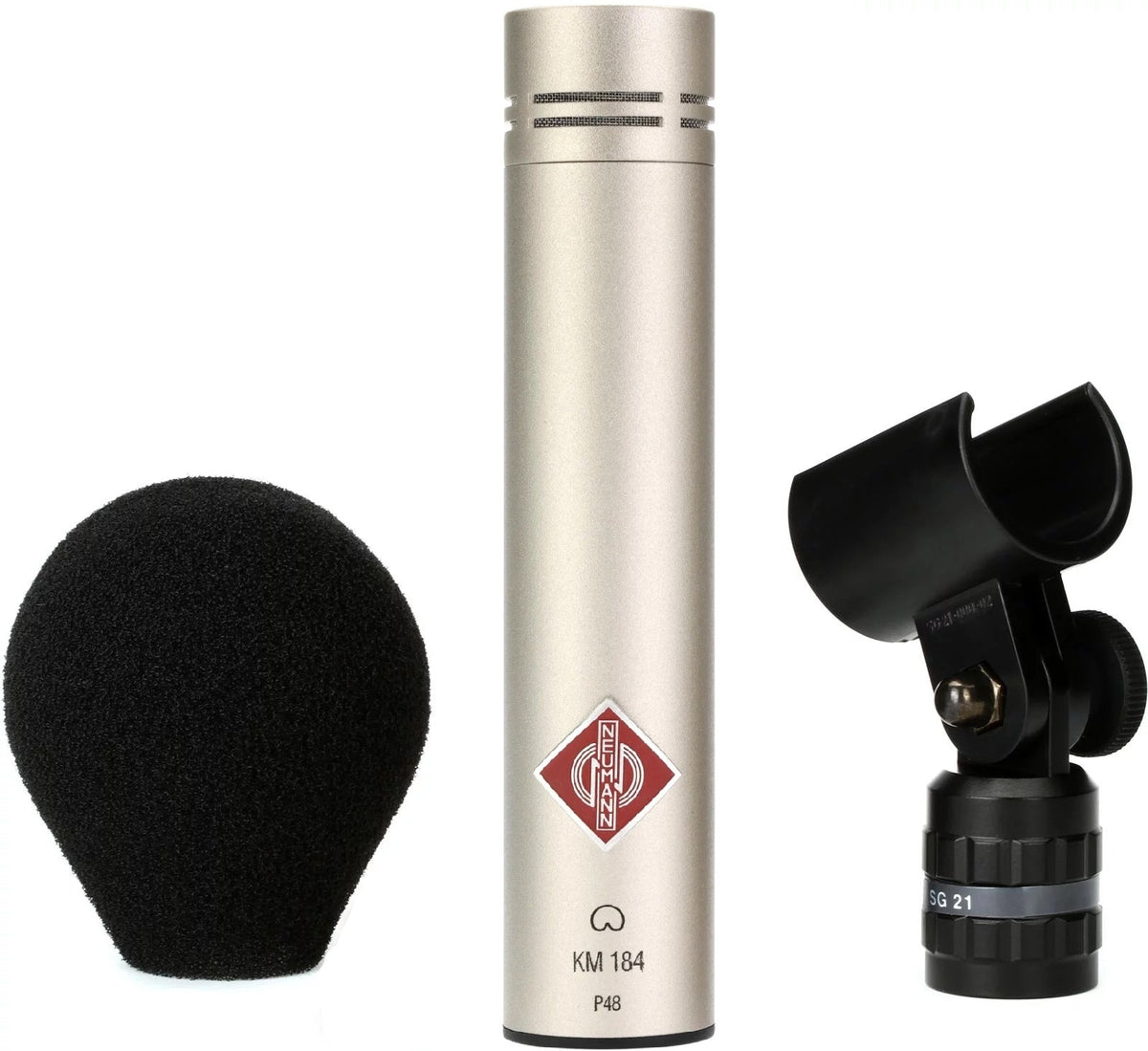

What accessories are included with this microphone?
The package includes a microphone clip and a windscreen. The body measures 107 mm in length with a 22 mm diameter and weighs 80 g.
