A Tribute to Vintage Small Diaphragms, Signed Warm Audio
The WA-84 is inspired by classic circuits that shaped reference recordings. While many modern SDCs have abandoned the transformer to reduce costs, Warm Audio brings back a transformer-coupled architecture with a Cinemag USA, delivering the warmth and "analog" breadth sought by sound engineers.Who Is It For and What Are Its Uses?
Ideal for home studio creators as well as professional studios, the WA-84 excels in close miking of guitars and pianos, drum overheads, string ensembles, and broadcast recording. Its balanced sensitivity and low self-noise favor detailed captures, while the -10 dB pad preserves headroom on loud sources.Design and Sonic Innovations
Cinemag Transformer and Selected Components
The heart of the WA-84 combines a nickel Cinemag transformer with Fairchild transistors and Wima capacitors. This component choice, coupled with a fully discrete signal path, delivers high transparency, faithful stereo imaging in pairs, and tight bass without harshness in the highs.Dynamic Control and Reliability in Real Conditions
With its switchable attenuator and ability to handle high SPL levels, the WA-84 effortlessly transitions from delicate arpeggios to energetic toms. The 48 V phantom power, gold-plated XLR output, and 200 Ohm impedance ensure simple and quiet integration into your chain.Technical specifications
| Frequency response | 20 Hz - 20 kHz |
| Category | studio microphone |
| Directivity | cardioid |
| Connection | XLR |
| Color | Grey |
| Type | Small diaphragm condenser microphone |
| Polar pattern | Cardioid |
| Sensitivity | -39 dB, 11 mV/Pa @ 1 kHz |
| Signal-to-noise ratio | 78 dBA (IEC651) |
| Equivalent noise | 16 dBA (IEC651) |
| Dynamic range | 107 dBA (IEC651) |
| Maximum SPL | 123/133 dB @ 1 kHz, 0.5% THD, pad 0/-10 dB |
| Transformer | Cinemag USA (nickel) |
| Components | Fairchild transistors, Wima capacitors |
| Signal path | Fully discrete |
| Power supply | 48 V phantom |
| Attenuator | 0 dB / -10 dB |
| Output impedance | 200 Ohms |
| Connector | 3-pin gold-plated XLR |
| Weight | 122 g |

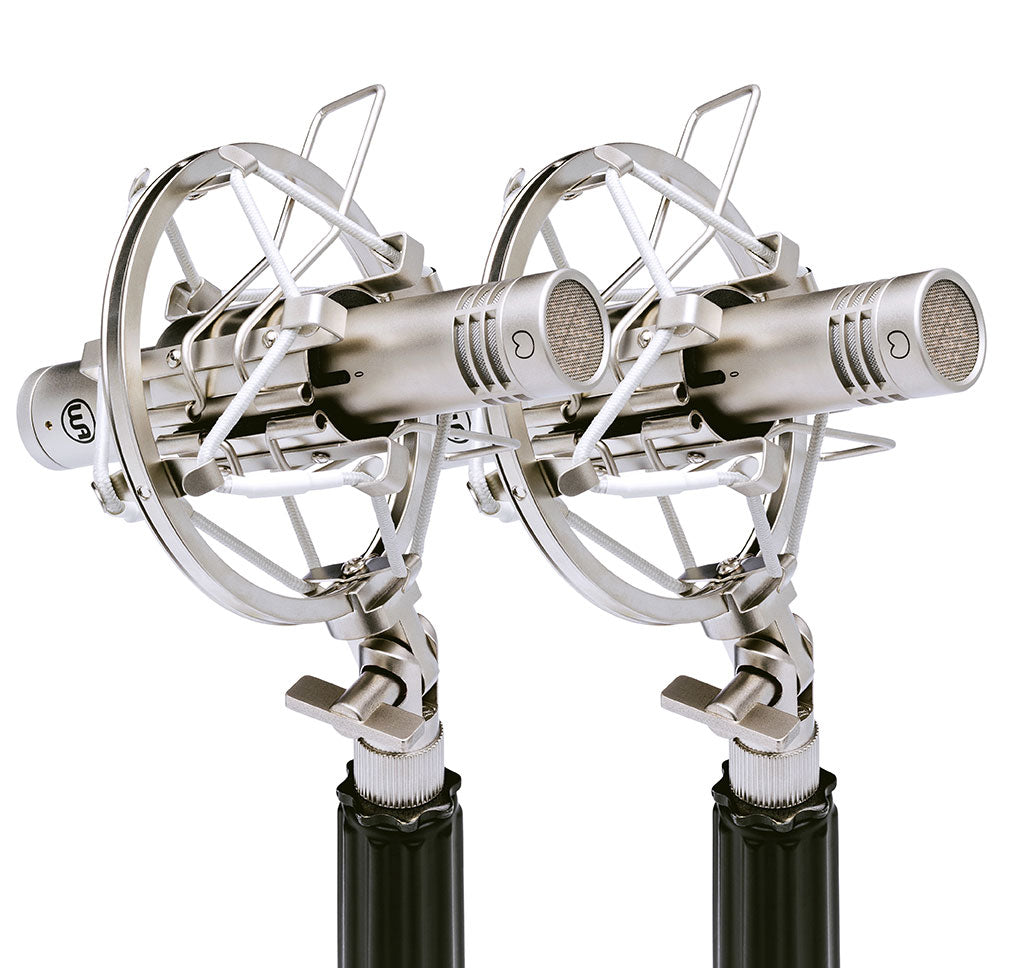

| Included accessories | 2x clips, 2x shock mounts, 2x windshields, carrying case |
Questions frequently asked
Is the Warm Audio WA-84 Nickel Stereo suitable for drum overheads?
The pair is suitable for drum overheads and can handle up to 133 dB SPL at 1 kHz with the -10 dB pad engaged. The cardioid polar pattern helps focus on the sound source.
What power supply is required for these microphones?
A 48 V phantom power supply is required. The connection uses XLR, with an output impedance of 200 ohms.
Is the -10 dB pad on the WA-84 intended for loud sound sources?
The switchable 0/-10 dB attenuator increases the maximum SPL from 123 to 133 dB at 1 kHz for 0.5% total harmonic distortion. It can thus be engaged when recording loud sound sources.
What accessories are included with the stereo pair?
Two clips, two shock mounts, two windshields, and a carrying case are included.
What is the design character of the WA-84 Nickel Stereo?
The fully discrete circuit features a Cinemag USA nickel transformer, Fairchild transistors, and Wima capacitors. The sensitivity is -39 dB, equivalent to 11 mV/Pa at 1 kHz. The equivalent noise level is specified at 16 dBA according to IEC651.
