What you need to know
What you need to know

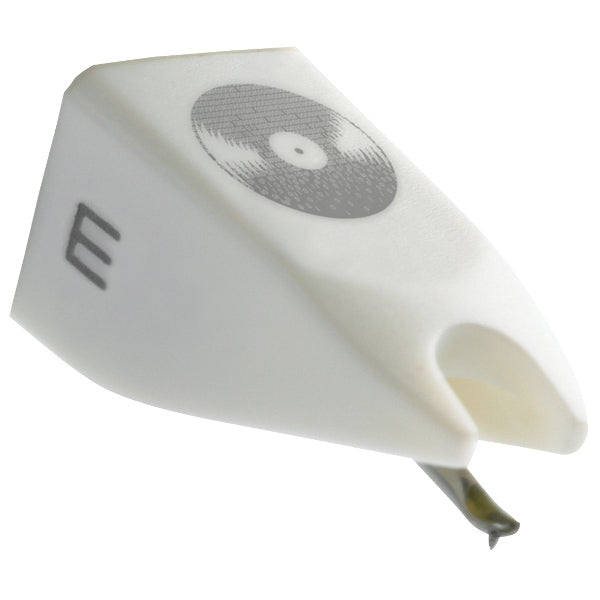

- Replacement diamond compatible with the Ortofon Concorde Arkiv cartridge
- Special elliptical stylus tip for more detailed playback and better extension in the high frequencies
- Designed for clear and precise reproduction, ideal for sampling and vinyl-to-digital transcription
- Very good stereo imaging and channel separation for clean recordings
Manufacturer Information
Ortofon
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A Stylus Designed for Transcription and "Studio" Use
The Arkiv series was developed to meet the growing demand for vinyl digitization. This replacement diamond allows you to regain the original playback performance, with a precision-oriented signature, particularly suited for recording, archiving, and sampling.
Who Is It For, and What Are Its Uses?
This stylus is aimed at DJs and vinyl enthusiasts who prioritize fidelity over pure club robustness: home studios, transcription, sample preparation, comparative listening, or DJ setups focused on quality. It is also suitable for users who want to refurbish a Concorde Arkiv without replacing the entire cartridge.
Technical specifications
| Frequency response - start | 20 Hz | Destination | hifi, DJ |
| Frequency response - end | 22 kHz | Diamond tip | elliptical |
| DJing type | Monitoring, Mix | Color | White |
| Category | diamond | Quantity | 1 |
| Type | diamond | ||
You will also like
ORTOFON DJ
STYLUS-dj-s A
ORTOFON DJ
Stylus Q-bert
ORTOFON DJ
Stylus Night Club MKII E A
ORTOFON DJ
Stylus CC MKII Scratch
Ortofon Hifi
STYLUS 2M RED
ORTOFON DJ
Stylus DJ E
Ortofon Hifi
STYLUS 3E
RELOOP DJ
Stylus Green
Questions frequently asked
Is the Ortofon Arkiv E stylus suitable for vinyl digitization?
Its special elliptical tip is designed for detailed playback, with a frequency response from 20 Hz to 22 kHz. This configuration is intended for recording, archiving, and sample preparation work.
What tracking force should be set with this stylus?
The recommended tracking force is 3.0 g (30 mN), within an adjustable range between 2.0 and 4.0 g.
Is it possible to replace only the stylus of a Concorde Arkiv?
This replacement stylus allows restoring a Concorde Arkiv without changing the entire cartridge. It maintains an output voltage of 6 mV at 1,000 Hz and 5 cm/s. The recommended load is 47 kOhm, with capacitance between 200 and 600 pF.
What is the shape of the Arkiv E stylus tip?
The stylus has an elliptical shape, with an r/R radius of 13/25 µm and a tracking angle of 20°.
Is this stylus suitable for DJ mixing and hi-fi listening?
Intended for DJ and hi-fi use, this model is recommended for listening and mixing. Its tracking ability reaches 80 µm at 315 Hz with the recommended tracking force of 3.0 g.
