Radial DAN-RX2
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

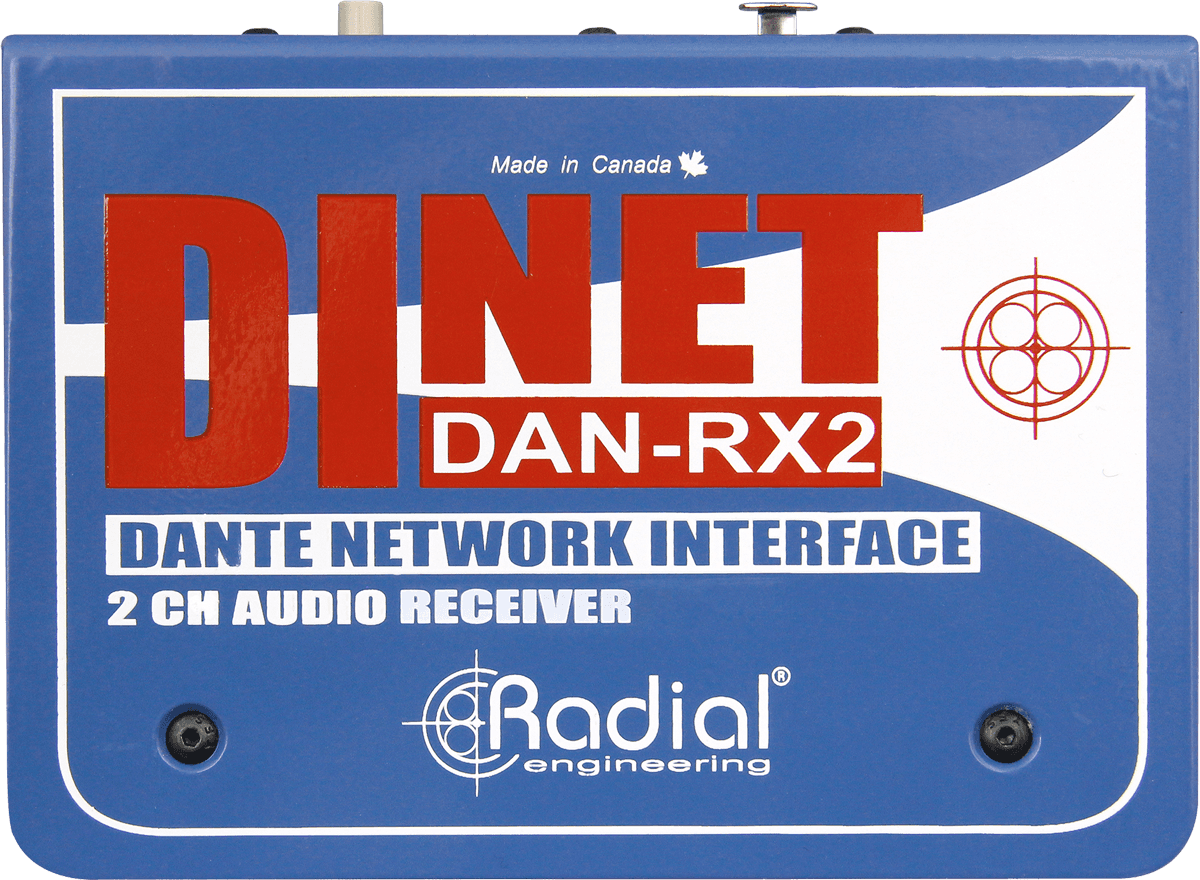

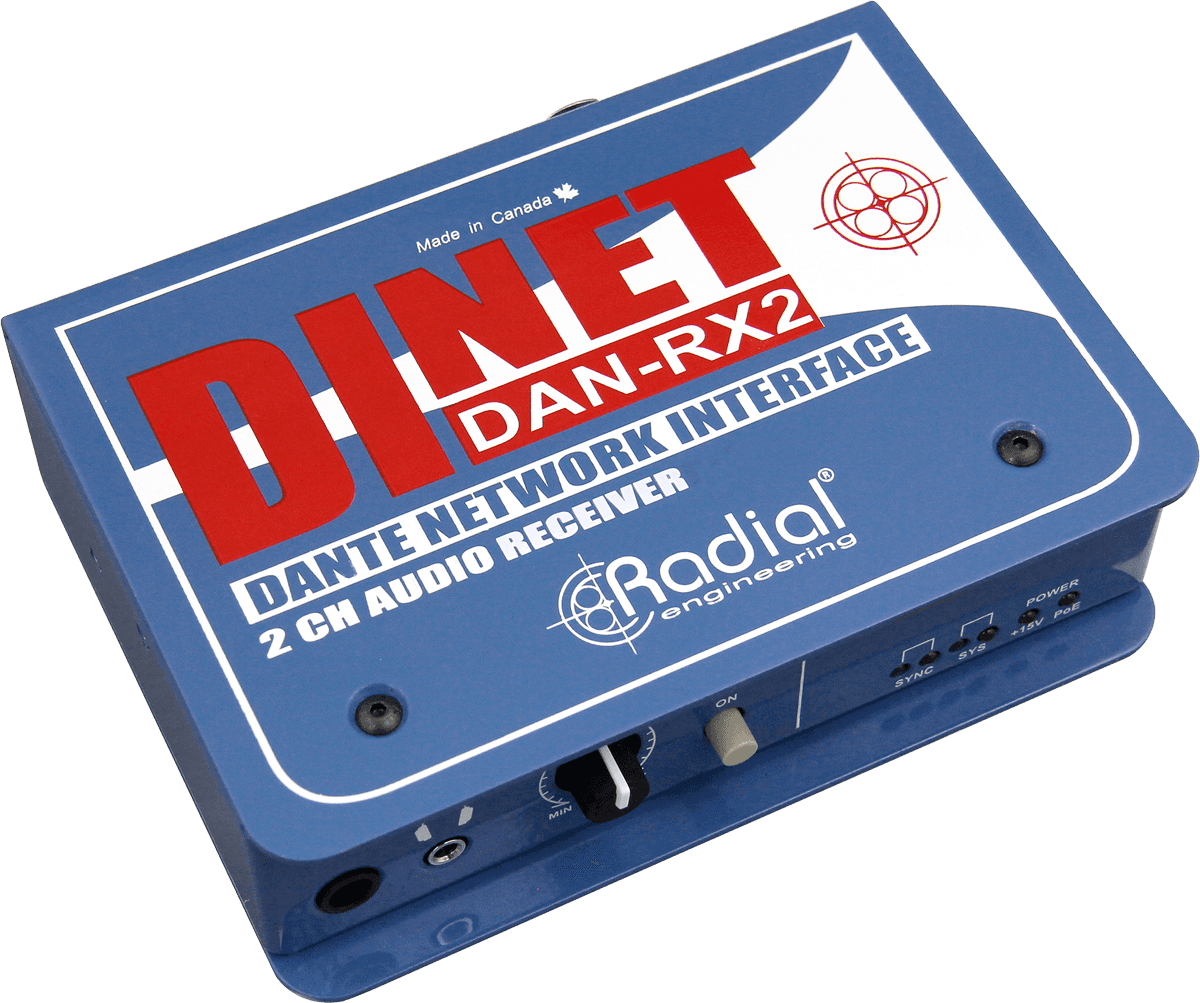

Essential Information About the DAN-RX2 Network Audio Receiver
Essential Information About the DAN-RX2 Network Audio Receiver
- Dante / AES67 to Analog Conversion: retrieves up to 2 audio channels from an audio-over-IP network and delivers them as analog outputs to power a sound system, control room, or broadcast system.

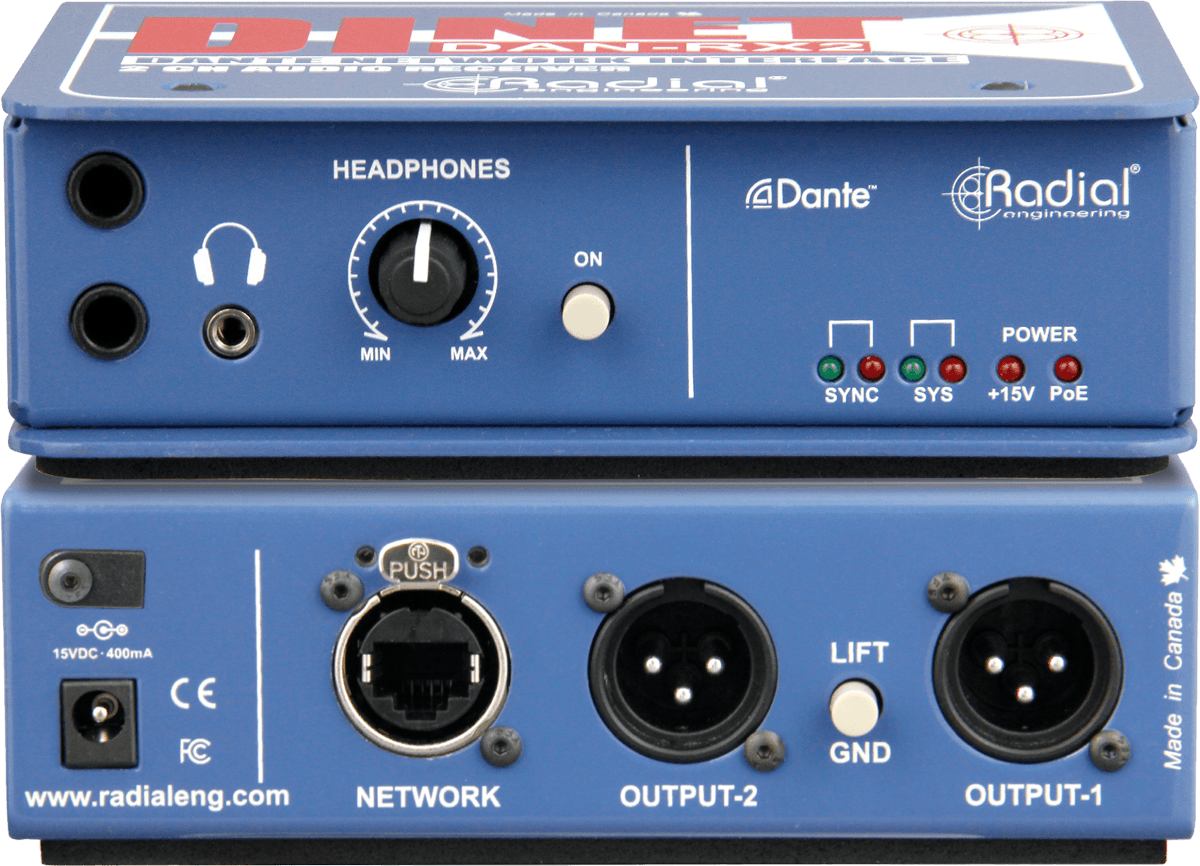

- Balanced XLR Outputs with Ground Lift Switch: ideal for minimizing interference and ground loops in complex installations.
- Built-in Monitoring: separate headphone amplifier with its own level control and 3 headphone outputs (2 x 6.35mm Jack, 1 x mini-jack).
- Secure Power Supply: operates on mains power or via PoE, with the possibility of redundant power by using both simultaneously for critical applications.
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Today's Audio over IP: Dante and AES67 at the Heart of Modern Installations
With the rise of audio-over-IP networks in theaters, houses of worship, auditoriums, and AV integration, Dante has established itself as a flexible audio transport solution, while the AES67 standard facilitates interoperability between devices. The DAN-RX2 fits into this logic: it bridges the digital network and the analog world by offering a reliable output that is easy to deploy and designed for field constraints (network cabling, ground management, local monitoring).
Who is the DAN-RX2 For and What Are Its Use Cases?

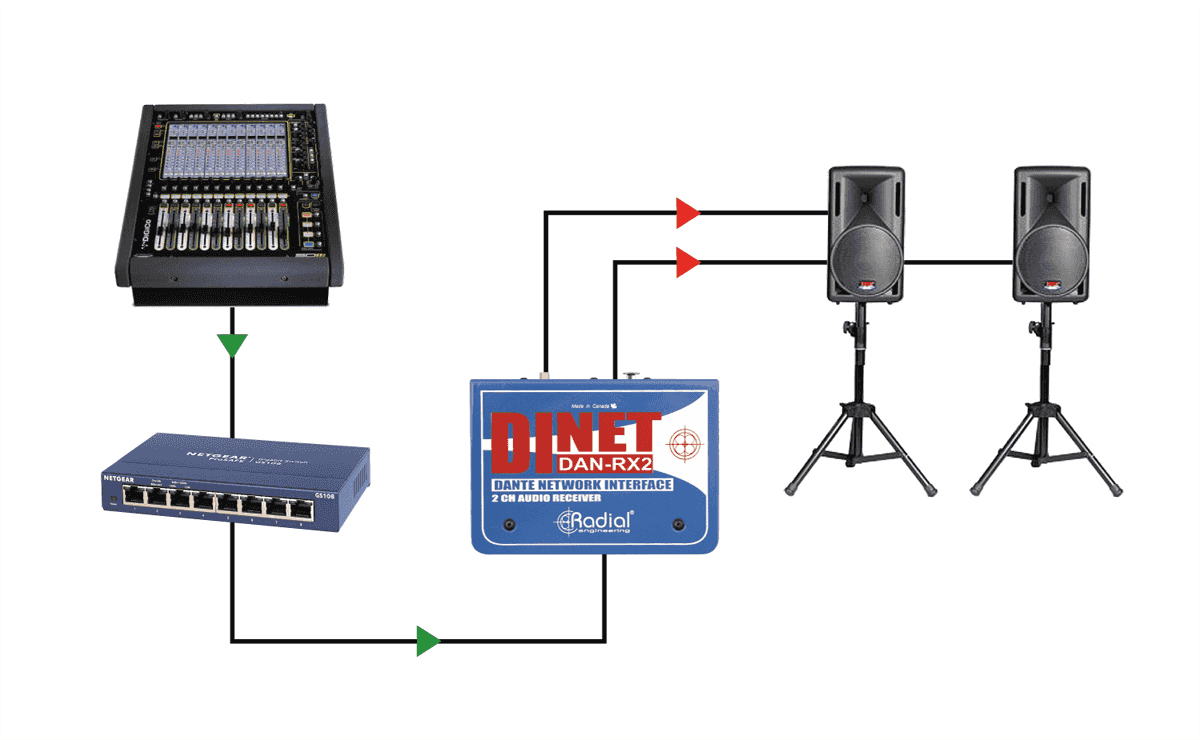

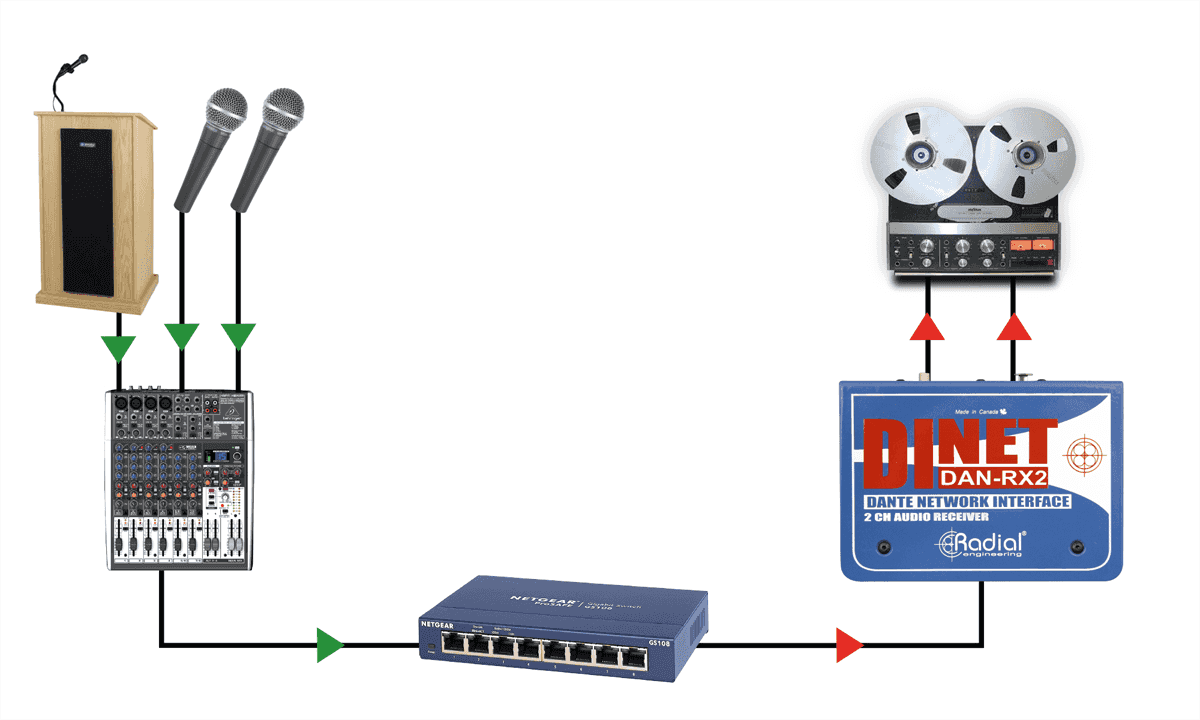

The DAN-RX2 is designed for sound engineers, integrators, and operators who need to cleanly output an analog audio signal from a Dante or AES67 network without complicating the system. It is particularly suitable for powering a pair of active speakers, a power amplifier, an analog console, a broadcast processor, or a monitor zone (lobby, dressing rooms, delay). Its built-in headphone amplifier facilitates quick audio stream monitoring directly at the output point, convenient for both installation and daily operation.
Technical specifications
| Category | audio interface | Power supply | DC 15 V, PoE |
| Number of channels | 2 | Display | LED |
| Digital conversion | 24-bits / 96 kHz | Ports | EtherCon |
| Sampling frequency | 96 kHz | Weight | 1 kg |
| Settings | headphone level | Dimensions (mm) | 270 x 110 x 50 |
| Analog outputs | 2 x Headphones, 2 x XLR, minijack headphone | ||
| Conversion | digital-to-analog conversion of a digital audio signal from a Dante or AES67 network into an analog signal | Input | EtherCon |
| Number of analog channels transmitted | 2 | Resolution and sampling rate | 24-bit / 96 kHz |
| Network compatibility | Dante | Headphone outputs | 3 (2 x 6.35 mm Jack, 1 x mini-jack) with level control |
| Compliance | AES67 standard | Redundant power supply | possible through simultaneous use of the external power supply and PoE |
| Network cabling | EtherCon cat5e or cat6 | Rack mounting | possible with the SA19 rack mounting kit |
You will also like
Rupert Neve Designs
RNDI-S Stereo Active DI
Radial
DAN-TX2
Radial
Sgi-Stereo
Radial
DAN-RX
Palmer
Pmbla Pro
Union Audio
Phoebe RIAA Phono-Reamp
Radial
EXTC-STEREO
Radial
Jdi Duplex DI Passive
Questions frequently asked
Is the Radial DAN-RX2 compatible with Dante and AES67?
The interface receives Dante and AES67 audio streams via its EtherCon port. The conversion to analog is carried out in 24-bit / 96 kHz on 2 channels.
What analog outputs are available?
Two balanced XLR outputs allow connection to active speakers, an amplifier, or an analog console. A ground lift switch is integrated to reduce hum issues related to ground loops.
How many headphones can be connected to the DAN-RX2?
Three headphone outputs are available: two 6.35 mm jacks and one mini-jack. The separate headphone amplifier level is adjusted directly on the device.
Can it be powered via PoE?
Power is supplied via PoE through the EtherCon or by an external DC 15 V power supply. It is possible to use both sources simultaneously for redundant power.
What network cable should be used with this audio interface?
The EtherCon connection is designed for Cat5e or Cat6 network cables. The enclosure measures 270 x 110 x 50 mm and weighs 1 kg.
