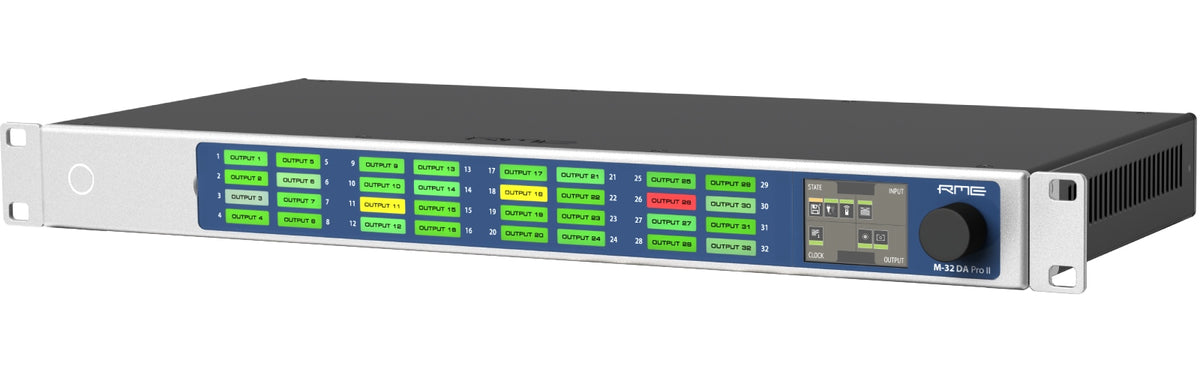

RME M-32 Da Pro II Dante

A New "Pro II" Generation Focused on Performance and Network Integration

The M-32 Pro II series was developed to meet the strictest specifications: professional studios, immersive audio installations, live sound reinforcement, and industrial applications requiring reliable analog conversion combined with high-end audio processing and network transport. This "Pro II" generation emphasizes improved specifications (notably an extremely low THD), intelligent channel routing, and a modernized user interface to speed up commissioning and ensure secure daily operation.

Designed as a high-density conversion platform, the range is built around 32-channel architectures and various audio network options (Dante or AVB), allowing the same hardware base to adapt to your infrastructure constraints: multi-room studios, mobile control rooms, stage racks, or AV over IP networks in corporate environments.

Who the M-32 Pro II Is For: Studios, Live, Broadcast, and Demanding Installations

The M-32 Pro II targets users who need many analog outputs in a compact format, with consistent conversion quality across all channels and robust synchronization. In studios, it becomes an excellent output point to a console, analog summing, parallel hardware processing, or a multi-zone monitoring system. In live and broadcast environments, its 1U density and network interfaces allow clean audio distribution between stage, control room, and technical racks, while maintaining professional level references.

For fixed installations (immersive, museums, houses of worship, corporate), its routing options and preset memories facilitate scenario management (operating modes, recalls, quick reconfigurations). Physical channel labeling and level display (peak / RMS) simplify maintenance and reduce errors during interventions.

Key Features: Balanced Conversion, Supervision, Presets, and Synchronization

32-Channel Conversion and Analog Stage Designed for Professional Level

This model is a 32-channel DA converter with resolution up to 24 bits / 192 kHz. Its fully balanced circuit design aims for clean transmission and excellent noise immunity, suitable for long analog runs and electrically noisy environments. With a 120 dBA signal-to-noise ratio, it is built to preserve the dynamics and precision of mixes, including on high-power systems or highly revealing monitoring chains.

Local Control, Quick Level Reading, and Field Labeling

The M-32 Pro II features a large backlit tricolor channel display with peak / RMS indication to immediately visualize signal behavior. A 2" screen combined with a rotary encoder provides direct and full control of the device, convenient in racks when adjusting parameters without a computer. The channel labeling fields with magnetic cover are especially useful for dense systems: improving readability, wiring consistency, and diagnostic speed.

Routing, Presets, and Synchronization Verification Tools

Designed for complex systems, the device offers intelligent channel routing and 5 preset memories for quick configuration recalls. The SyncCheck and ICC functions contribute to overall reliability in multi-clock and multi-protocol environments, where even a slight synchronization mismatch can cause clicks, dropouts, or capture errors. Dedicated I/O (Word Clock, MADI) also allow integration into hybrid architectures, mixing audio networks and traditional digital links.

Technical specifications
